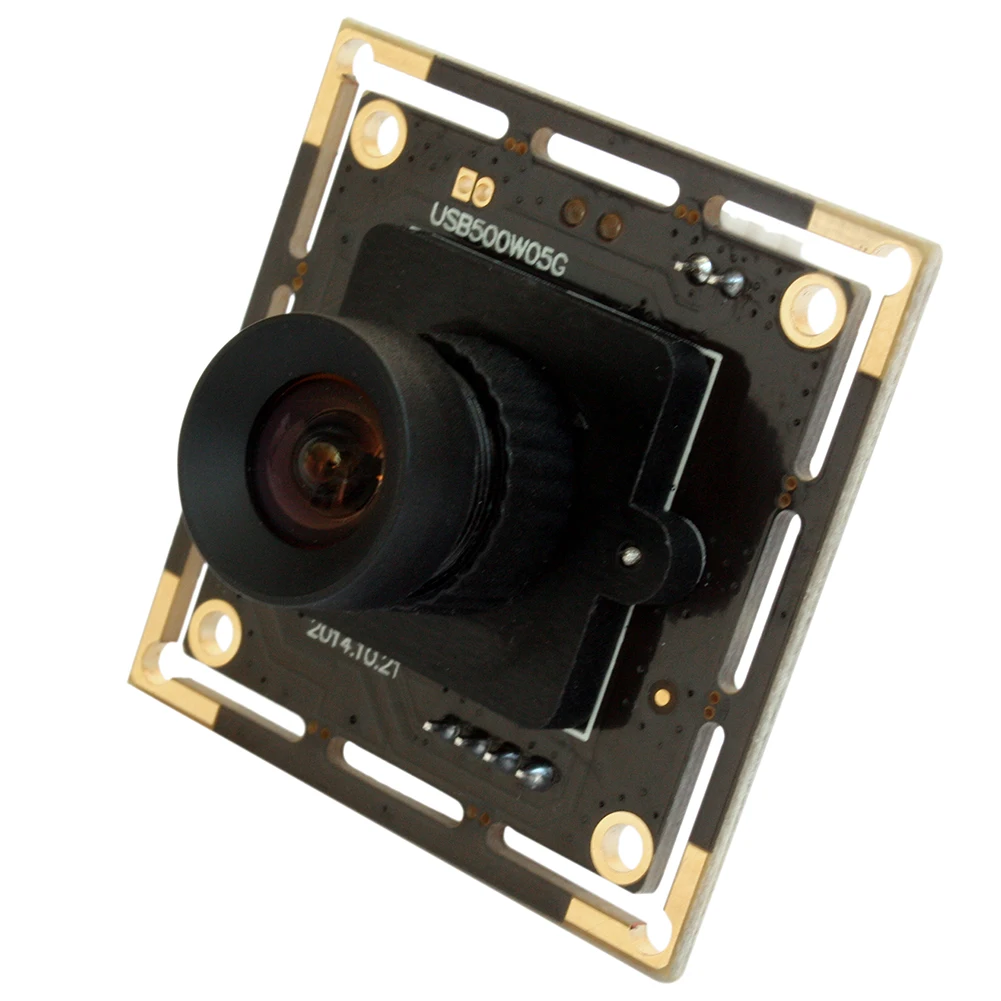

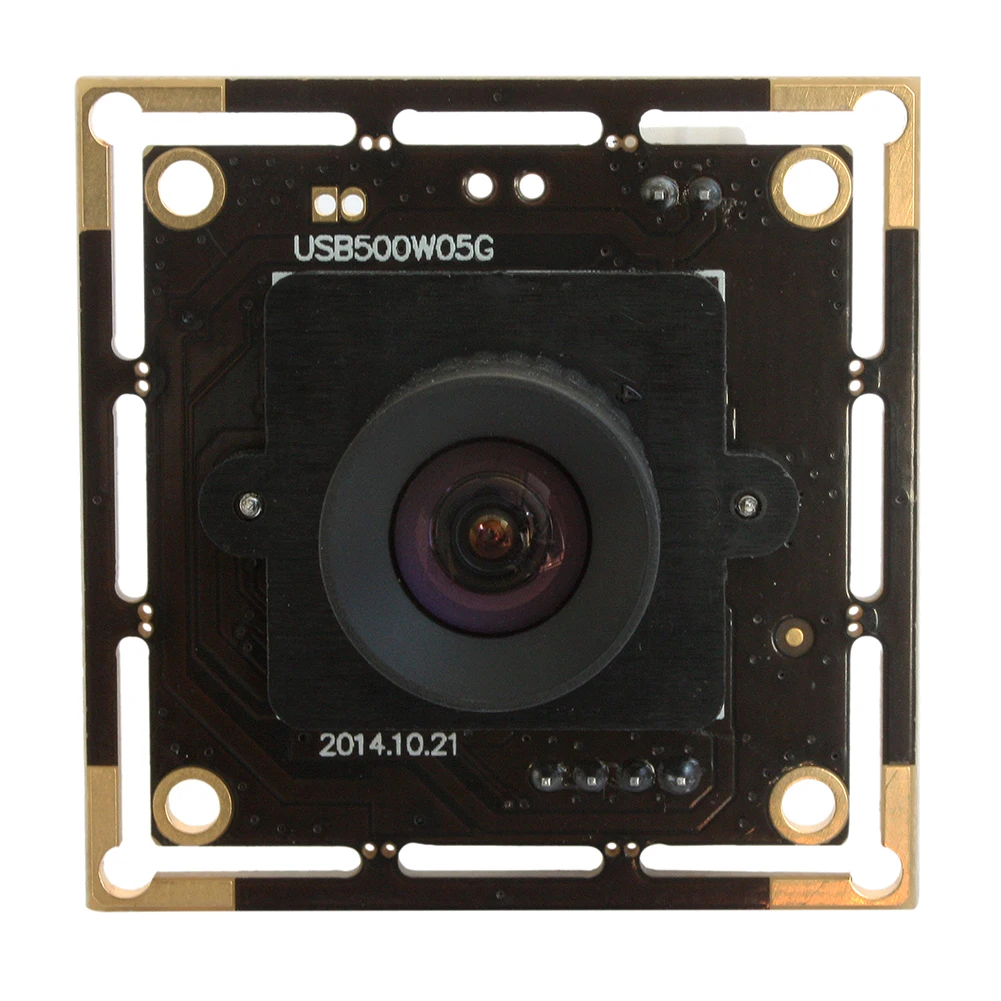

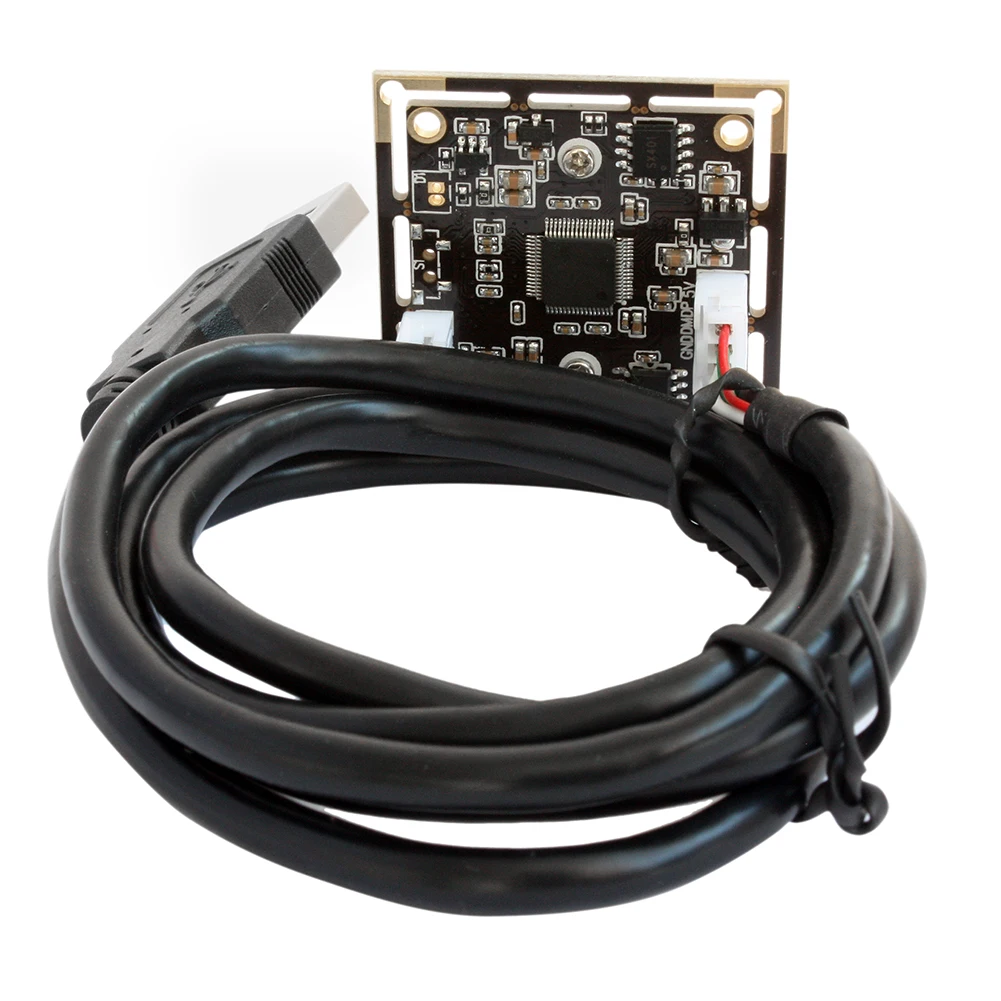

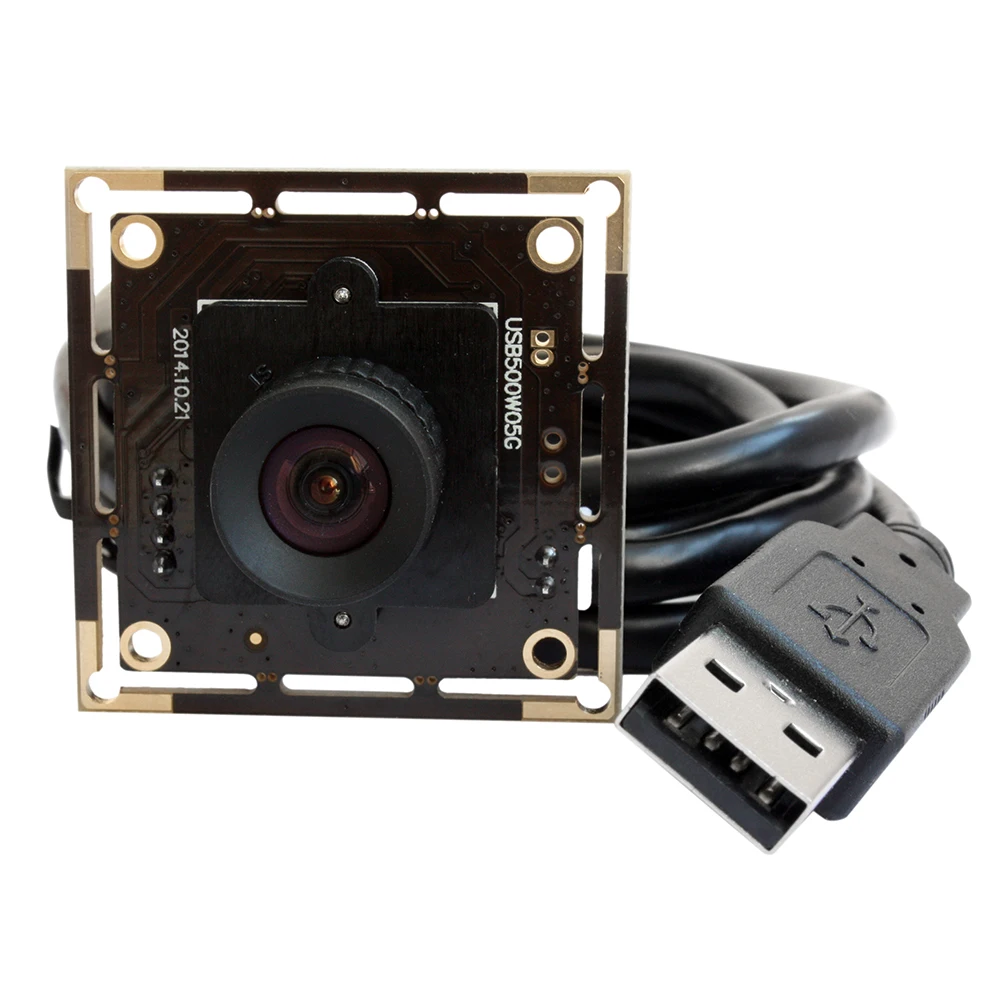

ELP 5MP USB Camera Module Aptina MI5100 CMOS Sensor with No Distortion Lens for QR Code Reading/Bar Code Reading
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (60186302067):
Product Overview
Description
ELP 5MP USB Camera Module Aptina MI5100 CMOS Sensor with No Distortion Lens for QR Code Reading/Bar Code Reading
Features

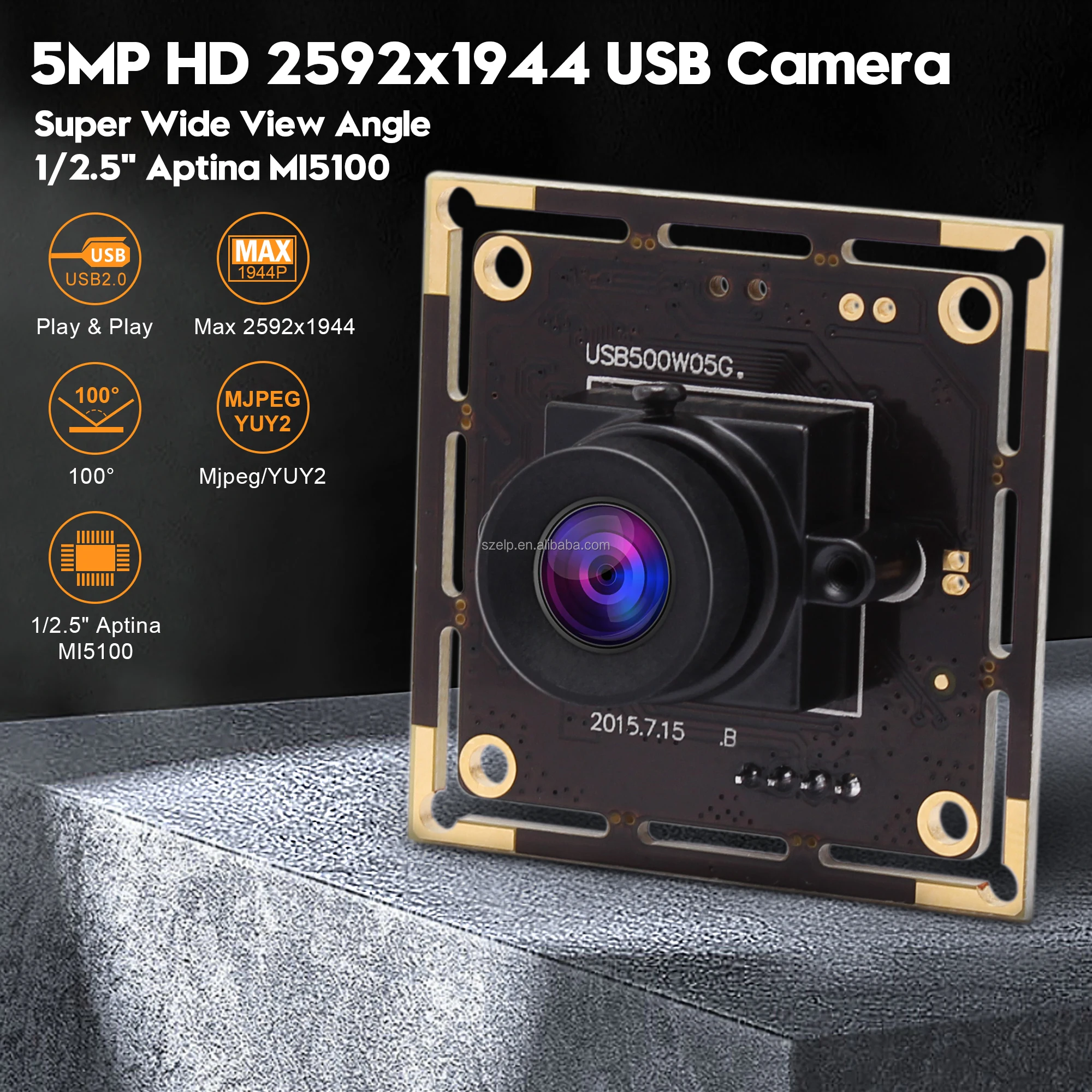

* Super high resolution 5mp 2592*1944 USB Camera module
* Aptina MI5100 CMOS sensor for high quality and ture color image
* Super HD 100 degree lens for ture, undistortion picture and video
* High speed USB 2.0 interface for high resolution PC camera interface
*Super small outline and thin profile for embedded applications.
* Low power consumption – ideal for portable equipment.
* UVC for use in Linux, Windows XP, WIN CE, MAC, SP2 or above.
Specifications
Model | ELP-USB500W05G-FD100 |
Sensor | Aptina MI5100 |
Lens Size | 1/2.5 inch(4:3) |
Pixel Size | 2.2um |
image area | 5.7mm x 4.28mm |
Max. Resolution | 2592(H) X 1944(V) |
Compression format | MJPEG / YUV2(YUYV) |
Resolution & frame | 2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG |
S/N Ratio | 38dB |
Dynamic Range | 70dB |
Sensitivity | 1.4V/lux-sec@550nm |
Mini illumination | 0. 1lux |
Shutter Type | Electronic rolling shutter / Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class(UVC) |
Support OTG Protocol | USB2.0 OTG |
AEC | Support |
AEB | Support |
AGC | Support |
Adjustable parameters | Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance, Backlight Contrast, Exposure |
Lens Parameter | No distortion Size: 1/2.5, Iris: F2.4, Focus: 3mm, FOV(D): 100 Degree |
LED board control interface | Support 2P-1.25mm socket |
LED board power connector | Support 2P-2.0mm socket |
Power supply | USB BUS POWER 4P-2.0mm socket |
Operating Voltage | DC5V |
Working current | 150mA~200mA |
Working temperature | -10~70℃ |
Storage temperature | -20~85℃ |
Board size /Weight | 38X38mm(Compatible 32X32mm)/ about 30g |

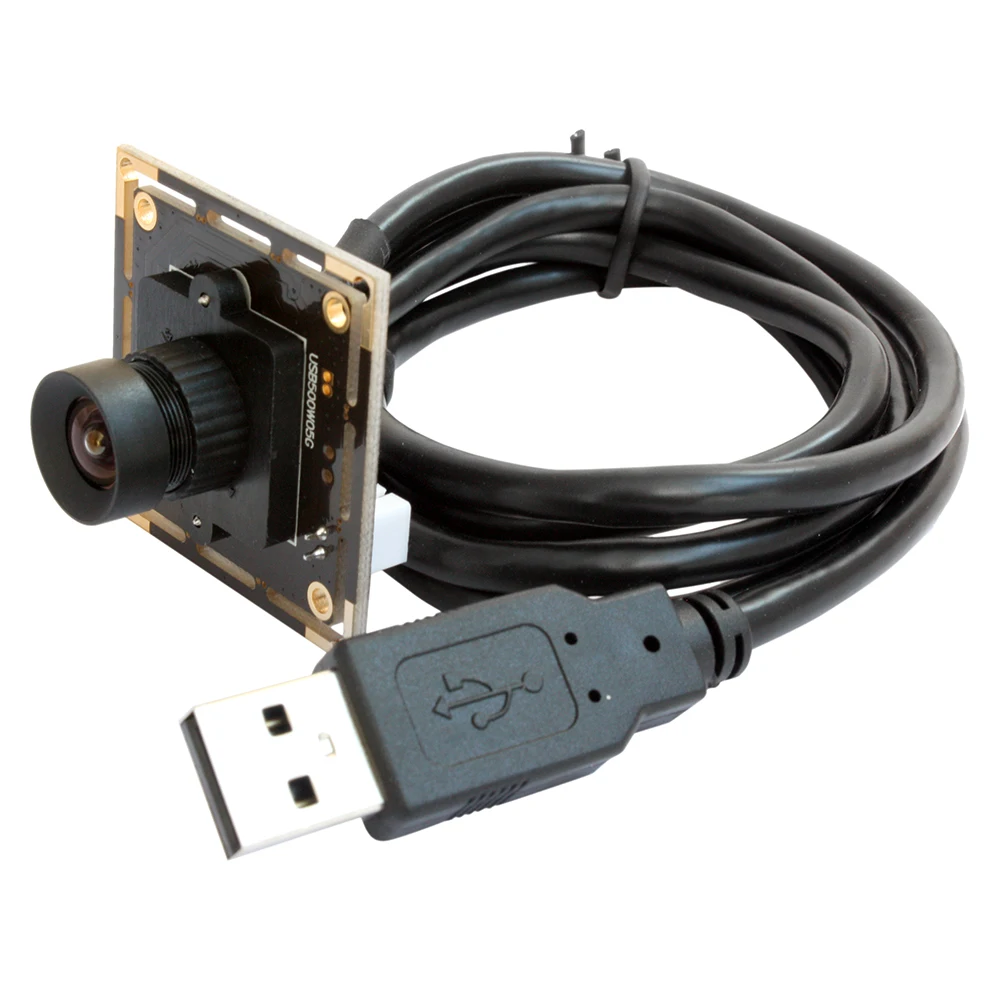

Cable | Standard 1M / 2M,3M,5M optional |
Operating system request | WinXP/Vista/Win7/Win8/Win10 |

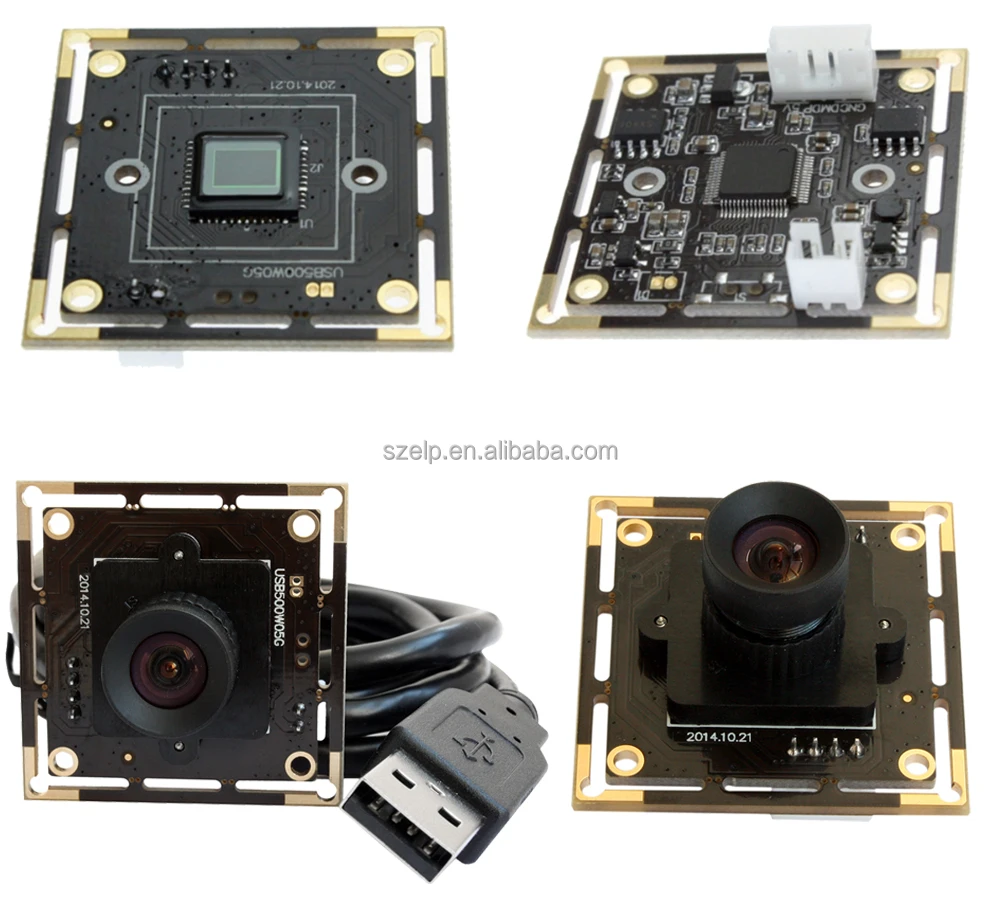

Product Display
Applications
ATM Machine, Kiosk, automatic vending machine,Robot, Sanner, Virtual reality, Medical equipment, machinery equipment, POS equipment, Smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, Tablet external, on-the-spot law enforcement, Recognition algorithm attendance machine, simple security system, teaching system, Interactive system,credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Related Products
Our USB Camera includes VGA 640X480,1MP,1.3MP,2MP,3MP,5MP and 8MP resolution.
Some features are showed as below. Just click and check !
Company Information
FAQ
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module for more than 12 years
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Android, Windows and Linux System
♦What certificate your products have?
CE, FCC, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
