brand new copper wire motor self priming electric fuel transfer pumps 12v dc

Product Overview

Description

brand new copper wire motor self-priming electric fuel transfer pumps 12v dc



It is indispensable wherever diesel oil must be transferred or handled from drums and tanks. It is also suitable for bio diesel, Kerosene and vegetable oil. It is applicable to be in farms, construction sites, oil warehouse, field-working vehicles, industries and private home.



This pump should not be used for petrol, flammable or low flash point liquids



Features



Self-priming, rotary electric vane pumps for the transfer of diesel fuel equipped with by-pass valve

Build-in overload motor protector

Pump Body: Cast-iron (Treated against corrosion and paint-finished)

Low power consumption

Liquid temperature: Up to  35°C

Dry-running of pump shall be prohibited

Compact size - easy to install, operation and maintenance

Safety and reliability



Specifications



Article Type: TP04024

Rated Power: 160W
Volt: DC12V/24V
Max.Pump rate: 40L/min

Max.height: 10m

Self-primming height: 5.0m
Pipe size: 3/4"

Speed: 3600r/min

Cable Length: 2m

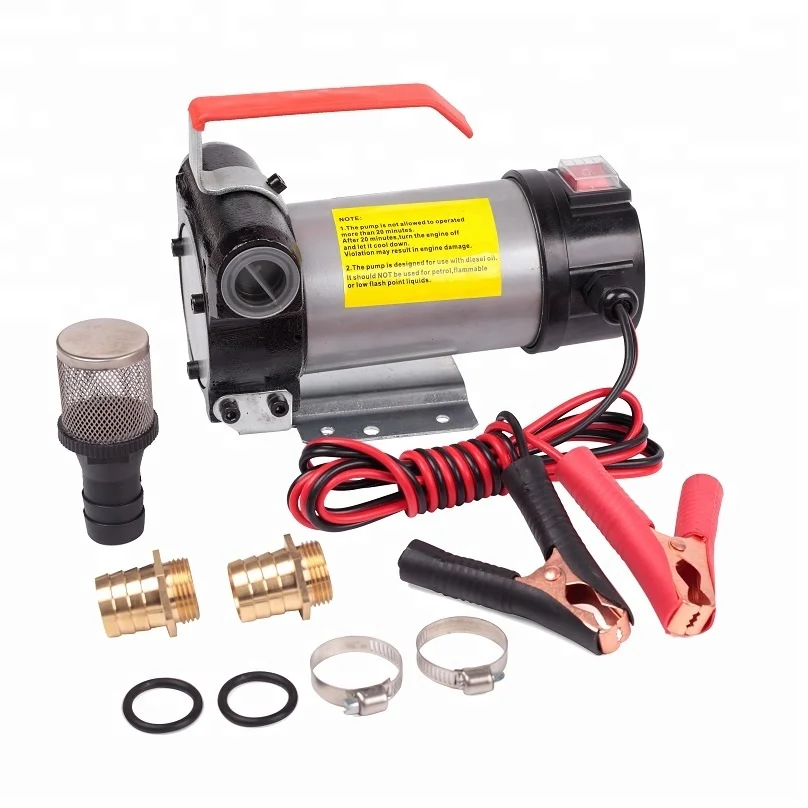

Accessories: 2pcs fitting, 2pcs hose claps, 1pcs plastic check valve

Packing size:37*27*39cm/4pcs

Weight appro:16/14.5kg

20GP: 3200PCS





Model	Voltage	Power	Head	Flow	Speed	outlet	cable	Qty/20”
TP04024	12V/24V	160W	10m	2400L/h	3600/min	3/4”	2m	3200pcs
