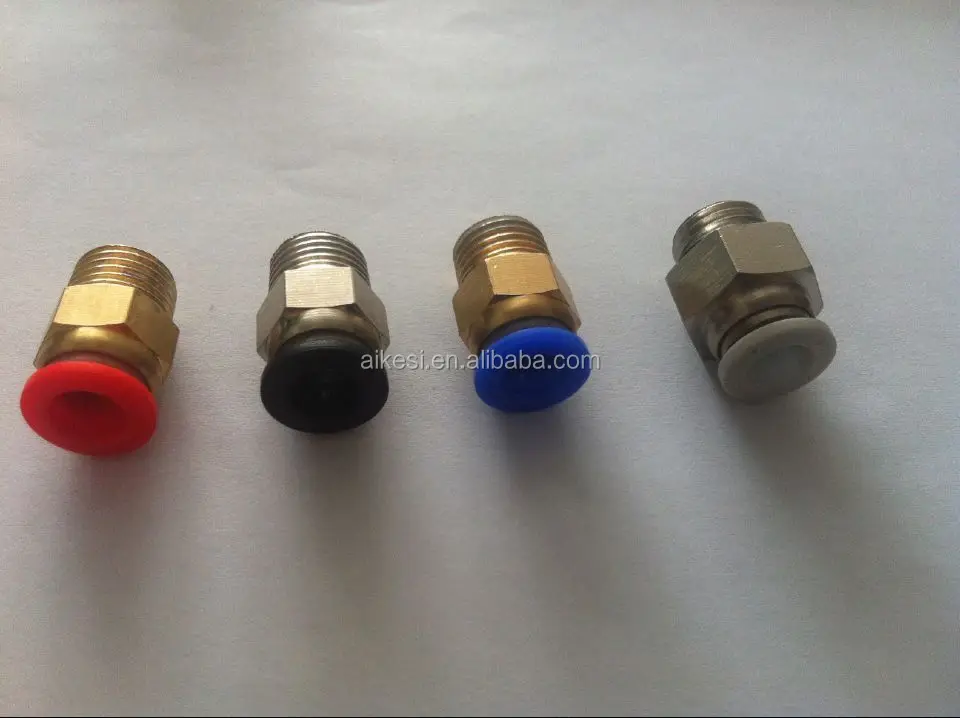

China the lowest price PC series quick connect pneumatic fitting PC08 02

Product Overview

Description

Specifications



We have various kinds of plastic pneumatic fittings,brass push in fittings,one touch fitting,one touch fitting with G thread,speed controller and copper fitting.



One-Touch Tube Fittings

Features:

1) Convenient one-touch fittings provide instant tubing connections.

2 )Elliptical release ring facilitates pneumatic installation in confined spaces.

3) Light manual pressure on the elliptical release ring is all that is require to instantly disconnect each tube,no special tools required.

4) Nickel-plated brass threaded bodies ensure anti-corrosion and anti-contamination.

5) All BSPP thread are all with O-ring sealing.

6) All R and NPT and G threads are pre-coated PTFE leekproof gum,sealed performance is good.



Fluid: Water,Non corrosive liquid,Air

Pressure Range: 1.0Mpa

Temperature: minus 20 to 80 celsius

Material of Construction

Plastic Body	PBT (Polybutylene terephthalate)
Metal Body	Nickel Plated Brass or Brass
Release Button	Poly oxy methylene copolymer
Thread Sealing	Teflon
Grip Ring	Stainless steel
O-Ring	NBR

Specifications

Operating Pressure	0 - 150 PSI       0 - 990 kpa
Operating Temperature	0 - 60 °C         32 to 140°F
Application	Air
Recommended Tubing Material	Polyurethane, Nylon, Polyethylene
Types	Straight, Elbow, Tee, X, Y, etc.
Brand Name	AKS
