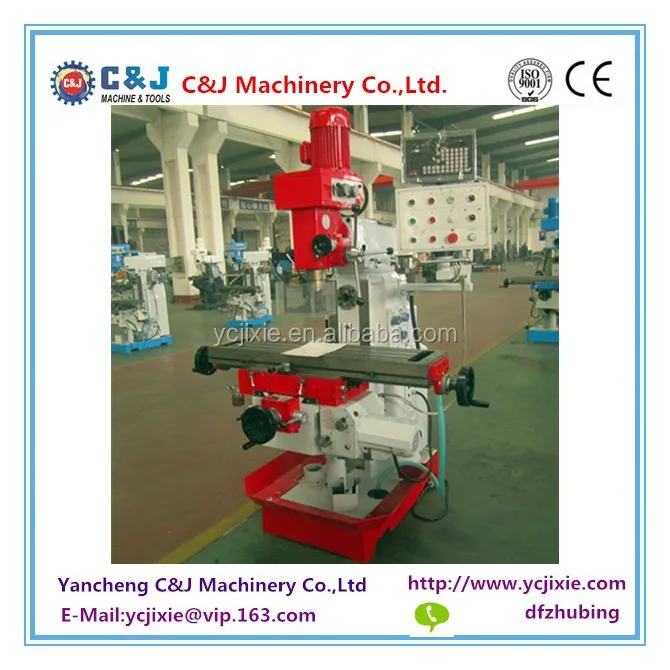

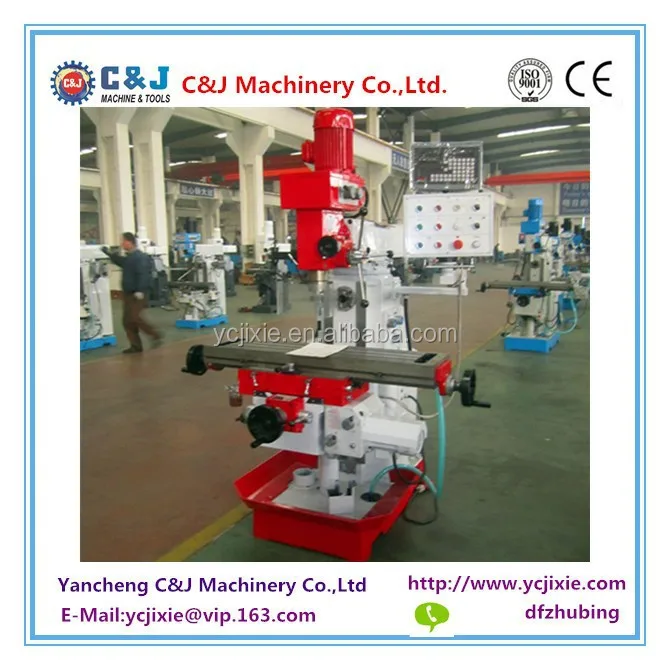

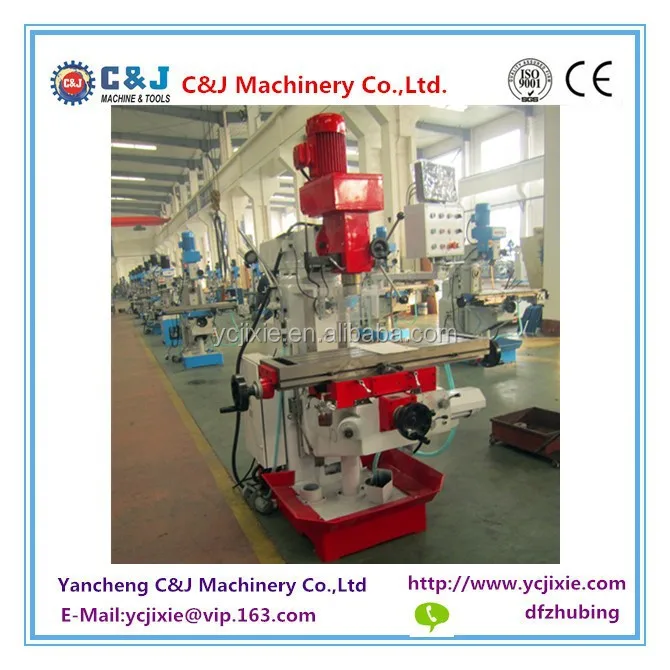

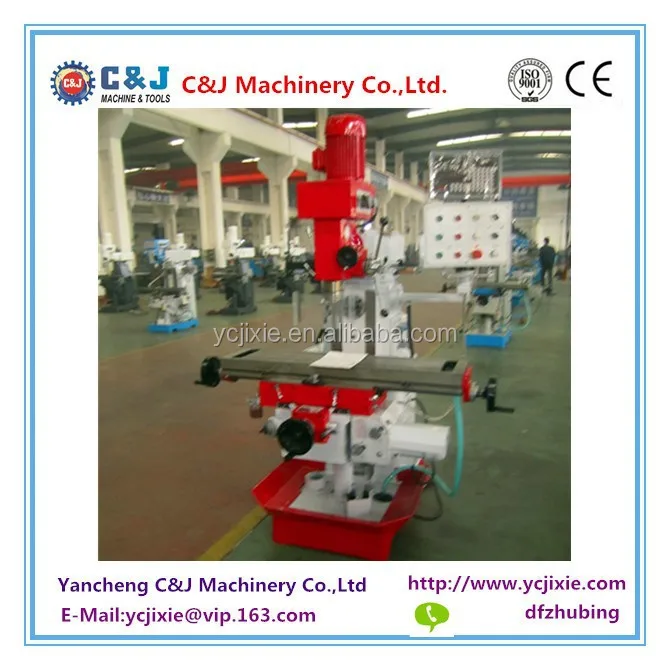

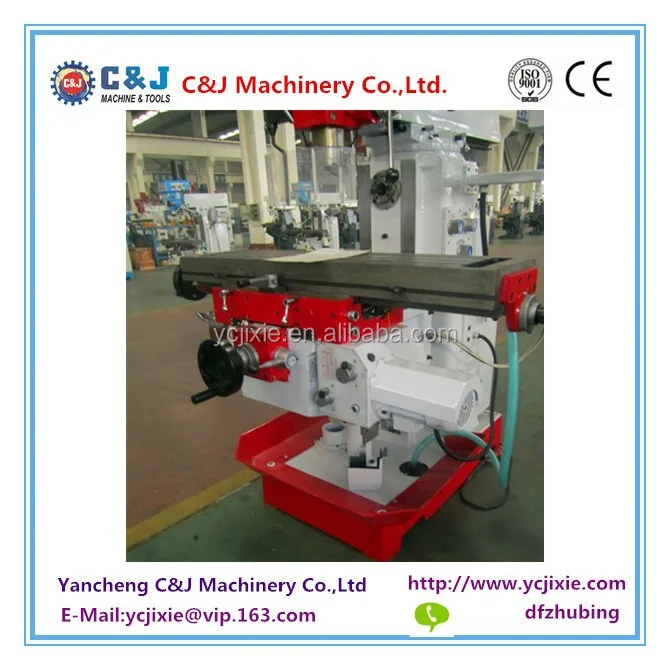

Milling drilling Machine/universal vertical horizontal milling drilling machine XZ6350ZA
- Category: >>>
- Supplier: Yancheng C&J Machinery Co. Ltd.
Share on (60187141575):
Product Overview
Description
Milling drilling Machine/universal vertical horizontal milling drilling machine
Feature:
XZ6350Z/X6350ZB/XZ6350ZA/XZ6350ZS Milling & Drilling Machine
Z: X Axis auto feed, with tapping
ZA: X/Y Axis auto feed, with tapping
ZB: X/Y Axis auto feed, Up/Down by motor on Z Axis, with tapping
ZS: 3 Axis auto feed, speed adjustable on Z Axis, work table can be rotary to 45,with tapping.
Main specification
| Model | XZ6350C/XZ6350G | XZ6350A | XZ6350Z |
| Max. drilling dia | 50mm | 50mm | 50mm |
| Automatic drilling | 14 (steel) | ||
| Max. horizontal milling dia | 100mm | ||
| Max. vertical milling dia | 26mm | 26mm | 26mm |
| Max. tapping dia | m16 | ||
| Distance spindle to table surface | 60-460rpm | 60-460rpm | 60-460rpm |
| Spindle speeds range | 10-1760rpm (38-1300rpm) | 110-1760rpm (38-1300rpm) | 110-1760rpm (38-1300rpm) |
| Spindle travel | 120mm | 120mm | 120mm |
| Table size | 1120x280mm | 1120x260mm | 1120x280mm |
| Table travel | 600x260mm | 600x270mm | 600x270mm |
| Overall dimensions | 1352x1285x2130mm | 1352x1285x2130mm | 1110x1100x2080mm |
| Motor | 0.85/1.5 2.2kw | 0.85/1.5 2.2kw | 1.5/2.2kw |
| N. W. / G. W. | 1200/1350kgs | 1350/1450kgs | 1250/1350kgs |
XZ6350Z/X6350ZB/XZ6350ZA/XZ6350ZS Milling & Drilling Machine
STANDARD ACCESSORIES
Drilling Chuck
Inner Hexagonal Spanner
Spindle Arbor
Wedge Shifter
Draw Bar
Wrench
Vice
Milling Chuck
OPTIONAL ACCESSORIES
Table power feed system
DRO
Stand +oil pan
Spring collet
Flat nose pliers
Milling collet
Milling clamp
Cooling pump
Certifications
CE certificate
More customer
More Credit to customer, More customer, More and More Business Cooperation!
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
WhatsApp: 0086 13851005559
- Please do not hesitate to contact us for more details or data sheets, all other questions would be fully welcomed too.
- Latest MACHINERY CATALOGUES are available now! Download them on our official website or directly contact us.
- CJ Machinery always insist on the concept of providing our customers the most enjoyable metal working experiences. Every need or request would be answered at our best considering customer’s greatest interests.
- CJ Machinery values each relationship among our worldwide customers and hopes every unique requirement of our customers could be satisfied.
