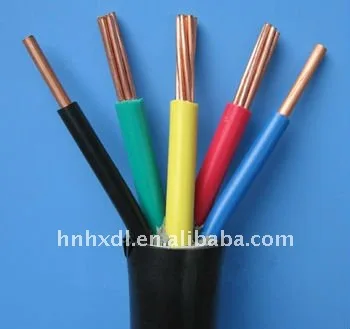

1,5 мм, 2,5 мм, 4 мм, 6 мм домашняя проводка, Электрический медный проводник, ПВХ проводной кабель
- Category: Electrical Wires >>>
- Supplier: Henan,Huaxing,Wires,And,Cables,Co.,Ltd.
Share on:
Product Overview
Description
1.Specifications1.PVC Coated Wire 1.5mm 2.5mm 4mm 6mm Electric Copper Conductor PVC Coated Wire for House Wiring Cable
The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places. They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V( Uo /U). Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.
|
2.Construction of PVC Coated Wire : (1).Conductor: bare solid/stranded copper,or Aluminum. (2).Insulation: PVC rated at 70°C (3).Color Code:red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement. (4).Outer sheath: PVC tapes ST2 to IEC.
|
3.Standards of pvc coated wire The products can be produced according to standard GB/T 5023, IEC60227, BS6004, JB8734,and more we have extended the range of the type to fit for the requirement of the consumers.
|
4.Type, Name and Application of pvc coated wire .
| Type | Name | Application | Long-time Permissible Working Temperature (°C) |
| 60227IEC01 05 BV BLV | Copper/Aluminum conductor PVC insulated wires | Fixed laid in the circumstance of indoors, Conduit etc. | 70 |
| 60227IEC07 (BV-90) | Heat resistant copper conductor PVC insulated wire at 90°C | Mainly be laid at the places of high temperature environment and can be laid indoors ,conduits. | 90 |
| BVR | Copper conductor PVC insulated flexible cable | Be for laying permanent place where flexible required. | 70 |
| 60227IEC10 (BVV) | Copper conductor PVC insulated PVC sheathed round wire | Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground. | 70 |
| BLVV | Aluminum conductor PVC insulated PVC sheathed round wires | ||
| BVVB | Copper conductor PVC insulated PVC sheathed flat wires | ||
| BLVVB | Aluminum conductor PVC insulated PVC sheathed flat wires | ||
| 60227IEC02(RV) | Copper conductor PVC insulated flexible connector wire | Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required | 70 |
| 60227IEC42(RVB) | Copper conductor PVC insulated flat flexible connector wire | ||
| RVS | Copper conductor PVC insulated flexible twisting connector wire | ||
| 60227IEC52(RVV) 60227IEC53 | Copper conductor PVC insulated PVC sheathed round flexible connector wire |
We can also deliver wires to your particular requirements. If you are interested, please feel free to contact with me.
Certifications
Contact us
If any needs,pls contact us.We will try our best to meet your requiryments.Thanks.
