Product Overview

Description

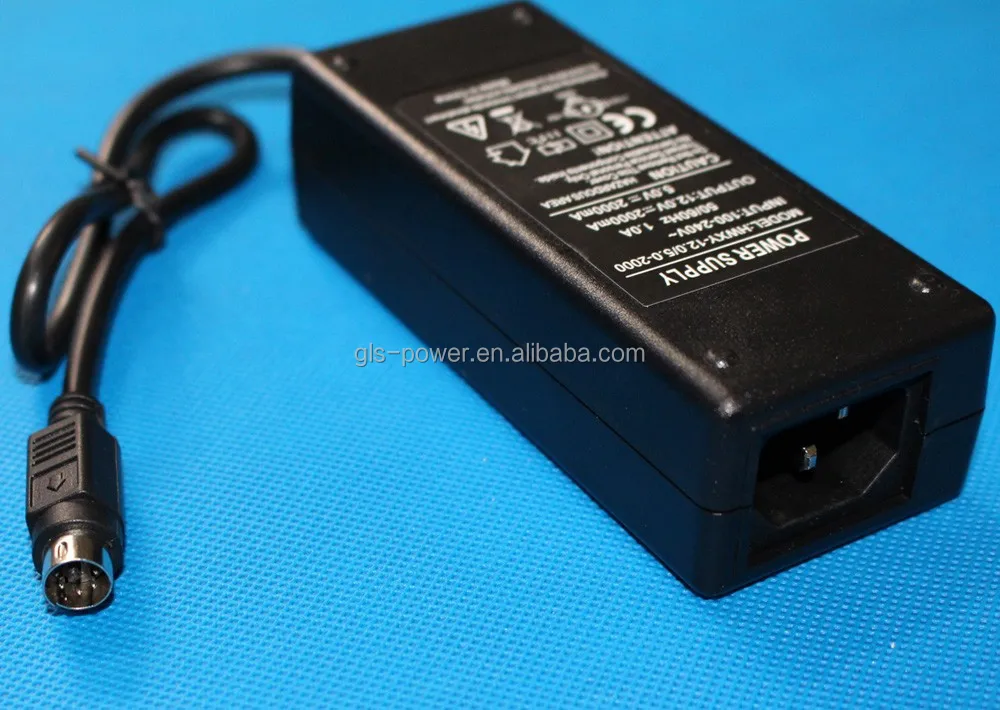

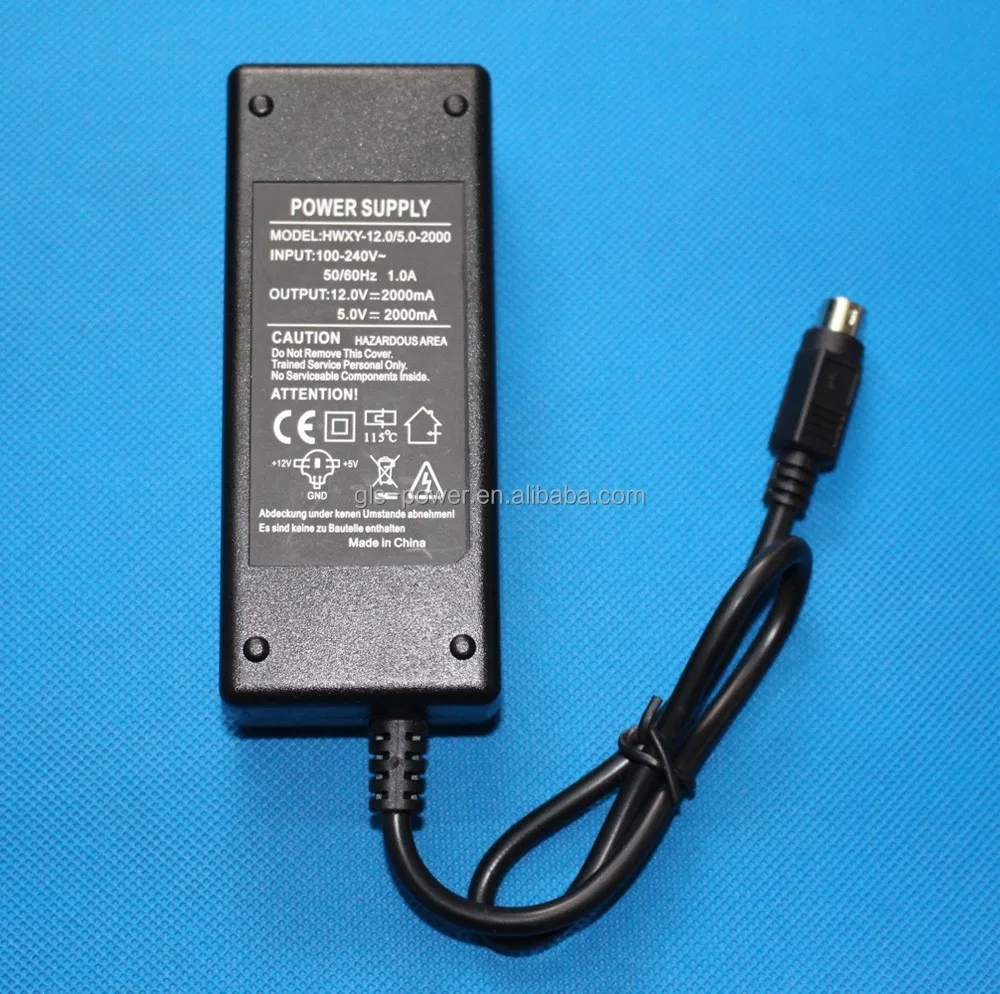

12V 5V dual output power supply with 4 pin din connector




Product Description
 Specification
ModelGLS-12502000Ta
AC InputVoltage100-240V AC
Input current0.8A/230V AC, 1.6A/110V AC
Frequency47-63 Hz
Efficiency83% typical
Inrush current36A/230V AC
Leakage current<1.0mA/240V AC
DC OutputVoltage12V 5V dual output
Current0-2A
Rated Power12V 24W   5V  10W
Ripple&noise80mvp-p
Setup rise hold up time500ms,20ms,50ms/230VAC 500ms,20ms,15ms/115VAC at full load
ProtectionOver Load120%Max, hiccup mode auto recovery after fault condition is removed
Short CircuitAuto recovery
EnvironmentStore Temperature-20-85°C
Wokring Temperature0--50°C
Operating Humidity20%-80%RH









Safty

























CECompliant to EN 60950-1:2006;   EN61000-6-3:2001;
EN 55022:2006+A1:2007;  EN61000-4-2/-3;
EN61000-6-1:2001; EN55024:1998+A1:2000+A2:2003
RoHsFree from lead, Cadmium, Mercury, Hexavalent
Chromium and/or PBB &PBDE



othersProduct dimension115*50*30mm
Weight0.2kg/pc
Packing30pcs/ctn,45*35*23cm

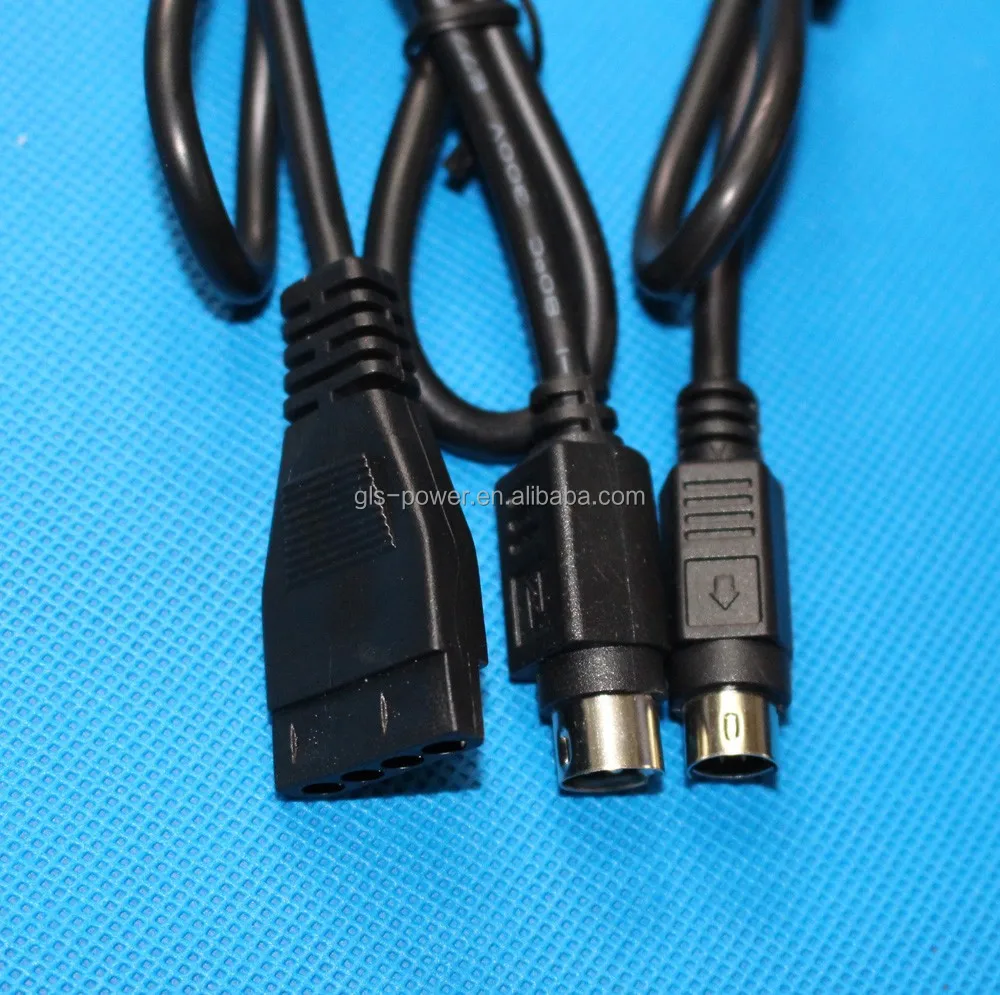

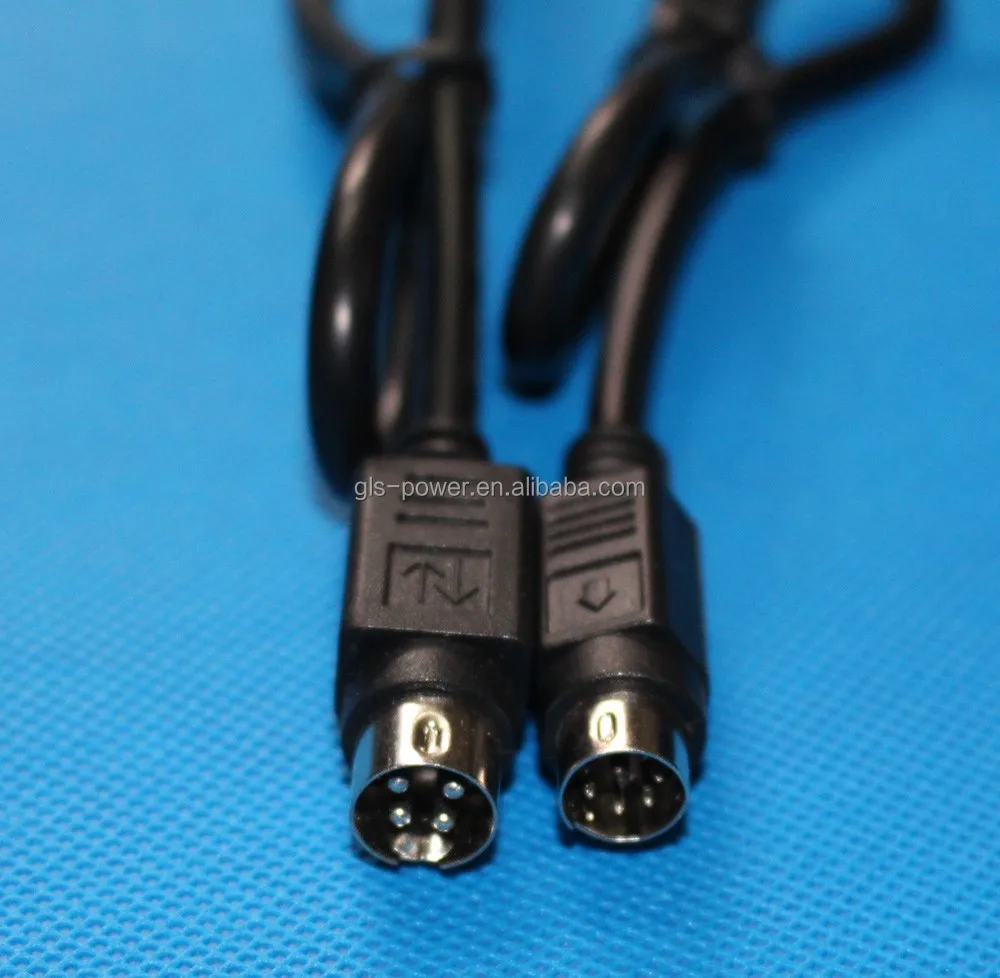

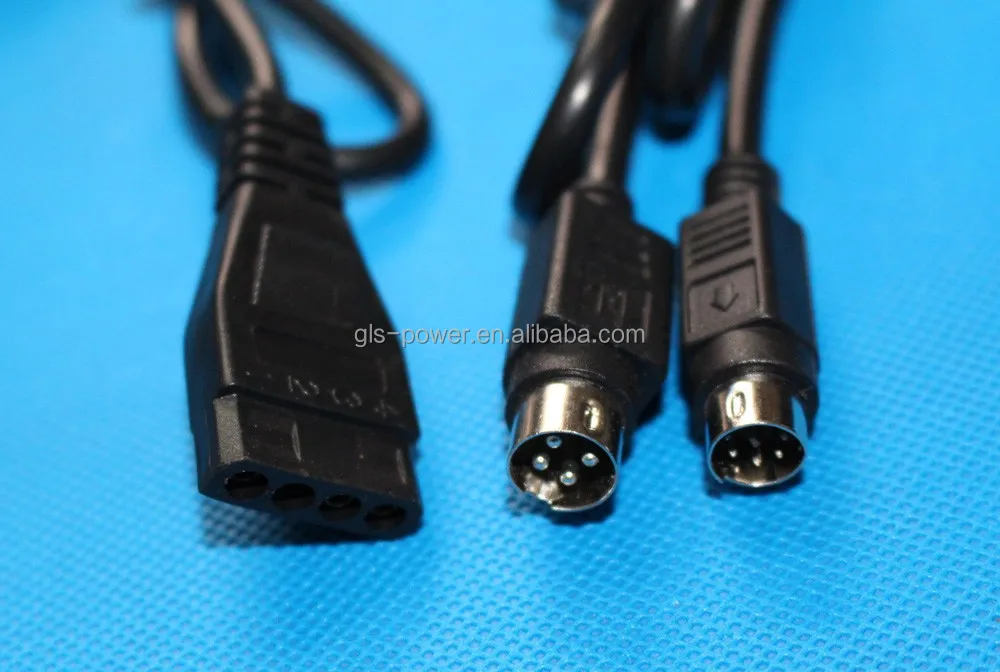

DC connector size4 pin mini din type/4 pin molex/6 pin din type
Cable length0.6M or others

 Notes:

  1.  Voltage and current can be adjusted by customer requirement.
  2. All parameters are specified at 230VAC input, rated load, 27°C 70%RH ambient.
  3. Ripple and noise are measured at 20MHz by using a 12 inch Twisted pair terminated with 0.1u and 47u capacitor.
  4. Tolerance: includes set up tolerance, line regulation, load regulation.
  5. DC voltage : the output voltage set at point measure by plug terminal &50% load.
  6. Line regulation is measured from low line to high line at rated load.
  7. Load regulation is measured from 20% to 100% rated load.
  8. The power supply is considered a component which will be installed into a final equipment .The final equipment must be re-confirmed that it stills meets EMC directives.

 Product pictures:




Packaging & Shipping

White paper inner box

 24V5A H.jpg24V5A H1.jpg





 Export standard outer carton

PACKING 1





Our Services



  •  Fast response to customer inquiries: reply within 10 hours.
  • Provide quality products: select good suppliers for raw material, inspec incoming components, monitor the production process, aging test every single unit before shipment.
  • Offer reasonable price
  • 2 years warranty
  • Offer competitive shipping price when required by customer
  • Provide customized products according to different requirement. OEM and ODM are available
  • Fast delivery after confirming the order





Company Information



Our factory has been producing all kinds of power suppliers for more than 10 years. To the request of some customers, we have opened a production line for 2-12 pin waterpoof connectors, T type connectors, Y type connectors and so on in 2009.



Now our products are shipped to all over the world and are widely use in LED lighting, CCTV surveillance system, household electrical appliances, automobiles, medical industrial etc.



Our goal is to win customers by good service, professional knowledge and quality products at reasonable price. Looking forward to eastablish a win-win business relationship with you.
