New automatic multicolor A3 size flatbed UV printer

Share on (60187871149):


Price:$1,899.00 - $1,999.00

Quantity:


Product Overview

Description


Product Description

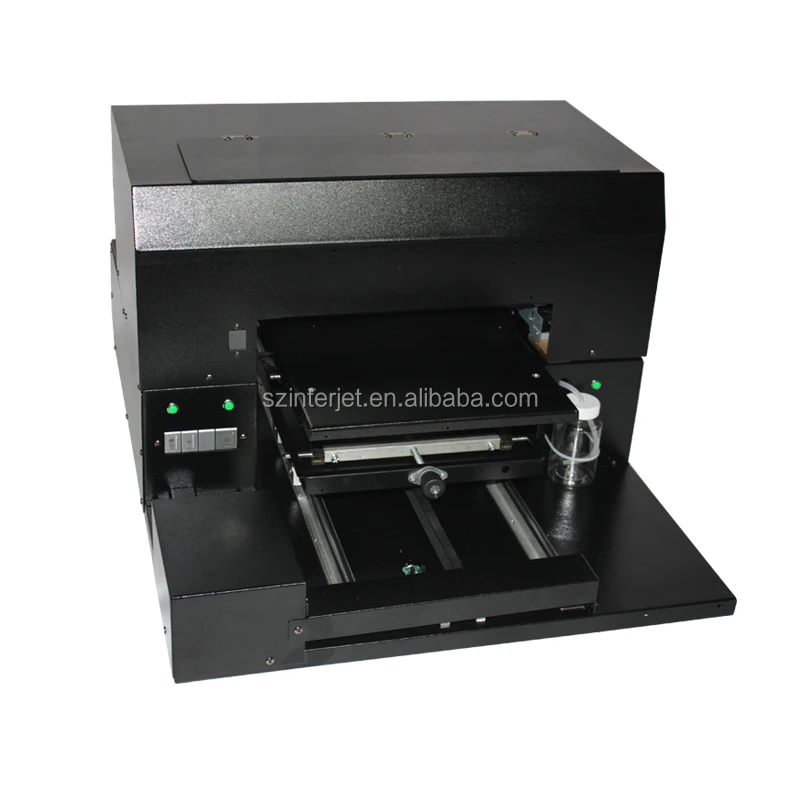

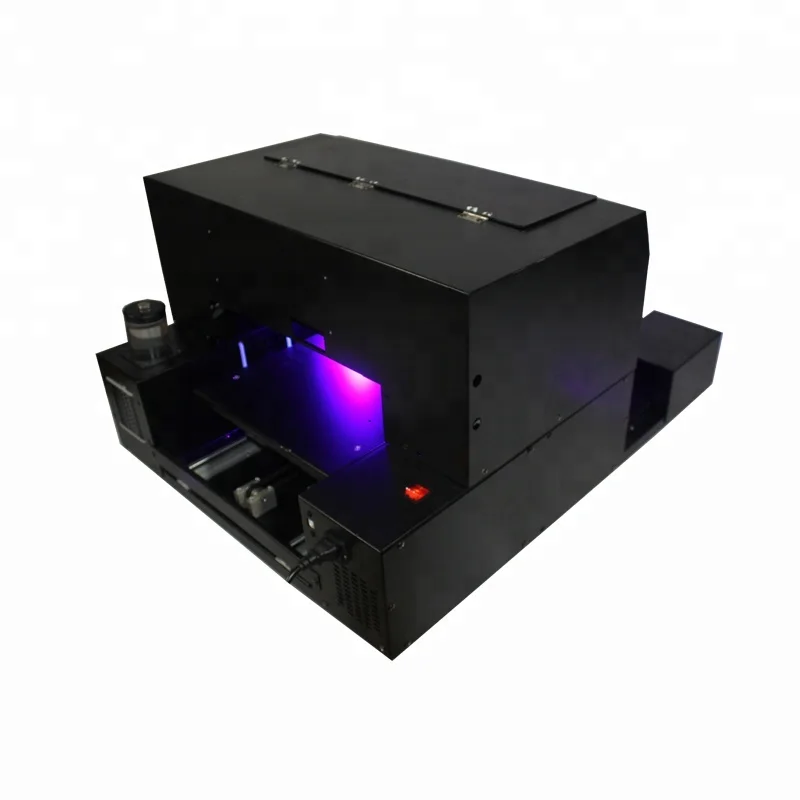

New automatic multicolor A3 size flatbed UV printer

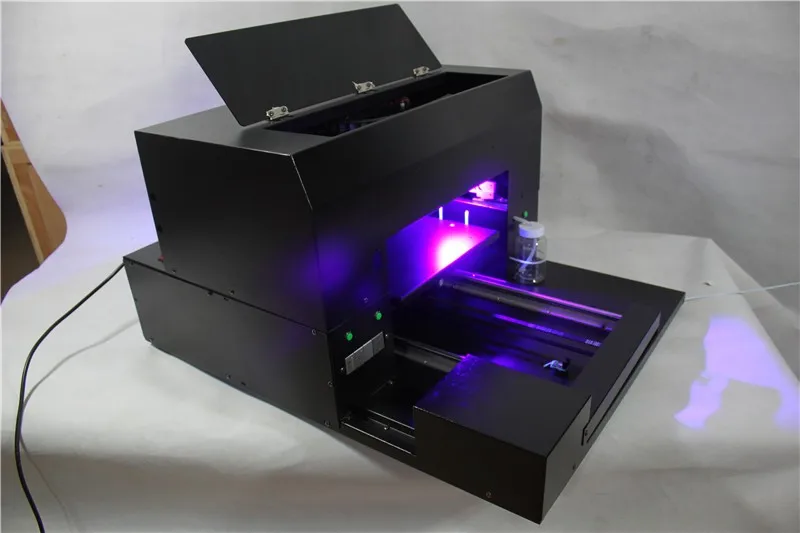

Digital UV flatbed printer is a new generation of digital printing equipment , it was built with industrial configuration as thicken aluminum profile ,water cyculation cooling system, 30W automatic detect UV curing system 6 color with max. 2880dpi printing resolution.

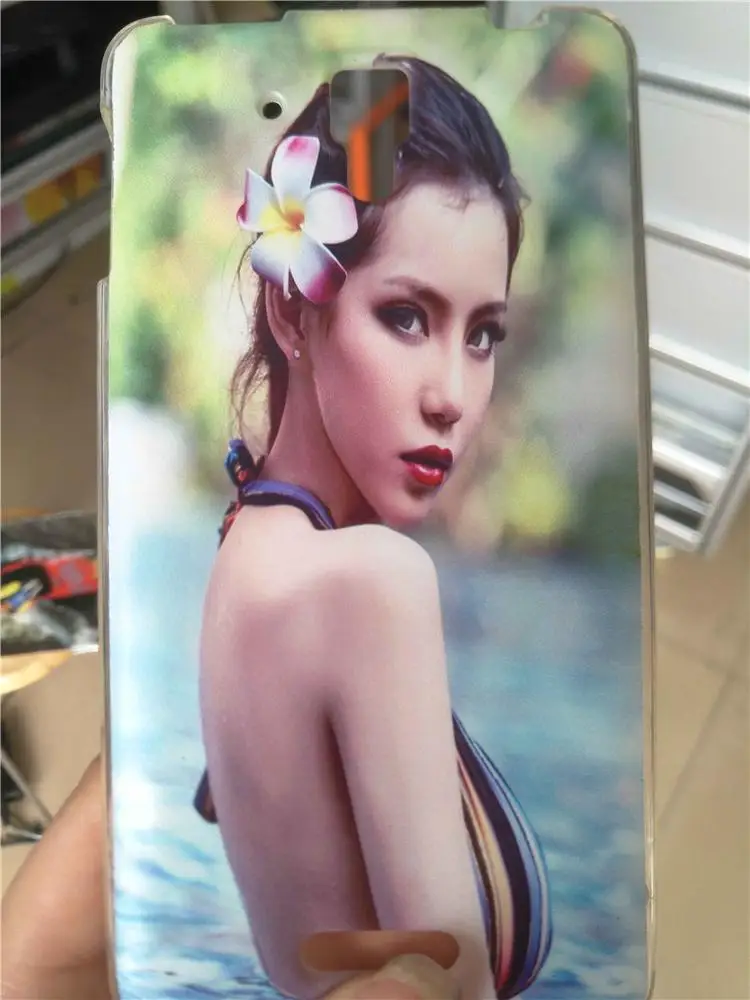

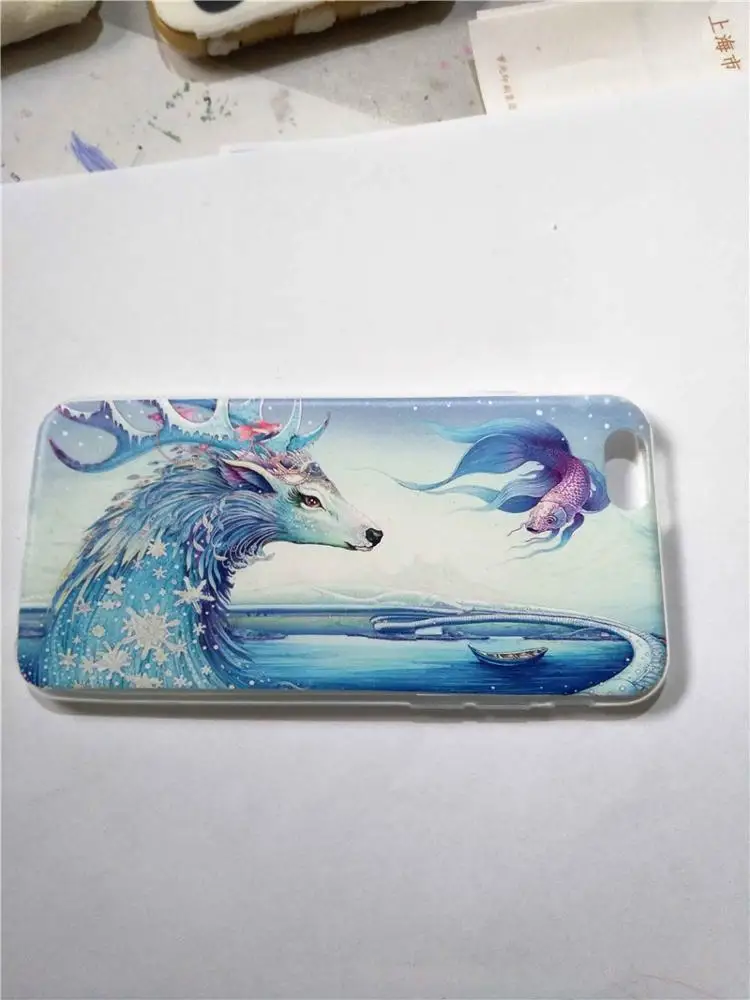

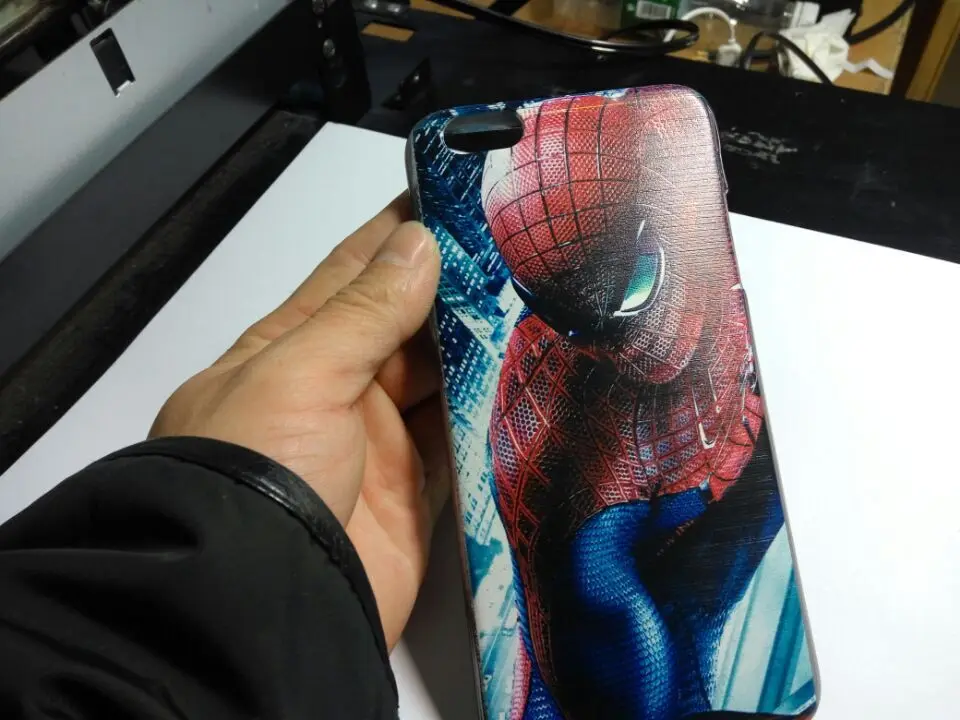

The Application Phone case  U disk acrylic leather Business Card Glass Stone pen ball golf ball businsess card aluminum metal pvc plastic KT board foam board wooden bord  TShirt etc material.


Specification :
\t
Printer model
\t
Interjet-UV330C
\t
Printing method
\t
Micro pizo Inkjet Printing
\t
Printing technology
\t
LED UV
\t
Print resolution
\t
Up to 1440*1440dpi
\t
Max printing speed
\t
4 min for Full A4 size @1440 x1440 dpi
\t
MAX Media Size
\t
300*480mm
\t
Max thickness
\t
800mm
\t
Operation system
\t
\tWindows XP/Vista/WIN7/WIN8/WIN10
\t
Interface
\t
USB port
\t
ink Color
\t
BK C M Y + W W
\t
Ink consumption
\t
15 ML/SQM
\t
Ink system
\t
CISS
\t
Height adjustment
\t
Turn knob
\t
Driving Power Input voltage
\t
110 V/ 220 V
\t
Power consumption
\t
75W
\t
Working environment
\t
15-35 degrees
\t
Software
\t
RIP, Photoshop, CorelDraw, Illustrator, AUTOCAD
\t
Printer size
\t
80*60*38cm weight : 58KG
\t
Wooden case size
\t
90*72*48CM  65kg
\t
Package includes
\t
Printer ,Driver CD ,USB cable, power cable,instructions
Product features

InterJet-UV330C UV printer is one economic and high quality UV printer with 4 color +2 white UV ink for hard material to print

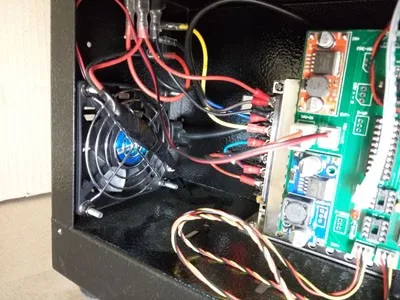

Using the latest industrial DSP (digital processor ) to ensure accurate print position , circuit board one piece connectors , free welding ,to ensure that each customer can easily maintain and replace the parts .

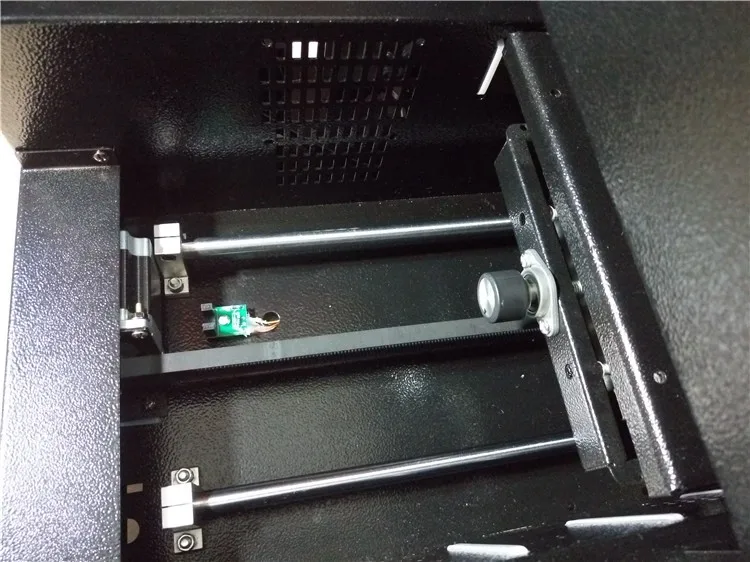

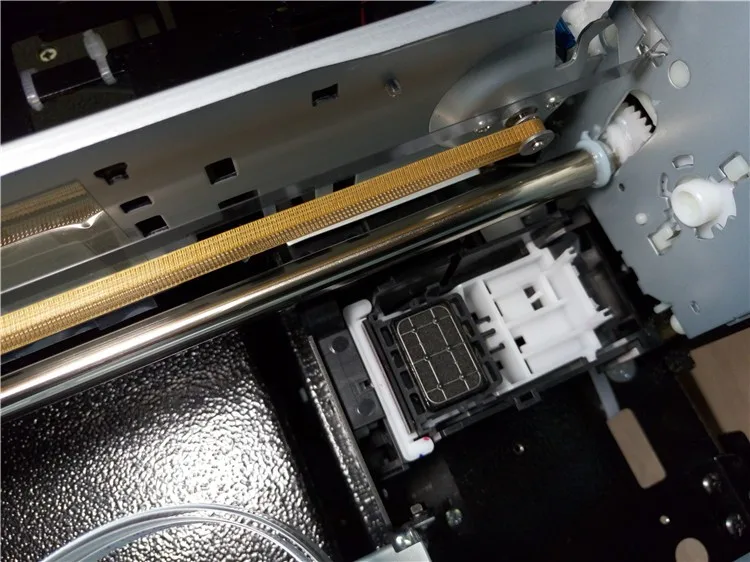

To shield the original build-in small code motor ,replace the server motor with greater torque(avoid small hourse-drawn cart) . plus hard liner guide, import high precision synchronous belt to ensure the printing stability . The rear drive adjusts base aluminum seat and adjust the four screws to maintain to synchronous belt .

Gantry fixed form across both sides of the base, using PLC industrial decode chip, it has embedded into the printer perfectly . Relieved the lift system and unit car locked function during the process of open the machine , independent ink pump system according to the requirement to do the print head nozzle cleaning work

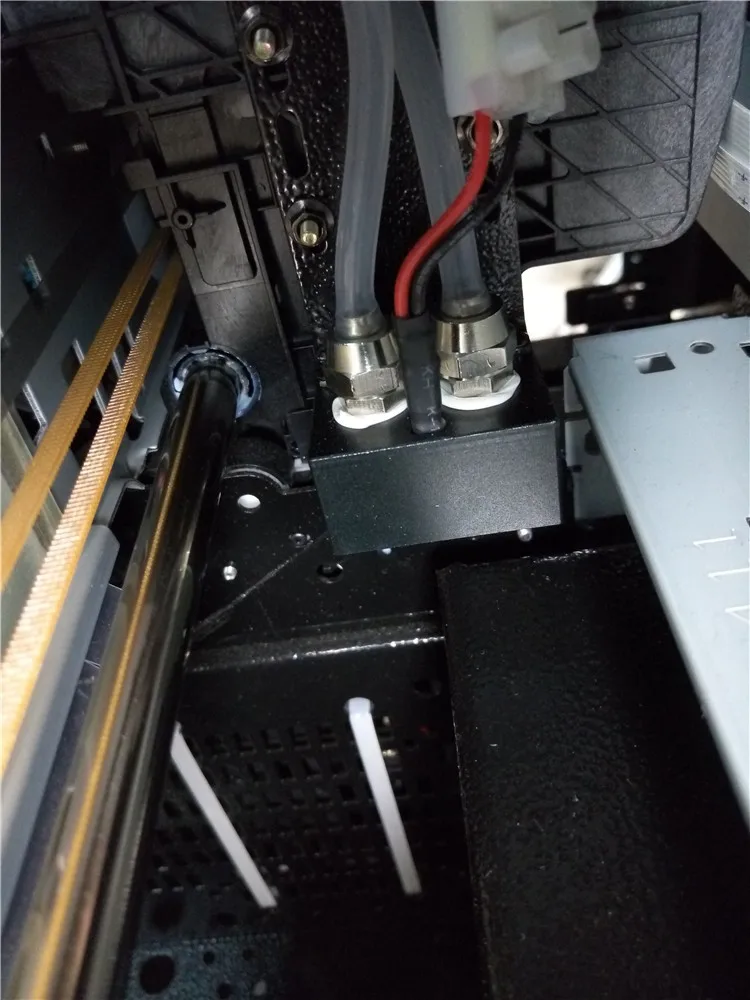

The tempered glass surface UV lamp , the United states high power 365/695 nm UV wick , 30-40W power, match the superconducting copper cooling plate and water-cooling system and connect a external cooling water and cooling fan to build a highly efficient water cooling system .


The feature for LED lamp : In addition the UV lamp will be light on automatically when print ( to save time to open the lamp on via manual for each print ) and the lamp will off after printing finished (at this time the lamp still hot) to avoid the lamp fever , the water cooling system will delay 40 seconds off , continuous to cool the heat comes the lamp and the pipeline to ensure that next print starts from normal temperature and the hot is not accumulated ,extend the life of the UV lamp.

What's more , the UV lamp has temperature controller over 70 degrees ,the UV light will turn off automatically . When the temperature is below 70 degrees re-work , double protection the UV lamp system and make work more efficient

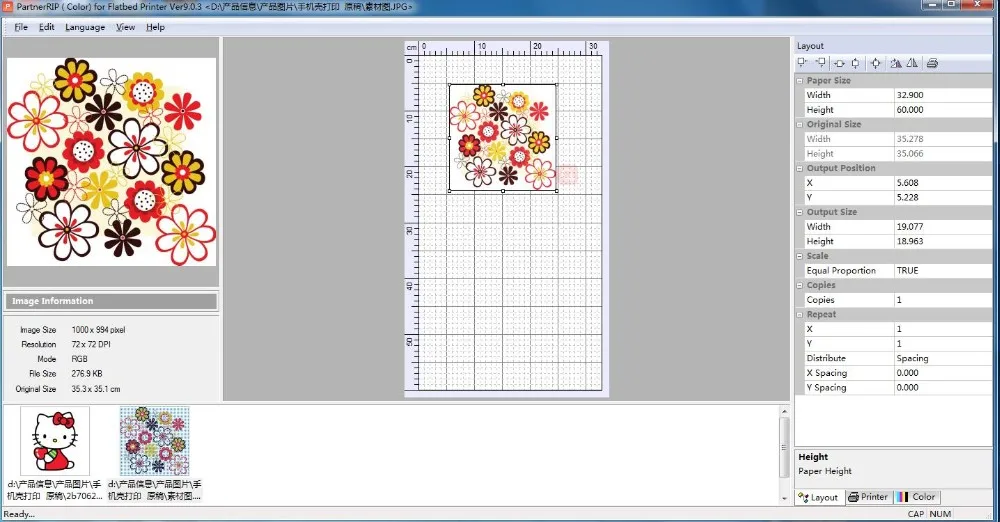

Full color ink control system, adjustable precision, printing size, output mode,precise positioning, easy to learn


Packing & Delivery

The wooden case : 78*57*46cm , valume weight : 40KG




After-sales Service

1.One year warranty

We would like to offer one year warranty for the machine except for the consumable such as print head . As well as whole-life technical support for the machine .


2. Free exchange of new components

Our quality is guaranteed 100%, the spare parts can be replaced within one year free of charge includes the airfreight by express, except for the print head and some consumable parts.


3. Free online consultation

The technician will keep online. No matter what kind of technical questions that you may have, you would get a satisfactory answer from our professional technician easily.


4. Free onsite installation and training

If you are able to help us with getting the visa and also would like to bear the costs involved like flight tickets, food, etc, we can send our technician to your office, and to give you a free installation and training for as long as you know how to operate it

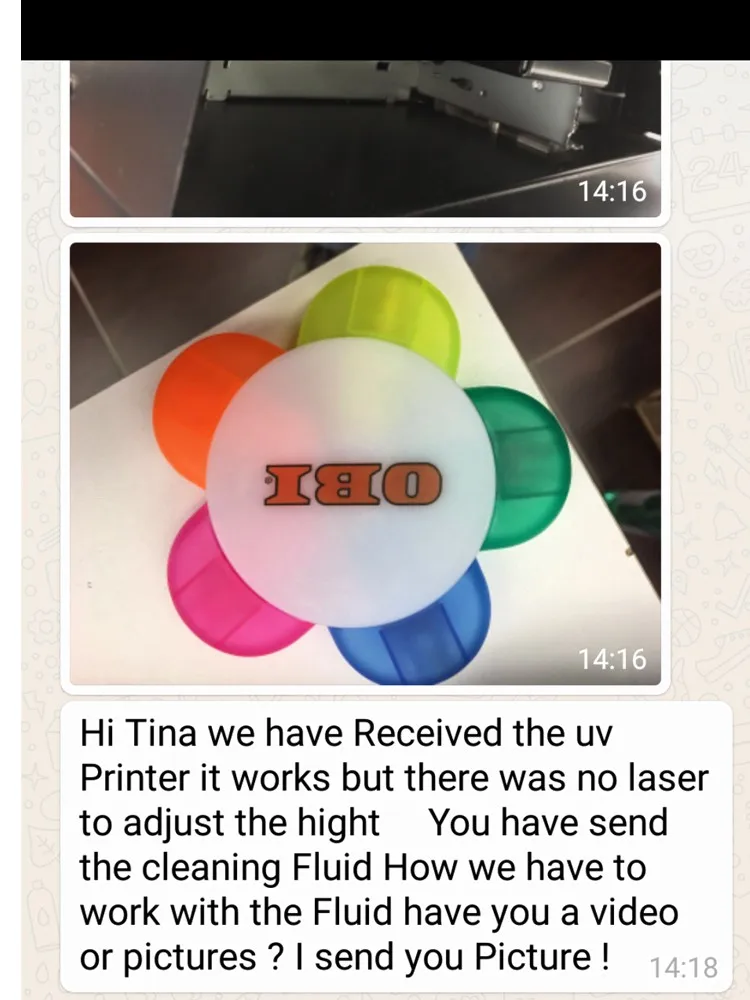

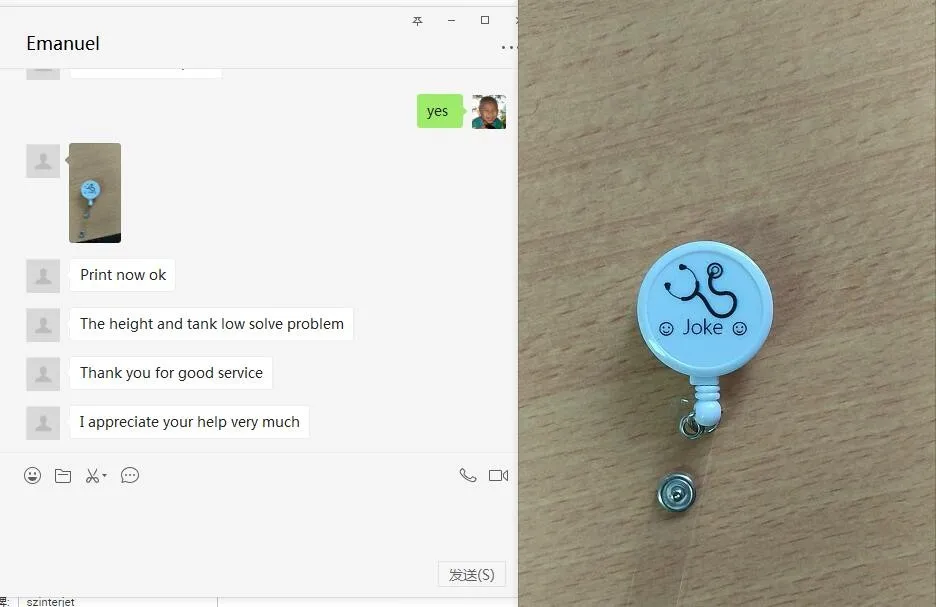

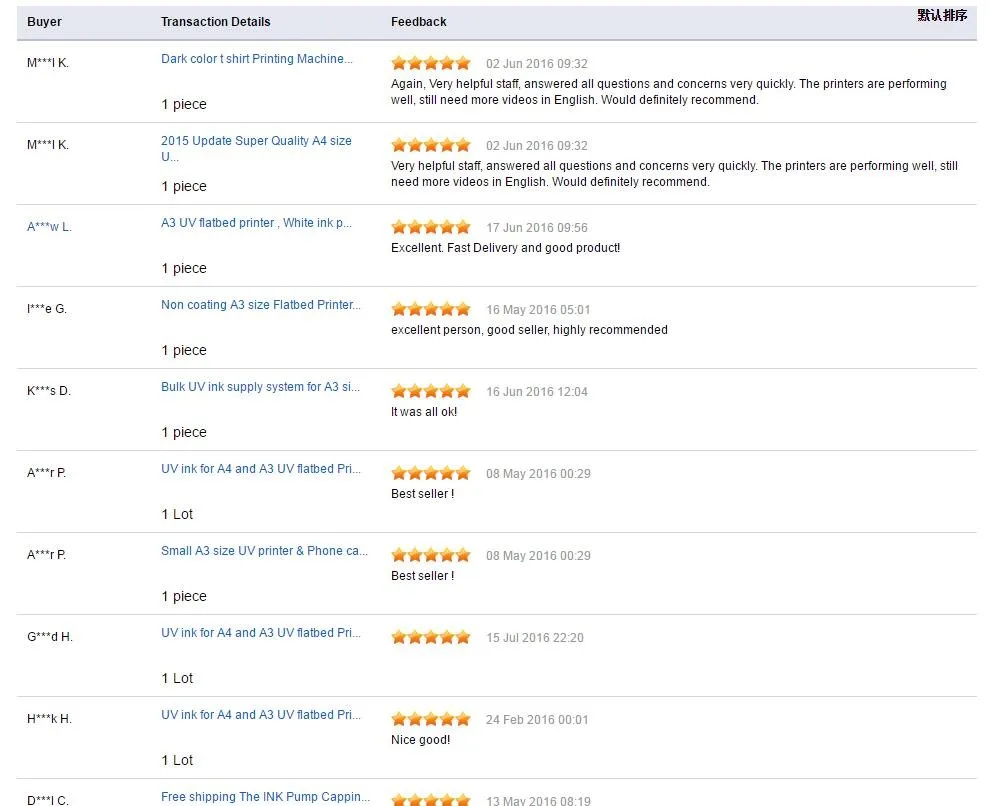

The positive feedback comes clients :
