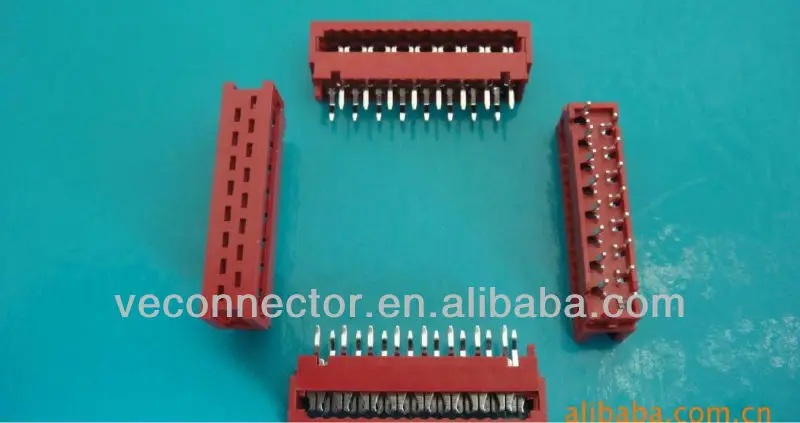

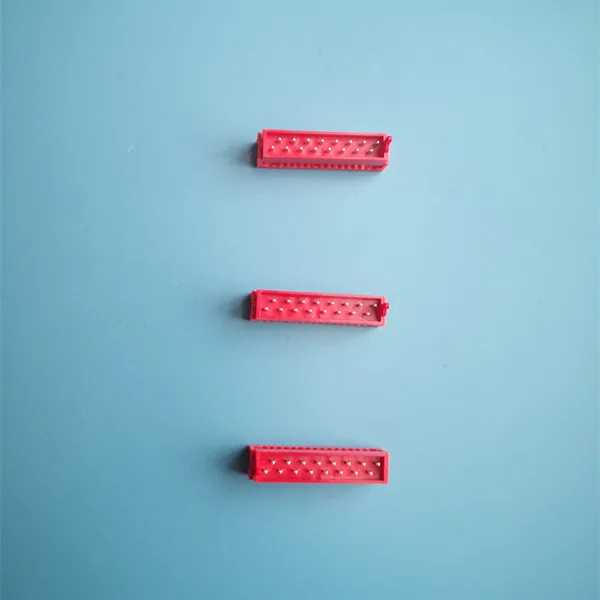

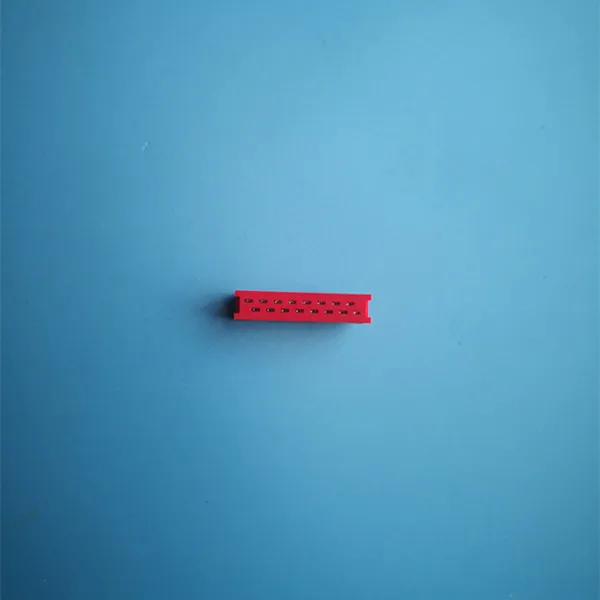

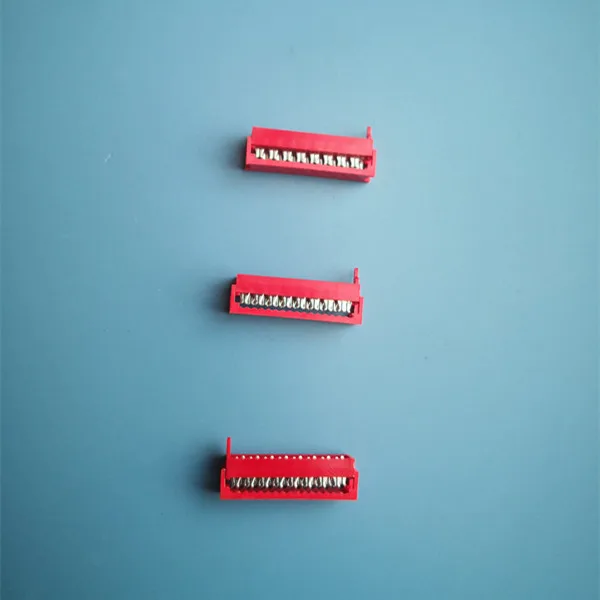

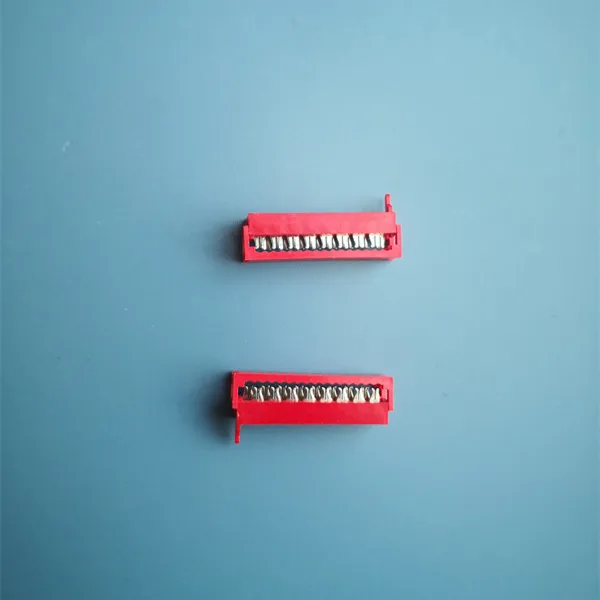

red 1.27mm Tyco IDC socket Polarized and contain strain relief clips contact with 1.27mm flat cable and dip to PCB

Product Overview

Description

1.27mm IDC socket dip way with golden flash

SPECIFICATIONS:

Current Rating:0.5A(Pitch:1.27mm)

                            1.0A(Pitch:2.00mm&2.54mm)

Withstand Voltage:500V AC/minute(Pitch:1.27mm&2.00mm)

                                   1000V AC/minute(Pitch:2.54mm)

Insulation Resistance:1000MΩ Min

Contact Resistance:30MΩ Max

Operation Temperature:-40°c to +105°c



MATERIALS:

Contact Material:Phosphor Bronze of Brass

Contact Plating:Gold or Tin over 50u'' Ni

Insulator:Glass Filled Polyester (UL 94V-0)



1.Pitch:2.54X2.54mm/2.00mmX2.00mm/1.27mmX1.27mm/1.27X2.54mm

2.Contact Type:Receptacle /Plug

3.Number of Contacts:10Pin~98Pin

4.Contact Plated:Tin/Gold Flash/Gold 3u''/Gold 5u''/Gold 10u''/Gold 15u''/Gold 30u''

5.Material Type:PPS/PBT/LCP/Nylon-66/Nylon-6T/PA46

6.Color:Black/Blue/Red/White/Yellow/Grey

Contact Resistance:	20m Ω Max	Insulation Resistance:	1000m Ω Min
Contact Material:	Copper Alloy Plated	Insulation Material:	Polyester
Contact Plating:	Au, Sn over Ni	Material Flammability Rating:	94-V0
Contact Plating Thickness:	Custom	Operating Temperature:	-40°C to +105°C
Current Rating:	1.0 to 3.0AMP	Withstand Voltage:	250V AC/DC
No. of Row:	2	Mounting Type:	Free Hanging (In-Line)
No. of Positions:	06-64P	Connector Type:	Receptacle
Pitch:	1.27*1.27mm, 1.27*2.54mm, 2.0*2.0mm, 2.54*2.54mm	Contact Type:	Forked
Wire Type:	Ribbon Cable	Cable Termination:	IDC Type
Wire Gauge:	22-28 AWG	Packing:	Original Packing
Manufacturer Standard Lead Time:	1-3 Weeks
