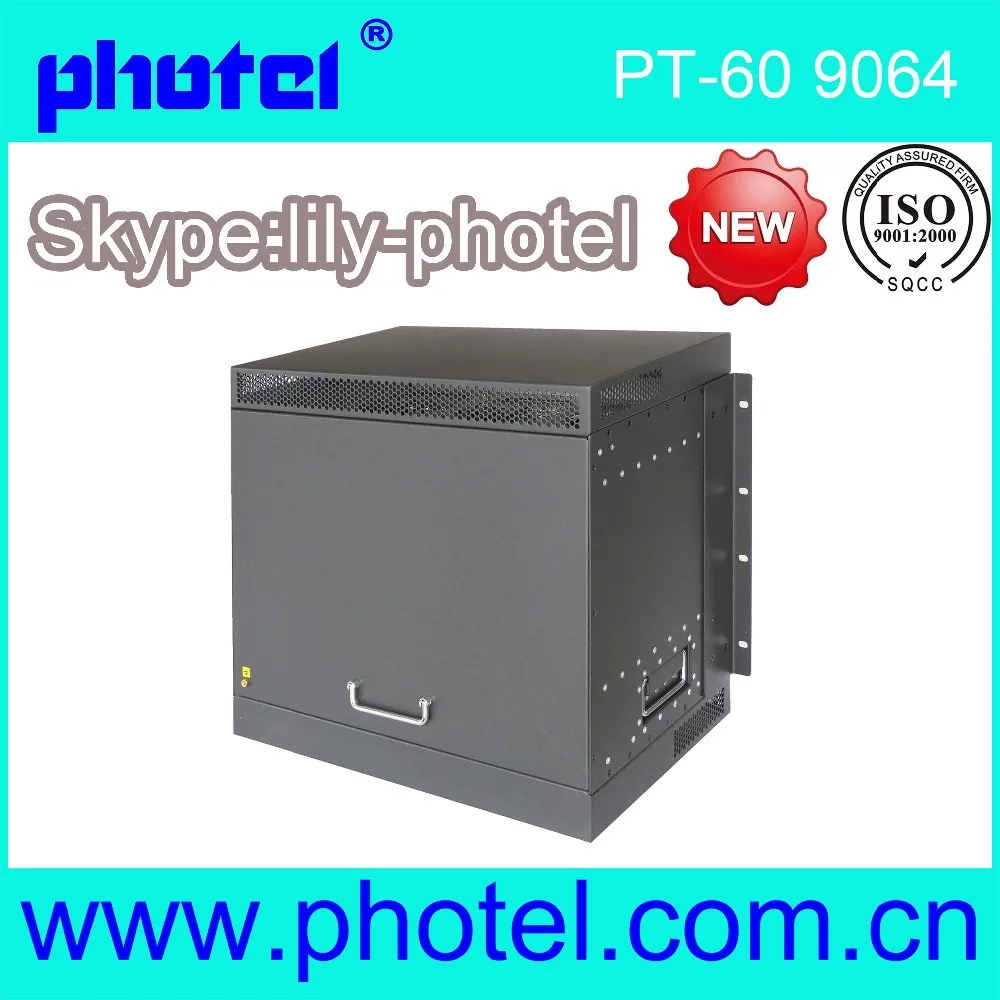

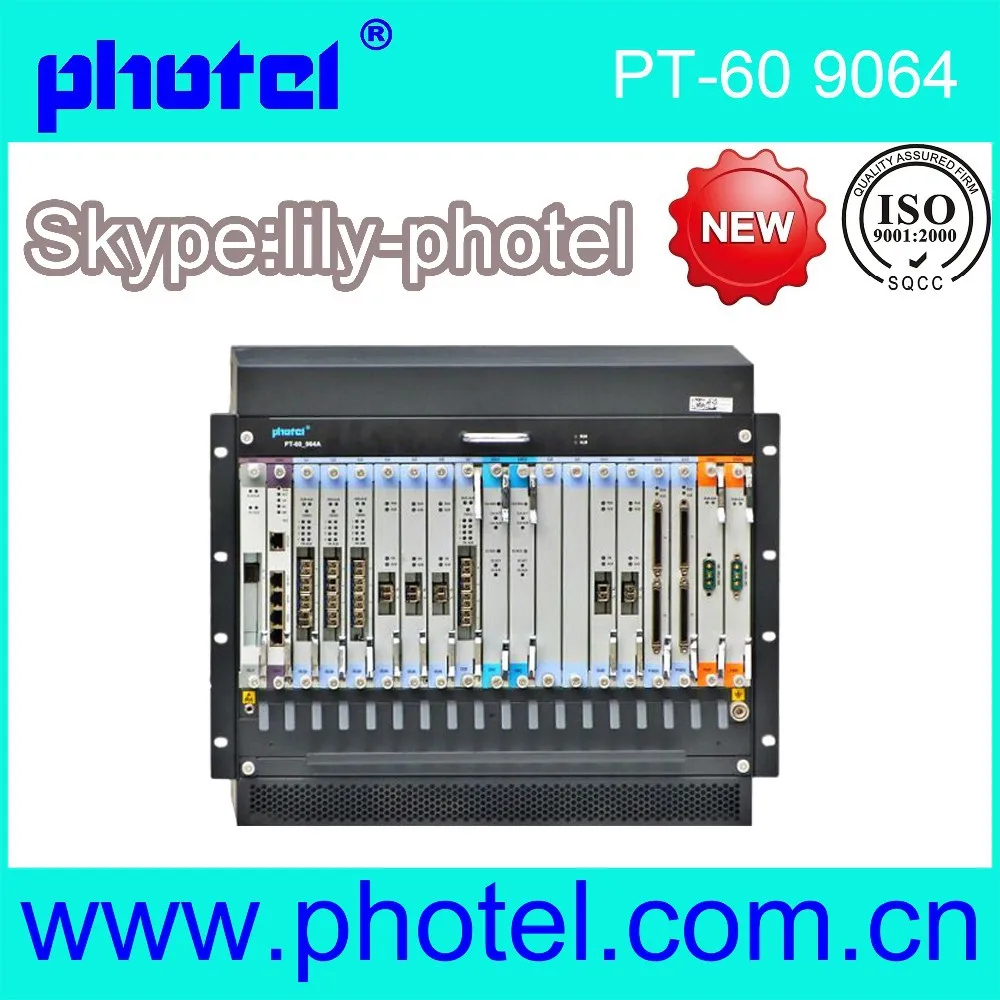

Brief Introduction PT-60 serial optical network equipment is a new generation intelligent MSTP, it offers a complete solution for traditional ADM services, broadband data service access, aggregation, transmission. PT-60 9064 is STM-1/4/16/64 MSTP equipment, it has powerful functions, abundant interfaces, high service capacity, and flexible networking ability, it can flexibly distribute network bandwidth, it can be suitable for service aggregation center node in the transmission network. The equipment is standard 19 inch 9U height.
PT-60 9064 supports different types of services access and aggregation, including STM-1, STM-4, STM-16, STM-64, E1, FE, GE, etc. * Flexible networking
PT-60 9064 MSTP can provide point-to-point, link net, ring network, T type network, multi-ring networking mode ,it can build up link, ring, star, tree, ring cutting , intersection ring, mesh network etc. * Complete Ethernet function
Standard 10/100M Ethernet and 1000M Ethernet interface, adopting GFP encapsulation and VC virtual concatenation technology, line speed switching, adjustable bandwidth, rate adaptive. It can provide a complete Ethernet layer two switching function, supporting transparent transmission, exchange, aggregation. And it also supports VLAN, STP, LCAS, priority functions; * Perfect protection ability
Optimal network level protection: sub-net connection protection, multiplex section link protection (MSP 1+1), 2 fiber multiplex section shared protection ring (MSP2F RING), 4 fiber multiplex section shared ring protection; Full hardware redundancy protection: 1+1 cross connection board protection, 1+1 clock source protection; 1+1 power board protection; 1:6 TPS protection; * Modular function
can replace module to achieve smooth update from STM-1 to STM-4, it can be upgraded from STM1/4 to STM-16/64 by changing optical card. The expansion slot is all-purpose , it can insert or remove the expanded card to increase the service capacity or adjust the service access transmission type, so the system expansion is very convenient;
* Unified NMS, convenient to upgrade and maintenance
PT-60 series products adopts the unified network management platform to do centralized operation, maintenance and management, realize the allocation and scheduling for circuits, ensure the safe operation of the network; PT-60 9064 equipment has the ability to do the remote software upgrading, which make it easy to do maintenance, and flexible to update new functions; DCC channel has the ability to transparently transmit NMS information of other manufacturers.
Technical Specification
SDH optical interface
STM-1(155Mbps) : S1.1,L1.1,L1.2
STM-4(622Mbps) :S4.1,L4.1,L4.2
STM-16(2.5Gbps): S16.1,L16.1,L16.2
STM-64(10G): I-64.1/S-64.2b/L-64.2
E1 Electrical interface
Impedance: 75 and 120Ω for 2Mbps
Ethernet interface
FE Ethernet: 10/100BASE-TX
GE Ethernet: 1000BASE-SX/LX
Network protection
SNC/I,SNC/N ,1+1 MSP
Hardware protection
1+1 cross connection board protection,
1+1 power board protection;
1:6 TPS protection
Cross connection
VC-12, VC-3 and VC-4 single direction, dual direction and broadcast
Synchronization clock
2048 kbit/s or 2048 kHz external clock
System power
DC-48V, dual power supply
Input voltage
DC–38.4V DC ~ –60V DC
Maximum system power consumption
600W
Working temperature
-10 ~ +50°C
Storage temperature
-40 ~ +80°C
Dimensions
440(L)×280(W)×394(H)mm
Application
Multi-Service protection
1. Chain Network
2.Ring Network
3.Ring and Chain Network
4.DNI Ring Network
5. Overlapping DNI Network
6. verlapping SNI Network
Certifications
