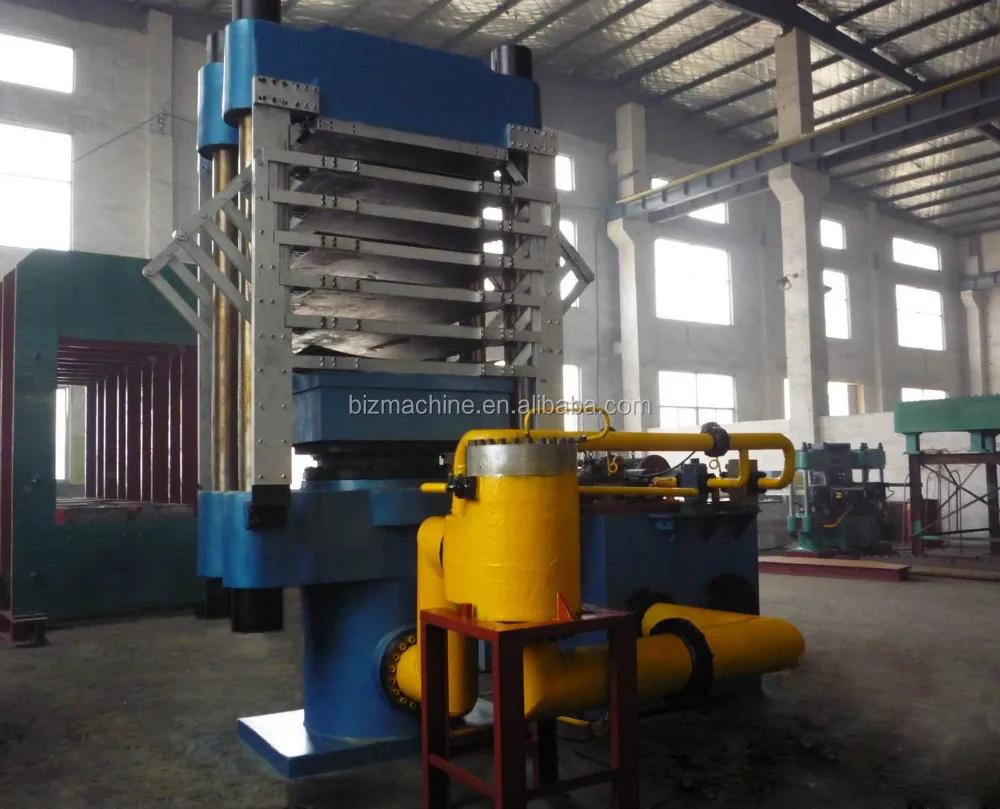

Hydraulic vulcanizing press machine for making EVA parts
- Category: >>>
- Supplier: Qingdao Biz International Trade Co. Ltd. [Shandong China]Qingdao
Share on (60188094052):
Product Overview
Description
Hydraulic vulcanizing press machine for making EVA parts
1. AOOLICATION
The machine is used for foaming EVA, PE rubber, which is widely used in shoe material manufacturing, foaming floor glue, thermal keeping material, luggage liner, sporting prevention material, diving dress material and life vest material, etc…
2. SPECIFICATONS:
Model | XLBQ-1200*1200*4 | XLBQ-1400*1500*6 | XLBQ-1500*1500*6 |
Total pressure (MN) | 5 | 8 | 10 |
Plate Size(mm) | 1200*1200 | 1400*1500 | 1500*1500 |
Layers | 4 | 6 | 6 |
Daylight(mm) | 150 | 150 | 150 |
Piston Stroke(mm) | 500 | 800 | 800 |
Plate unit pressure | 3.4(Mpa) | 3.8(Mpa)) | 4.5(Mpa) |
Motor Power (kw) | 18.5 | 26 | 33 |
Size (L*W*H) | 2400*2100*3200(mm) | 2650*2400*3600(mm) | 2750*2400*3600(mm) |
Weight (kg) | 22000 | 38000 | 48000 |
We can manufacturing any type of vulcanizer by your request.
