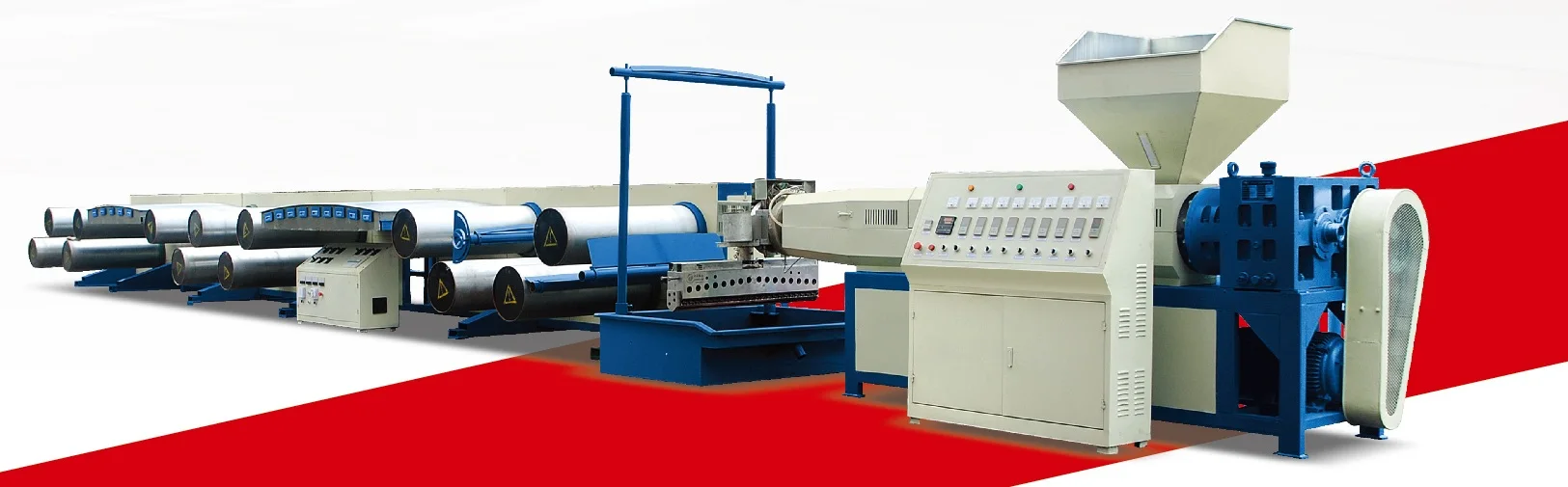

High speed flat film plastic tape extrusion machine
Product Description
1,Characteristics:
The machine using material of polypropylene & high density polyethylene, through heating extruding and drawing makes tape that is then winded for the weaving of the circular loom.
Through our sustained improving , the machine can use 100% regenerated PP & PE ,powder or grain PP & HDPE to produce tapes .The screw and cylinder of extruder are of 38 CrMoAIA alloy steel, the hardness is over HV 950 after nitrogenation treatment. Helical gear reducer made of 20 CrMnTi Tially steel is applied to the extruder, the gears & chain wheels are made of 45# medium carbon steel and done the treatment of high frequency quench. The driving rollers are plated with hard Cr, tension self-controlling of winding-rollers are applied to the driving unit.. The cylinder of extruder, triton and die adopt aluminum cast heater which is endurable.
2,Main Techical Details:
Model
SJ-L115-8
Diameter of screw
110mm
L/D ratio of screw
20:1
Rotational speed of screw
10-55r/min
Width of die
600mm
Number of oven
2
Power of extruder
18.5kw/22kw
Heating power
24kw
Power of driving motor
5.5kw
heating power of the oven
15kw
Drawing rate
4-8
Thickness of tape
0.025-0.08mm
Production capacity
30-70kg/h
Drawing speed
20-150m/min
Weight
5000kg
Dimensions(L*W*H)
13300*1250*1260mm

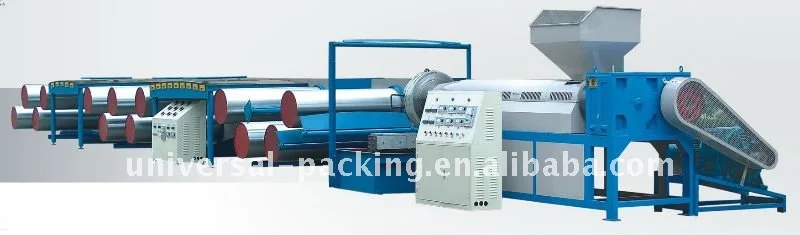

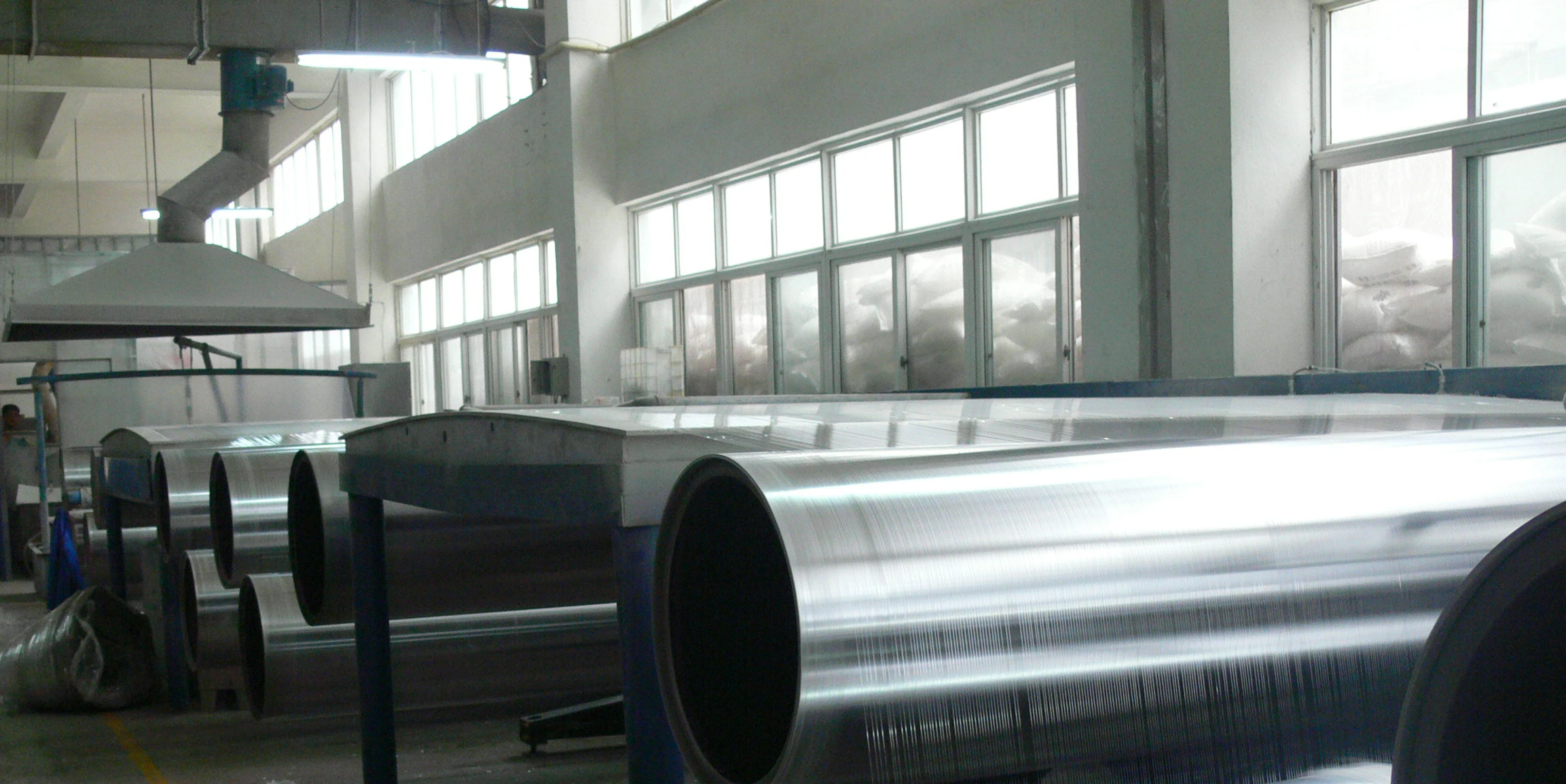

3,Picture:
Company Information
4,About Us:
5,Certificate
Our Services
6,Service:
1.Has several senior engineers service in many countries, all the year round with our after-sales office in multiple countries.
2.Machines with good quality in one year, life-long maintenance.
3.Have many machines can be monitored via the Internet, solve customer requirements in a timely manner.
4.Has several senior,continuous innovation and reform, in order to ensure the quality of mechanical stability.
5.Undertake various non-standard machinery, solve the customers' requirements.
