Kaplan turbine Permanent magnet 500 1500r/min Axial water turbine micro hydro generators

Product Overview

Description

Kaplan turbine Permanent magnet 500-1500r/min Axial water turbine micro-hydro generators





1. Specification of Water Turbine



1).0.3kw to 200kw
2).water head :1m to 50m
3).Flow Rate(m3/s):0.021-0.45
4).Speed(r/min):500 to 1500
5).Runner Pages:100mm -200mm
6).design and produce according to the power, speed, frequency that you need.

2. Technical Parameters of 5kw Kaplan Turbine



2.1 Parameters



Specification
Model	CT760-LM-20/1*5
Type	Kaplan Turbine
Power	5kw
Water Head	2.5-5.5 m
Flow rate(m³/s)	0.1-0.15
Speed	500-1500 rpm
Exciting Mode	permanent magnet
Runner Pages(mm)	200
G.W	130kg
Pack	Wooden case
MOQ	1 Unit

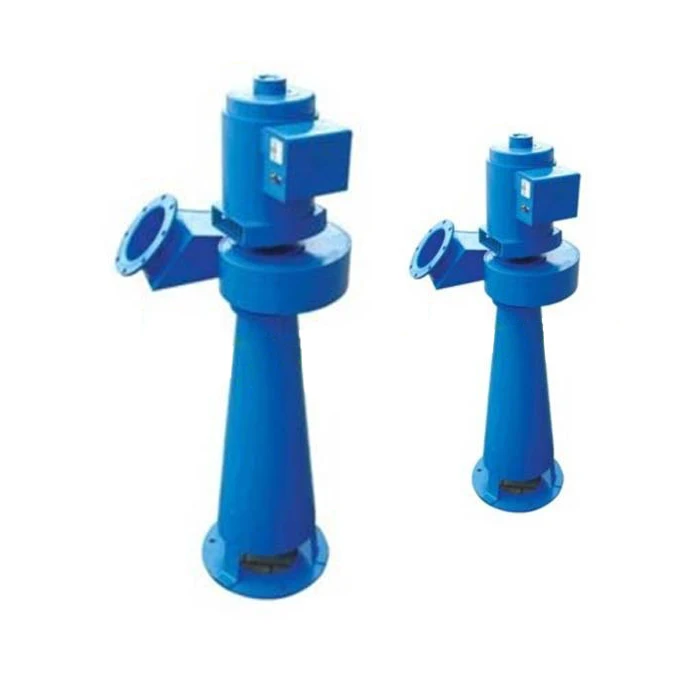

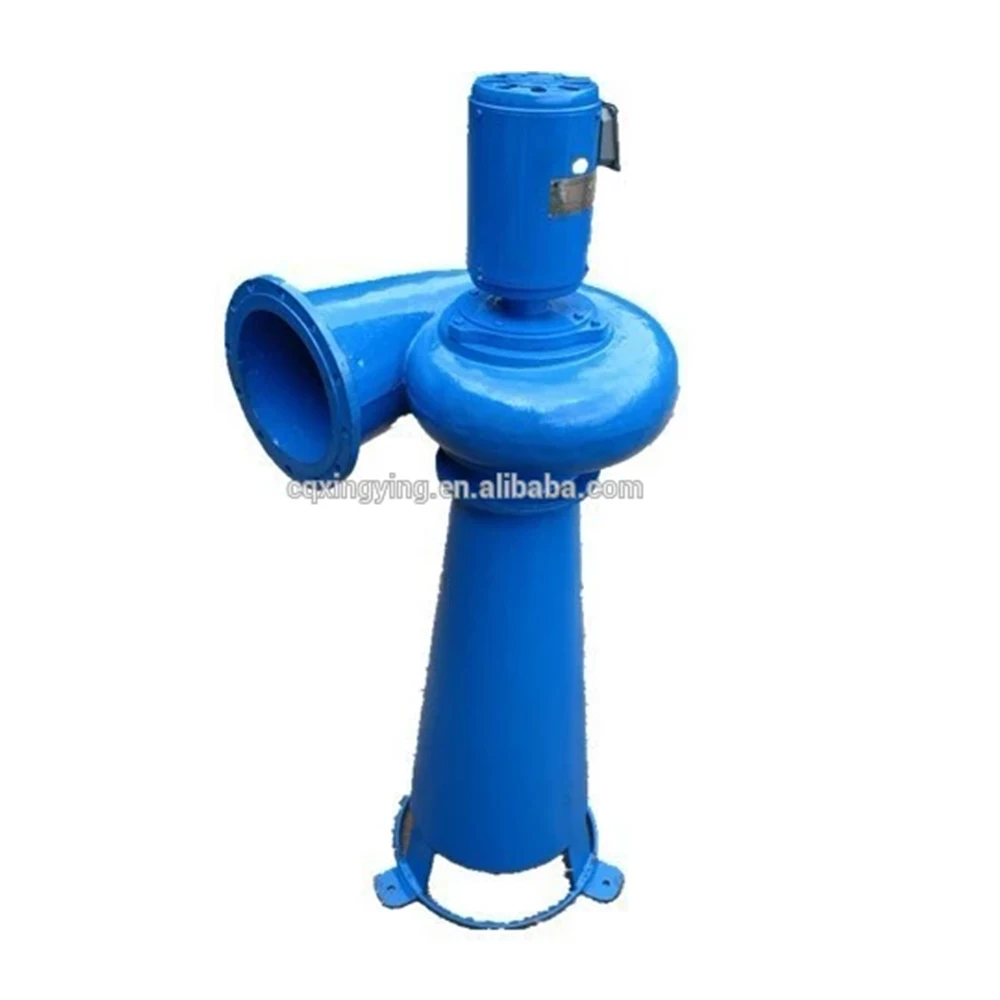

3. Product Display















3. Product Installation Drawing
