hydraulic swing arm die cutting machine price

Product Overview

Description

 die cutting machine price

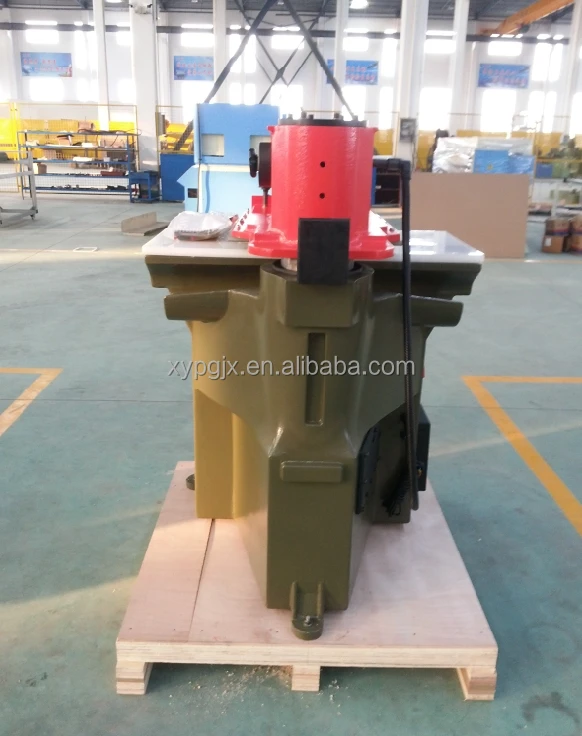

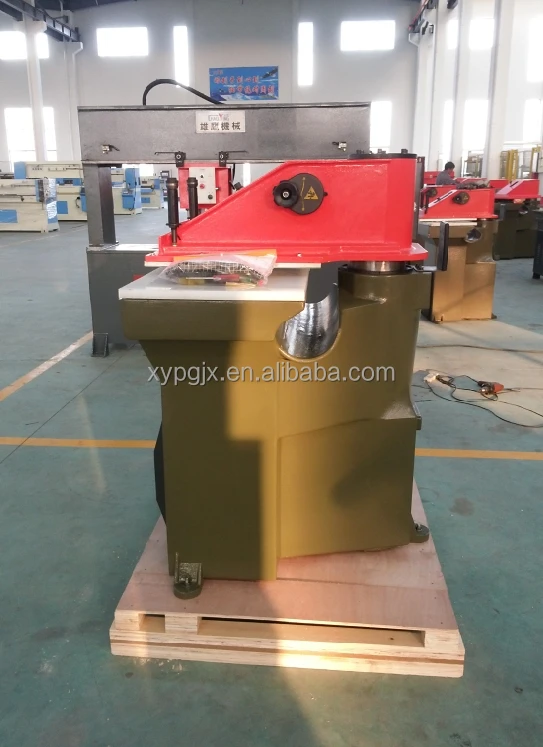

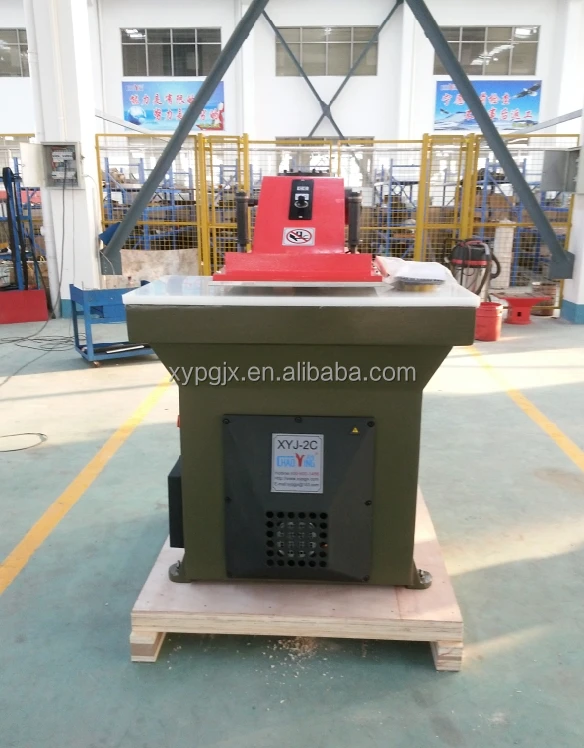

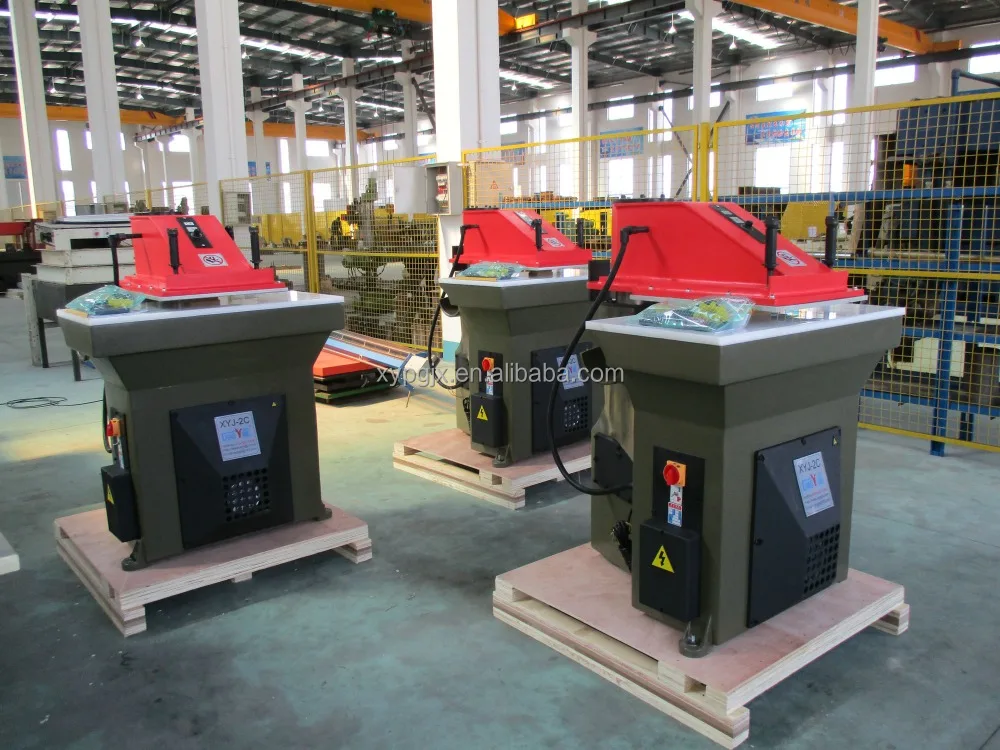

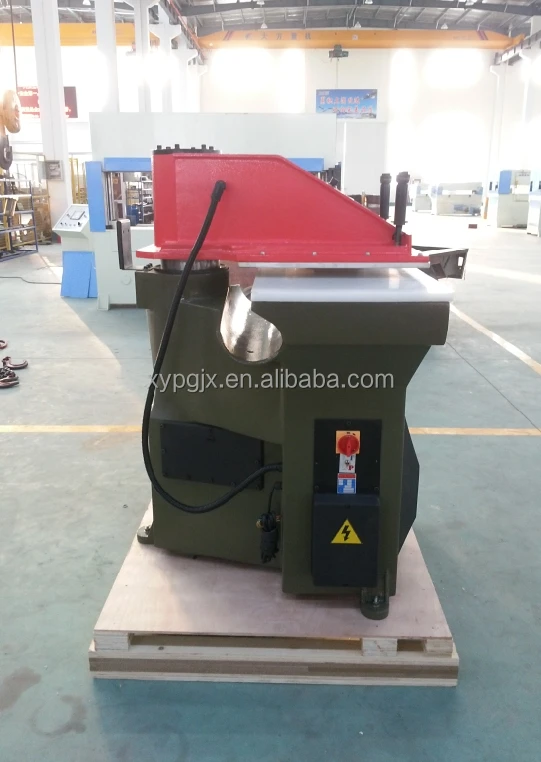

hydraulic swing arm die cutting machine price

USE AND CHARACTER:

The machine is suitable for cutting single layer or multiple layers of leather, plastic, paperboard, fabric and other materials by forming cutter.

It is an ideal cutting device for shoemaking, luggage & baggage, clothing, automobile, artwork, packaging, electronics and other industries.

1.There are two types of cutting modes for selection.

The first type is small pressure stepless regulation.

The second type is that the cutting adopts intelligent pressure feedback design function without the need of setting cutting point.

The height of die cutter has no influence on the cutting and ideal cutting effect can be obtained from each cutting point.

2.Through double oil way static pressure supporting lubricating system,

 the vertical column makes operators’ work more easy, flexible and worry-saving.

3.The main fittings are made of high quality imported assemblies,

which have characteristics such as reliable quality, low noise, high efficiency and energy saving.



TECHNICAL SPECIFICATION:



Maximum cutting force	22T	27T
Travel adjustment range	0—70mm	0-100mm
Range between the working tables	30—100mm	45-145mm
Size of upper rocker	360×430mm	500*500mm
Size of lower worktable	900×430mm	1000*500mm
Motor power	1.1kW	1.5kw
Overall dimension	950×950×1350mm	1050*1050*1600mm
Net weight	900kgs	950kgs
Gross weight	1000kgs	1050mm
adjusting stroke	Automatic
Electronic supply	50HZ 60HZ 220V ,380V ,440 V single phase three phase  or as optional
Hydraulic oil	46# or 68#
Automatic grade	Manual
Machine color	Red and green or as your optional
Machine logo	CHAOYING or Customized
OEM&ODM	Welcome



Application:

      The leather cutting machine is mainly suitable for cut one layer or multilayer of leather, rubber, plastic,

 hard papers, fiber, chemical fiber, non-woven and so on.

• Textiles sample swatches and pattern books, underwear and outerwear components, components for hats, ties,


• collars and shoulder pads


• Leather & footwear components – shoes, insoles, insole socks, uppers, straps, wallets, purses, belts


• Lampshades – fabric or plastic, with or without cut outs


• Filters for machinery, breathing apparatus and the medical industry


• Gaskets, seals, washers in plastic, cork, rubber, paper, felt, foam. PTFE, graphite etc


• Medical products – filters, dressings, disposables – pads, wipes, strips, foot care products, orthopaedic footwear


• Packaging – foam, inserts, card, promotional products, blister packs


• Paper and card – stationery, novelties, filters, labels


• Plastic cards – promotional, business, badges, labels


• Plastics – PVC binders, lampshades, stationery products, gifts, novelties, gaskets


• Toys – soft toys,advertising novelties, mini jig-saw puzzles and more


• Abrasives


• Automotive components


• Carpet and flooring, sample swatches


• Textiles  sample swatches and pattern books, underwear and outerwear components, components for


• hats, ties, collars and shoulder pads


• Leather & footwear components – shoes, insoles, insole socks, uppers, straps, wallets, purses, belts


• Lampshades – fabric or plastic, with or without cut outs


• Electronic components – flexible PCB’s touch pads, button covers, legend plates


• Filters for machinery, breathing apparatus and the medical industry


• Gaskets, seals, washers in plastic, cork, rubber, paper, felt, foam. PTFE, graphite etc


• Insulation materials


• Medical products – filters, dressings, disposables – pads, wipes, strips, foot care products, orthopaedic footwear


• Packaging – foam, inserts, card, promotional products, blister packs


• Paper and card – stationery, novelties, filters, labels


• Plastic cards – promotional, business, badges, labels


• Plastics – PVC binders, lampshades, stationery products, gifts, novelties, gaskets


• Toys – soft toys, advertising novelties, mini jig-saw puzzles and more


•

FAQ :

1, Are you a factory or a trade company ?

we are a factory , welcome you to visit our factory and discuss our business face to face .

2, Where is your factory located ? How can I visit your factory ?

Our factory is located in No 98 Wolong Road Daguang Town Yancheng city Jangsu Province China .

You can take plane from Guangzhou city to Yancheng city or from Shanghai city to

Yancheng city  . It is very convenient .

3, Do you attend any Fair ?

Yes , we attend some professional fairs every year :

All china leather exhibition & china international footwear fair

( in Shanghai china  )

International exhibition on shoes& leather industry

 (In Guangzhou china )

4, Can we use our company logo on your machine ?

Yes , you can use your logo if necessary .

5, How does your factory control the machine quality ?

We have some QC staffs to inspect and test the machine . every machine must be tested for 12-16 hours before leaving factory .

6, How long is your guarantee period ?

One year
