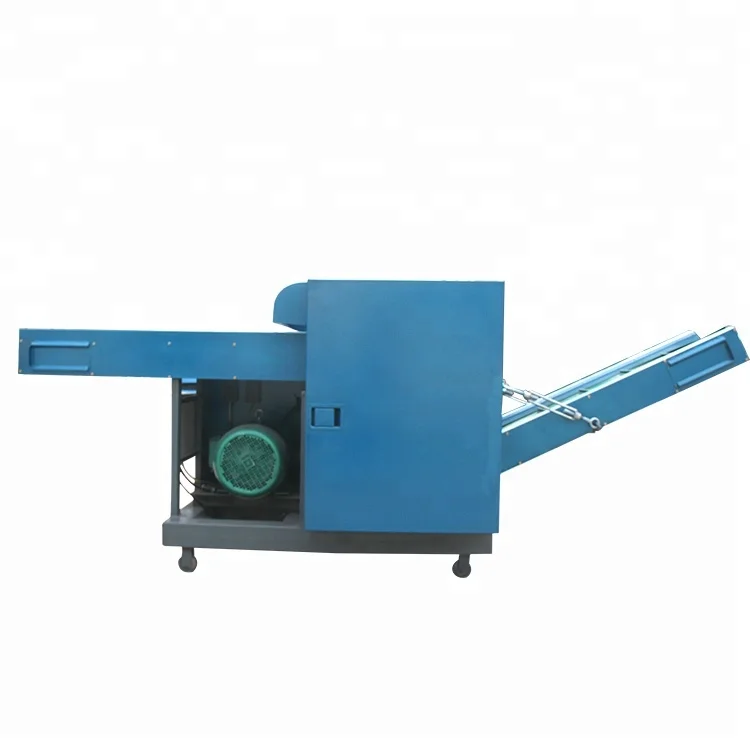

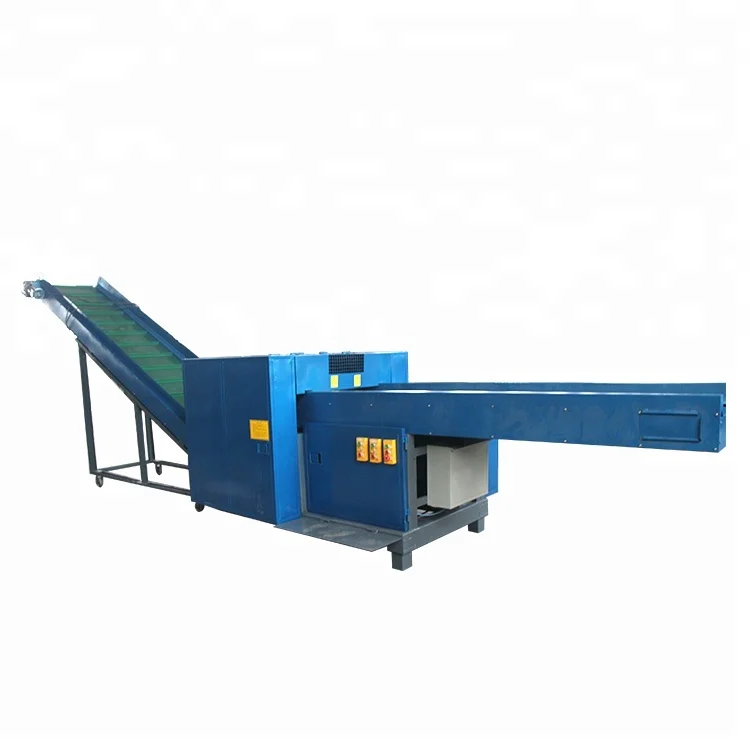

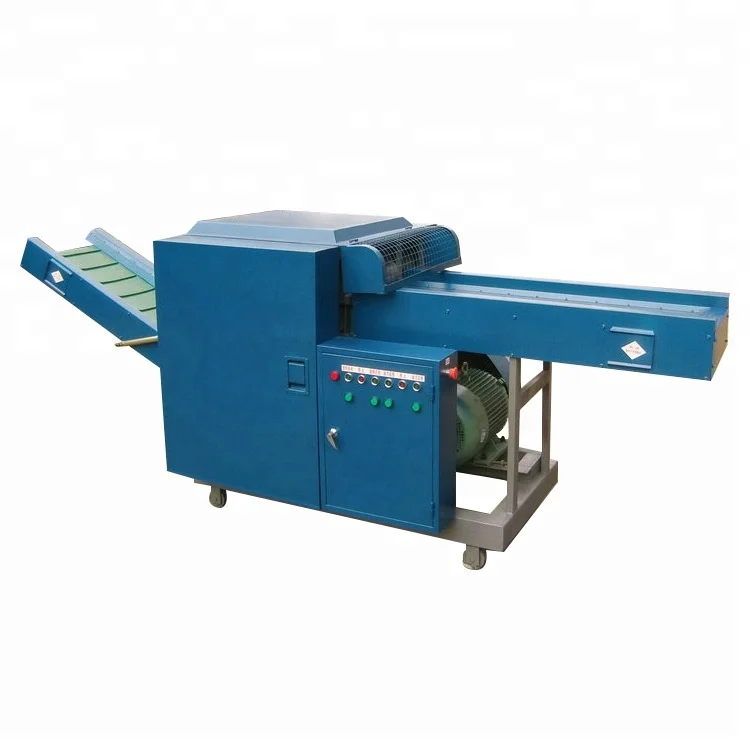

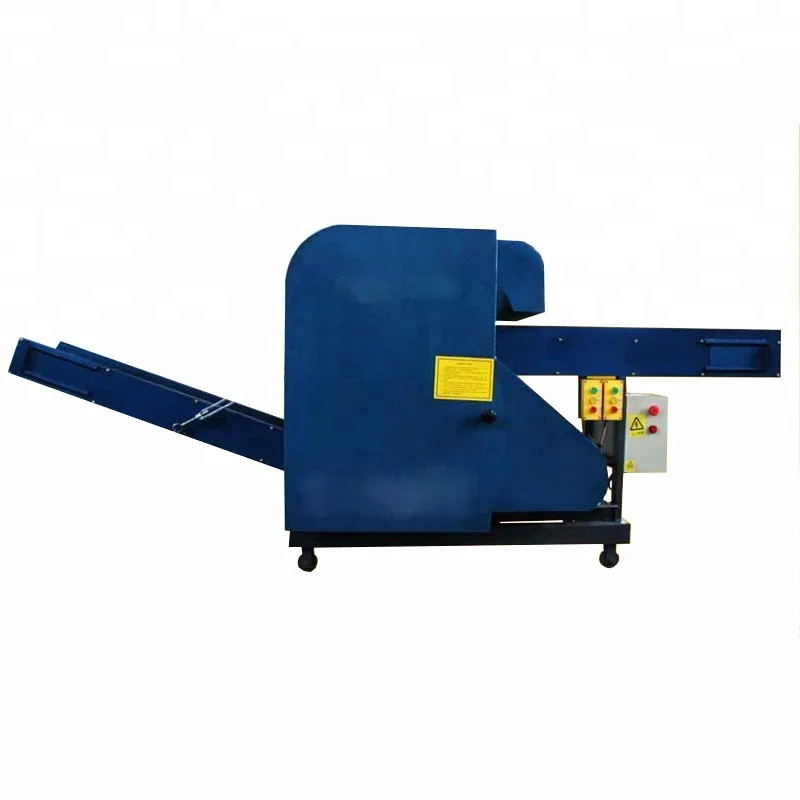

fibre cutting machine /waste cloth cotton wool leather cutting machine

Product Overview

Description

1. Company introduction :



Connect : Emma lee

Mobile : 13838527397

Tel : 0086-371-86660712

Fax:0086-371-86660713

Skype : shuliy6650



2. Details for the machine



Feature:

1 New rack structure is scientific, reasonable and safe, the performance is reliable; operation is

stable, and easy to handle.

2 Output is high, good loosing and cleaning effects, low-loss, environmental and low noisy.

3 Adopt to oblique gear speed reducer make the good adaptability during the long time working,

and will not be heat, has long life time.

4 Equipped with the new designed rack, loosing and recycling combined working models, gradually

processing materials, reduce the damage to fiber, improve the length of fiber.

5 Special structure roller and arc-shaped cotton feeding board, and has long life time

6 Gap is easy to adjust and maintenance

7 Have thickened roller, four roller cotton feeding device, gear roller and other feeding type, is free

 to choose according to different materials





3. Details parameters :

Model	TZ-  500B	TZ-800C
Dimension	3200*1000*1100mm	3200*1000*1100
Power(kw)	3	5.5
Productivity(kg/h)	300	500
Speed of cut	288t/min	432t/min
Size of final products	One size between 5mm-300mm	Three size between 5mm-150mm
Input Conveyor	1000*350mm	1400*350mm
Output Conveyor	1400*350mm	1400*350mm
Thickness of final product	20mm	30-50mm







4. other details :
