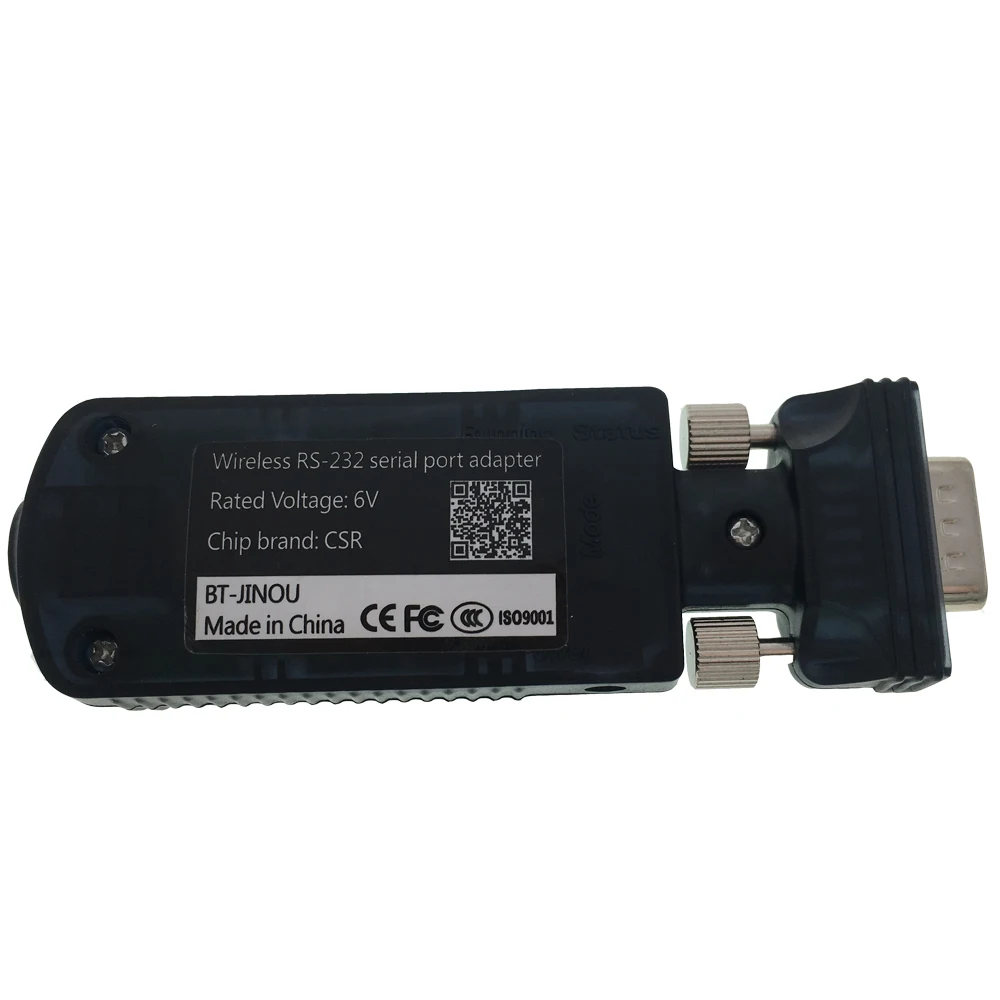

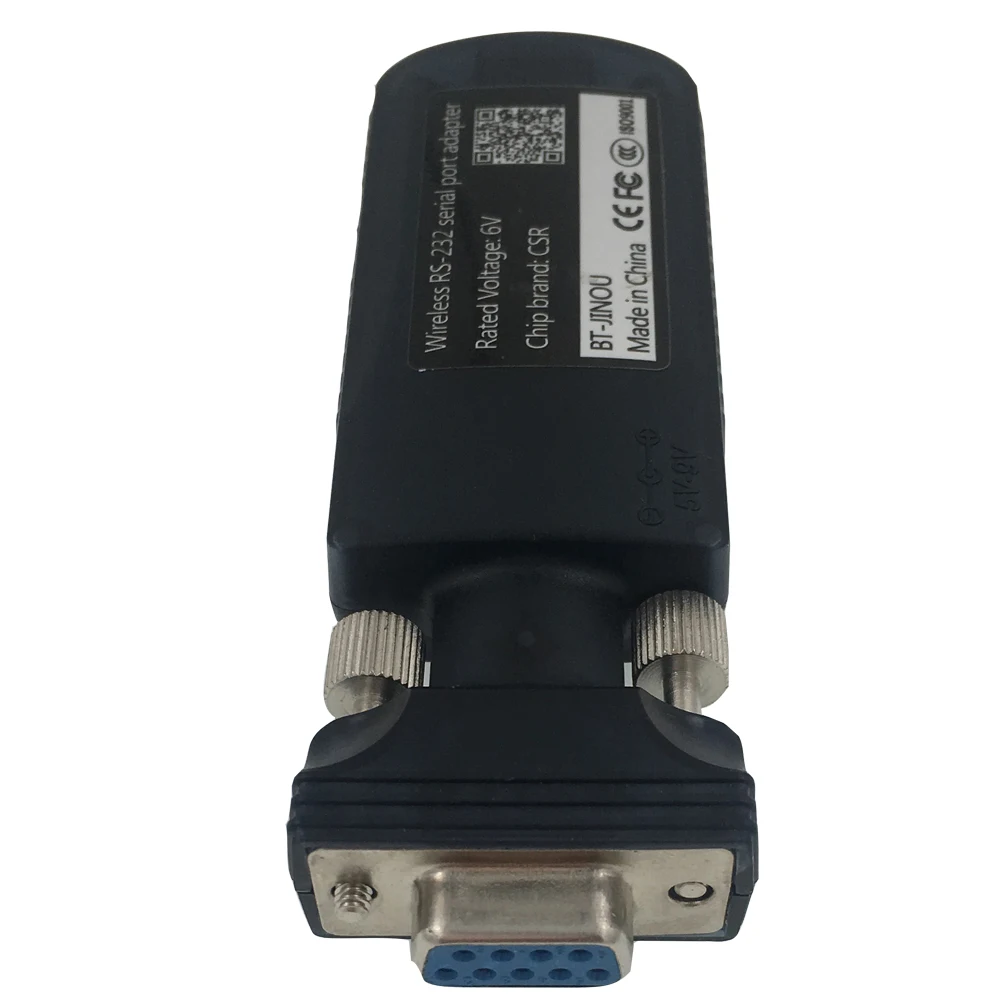

JINOU Class 1 Class 2 Bluetooth 3.0 RS232 Serial Adapter with DB9 Pin for Wireless Data Transfer Serial Port
- Category: >>>
- Supplier: Chongqing Jinou Science And Technology Development Co. Ltd.
Share on (60188789569):
Product Overview
Description
Product Description
Class 1/Class 2 Bluetooth 3.0 RS232 Serial Adapter with DB9 Pin for Wireles Data Transfer Serial Port 10m/100m
Bluetooth RS232 adapter can be applied to all kinds of home appliances, equipment (such as medical treatment equipment) and other electronic information products. As a cable replacement program, it can connect the single-chip processor or processor directly via using PnP mode to achieve the wireless data transmission among equipment transparently. Bluetooth RS232 adapter can be used independently as well, excluding using by match.
Working Frequency | ISM 2.400~2.483GHz |
Bluetooth Specification | Bluetooth classical V3.0 |
RF output power | 10m (class 2), 100m(Class 1) |
Spread Spectrum | FHSS |
Input Voltage | 6V |
Receiving sensitivity | -92dBm |
Store temperature | -40℃~+85℃ |
Security | Security certification, data encryption |
Connector | DB9 socket(needle pattern or hole pattern) |
Safety standard | AES 128bit |
Working Temperature | 0℃~+60℃ |
Baud rate | 1.2K~1382.4Kbp ( up to3Mbps) |
Baud Rate | 9600bps (default), or 2.4k~115.2kbps |
Protocol | LM, LC, L2cap, SDP, RFCOMM |
Support services | Bluetooth serial protocol (Bluetooth Serial Port Profile) |

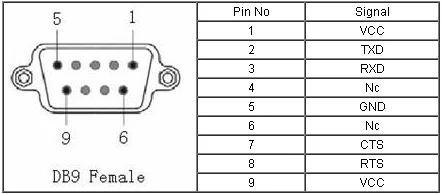

Communication Interface | Standard RS232 five-wire serial mode(RxD, TxD, RTS, CTS, GND) |
Maximum connection number | 7 slave devices |
bluetooth adapter
Name | Model | Interface | Distance | Antenna | Battery |

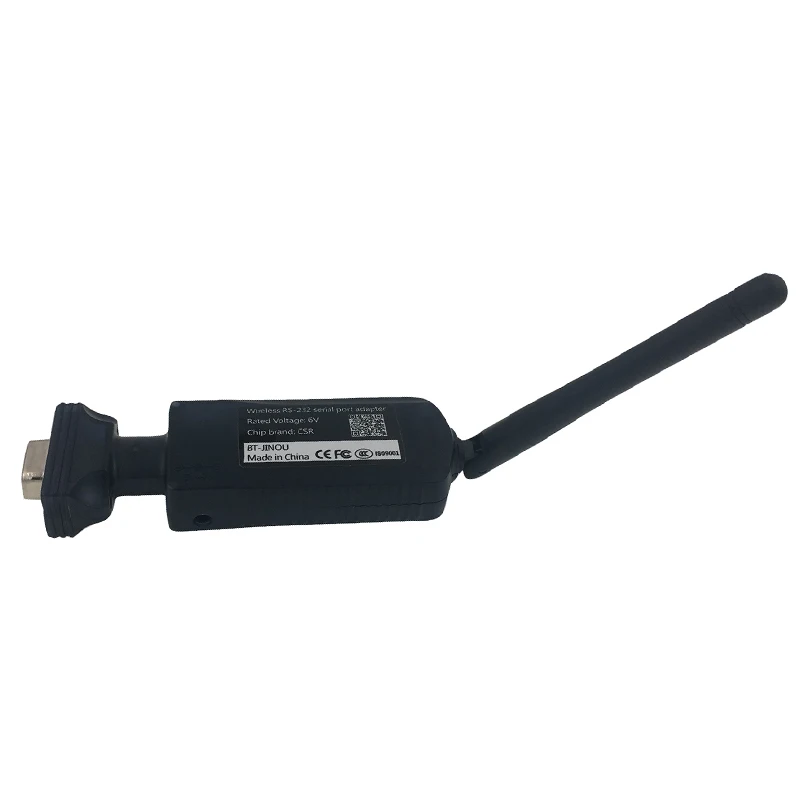

RS232 Bluetooth Adapter | BTS4504C1H | Male | 100m | External | No |
RS232 Bluetooth Adapter | BTS3804C1H | Female | 100m | External | No |
RS232 Bluetooth Adapter | BTS4004C2P | Male | 10m | Embedded | No |
RS232 Bluetooth Adapter | BTS3904C2P | Female | 10m | Embedded | No |
RS232 Bluetooth Adapter | BTS4304C2P | Male | 10m | Embedded | Yes |
RS232 Bluetooth Adapter | BTS4204C2P | Female | 10m | Embedded | Yes |
RS485 Bluetooth Adapter | BTS5505C2P | Male | 10m | Embedded | No |
female
Bluetooth RS232 and RS485 Serial Adapter for 10M/100 Meter
male
Bluetooth RS232 and RS485 Serial Adapter for 10M/100 Meter
famale
Bluetooth RS232 and RS485 Serial Adapter for 10M/100 Meter
male
Bluetooth RS232 and RS485 Serial Adapter for 10M/100 Meter
BLE 5.0
BLE 5.0 Serial Female Adapter 150M Class 1 for Remote Wireless Data Transfer
BLE 5.0 CAN
BLE 5.0 CAN Adapter 10M Female/Male Wireless Data Transmission
BLE OBD adapter
The OBD adapter can communicate with the vehicle through the BLE OBD adapter to query the vehicle working status and various data.
BLE Bolt Adapter
Conversion from serial can / RS485 / RS232 to Bluetooth wireless network
Dual-Mode Bluetooth Serial Adapter
Bluetooth V4.2 EDR And BLE
30 meters in open field
30 meters in open field
BLE USB Adapter
Bluetooth USB-Serial adapter bluetooth3.0 10M
CLASS 2 Standard
CLASS 2 Standard
BLE 5.2 Serial Adapter
Bluetooth ble 5.2
10m in open air
Our test
