Газонокосилка
- Category: Lawn Mower >>>
- Supplier: Taian Hysoon Machinery Co. Ltd.
Share on (60188973337):
Product Overview
Description
lawn mower
3pcs blade
mowing width 1070mm
mowing height 25-100mm
walk behind or stand on driving
CE GOST
Should ued together with loade,suitable for Hysoon loader,Dingo,Kanga,Bobcat
Product Description

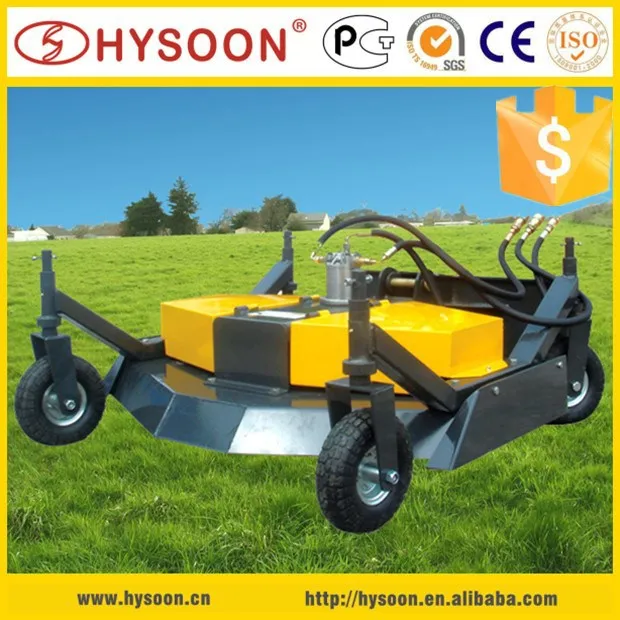

lawn mower is one kind of attachment used on the loader,
and the Hysoon loader lawn mower is a multifunction machine,
it is with quick hitch plate,
with hydraulic output for attachment working
like toro dingo,kanga,bobcat,vemeer
can use kinds of attachment for different works.
Hysoon lawn mower made in China
have different configuration for choice,
with Chinese hydraulic pump
Or
with Italy imported hydraulic pump
difference as below,
skid steer loader lawn mower
have different running model,with tracks or with different tyres

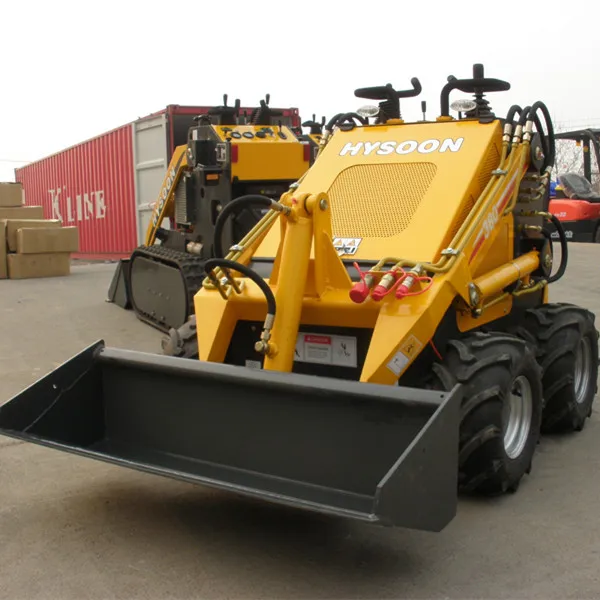

skid steer loader lawn mower , loader attachment as below,

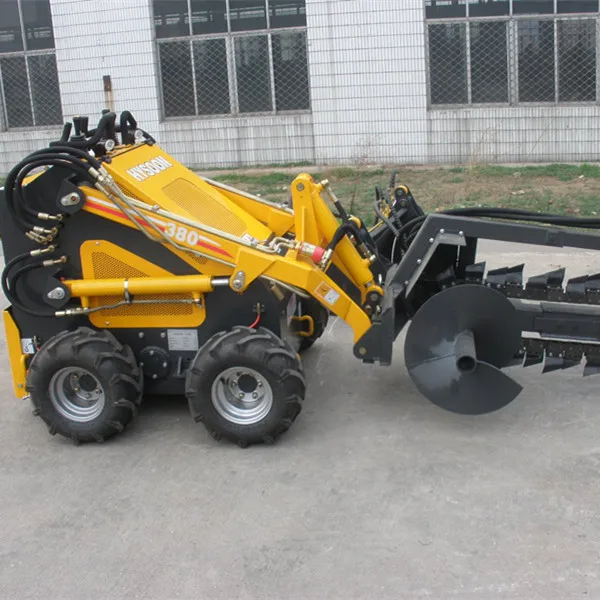

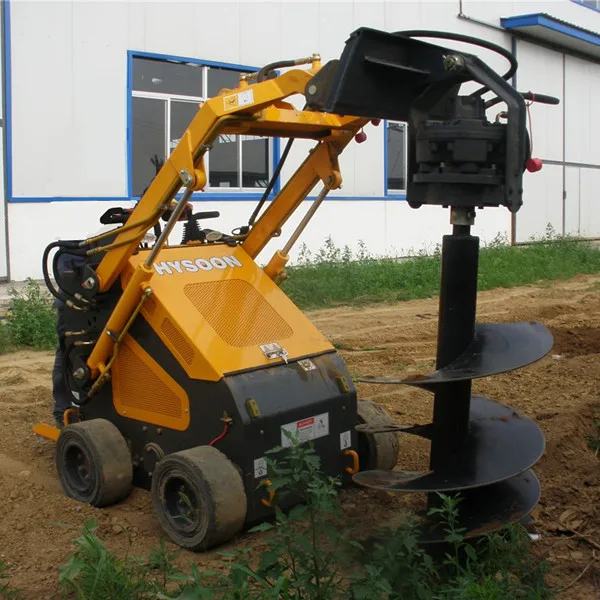

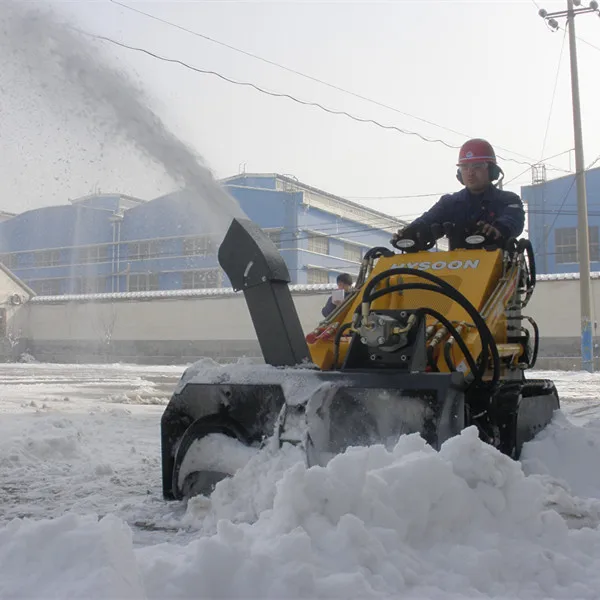

digger,auger,trancher,trench filler,tiller,snow blower,sweeper,4 in 1 bucket,fork,backhoe,hydraulic breaker,rock bucket,multifunction tools,ripper,blade,lawn mower,grapple,high dumper,leveller,mixer,stump grinder
skid steer loader lawn mower Spec
| Engine | Rated Power | 17.1Kw (23HP) | ||
| Rated Speed | 3600 rpm | |||
| Noise | <=95Db | |||
| Hydraulic system | Hydraulic Pressure | 17Mpa | ||
| Cycle time | Raise | Dump | Lower | |
| 4.27s | 1.34s | 3.31s | ||
| Load capacity | 200kg | |||
| Bucket Capacity | 0.15cbm | |||
| Max Lifting Force | 375kg | |||
| Speed | 0-5.5km/h | |||
| Total Weight | 890kg | |||
| Tyre model | 18*6.5-8 | |||
| Item | Data |
| Max Working Height (A) | 2143mm |
| Max Pin Height (B) | 1884mm |
| Max Dump Height (C) | 1488mm |
| Dump Distance at highest point (D) | 348mm |
| Bucket dump angle | 30degree |
| Bucket collectiong angle | 25degree |
| Departure angle | 11degree |
| Total Height (H) | 1233mm |
| Ground Clearance (F) | 118mm |
| Wheelbase (G) | 636mm |
| Length without bucket (J) | 1752mm |
| Total Width (W) | 1160mm |
| Bucket Width (K) | 1150mm |
| Total Length (with bucket) (L) | 2206mm |
| Turning Radius | 1307mm |
Packaging & Shipping
Steel pallet with ply-wood cover for sample order
No packing,loaded into the container directly and fasten well for quantity order
and 8sets/20'container
Trade Assurance
Tai'an Hysoon Machinery Co.,Ltd is a
supplier on Alibaba.com.
and has been inspected by TUV/BV,there is verified video can be check.
Now we are a member of Trade Assurance service
And habve US $73000 Limited.
that is new service provided by alibaba
which can provides buyers with a number of trade safeguards protect buyers’ payment to suppliers,
and to ensure suppliers fulfill their obligations regarding order delivery time and product quality".
Then no worries to make order with us via Trade Assurance.
Company Information
TAIAN HYSOON MACHINERY CO.,LTD is the original manufacturer of the mini skid steer loader in China.We focus on research and manufacture the small and medium-sized construction machinery.We currently have 4 series in manufacture,more than 10 kinds of products.Including Mini Loaders,Skid Steer Loaders,Dumpers,Tracked Carrier.Most of them have got CE and
G O S T Certification,and exported world-wide,for example Germany,Sweden,Australia, America.
And there is more than 30 kinds of attachments for loaders,such as Sweeper,Digger,Hydraulic Breaker,Fork,Lawn Mower,Trencher, to suit any different work requirement.
TAIAN HYSOON MACHINERY CO.,LTD concentrates on supplying solution for small and middle construction projects,researching and developing high quality products according to customers’ requirements,creating more value for customers.Looking forward to cooperate with you,achieving Win-Win situation.
Welcome to HYSOON!
FAQ
Why us?
1. We are the 1st manufacturer of mini skid steer loader and mini skid steer attachmetns in China.
2. Independent of the design team, Professional production team,15 Technical patents. Accept your customization.
3. High Quanlity & Reasonable Price. The accurate product positioning. Maybe we are not the lowest price, But we offer products is the highest quality.
4. Responsible, in good faith. To guarantee delivery. Do security by alibaba Escrow.
Our Warranty?
1. Offer you accessories for free.in 1 year warranty period.
2. Engine Warranty is 3 years, International Warranty.
3. Provide technical support for life.
Related Products
For further info about our skid steer loader lawn mower ,please do not hesitate to contact
Elieen Liu
TAIAN HYSOON MACHINERY CO.,LTD.
ADD:Boyang Road,Tai'an City,Shandong,China
Tel:0086 538 6189955
Fax:0086 538 6189955
Cell:0086 159 63150597
Skype: elieen.l
QQ:1459163274
Email/MSN:hysoon#hysoon.cn
Web:www.hysoon.cn
