Brief introduction of cross fold paper folding machine
1, YSZE series cross fold paper folding machine is our company developed a small desktop folding machine, suitable for folding paper many ways, this automatic folding machine structure is reasonable, and USES the paper of large roller, and say good bye is accurate, stable performance and convenient operation, high efficiency.
2, ZE-8b cross fold paper folding machine the minimum width after folding is 30 mm, particularly suitable for small width and folding width requirement after low instruction manual folding medicines and cosmetics
Parameters of cross fold paper folding machine
Model
YSZE-8B/2 cross fold paper folding machine
YSZE-8B/4 cross fold paper folding machine
Fold number
2
4
Volt
AC 220/50 110/60
AC 220/50 110/60
Power
50W
50W
Max paper size
310×700mm
310×700mm
Min paper size
50×70mm
50×70mm
Max thickness
125g
125g
Min thickness
40g
40g
Speed
80m/mim
80m/mim
Machine size
1050×525×505mm
1080×530×580mm
Machine weight
35kg
40kg

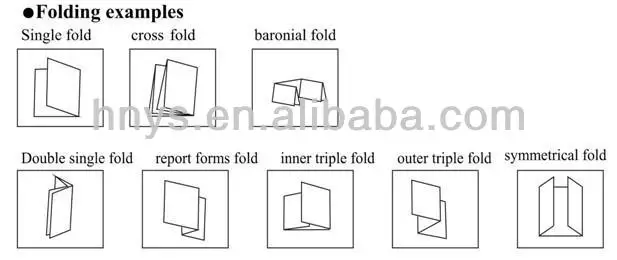

Fold style
Opposite fold, cross fold,
report form fold, inner three fold,
out three fold
Opposite fold, cross fold, report form fold,
inner three fold, out three fold,
cross and inner three fold,
out three and opposite fold,
opposite and out three fold,
inner three fold and opposite fold,
opposite opposite out three fold,
opposite opposite fold and inner fold

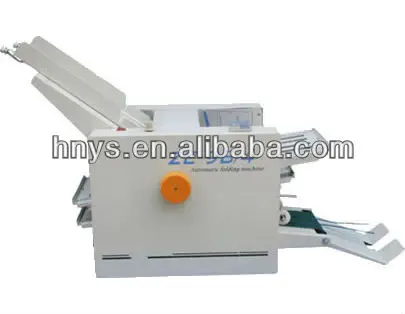

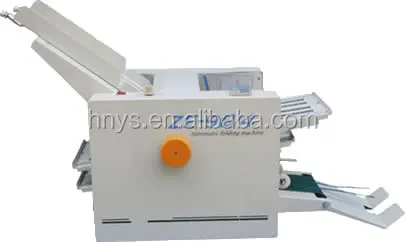

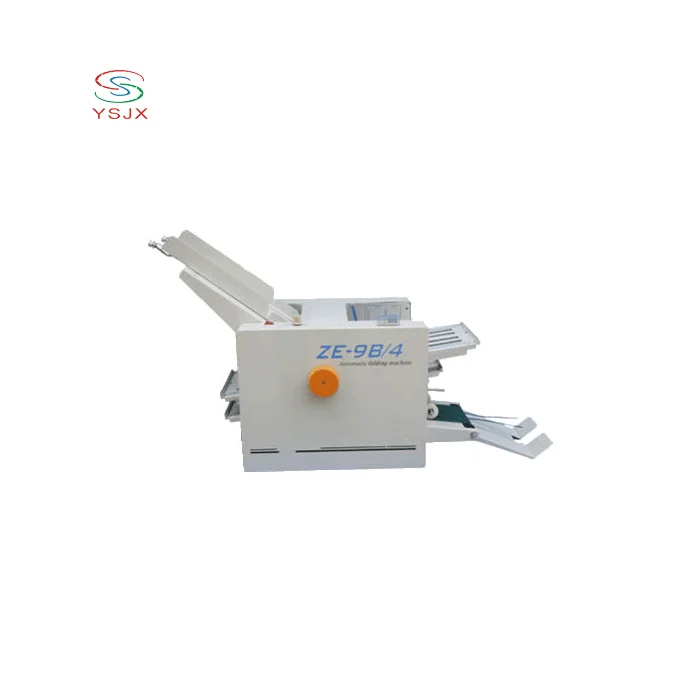

More pictures of cross fold paper folding machine
Automatic cross fold paper folding machine
Automatic cross fold paper folding machine

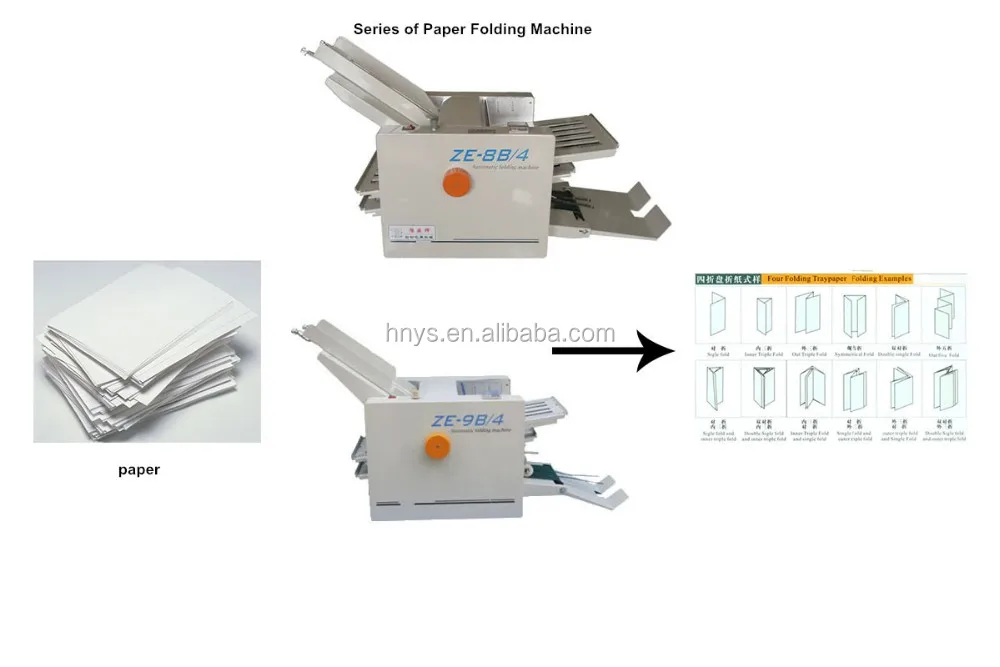

Automatic cross fold paper folding machine types as follows
Packaging & Shipping
Packing of cross fold paper folding machine
1.Before packaged& delivered of cross fold paper folding machine, we will test the machine seriously and guarantee the machine runs stably with high accuracy.
2.After inspection,our cross fold paper folding machine are wrapped by plastic film and then carefully packed in wooden cases. 3.Air express, air freight, sea tranportation, can be provided by us.
Our Services
1.Customized service can be provided according to your requirement.
2.Before packaged& delivered of manual paper folding machine, we will test cross fold paper folding machine seriously and guarantee the machine runs stably with high accuracy. 3.Periodically call visit, to make sure there is no problems of cross fold paper folding machine. 4.1 year warranty, technician available to service cross fold paper folding machine at any time.
Company Information
Customer visit cross fold paper folding machine in our factroy
FAQ
If you are interested in our cross fold paper folding machine, please feel free to contact with me.
