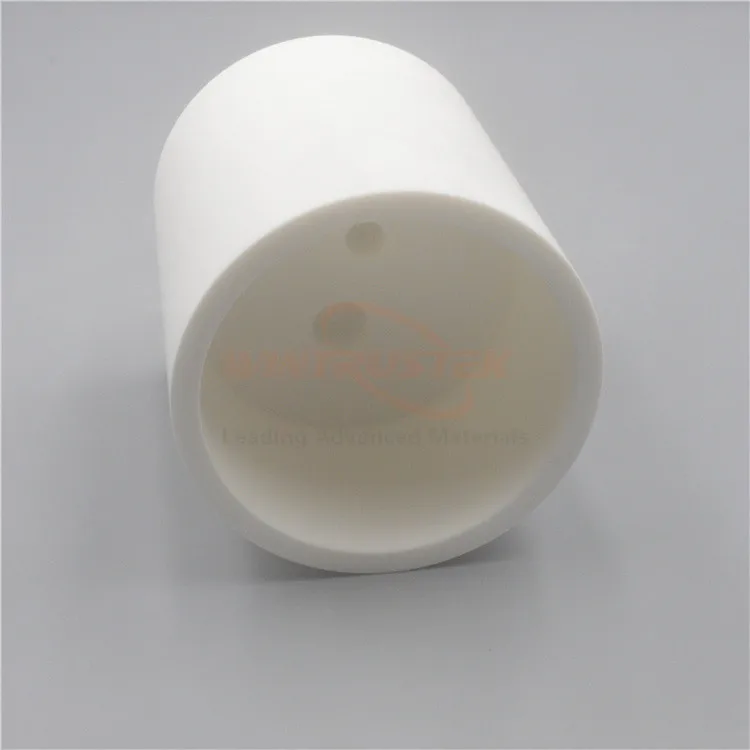

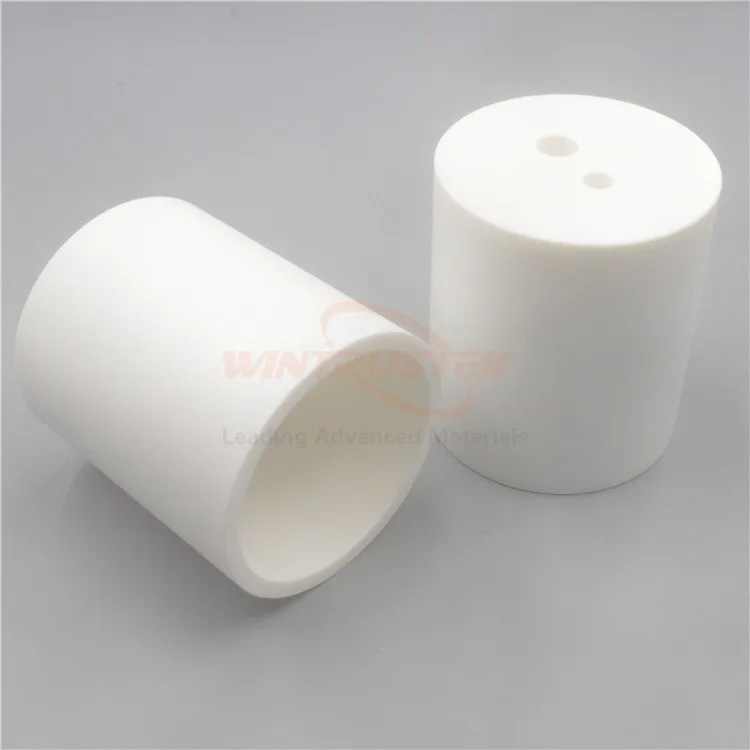

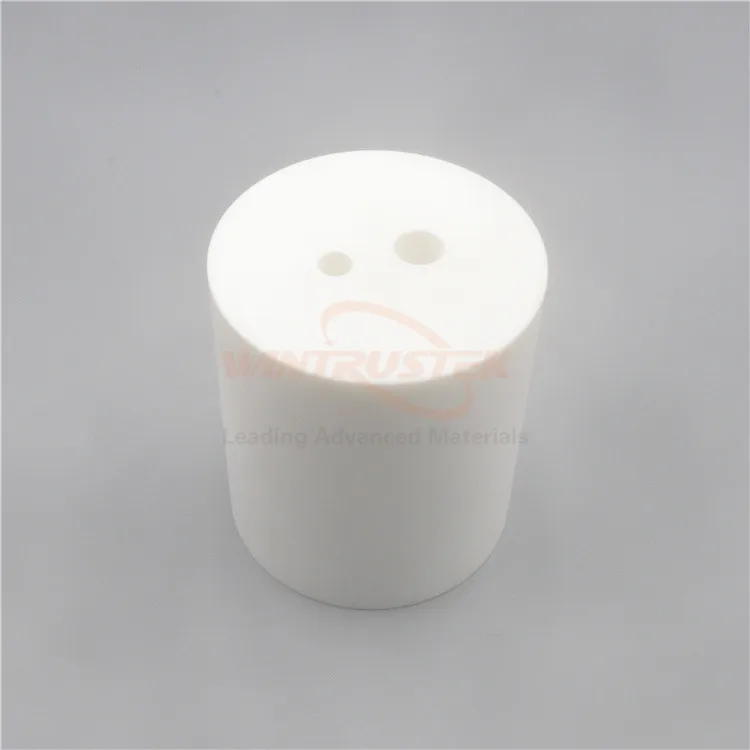

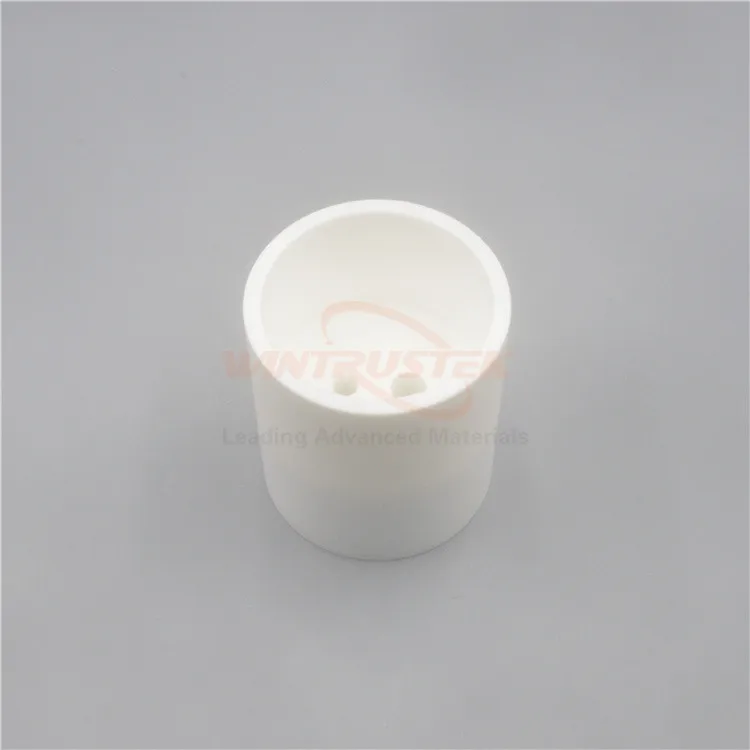

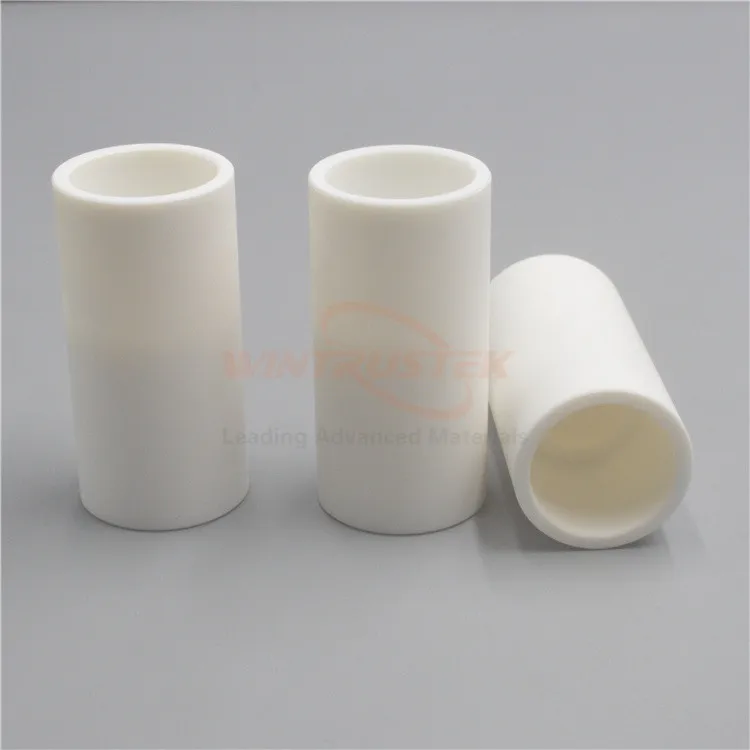

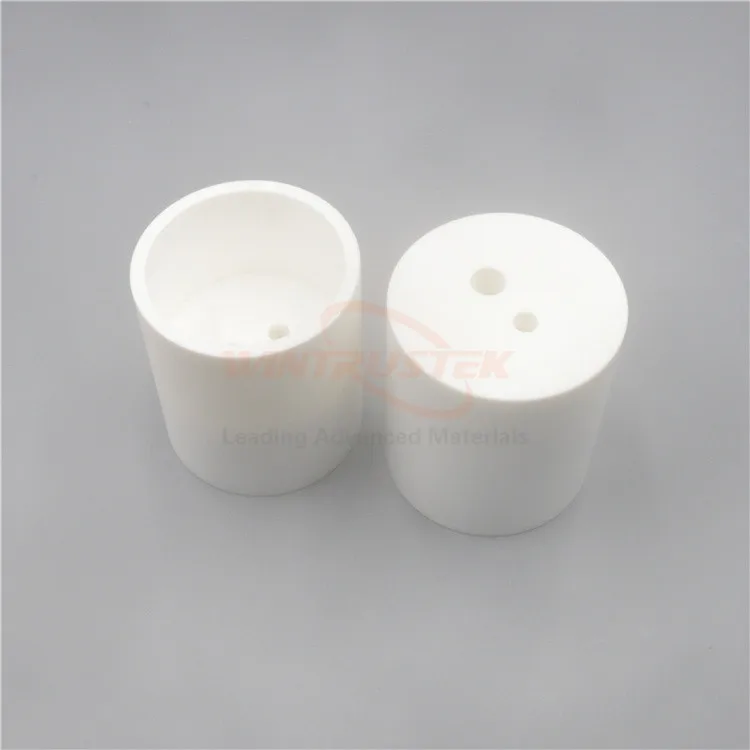

Thermal Insulator Macor Machinable Glass Ceramic Tube
- Category: >>>
- Supplier: Xiamen Wintrustek Advanced Materials Co. Ltd.
Share on (60189027833):
Product Overview
Description
Product Description
Hot Sale Products
Details Images
Specification
- Material: | Macor / Machinable Glass Ceramic |
- Typical Characteristics: | 1. Zero Porosity And No Outgasing 2. Low Thermal Conductivity 3. Outstanding Electrical Insulation 4. Easily Machinable 5. Holds Tight Tolerances |
1. Short Production Process (Raw Material - Machining - Finished Parts) 2. Ordinary Machining Tools 3. Complex Design Shapes 4. Not Post Firing Required 5. Fast Turnaround And Cost Effective 6. Quick Delivery Time | |
- Typical Applications: | 1. Ultra-high Vacuum Environments 2. Laser Technology 3. Nuclear 4. Lightening Conductor 5. Missle Gyroscope 6. Medical And Lab Equipments 7. Aerospace |
Properties / Material | Macor / Machinable Glass Ceramic |
Color | White |
Porosity | 0% |
Density (g/cm^3) | 2.60 |
Modulus Of Elasticity(@25°C, GPa) | >410 |
Compressive Strength (MPa) | 488 |
Rockwell Hardness | 40 |
Young's Modulus(25°C, GPa) | 65 |
Dielectric Strength(KV/mm) | 40 |
Dielectric Loss Tangent(@1KHz) | 4x10^-3 |
Dielectric Loss Tangent(@8.5KHz) | 7x10^-3 |
Thermal Conductivity(25°C, W/mk) | 1.68 |
Max Long Standing Working Temp. (°C) | 800 |
Volume Resistivity (Ω.cm) | >10^14 |

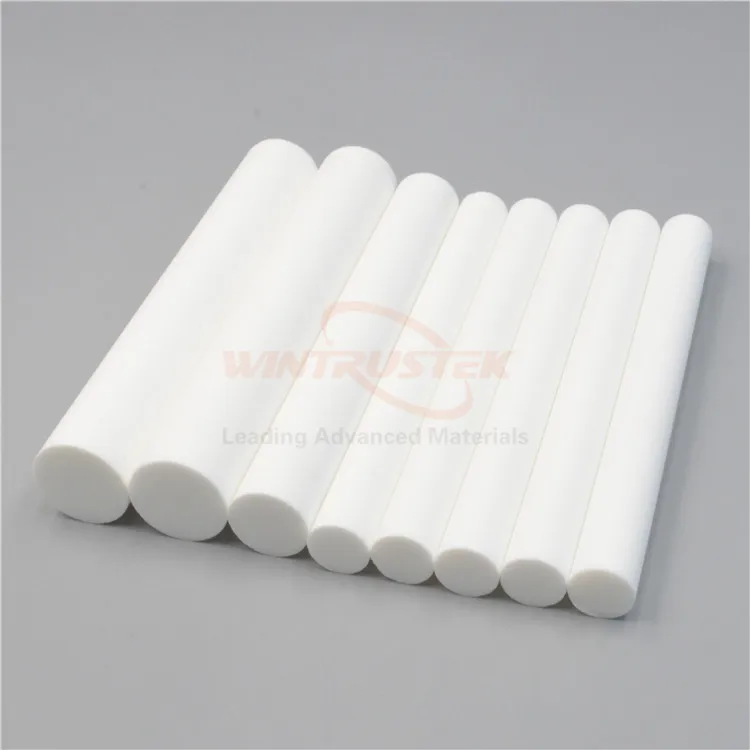

ROD | ||||||||
D10 x L100 mm | D35 x L150 mm | D60 x L100 mm | D70 x L150 mm | D95 x L100 mm | ||||
D15 x L100 mm | D40 x L150 mm | D60 x L150 mm | D75 x L100 mm | D100 x L100 mm | ||||
D20 x L150 mm | D45 x L150 mm | D65 x L100 mm | D75 x L150 mm | D105 x L100 mm | ||||
D25 x L150 mm | D50 x L150 mm | D65 x L150 mm | D80 x L100 mm | D110 x L100 mm | ||||
D30 x L150 mm | D55 x L150 mm | D70 x L100 mm | D85 x L100 mm | D120 x L100 mm | ||||
*Standard length of 305mm (1 foot) is also available.
*Custmized sizes are available.
*Custmized sizes are available.

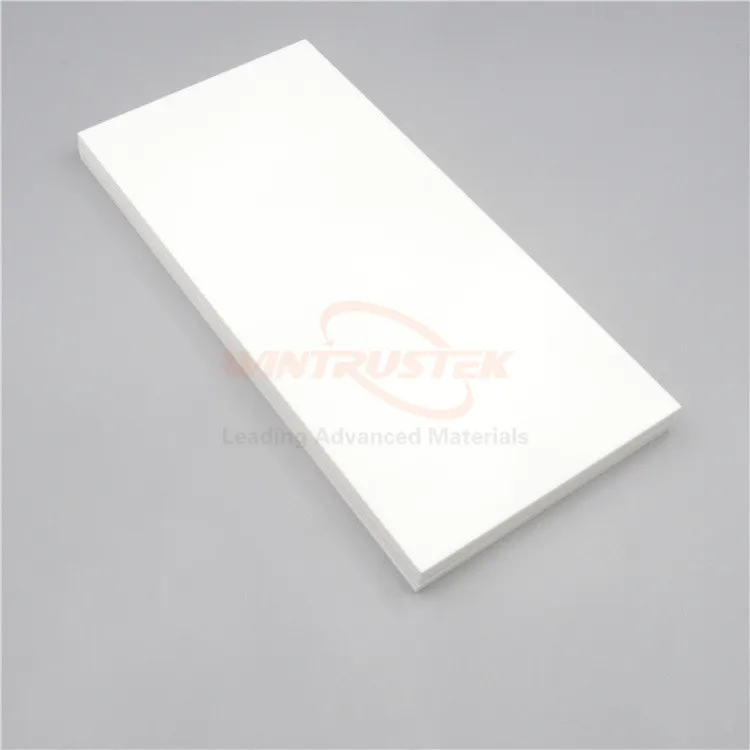

PLATE | ||||
L 50 x W 50 x T 5 mm | L 200 x W 100 x T 5 mm | L 100 x W 100 x T 10 mm | ||
L 100 x W 50 x T 5 mm | L 50 x W 50 x T 10 mm | L 200 x W 100 x T 10 mm | ||
L 100 x W 100 x T 5 mm | L 100 x W 50 x T 10 mm | L 300 x W 200 x T 50 mm | ||
About US
WINTRUSTEK is a leading manufacturer specialized in technical ceramics since 2014.Over the years we have been committed to the research, design, production and marketing by providing a wide range of advanced ceramic solutions for industries that request outstanding material performance to overcome extreme working conditions.
Our ceramic materials include:- Aluminium Oxide - Zirconium Oxide - Beryllium Oxide- Aluminium Nitride- Boron Nitride- Silicon Nitride- Silicon Carbide- Boron Carbide- MacorOur customers choose to cooperate with us based on our leading technology, profession, and commitment to the industries we serve.
Our ceramic materials include:- Aluminium Oxide - Zirconium Oxide - Beryllium Oxide- Aluminium Nitride- Boron Nitride- Silicon Nitride- Silicon Carbide- Boron Carbide- MacorOur customers choose to cooperate with us based on our leading technology, profession, and commitment to the industries we serve.
Wintrustek's long-term mission is to improve the performance of the advanced materials while maintaining our focus on client satisfaction by providing the highest quality products and first-class service.
Packing & Delivery
FAQ
Q1: How to make sure the exact material I need?
please tell us your requests on material performance and your specific application, according to which we will offer you the most suitable material.
Q2: Do you accept customized production based our specification?
Yes, we offer OEM and ODM service. Just send us your drawing if you have it. If you don’t have a drawing, just tell us your idea, our professional designers will make it out.
Q3: What is the MOQ?
We don't have limit to the quantity.
Q4: Can you guarantee the product?
Yes, we promise to provide quality assurance for all products, inspect according to your drawings and issue an inspection report. If you are not satisfied with our product quality or service, please feel free to give us feedback.
