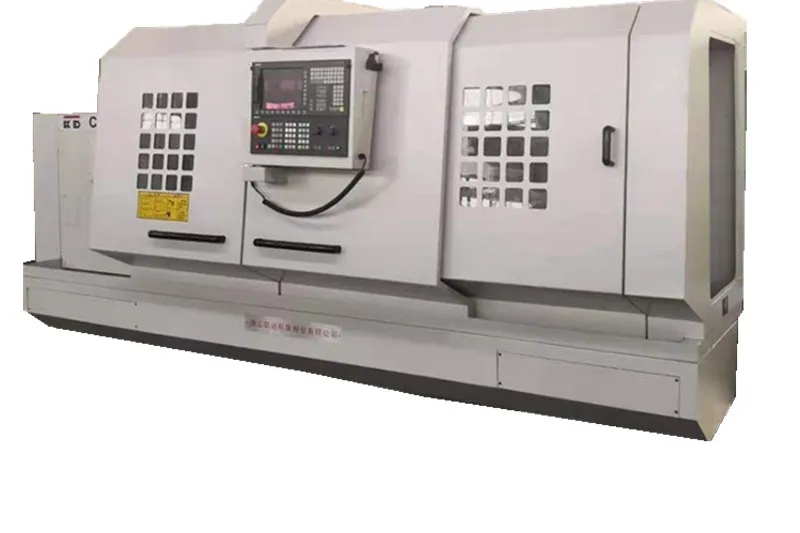

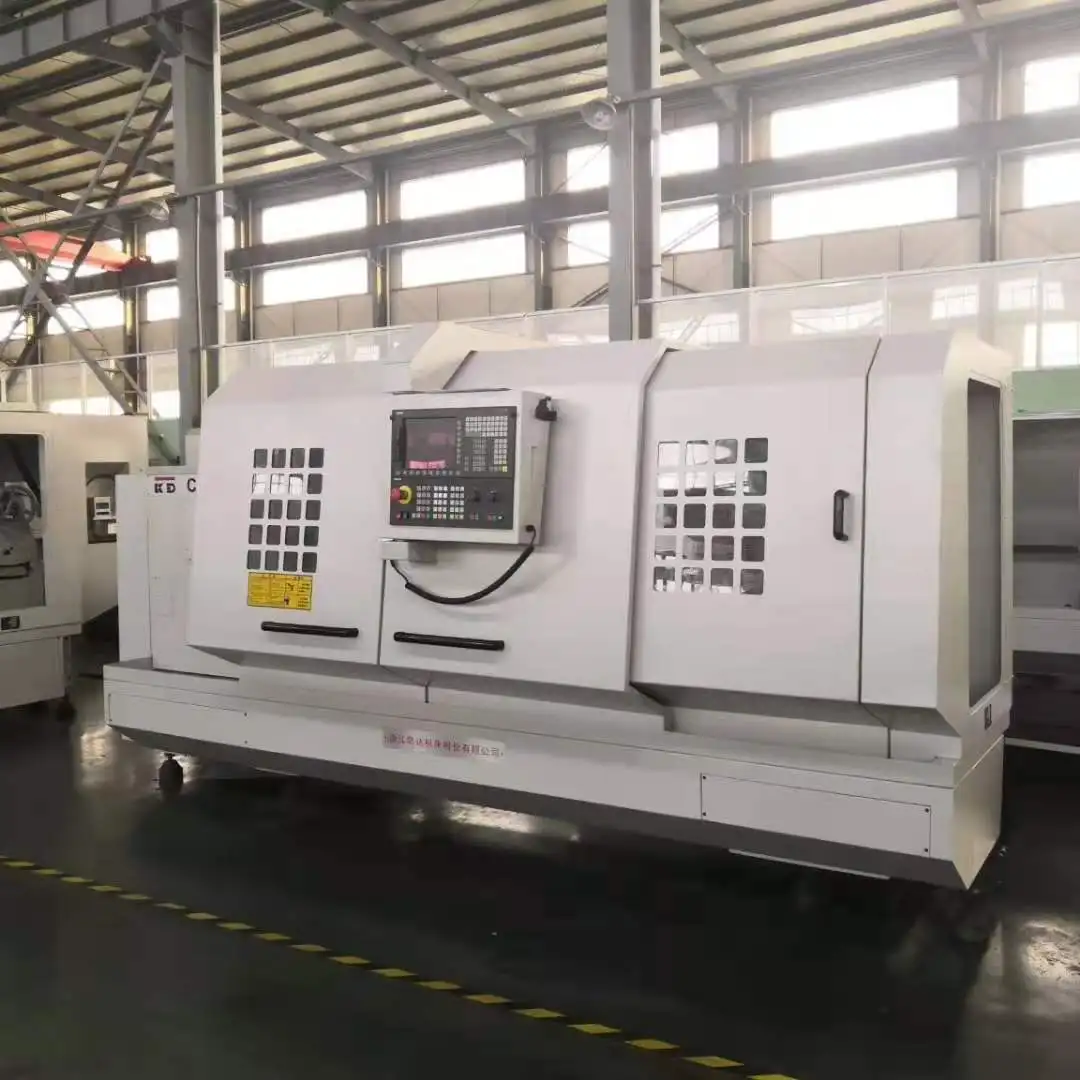

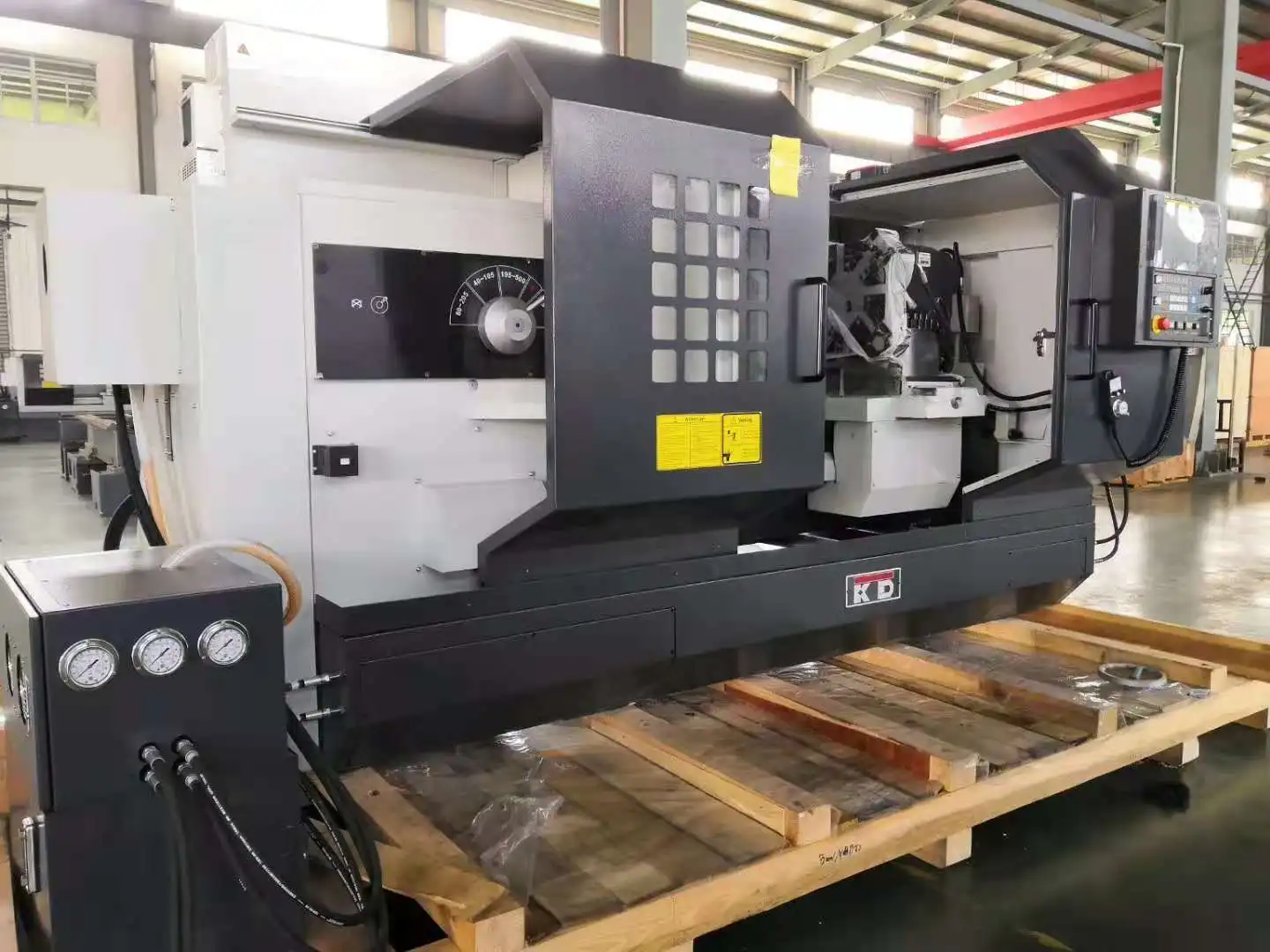

KAIDA CK6163A cnc multi purpose lathe machine container turning machine contour lathe machine
- Category: >>>
- Supplier: Zhejiang Kaida Machine Tool Co. Ltd.
Share on (60189342482):
Product Overview
Description
FEATURES AT A GLANCE
Product Features
1. Longitudinal and cross feeds are effected by servo motors driven by ball screws.
2. Centralized lubrication system in headstock for less heating and heat distortion.
3. Supersonic frequency hardened guide ways ensure high precision and long service life.
Right elevation
Left elevation
Back elevation
PRODUCT SPECIFICATIONS

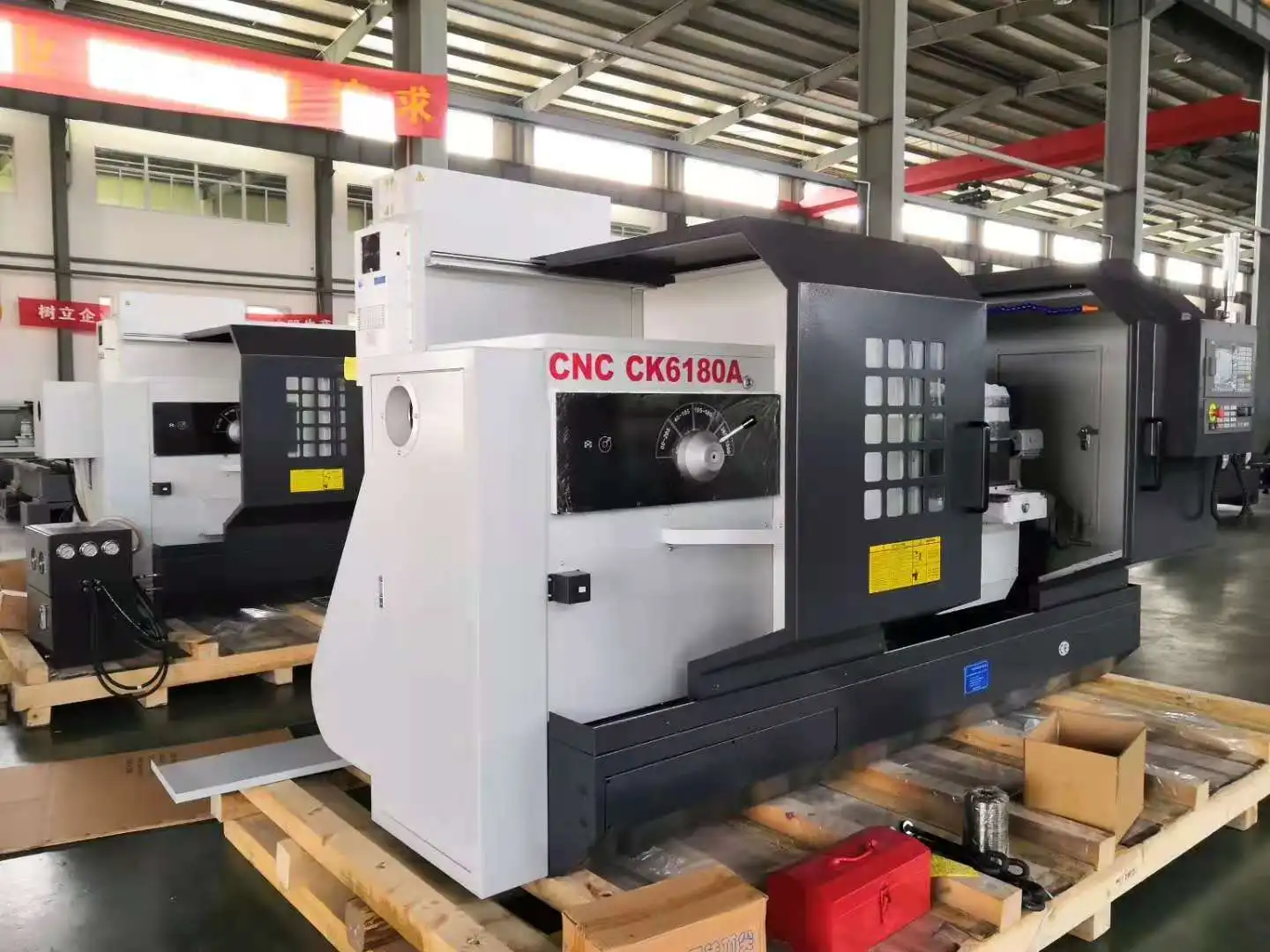

MODELS | CK6163A | CK6180A | |
CAPACITY | |||
Max.swing over bed | Ф630mm | Ф800mm | |
Max.swing over carriage | Ф360mm | Ф500mm | |
Width of bed | 560mm | ||
Distance between centers | 1500/2000/3000 | ||
Max turning length | 1400/1850/2850mm | ||
TRAVEL | |||
Max.cross travel(X) | 440mm | 500mm | |
Max.longitudinal travel(Z) | 1500/2000/3000mm | ||
FEED | |||
Rapid feed for axis X | 8m/min | ||
Rapid feed for axis Z | 10m/min | ||
SPINDLE | |||
Spindle nose | D11 | ||
Spindle bore | Ф104mm | ||
Taper bore of spindle | Metric 1:20 | ||
Steps of spindle speed (manual) | 4 | ||
Spindle speed | 40~105, 80~205, 195~500, 385~1000rpm | ||
TOOL POST | |||
Tool post stations | 4-way | ||
Tool cross section | 40×40mm | ||
TAILSTOCK | |||

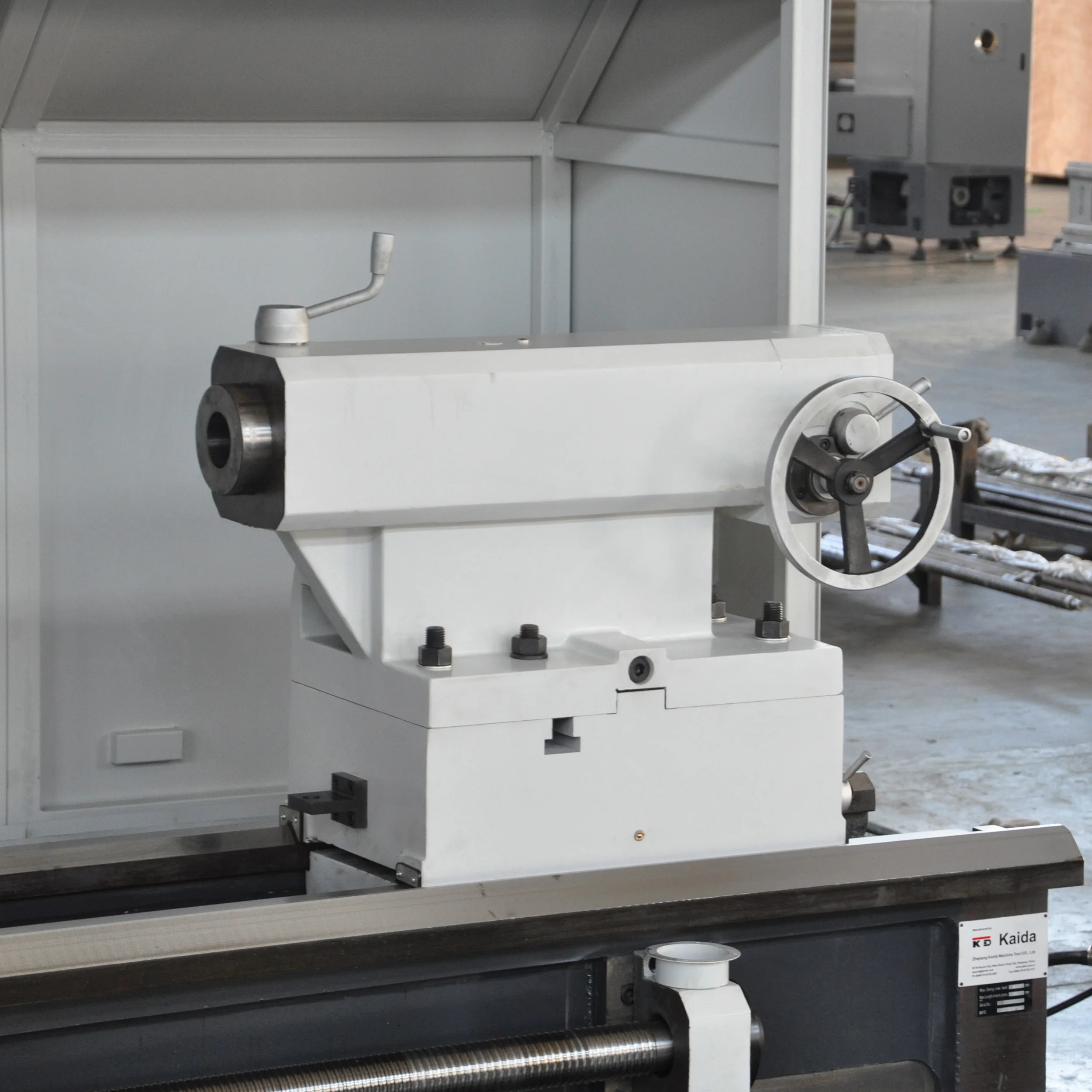

External diameter of tailstock sleeve | Ф100mm | ||
Taper bore of tailstock sleeve | M.T.NO.6 | ||
Max.travel of tailstock sleeve | 230mm | ||
OTHERS | |||
Min. input | 0.001mm | ||
Main motor power | 11kw | ||
Coolant pump power | 370w | ||
Overall dimensions(L×W×H) | (3700/4200/5200)×1660×1820mm | ||
Net weight | 3700/4780/5280kg | ||
PRODUCT CONFIGURATION
Big size manual chuck
4-station/6-station/8-station turret are optional.
Manual tailstock or hydraulic tailstock is optional.
FANUC, SIEMENS, FAGOR, MITSUBISHI, GSK cnc controllers are optional.
Auto chip conveyor is optional.
Full sheet cover is optional.
