Good price high quality cheap copper pipe insulation air conditioning
- Category: Copper Pipes >>>
- Supplier: Jiangyin Leteng Electric Appliance Co. Ltd.
Share on (60189365937):
Product Overview
Description
Good price high quality cheap copper pipe insulation air conditioning
1.Our feature advantages:
1.OEM is welcomed.
2. Certificate:ISO9001:2008
3.Standard:JIS H3300
4.Most competitive prices
5.Reilable Quality&Service
Product Description

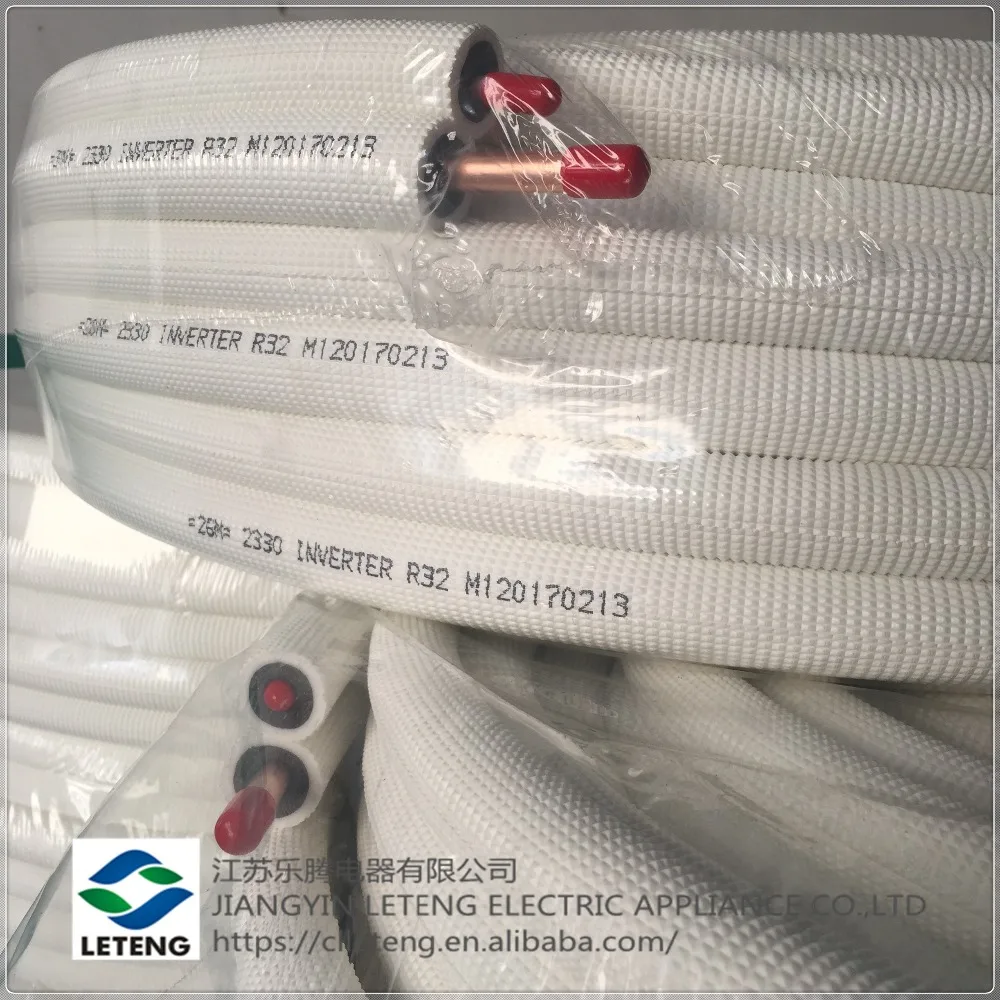

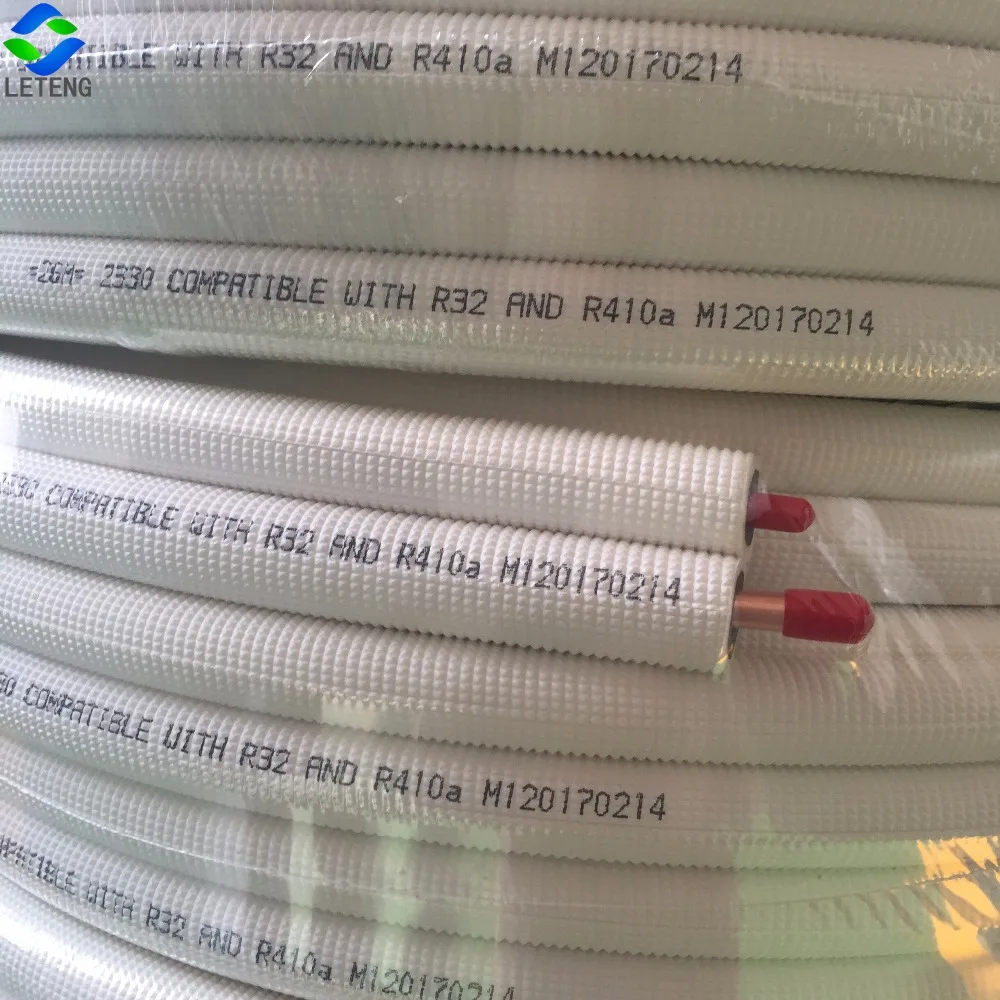

Double-tube air-conditioner PE coated copper pipe
Model: double-tube coated copper pipe
For the heat preservation coated copper pipe adopted by double-tube air-conditioner coated copper pipe, the conventional thickness heat preservation tube can not have the functions of preserving heat and preventing dew. The super-thick heat preservative coated copper pipe made of WICPE for air conditioner doesn't need to be coated for heat preservation on construction site and its length can be cut freely. This not only reduces time and labor of the project, but also has the qualities of high efficiency, energy conservation, and environmental protection. It is a kind of air-conditioner piping material that can be used for both cooling and heating. This product satisfies the air-conditioner piping requirements for families or even the large scale commercial use in high buildings

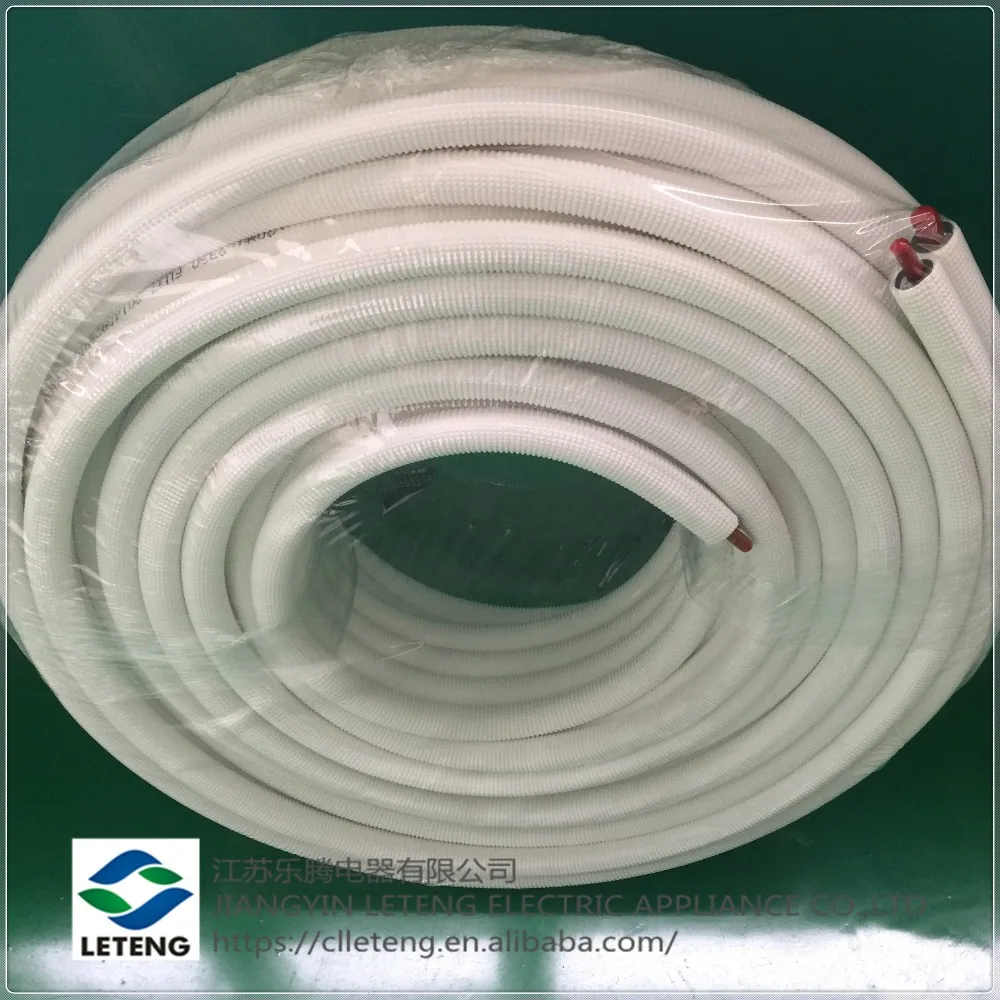

20m double-coil coated copper pipe
30m double-coil coated copper pipe
Normal Specifications of copper pipe air condition insulated :
|
Dimension |
Copper Pipe |
Insulated Pipe |
Length (mtrs) |
|
OD x WT (mm) |
OD (mm) |
||
|
1/4” |
6.35 x 0.76 |
22.35 |
10-30 |
|
5/16” |
7.92 x 0.81 |
23.95 |
10-30 |
|
3/8” |
9.52 x 0.81 |
25.50 |
10-30 |
|
1/2” |
12.7 x 0.81 |
28.80 |
10-30 |
|
5/8” |
15.88 x 0.88 |
31.85 |
10-30 |
|
3/4” |
19.05 x 1.07 |
35.00 |
10-30 |
Normal Specifications of copper pipe air condition insulated :
|
Dimension |
Copper Pipe |
Length(mtrs) |
|
OD x WT (mm) |
||
|
1/4” -3/8” |
6.35mmX 0.81mm -9.52mmx 0.81mm |
10-30 |
|
1/4” -1/2” |
6.35mmX 0.81mm -12.7mmx 0.81mm |
10-30 |
|
1/4” -5/8” |
6.35mmX 0.81mm -15.9mmx 0.81mm |
10-30 |
|
3/8” -1/2” |
9.52mmx 0.81mm -12.7mmx 0.81mm |
10-30 |
|
3/8” -5/8” |
9.52mmx 0.81mm -15.9mmx 0.81mm |
10-30 |
|
3/8” -3/4” |
9.52mmx 0.81mm -19.1mmx 1.14mm |
10-30 |
|
1/2” -3/4” |
12.7mmx 0.81mm -19.1mmx 1.14mm |
10-30
|
Packaging & Shipping

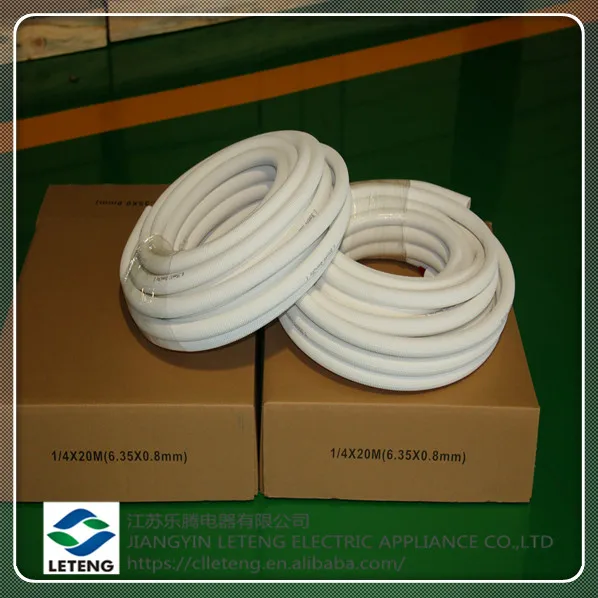

Nylon bage or hard paper carton. Or as customer's request
Our Services
1 The length of pipe, copper cap and wall thickness can be customized.
2 Short delivery time, 3-7 working days.
3 Free sample can be available.
4 Professional engineer with six year experience to solve your problem.
5 Excellent afer sale severce, 100% compensation if any quality problem.
