Product Overview

Description

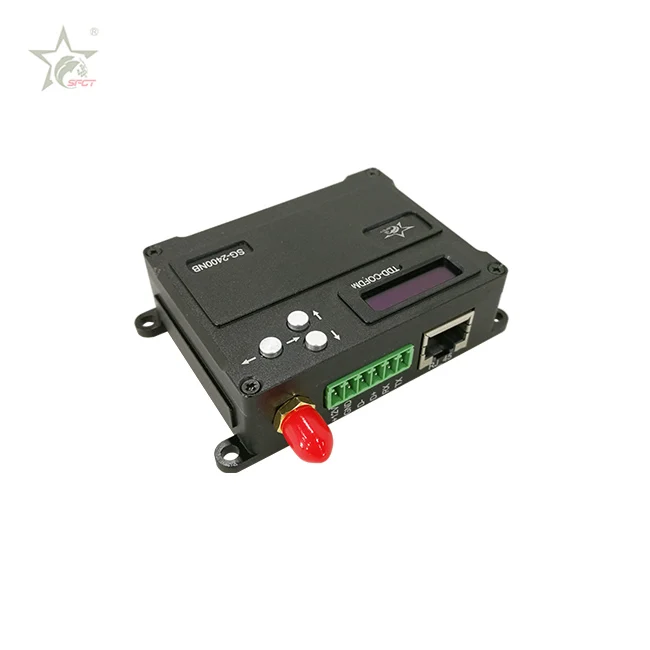

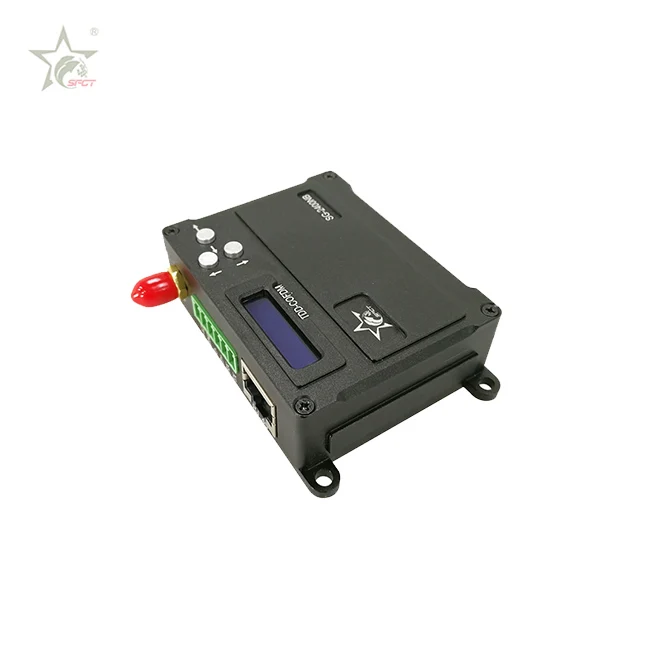

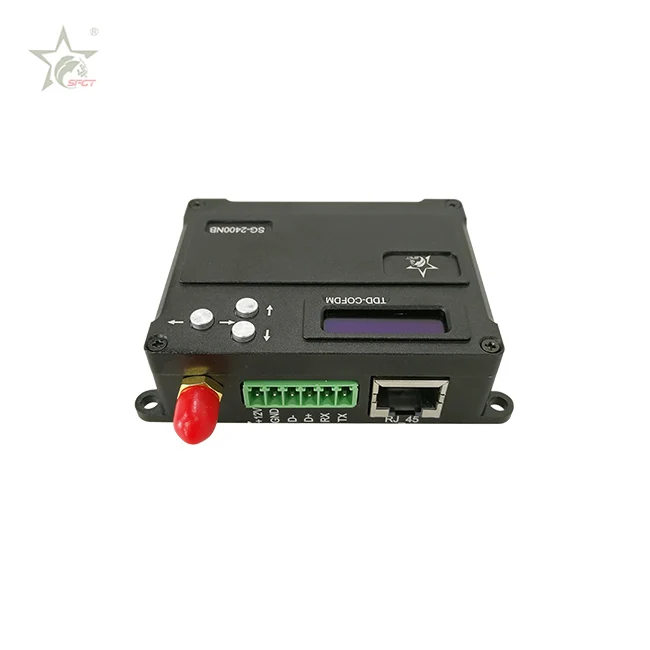

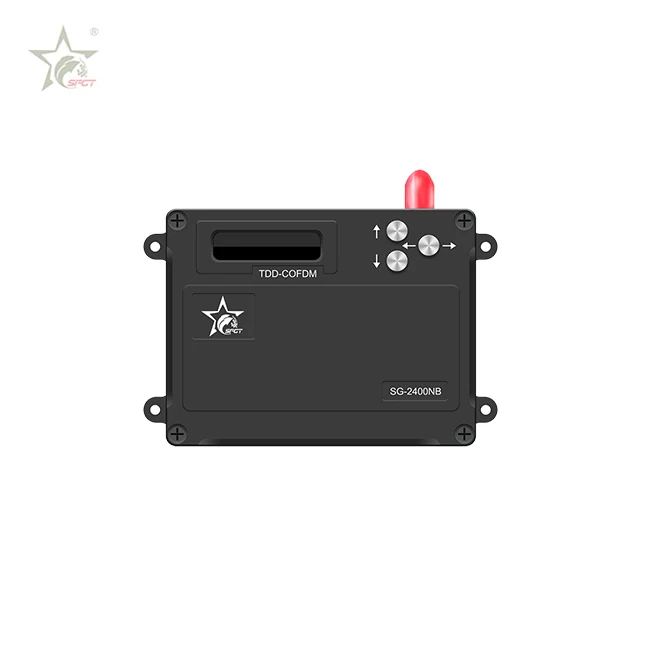

wireless mesh network RF data radio mobile communication transceiver SG-2400NB



SFGT-2400NB TDD_COFDM transceiver is one of a new full duplex system designed and produced by SAFE GUARD limited.It adopts advanced time division processing, combining with TDD bidirectional network transmission and the leading COFDM modulation technology. H.264 video compression as its core, assigning channel resources through slot control, through the sub-carrier frequency flexibly assigned to multiple user terminals, within the same frequency maximized realized access multiple end-users multiple access.Enable two way transparent information communication in NLOS and fast moving environment.More significantly,Multiple wireless modem can be integrated with each other layout large network coverage.



support point-to-point ,and also multipoin communication

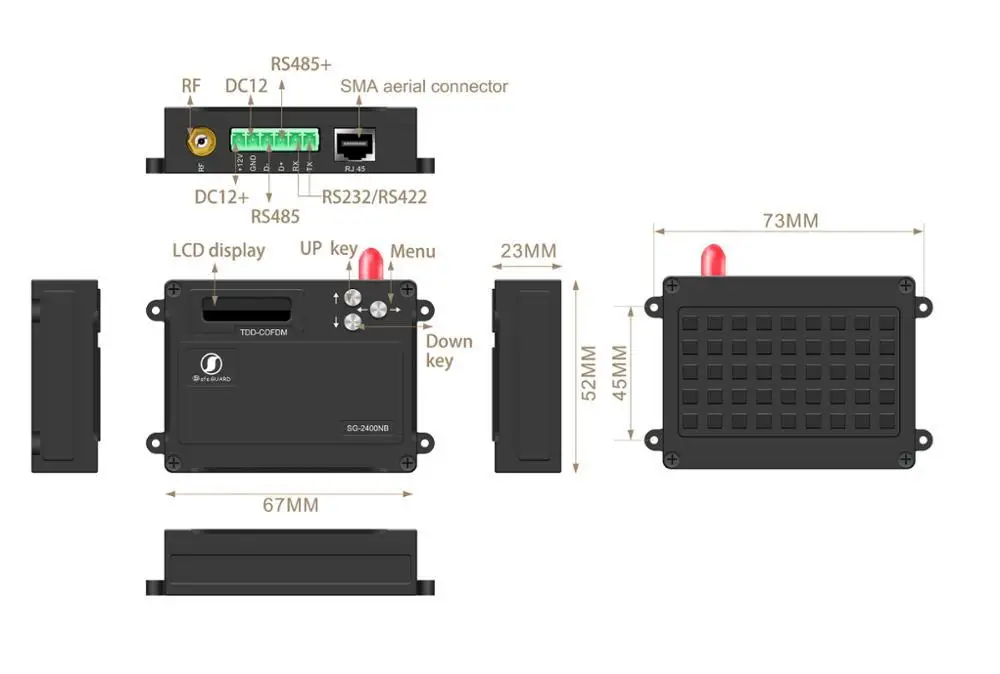

Radio interface:

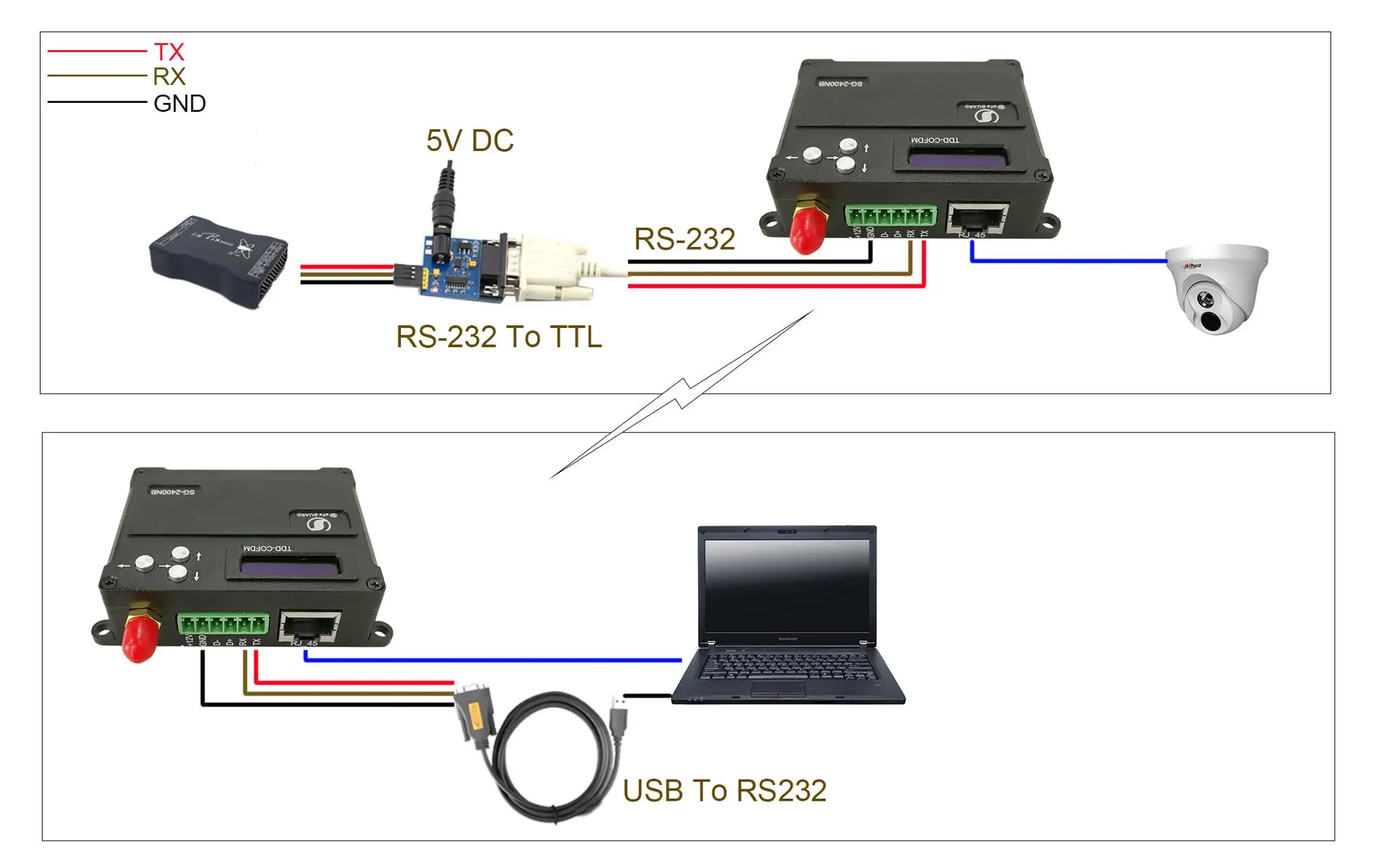

 Support connecting with Mavlink data system,blow diagram FYI.

Features:



1) Provide up to 6.5Mbps of data flow, dynamic adaptive rate allocation technology
2)The baud ratre can Up to 921600bps maximum.
3) Smart settings,simple operation, easy to use;
4) Support transparent PTP&PMD network technology
5) Safety with AES 128 bit, can set user’s password;
6) Support non line of sight ( NLOS ) high-speed mobile transmission
7) Provide standard RS-232&RS-485 + RJ45 ethernet
8) Transmit/receive video audio,data and other multimedia signals simultaneously
9) Support high standards of Industrial and military level applications
10) The small volume, light weight, easy to carry, the radiating aluminum casing
11) High clear OLED digital display, the interface simple and easy operation





Specifications:

wireless mesh network RF data radio mobile communication transceiver

Model	SFGT-2400NB
Power supply	DC7V~17V,  6W consumption
Ethernet	10/100BaseT,Auto-MDI/X,IEEE802.3
	TCP,UDP,TCP/IP,TFTP,ARP,ICMP,DHCP,HTTP,SNMP,FTP,DNS
Output frequency	2405-2479MHz (adjustable)
Output rf power	100-1000mW(30dBm)  (adjustable)
Bandwidth	4MHz/8MHz (adjustable)
Video Interface	Standard RJ-45 Ethernet
Data interface	RS232/RS485/RS422
Video Resolution	1080i,1080P,720P
Encryption mode	AES user-defined password
Error correction mechanism	32bit of CRC,ARQ
Modulation	TDD_COFDM
Parameter control	Through OLED control panel to setup frequency,bandwidth,ect..
Working temperature	-40℃~85℃
Dimension	67*52*23mm
Weight	122g









Product application:

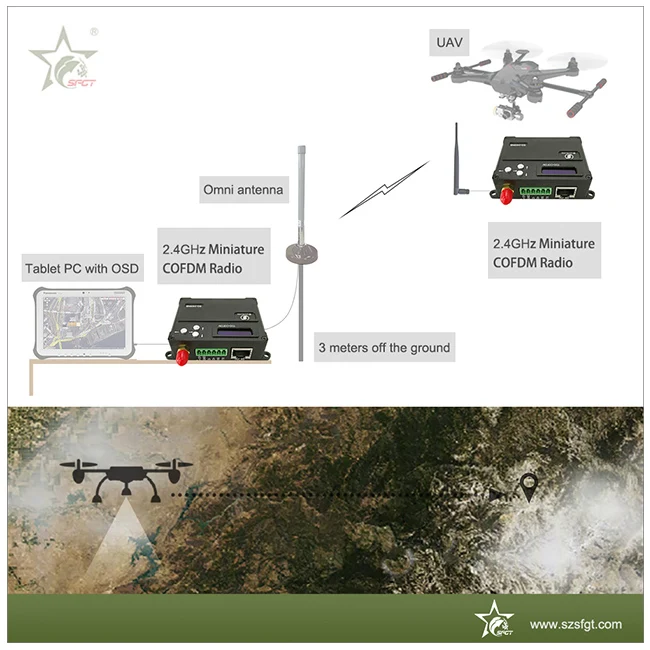

    As its super small volume, light weight especially suitable for application in UAV, High-speed Radio, build network and etc..
