hot selling micro water turbine 5kw turbine water Kaplan
- Category: >>>
- Supplier: Chongqing Royway Machinery Co. Ltd.Chongqing Ltd.
Share on (60189676572):
Product Overview
Description
Water turbine are widely used in recent years, with the competitive price and other advantages,oblique impact turbine,Kaplan turbine ,francis tubine and axial-flow type tubine have been known and are deeply loved by masses of customers both at home and aboard.
Product Description
Axial flow turbine generator
Axial flow turbine generator unit: water flows in axle direction and flows out making the wheel rotate. Axial flow turbine can be divided into fixed vane and Kaplan turbine according to the structure of runner. The axial flow turbine is suitable to water head of 3m-10m
The fixed vane type is normally used for medium and small power plant and water head, with relatively small change. Features: simple structure. When deviating from the designed operation conditions, there will be drastic downgrade of effect.
The Kaplan type is mainly used for big and medium plants, water head, power plant with relatively big change. Features: Wide range of high efficiency area as coordinated control of vane and guide vane is achieved; it has relatively complex
structure as it requires control mechanism of runner vane.
structure as it requires control mechanism of runner vane.
Product Name | Axial flow water turbine | Power(kw) | 5 |
Head(m) | 2.5-5.5 | Flow(m³/s) | 0.1-0.15 |
Before purchasing the unit, the following information needs to be provided:
① How many meters of water head?
② What is the flow rate (m³/s)?
③ Generator voltage level? 380V, 50Hz or 60Hz, 3 phase ?
① How many meters of water head?
② What is the flow rate (m³/s)?
③ Generator voltage level? 380V, 50Hz or 60Hz, 3 phase ?

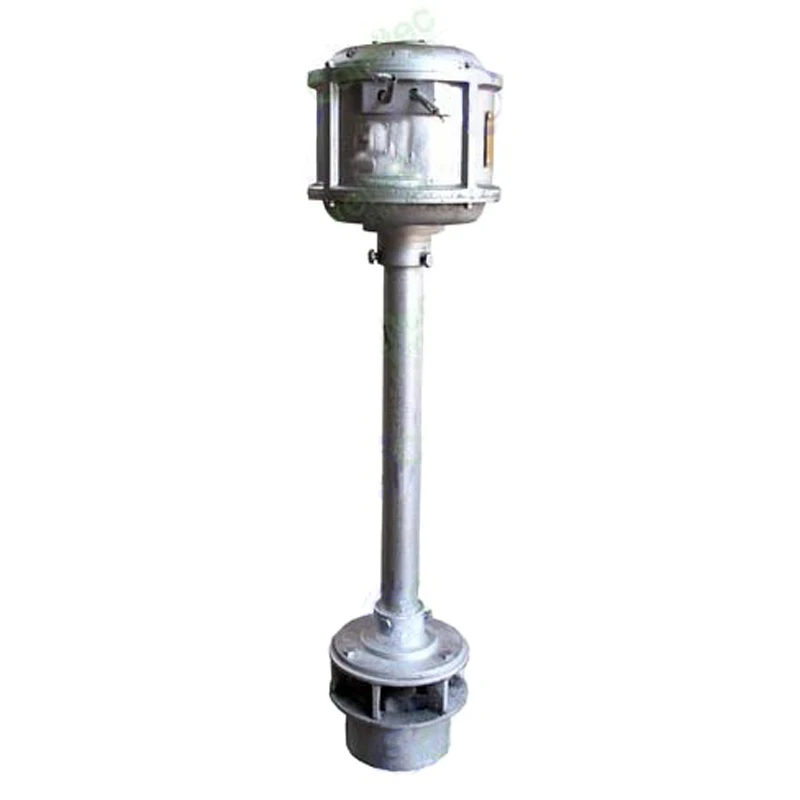

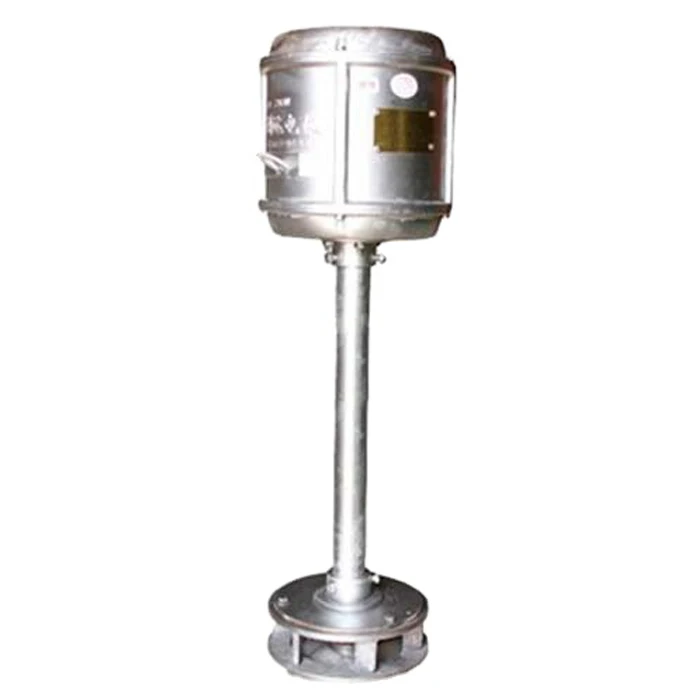

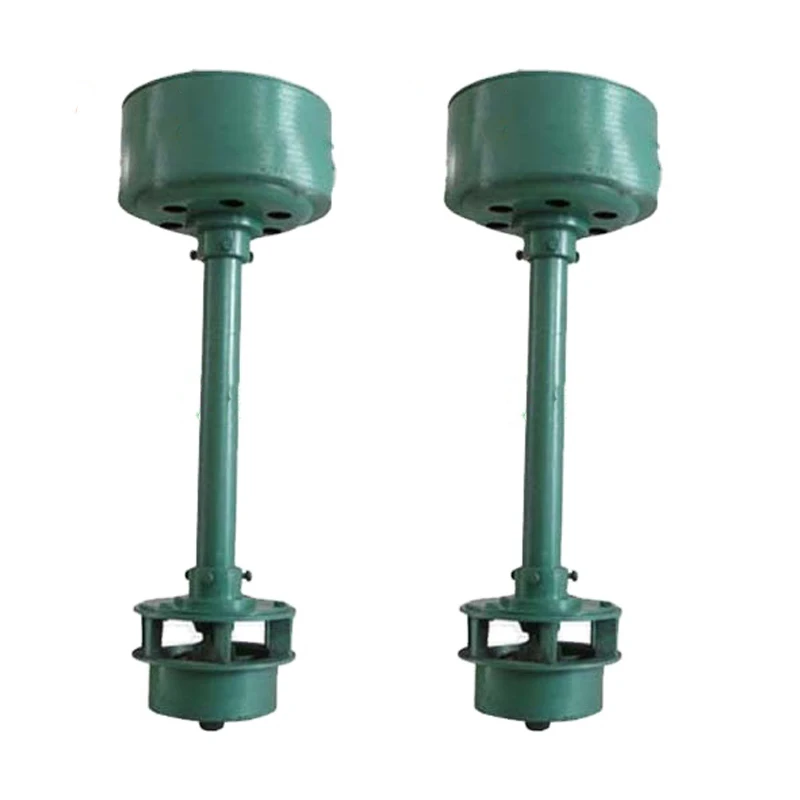

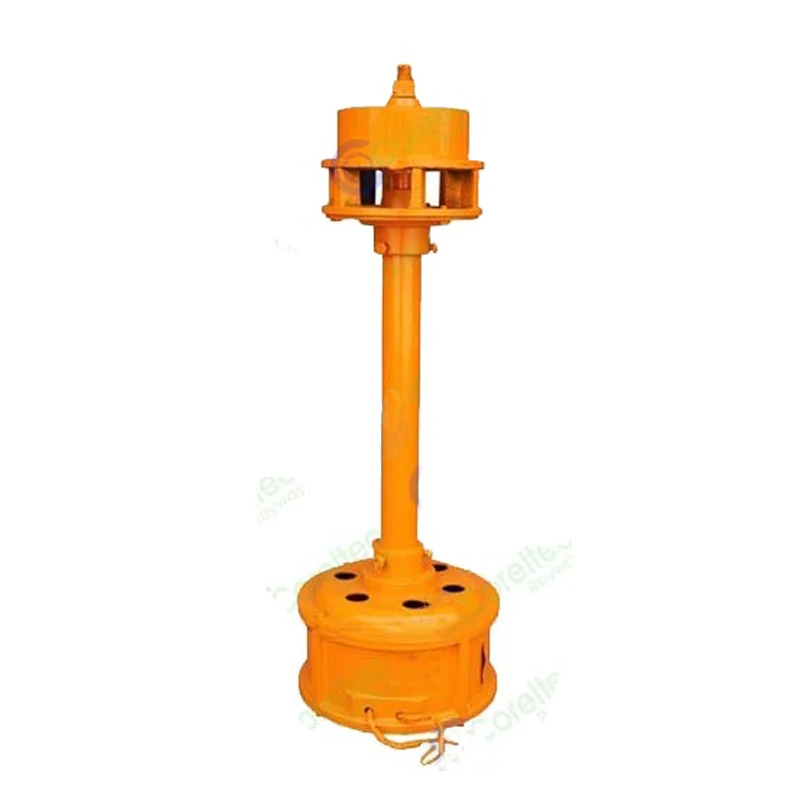

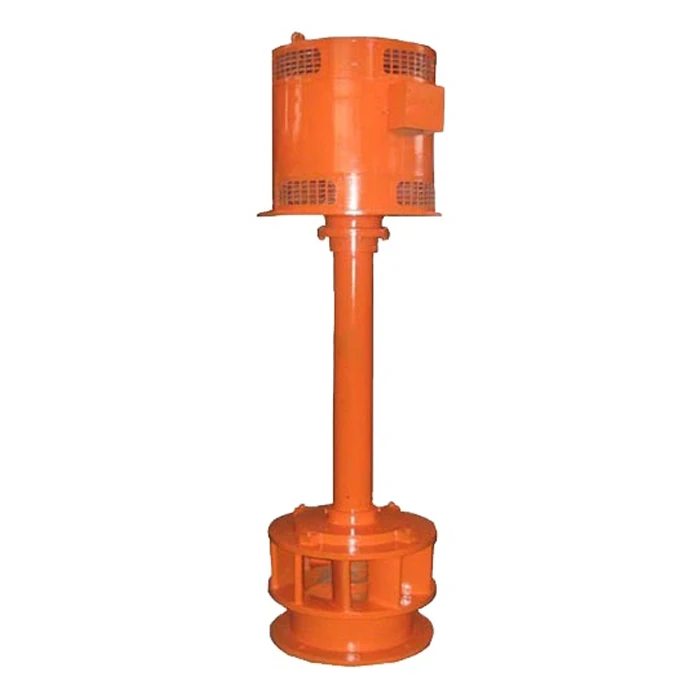

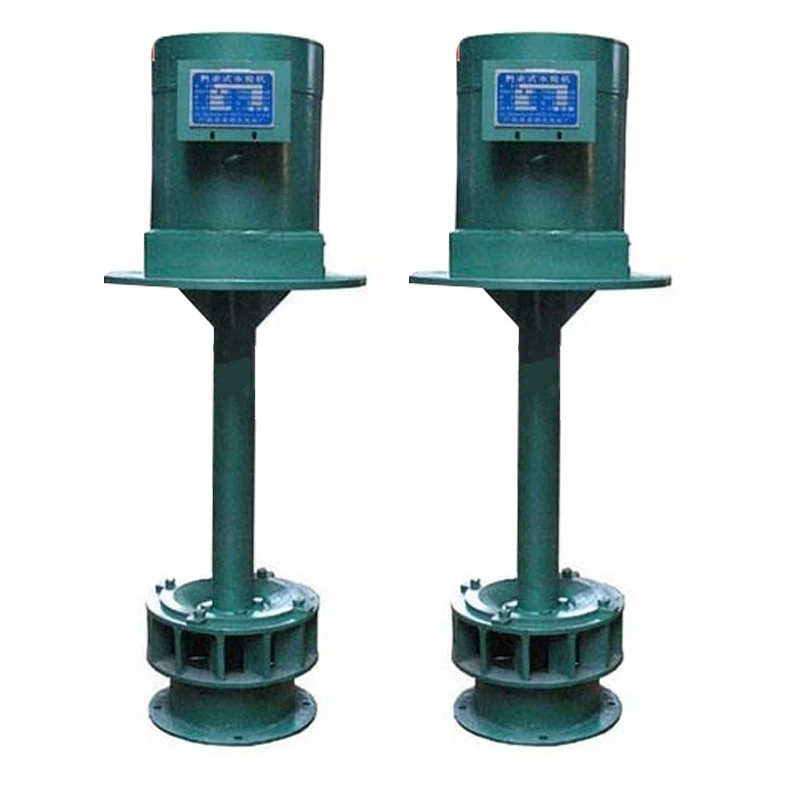

Product Picture
Product Paramenters

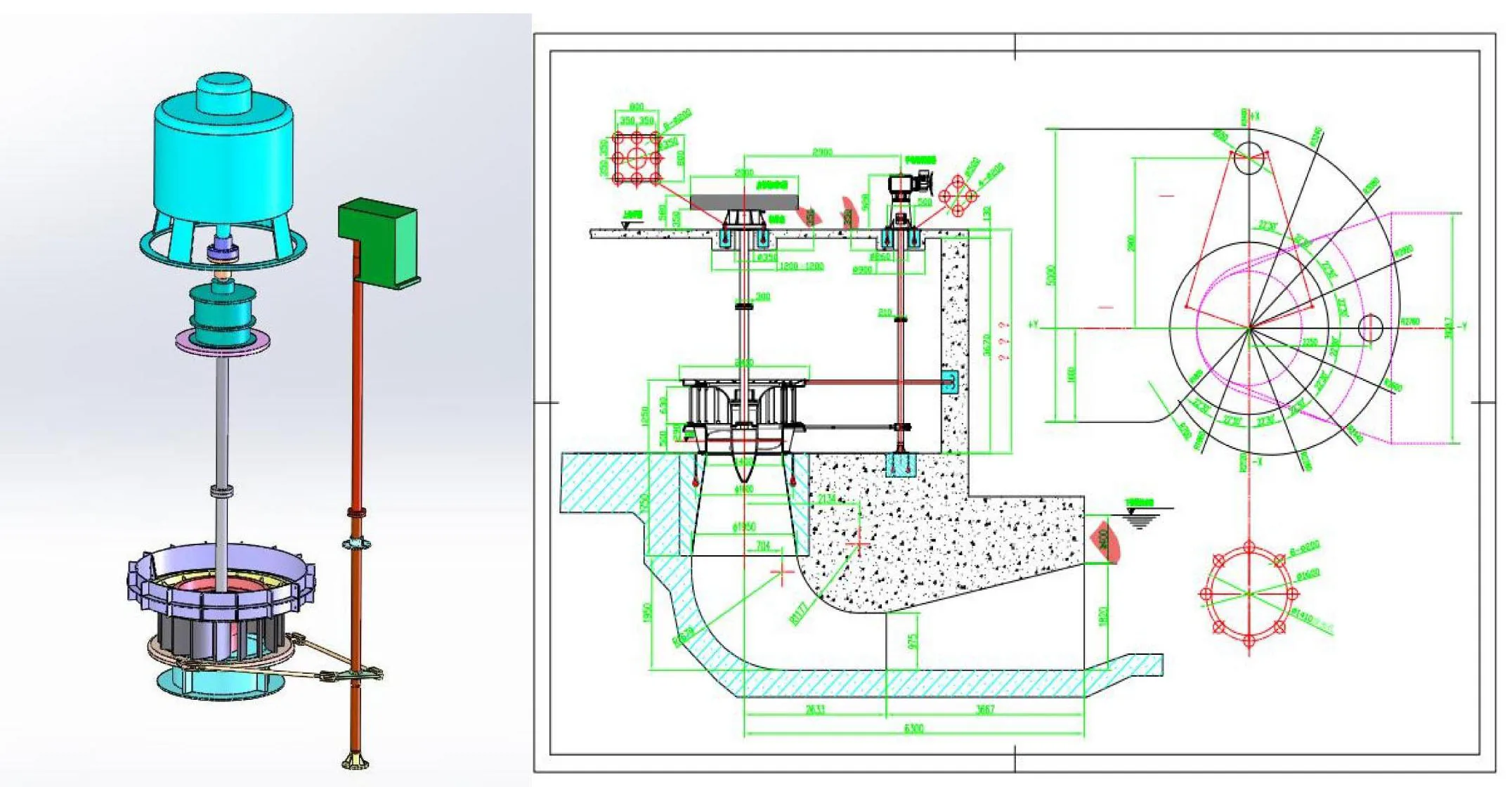

Installation Drawings

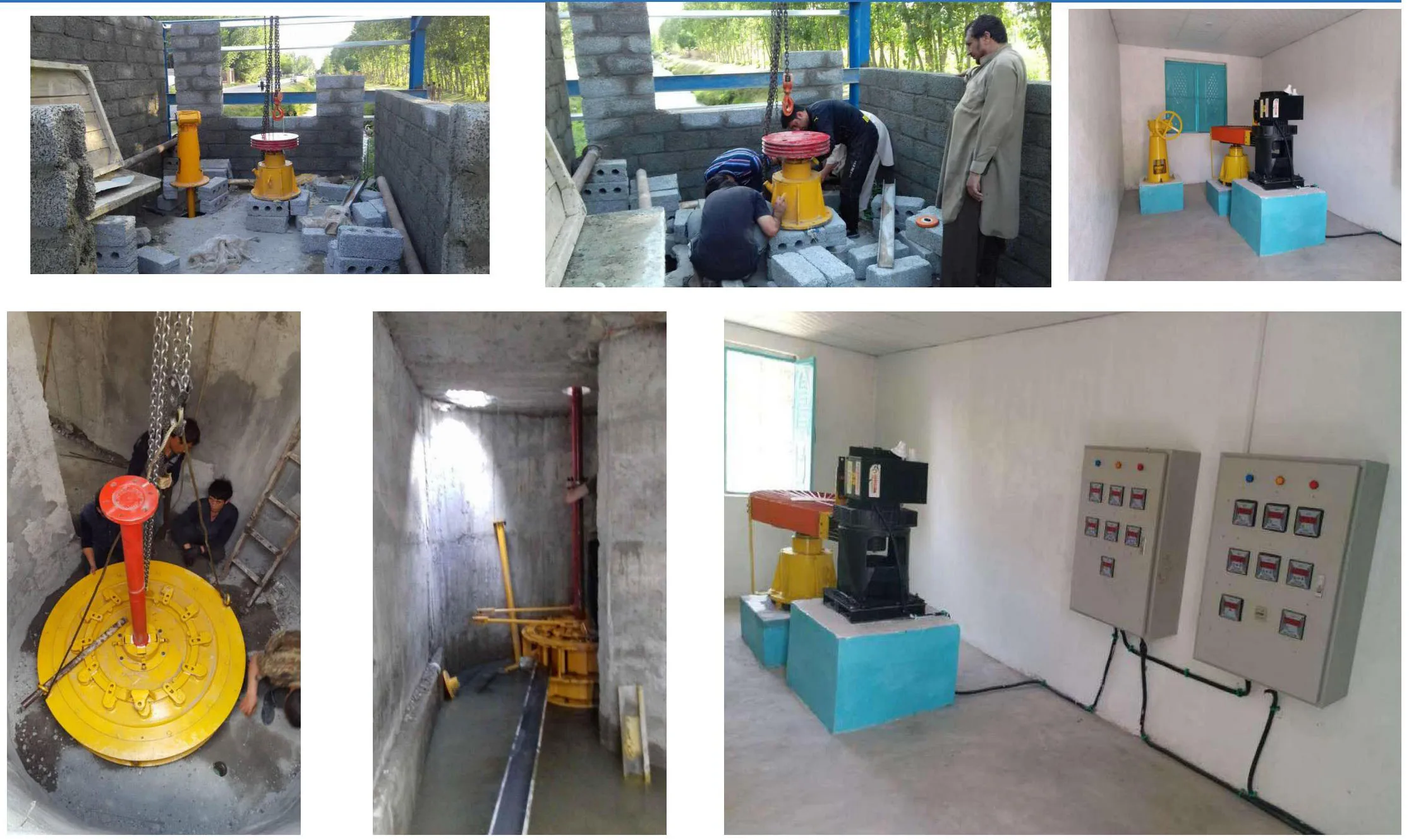

Installation Case
