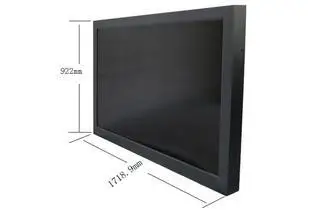

China supplier lcd 4k cctv monitor bnc for security
The CCTV monitor employs original panel like Chimei and AUO to bring you a good view effect. Sound stablitity get accustomed to different environments especially severe ones. It not only has a function of monitoring but also display advertisements.
Product Description
Specifications
Model No.
US-M1901P
Panel size
19" TFT-LCD
Display area(mm)/mode
379(W)*304(H) 4:3
Maximum resolution
1280*1024
Display color
16.7M
Pixel Pitch(mm)
0.294(H)*0.294(V)
Brightness (nits)
500cd/m2
Contrast
1000:1
Visual angle
170°/170°
Response time
5ms
Horizontal frequency
30-75KHZ
Vertical frequency
56-75KHZ
Life(hrs)
60,000(hrs)
Input and Output
Composite video input
2 (BNC×2)
YPbPr input
1 (BNC×3)
S-video
1 (optional)
VGA
1
HD
1
Composite video output
1 (BNC×1)
Video
Color system
PAL/NTSC/SECAM
OSD display( screen menu display)
Menu language
Chinese/English
Power
Power supply
AC100V~240V,50/60Hz
Maximum power consumption
<=45W
Standby power consumption
3W
Temperature
Working temperature
0°C~50°C
Storage temperature
-20°C~60°C
Working humidity
10%-90%
Storage humidity
10%-90%
Appearance
Body dimension(Lx W x H)mm
398.8×326.8×66
Panel color/appearance
White,black,customized
Case Material
Steel
Net weight
7.1kg
Installation
Wall-mounted,desktop(optional)
Pricing,Delivery& Conditions
Unit Price(EXW Shenzhen)
USD
Sample Lead time
3-7working days
Bulk Order Lead time
5-20working days
Payment Terms
T/T / Western union
Warranty
1year
Packaging & Shipping
1.Payment term : T.T 30% payment before production,the 70% balance should be paid shipment after inspection.
3.RMA policy: customer bear all the freight and duty charge to factory,and the factory afford retum freight charge.
4.Remark: ROHS, CE & FCC certificates in e-file format are available.
5.MOQ: 1pc, sample order are welcome for your evaluation.
why choose USER ?
The reason why choose us?
1,We have our own ERP of the main manufacturer for digital signage and lcd video wall with over 12 years experience of producing products.
2, We could provide OEM/ODM service for all kinds of customers. Our proffesional support team will service onlin 24 hours for customers.
3, We have a very strong quality control Samples are always available for checking quality and can be dispatched to you very quickly.
4, Samples are always available for checking quality and can be dispatched to you very quickly.
6, Design ability: artwork/ Instruction manual/ product design according to customer's requirement.
7. We have our own ERP systems : Shorten lead times at low cost with responsive production planning
8. User'S Alibaba Trade Assurance Limit: US $323,000 ( Still rising )
8, Warranty (1-3 year)
Company Information
Shenzhen USER Special Display Technologies Co., Ltd. established in 2003, is a high-tech enterprise specialized in development, production and marketing of the special displays. The company can customize special displays of 5-82 inches according to customer need. Headquarter is at Bao’an Shenzhen. The company has established a nationwide network of sales and efficient after-sales service system in china.
As one of the leading providers of special display solutions, USER always stands on the forefront of the special displays development. Its products are divided into several series: CCTV LCD monitor, Industrial LCD monitor, Broadcast LCD monitor, medical LCD monitor, Touch screen LCD monitor, Multimedia kiosk, large size high definition data LCD display, LCD video wall, video wall processor, digital signage and so on.
USER’s products have been widely used in a variety of areas such as security monitoring, stock exchanges, traffic control centers, airports, media centers, military systems, public space, shopping areas, banks, schools, hospitals, special circumstances etc. providing cost-effective products and customer-oriented services, USER has become the ODM / OEM partners of a number of world-class companies. LCD Series products have been exported to Russia, the United States, Italy, Israel, Australia, South Korea, Africa, Southeast Asia, the Middle East and other regions.
Our company has been awarded the ISO9001 quality management system certificate, and the products series are certified to CE, FCC, RoHS and UL certificate. In 2009, "USER" was awarded "the most competitive brand". Any inquires are warmly welcome!
Our Services
USER SDT is a OEM / ODM factory, customizing your products to tailor your needs is our strength. Our team of CAD designers and structure engineers will make sure to render your imagination into actual products!
If you are looking to create prototypes or issue mass production on a very specific project, we can help you achieve your visions and goals! Contact us for more information regarding our services on custom designs!
FAQ
1) Q: Is USER SDT a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most oft the payment methods, but mainly accept T/T, L/C, Western Union and AliPay
3) Q: How long is the warranty time?
A: 1 Year on the panels and 3 years on the electronic controller boards.
4) Q: I have not done business with USER SDT before, how can i trust your organisation?
A: Our company has been on Alibaba.com for almost 7 years, which is longer than most of other digital advertising suppliers. We've been a golden supplier for years. Our certified products also show how we are serious about our exports, for example, CE, UL, RoHS,FCC, ISO9001. Our Trade Assurance Limit is over $323,000 USD and growing, this shows how our partners trust us!
5) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also, please be aware, some factories may not advise you, but after the production delays, you might be facing a few more days delays before catching your sea or your on-board flight departures. ( might be anywhere from 3 to 7 working days). Again, depending in which season you are shipping.
6) Q: Do you give any discounts ?
A: Prices are directly affected by the quantity. Simple ratio's, cost more to produce small qty and samples orders then larger ones. We have many ways to help our partners when starting the sample processes. Make sure to ask your Key Account MGR on how we can make you save some charges.
7) Q: I would like to add my company logo on your products, is this possible?
A: USER SDT is an OEM / ODM factory to start, we customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we still can consider this as a SAMPLE order, some fees might apply for the logo prints. Different methodes are used for logos, please ask your Key Account MGR for more information on this issue, we will surely find the right solution for you!
