Drill machines pillar drilling machine drill machine price
- Category: >>>
- Supplier: Shanghai Dirui Reinforcing Project Co. Ltd.
Share on (60189822130):
Product Overview
Description

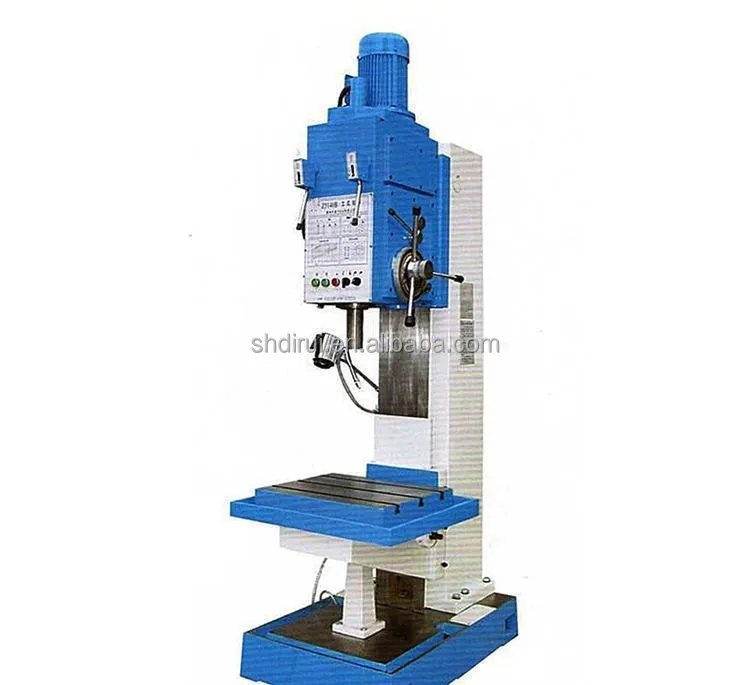

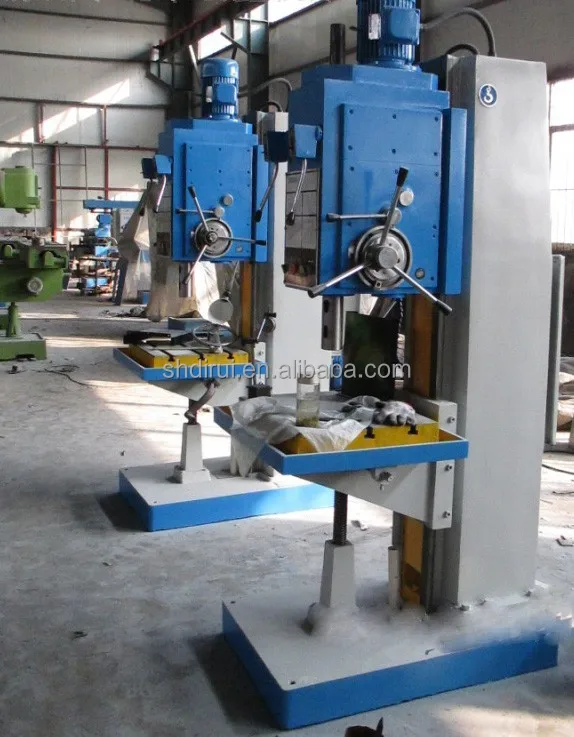

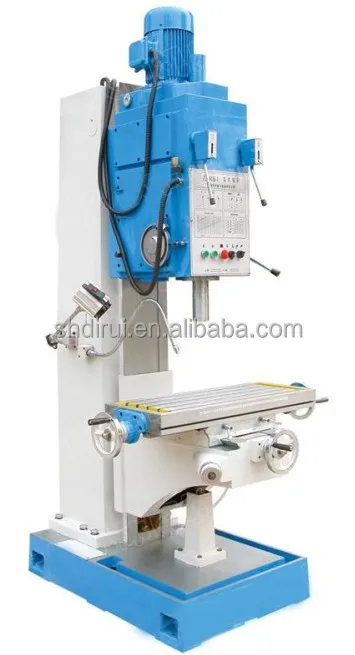

Drill machines pillar drilling machine drill machine price
Shanghai Dirui Drilling Machine Z5150B is designed for metal drilling, ounter boring,
reaming, threading, facing, etc. The Maxumum Diameter of the holes
drilled on the workpiece can reach up to 50mm.It is widely used in the metal processing enterprises.
| Specification | Unit | Z5140B | Z5140B-1 | Z5150B | Z5150B-1 |
| Max drilling diameter | mm | 40 | 50 | ||
| Spindle taper | MT4 | MT5 | |||
| Stroke of spindle quill | mm | 250 | |||
| Spindle box travel(manual) | mm | 200 | |||
| Spindle speed steps | 12 | ||||
| Spindle speed range | r.p.m | 31.5-1400 | |||
| Spindle feed steps | 9 | ||||
| spindle feed range | mm/r | 0.056-1.80 | |||
| Table size | mm | 560 x 480 | 800 x 320 | 560 x 480 | 800 x 320 |
| Longitudinal/cross travel | mm | 450/300 | 450/300 | ||
| Vertical travel | mm | 300 | |||
| Max distance between spindle and table surface | mm | 750 | 550 | 750 | 550 |
| Main motor power | kw | 3 | |||
| Overall size | mm | 1090x905x2465 | 1300x1200x2465 | 1090x905x2465 | 1300x1200x2465 |
| Net weight | kg | 1250 | 1350 | 1250 | 1350 |
Company Introduction:
| Business Type: | Manufacture, Trading Company. |
| Office Location: | Shanghai |
| Factory Location: | Changshu, Shanghai, Shandong |
| Year Established: | 2003 |
| Company Employees: | 300 |
| Facotory Area: | 36000square meters |
| Registration No.: | 310114000823881 |
| Company Certificate: | ISO9001:2008 |
| Main Products: | Rebar Coupler, Thread Rolling Machine. Tapping machine, pipe threader machine, drill machine price |
Our Company and Factory:
Why Choose us:
1.we have 12 years experiences in manufacturing Thread Rolling Machine & rebar
Coupler, coupler tapping machine, drill machine price;
2.We are famous Enterprise in Shanghai;
3.We are International Certified Enterprise: ISO9001:2008;
4.We have lots of famous engineer projects in China.
Contacts Us:
Shanghai Dirui Reinforcing Project Co., Ltd
Add: NO.1051,Fenghua Road Jiangqiao Town Jiading District Shanghai China
Sales Manager:Daivd
Cel/Whatsapp:0086+18001822998
QQ: 78475983
Wechat:18001822998
Tel: 86-21-39565999
Website: //www.dirui.cc/
http://shdirui.en.alibaba.com/
