Forklift tire casting polyurethane material
TPUCO polyurethane material PTMG+TDI is TDI terminated polyether base PU material. This series of polyurethane material can perform the physical properties as below.

*Friendly to environment
*Be elastic and flexible at low temperature
*More durable than conventional elastomer
*Good load bearing resistance
*Great impact resistance
*Good wear resistance
*Good abrasion resistance
*Excellent elongation
*Low unlubricated coefficient of friction
*Resists cracking under repeated flexure
*Hydrolysis resistance


Application


Application of Polyurethane material
PTMG+TDI polyurethane material needs to work with curing agent, MOCA, DMTDA...etc. It can be used to make heavy load finished product, hydrolysis resistant finished products...etc. Please find the following general applications of polyurethane material for your reference.

*Wheel: castor wheel, fork-lift tire, skate wheel, flywheel…etc.
*Roller: transmission roller, wire guide roller…etc.
*Seal: pneumatic and oil seal…etc.
*Coating purpose: flywheel...etc.
*Industrial wear part:coupling, bushes cutting board, scraper, gear, grading screen

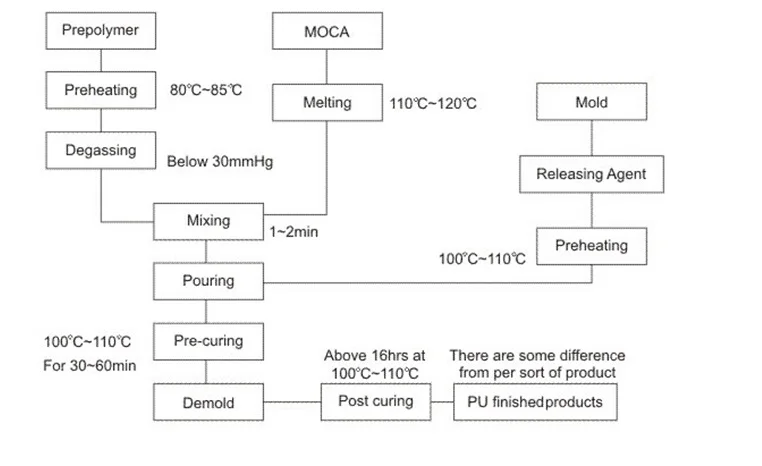

Operation process of polyurethane material for casting
Notice of operation
PTMG+TDI casting polyurethane material and MOCA should be well mixed according to the mixing ratio. The working temperature, Curing time, storage of casting polyurethane material and heating condition will influence the properties of final products.


Specification


CPU - 42L
CPU - 100L
Hardness (Shore A)
77 - 89
86 - 92
NCO Content (%)
2.95 - 3.55
4.1 - 4.6
Viscosity (CPS/25℃ )
41,000±9,000
25,500±7,500
PHR of MOCA (%)
10.2 - 11.2
13.5 - 14.5
Working Temperature (Prepolymer) (℃)
70 - 80
70 - 80
MOCA Temp.
100 - 120
100 - 120
Mold Temp. (℃)
70 - 90
70 - 90
Pot-Life (Min)
4 - 6
4 - 6
Tensile Strength (kg/cm2)
290 -430
300 - 450
Elongation (%)
545 - 645
400 - 500
Tear Strength (kg/cm)
65 - 105
80 - 120


CPU - 167L
CPU - 325L
Hardness (Shore A)
92- 98
59 - 72D
NCO Content (%)
6.0 - 6.6
8.9 - 9.5
Viscosity (CPS/25℃ )
10,000±5,000
3,750±1,250
PHR of MOCA (%)
18.12 - 19.33
27 - 29
Working Temperature (Prepolymer) (℃)
70 - 80
70 - 80
MOCA Temp.
100 - 120
100 - 120
Mold Temp. (℃)
70 - 90
70 - 90
Pot-Life (Min)
4 - 6
4 - 6
Tensile Strength (kg/cm2)
350 - 500
350 - 500
Elongation (%)
350 - 450
250 - 350
Tear Strength (kg/cm)
120 - 160
210 - 260


Notice of storage of Polyurethane material
Please kindly store the polyurethane material in dry and cool environment without direct sunlight. If the material is kept at the proper storage temperature of 25 ± 5℃ in airtight drums.

**More information of polyurethane material, please access our website: //www.taiwanpu.com/products_detail.asp?seq=147




Company Profile


1986
Taiwan PU Corporation, known as TPUCO was founded in Taipei, Taiwan to start Polyurethane business
1987
Established “TPU Extrusion Molding Factory” in Kaohsung, Taiwan, to start production of PU pneumatic tubes, PU spiral tubes, PU round belts, Nylon tubes, Teflon tubes, PU pentagon belts, PU film, PU rough belts and so on.
1990
Established “Pingtung Plant” for production of CPU Casting PU material and PU finished products such as PU rod, PU pipe, PU sheet,PU forklift wheel, etc..
1999
Certified by ISO 9001. We have demonstrated our dedication to the continuous improvement of our Quality Management System to offer
the best quality products to customers.
2001
Established “Wuxi plant” in Jiangsu, China. New production plant to increase our production capacity for extruded products.
2003
Our foreign office was founded at North America in California, U.S.A. to better serve America market for market expansion.
2004
Certified by 14001 for advocating the management responsibility of loving our earth and protecting the environment.
2006
Established “Dongtai plant” in North Jiangsu, China.
2011
Total polyurethane production of TPUCO reached 2400 tons per year.


Details Images
















Packing & Delivery




FAQ


Why can Taiwan PU Corporation (TPUCO) supply high quality polyurethane material?
Ans: Taiwan PU Corporation (TPUCO) is dedicated to developing and producing Polyurethane material since 1986. In order to supply the best quality Polyurethane materials to customers, we only use the superior base material, and adhere to strict quality control procedure.

Why can Taiwan PU Corporation (TPUCO) give you the best service?
Ans: To provide the best customer service is one of TPUCO management principles. We not only supply high quality Polyurethane materials but also serve prompt reply and give professional technical supports. We only want customers to enjoy using our Polyurethane materials and cooperating with TPUCO.
