stm 1/stm 4 to ethernet converter
- Category: >>>
- Supplier: Nanjing Photel Communication Technology Co. Ltd.
Share on (60190330616):
Product Overview
Description

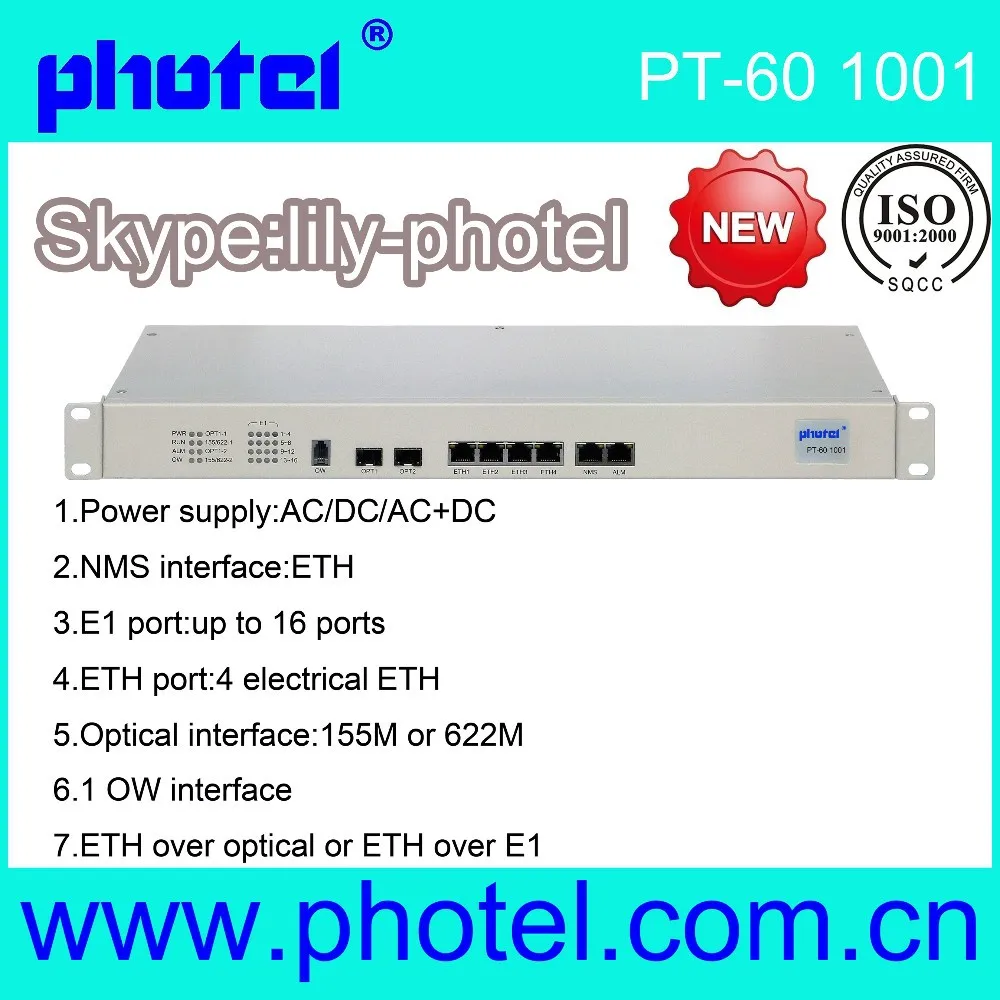

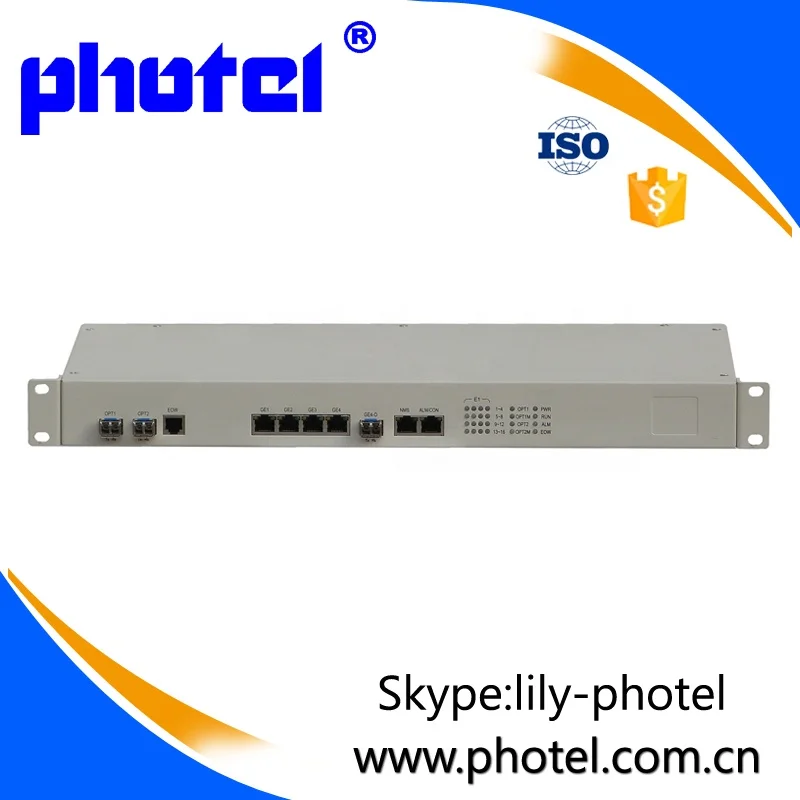

PT-60 1001 is a new generation, enhanced SDH / MSTP device. It is a carrier-class, high compact platform and aimed for metro and SDH networks access. It can work as Add-Drop Multiplexer (ADM), Termination Multiplexer (TM), and also as a Gigabit Ethernet to SDH converter.
PT-60 1001 with extremely strong cross-connection ability, it supports 64K up to low / high order of SDH cross-connection. Not only the STM-1 / STM-4 optical port can work as the network uplink, it can also configure the n x E1 ports as the network uplink simultaneously. The co-working optic and E1 network uplinks provides customer a very flexibly networking configuration.

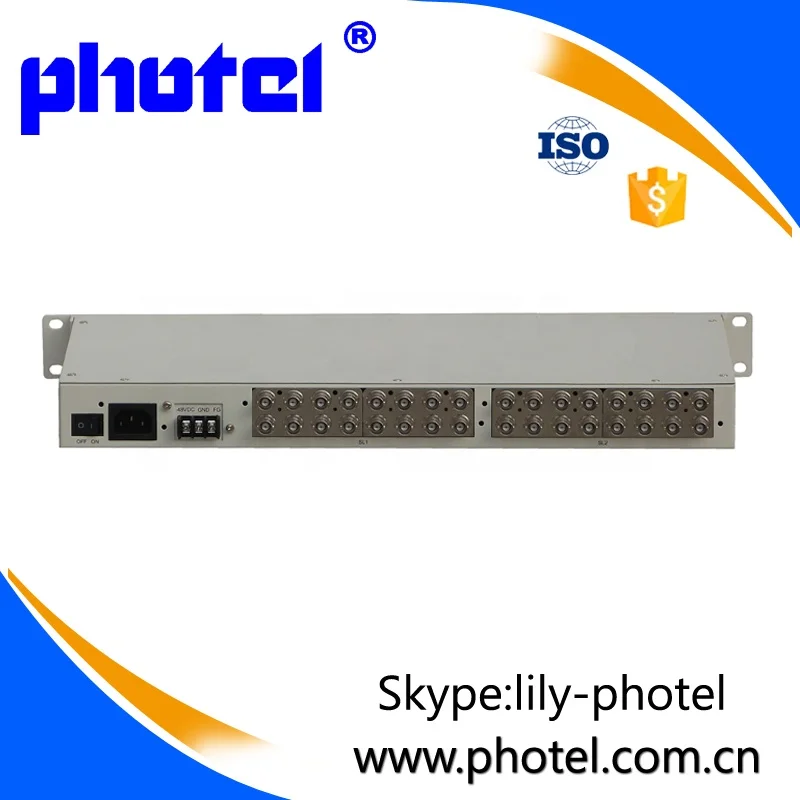

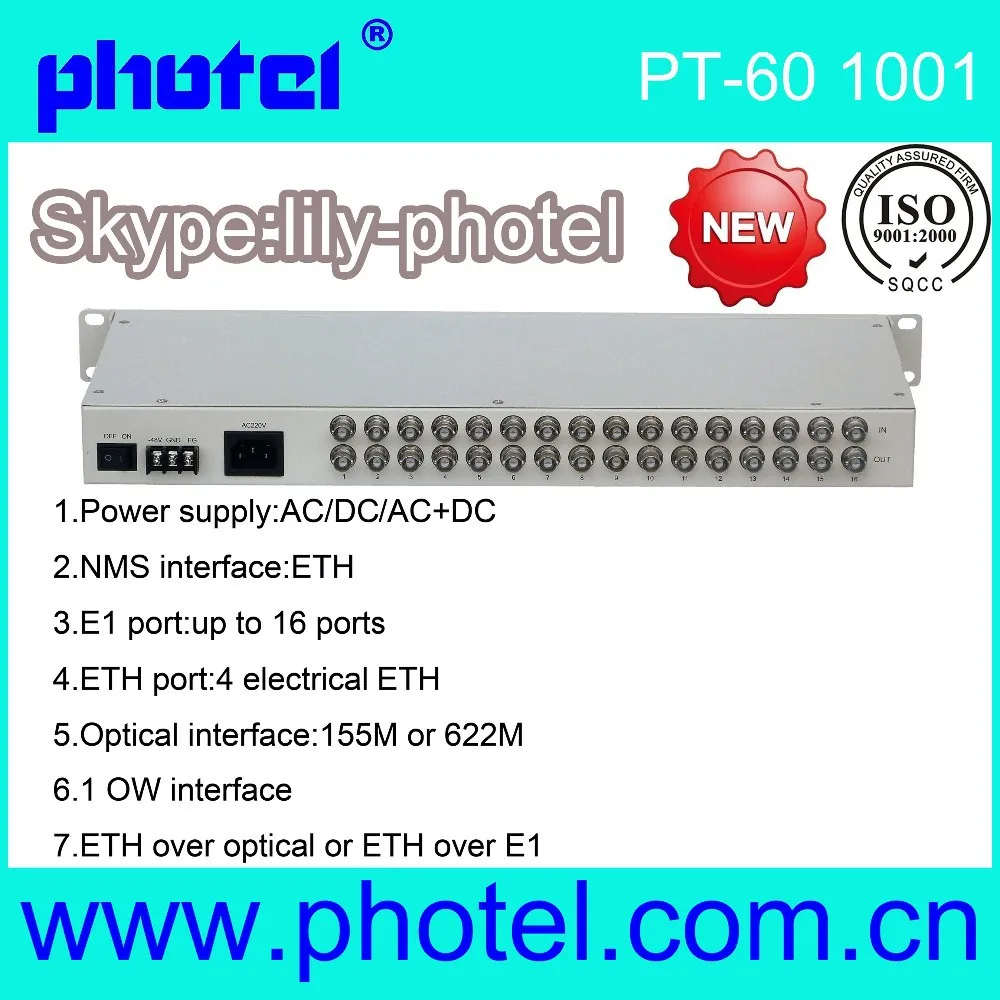

Any combination of AC, DC dual power is supported, and equipped on a 1U height, 19 inches width rack mountable casing. Such powerful cross connect switch, flexible networking, link protection and redundancy power supply, various voice / data services which make PT-60 1001 the most function rich, reliable and cost effective solution for seamlessly migration of the E1 TDM network onto the SDH network.
PT-60 1001 with extremely strong cross-connection ability, it supports 64K up to low / high order of SDH cross-connection. Not only the STM-1 / STM-4 optical port can work as the network uplink, it can also configure the n x E1 ports as the network uplink simultaneously. The co-working optic and E1 network uplinks provides customer a very flexibly networking configuration.
Any combination of AC, DC dual power is supported, and equipped on a 1U height, 19 inches width rack mountable casing. Such powerful cross connect switch, flexible networking, link protection and redundancy power supply, various voice / data services which make PT-60 1001 the most function rich, reliable and cost effective solution for seamlessly migration of the E1 TDM network onto the SDH network.
* 19 rack mountable, 1U height compact size;
* System supports point-to-point, chain and ring network applications;
* Gigabit Ethernet to STM-1 conversion, data rate up to 63 x VC12;
* STM1 / STM-4 and n x E1 co-working simultaneously as network uplinks;
* System supports 2 x STM-1, or 2 x STM-4 optical ports as ring protection;
* Ethernet supports 4 x GE electrical ports or 3 x GE electrical ports plus 1 x GE optical port;
* Order-wire channel for point-to-point and point-to-multipoint voice communication;
* Sophisticate configurable system protection with SNCP network protection and 1+1 interface protection;
* In-band management channel for remote control and system management;

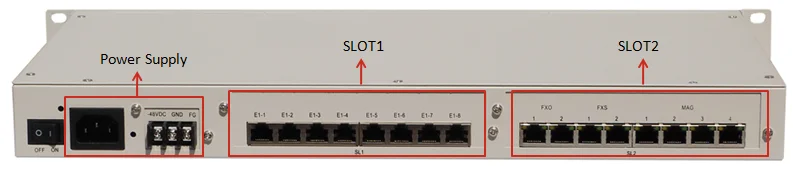

* Two expansion slots for E1 or various data or voice modules;
* Alarm relay is provided for external alarm facility connection;
* Remote firmware and software upgrade is available;
* Redundancy power supply is supported with any combination of the power supply unit.
* System supports point-to-point, chain and ring network applications;
* Gigabit Ethernet to STM-1 conversion, data rate up to 63 x VC12;
* STM1 / STM-4 and n x E1 co-working simultaneously as network uplinks;
* System supports 2 x STM-1, or 2 x STM-4 optical ports as ring protection;
* Ethernet supports 4 x GE electrical ports or 3 x GE electrical ports plus 1 x GE optical port;
* Order-wire channel for point-to-point and point-to-multipoint voice communication;
* Sophisticate configurable system protection with SNCP network protection and 1+1 interface protection;
* In-band management channel for remote control and system management;
* Two expansion slots for E1 or various data or voice modules;
* Alarm relay is provided for external alarm facility connection;
* Remote firmware and software upgrade is available;
* Redundancy power supply is supported with any combination of the power supply unit.
Optical Interface | ||||||||
Bit rate | 155Mbps ±50ppm or 622Mbps ±50ppm | |||||||
Output optical power | ≥-15dBm | |||||||
Receiving sensitivity | ≤-35dBm | |||||||
Optical wavelength | 1310nm / 1550nm | |||||||
Optical interface connecter | SFP/LC | |||||||
E1 Interface | ||||||||
Bit rate | 2048Kbps ±50ppm | |||||||
Code type | HDB3 code, G.703 standard | |||||||
Input impedance | 75W (default) or 120W (optional) | |||||||
Frame structure | G.704, G.706 | |||||||
Compression law | to G.711 | |||||||
Level | ±2.37V ±10% | |||||||
ETH Interface (10/100/1000M) | ||||||||
Interface rate | 10/100/1000Mbps, auto | |||||||
Standard | IEEE 802.3, IEEE 802.1Q (VLAN) | |||||||
Connector | RJ45 | |||||||
Order Wire Phone Use standard 2-wire phone set | ||||||||
Channel | 1 | |||||||
Coding | PCM | |||||||
Bandwidth | 64Kbps | |||||||
Connector | RJ11 | |||||||
Mechanical Dimension | ||||||||
Dimension | 440mm (W) x 250mm (D) x 44mm (H) | |||||||
Net weight | 4Kg | |||||||
Power Supply | ||||||||
Input voltage | -48Vdc and/or 220Vac | |||||||
Voltage range | -36Vdc ~ -81Vdc, 165Vac~265Vac | |||||||
Power consumption | <10W | |||||||
Operation Environment | ||||||||
Working temperature | -10°C ~ 50°C | |||||||
Working humidity | <=90 % (no condensed) | |||||||
Q:What's your advantages?
A:We are a professional supplier in network equipment field more than 20 years. We supply original products with good price to customers. We have professional sales team provide 24 hours free-consulting,we also have professional technical team and after-sales department.
Q:What's the warranty of your products?
A:One year(except for the used products).
Q:What's the payment terms?
A: T/T or west union or Alibaba Trade Assurance order.
Q: How to ship the product to me?
A: We can ship to worldwide by express logistics, such as DHL, it usually takes 3-5 days to destination.
Q:What's the package?
A:Original packing. For the outside,we will pack it in an empty box to protect from damaged during transportation,and ensure you will receive the goods in good condition.
Q:What's the MOQ for your products?
A:One.
A:We are a professional supplier in network equipment field more than 20 years. We supply original products with good price to customers. We have professional sales team provide 24 hours free-consulting,we also have professional technical team and after-sales department.
Q:What's the warranty of your products?
A:One year(except for the used products).
Q:What's the payment terms?
A: T/T or west union or Alibaba Trade Assurance order.
Q: How to ship the product to me?
A: We can ship to worldwide by express logistics, such as DHL, it usually takes 3-5 days to destination.
Q:What's the package?
A:Original packing. For the outside,we will pack it in an empty box to protect from damaged during transportation,and ensure you will receive the goods in good condition.
Q:What's the MOQ for your products?
A:One.
