resistance welding
Resistance welding machine also named spot welding machine, the principle is after the combination of the metal workpieces, applying appropriate pressure, using the welding current to generate the heat from the electrodes and the workpieces’ resistance, the heat may melt the metal and get a welding joint.
There are five main factors of resistance welding:1, welding current;2,welding time;3,welding pressure;4,electrode material;5,electrode dimension.
The power supply of resistance welding also has been developed from capacitor energy storage/AC 50Hz to inverter DC type to crystal type.
We are making inverter DC type, that means 50% power less than capacitor energy storage/AC 50Hz type, and much more precise and stability, can reduce the reject rate, can be more powerful when high speed welding.
1, Resistance welding power supply Specifications:
PS: We have the independent property rights of the power supply, we can make customized power supply.
As the input voltage,we can also provide 220V/380V*3/220V*3/110V.etc
1,IGBT inverter with 4kHz frequency.
2,Three step welding with upslopw and downslope.
3,High precisely welding control system.
4,Constant-current control, constant-voltage control, constant power control, constant pulse width control.

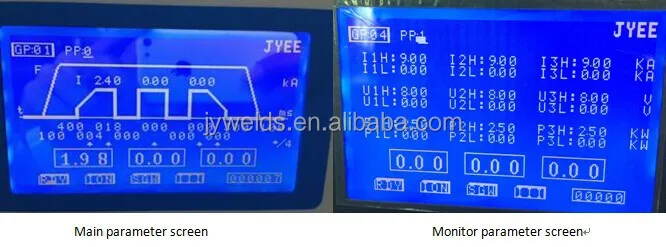

5,Upper and lower monitor of the current or the voltage etc.
6,Easily operating,.
7,The power supply can be easily used on a automatic machine, and automatic adjust the current to keep the tip heat.

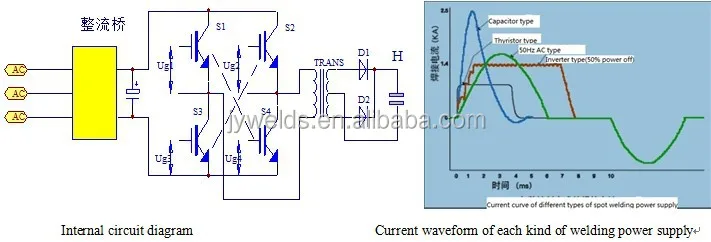

2, Principle of inverter resistance welding power supply and the current waveform of capacitor type/AC type/inverter type/crystal type
3, Technical parameters of the resistance welding power supply
Model/No | JYD-01L | JYD-02L | JYD-03L | JYD-04LB | JYD-06AL/AT | JYD-10AL/AT |
Input Voltage(V) | 220V/380V | 220V | 220V | 3*380V | 3*380V | 3*380V |
Rated Power(kVA) | 4 | 6 | 10 | 12 | 16 | 25 |
Max current(DCA) | 1000 | 2000 | 3000 | 4000 | 6000 | 10000 |
Rated duty cycle(%) | 20 | 20 | 20 | 10 | 10 | 10 |
Frequency(kHz) | 4 | 4 | 4 | 4 | 1 | 1 |
Welding step | 3 | 3 | 3 | 3 | 3 | 3 |
Upslope downslope | Yes | Yes | Yse | Yes | Yes | Yes |
Schedule memory | 20 | 20 | 20 | 20 | 20 | 20 |
Dimension(mm) | 435*185* 320 | 435*185* 320 | 435*185*320 | 460*400*300 | 460*222*345 385*200*300 | |
Weight(Kg) | 18 | 20.5 | 22 | 33 | 23.5 | 26 |
|
|
|
|
| 26.5 | 30 |

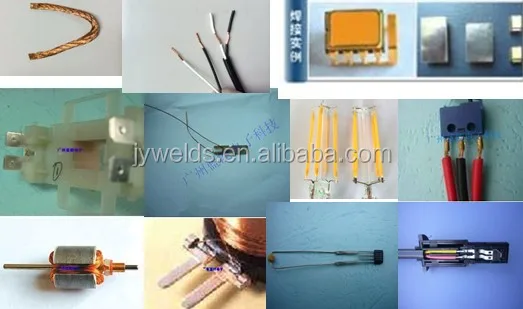

4, Applicable area and part of the welding sample:
5, Main component configuration brand list:
ABB; Microchip; Hitachi; Siemens; Fuji; Infineon; Schneider.
6, Our honors and certifications
7, Service:
1, We are the leading precise welding company, and can help you detect a best precise welding plan with our more than 20 years welding experience.
2,We can design and develop precise welding machine according your requirements.
3,We can help you welding some samples for testing before you buy the machine, and it is free.
4,We are usually punctual and trustworthy.
5,We want to meet the best costmer’s satisfaction so that we can won more chance.
weld head
1,Simple description:

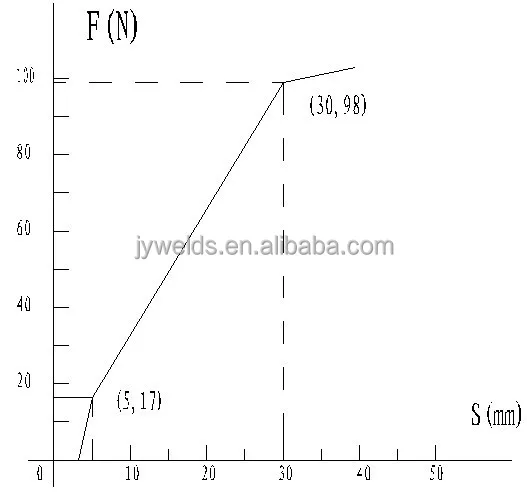

Electrode pressure - also known as 'force' - is a key parameter in resistance welding. Proper force guarantees both weld quality and consistency by improving fit-up of the parts being welded, thus increasing the current path and reducing interface resistance. Force is provided by the weld head.
We offers a full range of resistance welding heads including manual, air-actuated, and electromagnetic models with opposed, step, series, and parallel gap electrode configurations. Force ranges from just 10N to 2000N (725.7kg) to address both fine and large scale spot welding applications.
2, Technical parameters of some weld heads:
Model | Force(N) | Stroke(mm) | Electrode holder | Electrode type | application |
JYHP-10 | 20-100 | 20 | Copper rod | Rod elctrode | Welding |
JYHP-20 | 20-100 | 25 | Copper rod | Rod elctrode | Welding |
JYHP-32 | 30-200 | 20 | Copper rod | Rod elctrode | Welding |
JYHDP-20 | 20-100 | 20 | Copper block | Rod elctrode | Welding |
JYHP-65 | 50-400 | 45 | Copper rod | Rod elctrode | Welding |
JYHP-200 | 200-2000 | 45 | Copper rod | Rod elctrode | Welding |
JYHP-20UB | 0-100 | 25 | UB-WD1 | Unibond | Bonding |
JYHP-20UT | 0-100 | 25 | UT-WD1 | Unitip | Welding |
JYHP-20RF | 0-100 | 25 | RF-JY1 | thermode | Reflow |
3,The high and low force spot welding heads:
A, Fast follow-up
B, Precision bearings ensure long lifetime
C, Displacement and load cell options
D, Both benchtop and pedestal models
E, Adjustable Force-Firing
F, Low Inertia Designs
G, Air Actuated Option
H, Adjustable Tare Spring
I, Single Air Regulator
J, Up and Down Stops
K, Rugged Design
4,Photos

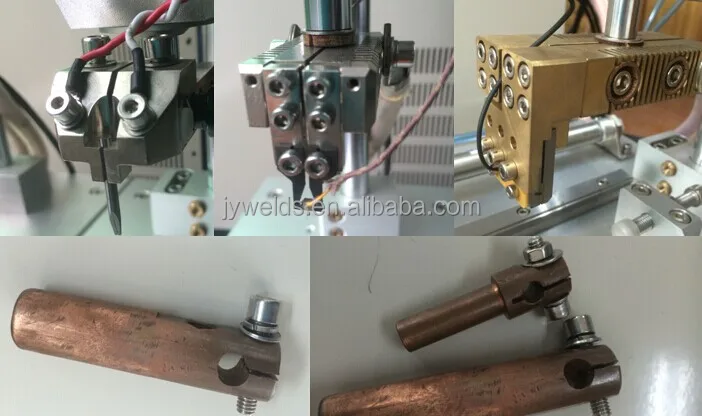

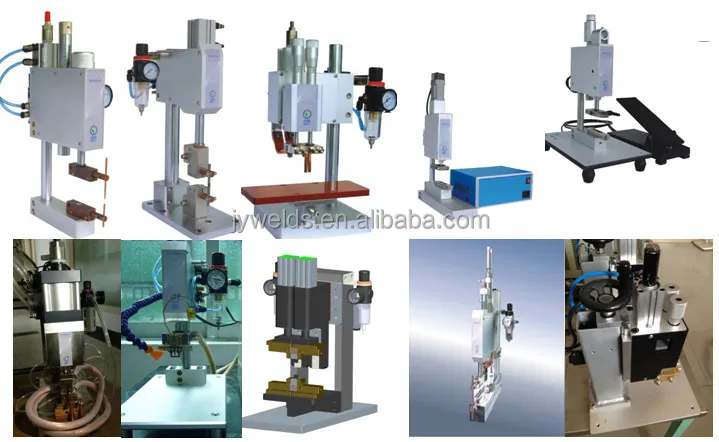

some kind of welding heads
5,photos
some kind of electrode hodlers

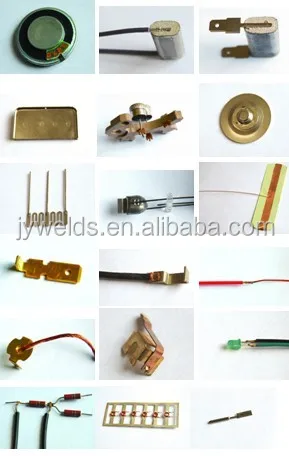

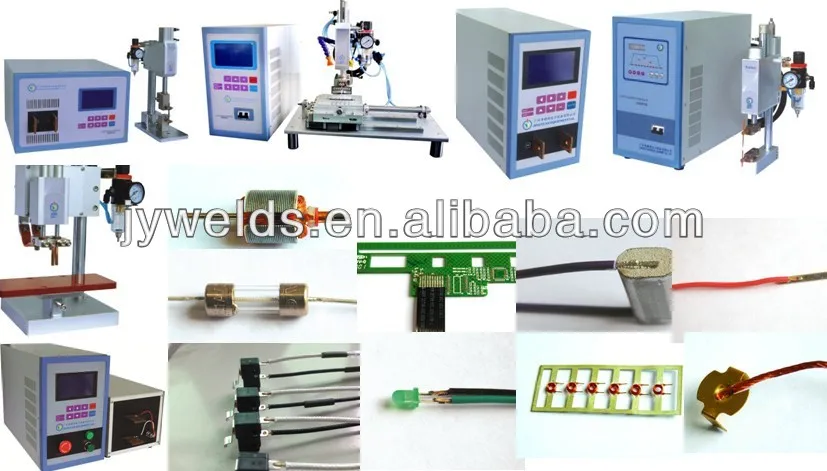

6, Applicable area and part of the welding sample:
7, Main component configuration brand list of our spot welding machine:
ABB; Microchip; Hitachi; Siemens; Fuji; Infineon; Schneider.
8, Our honors and certifications
9, Service:
1, We are the leading precise welding company, and can help you detect a best precise welding plan with our more than 20 years welding experience.
2,We can design and develop precise welding machine according your requirements.
3,We can help you welding some samples for testing before you buy the machine, and it is free.
4,We are usually punctual and trustworthy.
5,We want to meet the best costmer’s satisfaction so that we can won more chance.
