rubber conveyor belt curing press vulcanizing machine

Product Overview

Description

    rubber conveyor belt curing press vulcanizing machine

Waterstop belt curing press



1.Structure

 By the host (1) oil pump (2) control valves (3) electrical control (4) and so on four big parts.

2.Uses

  The curing press is mainly used to curing the rubber products and plastic products in different form. According to the material and the size, it has many types.

3.Feature

(1).Simple and convenient structure, flexible operation, commodious space.The cylinder and plunger are made up of high–quality materials.

(2).Hydraulic station and electric cabinet are Located in both sides of the main engine.

(3).Conveniently operations

(4).Without oil spilling or off pressure.

(5).CE Standards and ISO9001 SGS Certification.

4. parameter of waterstop belt curing press



parameters	XLB350*350*2	XLB400*400*2	XLB500*500*2	XLB600*600*2	XLB750*850*2	XLB1000*1000*2
Working layer	2	2	2	2/4	2	2
Main motor power	2.2	2.2	2.2	2.2	3	5.5
Heating way	Electricity/steam	Electricity/steam	Electricity/steam	Electricity/steam	Electricity/steam	Electricity/steam
plunger stroke	250	250	250	250/500	250	400
weight	1200	1500	1700	2500/3100	3560/4300	8300

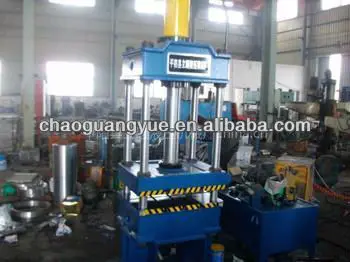

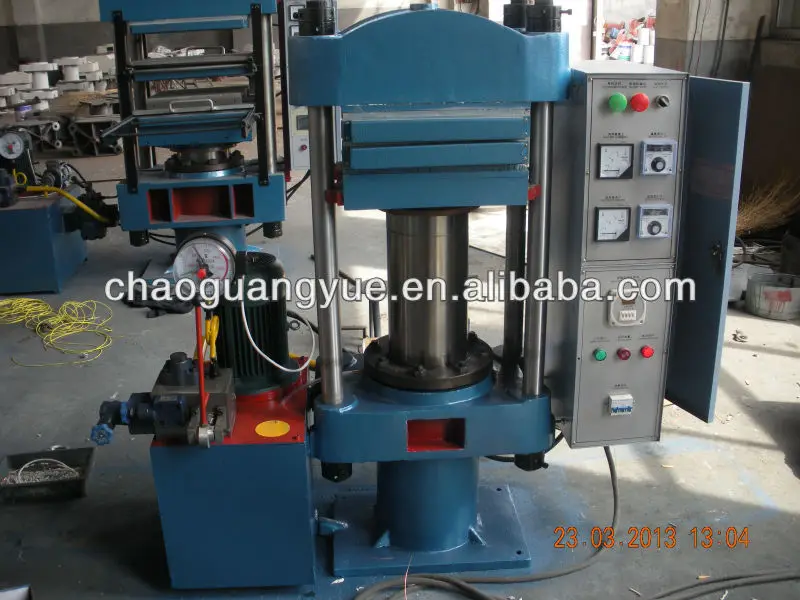

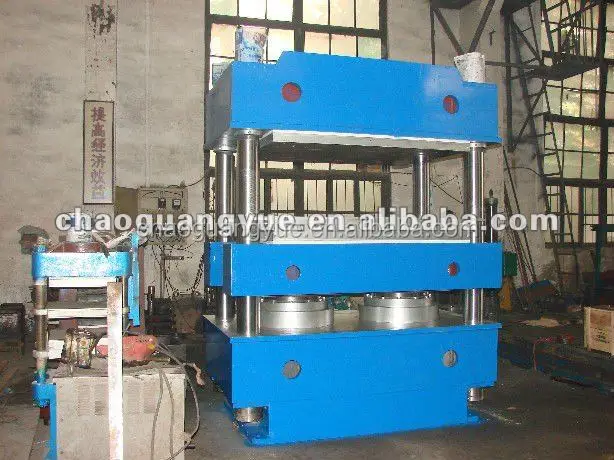

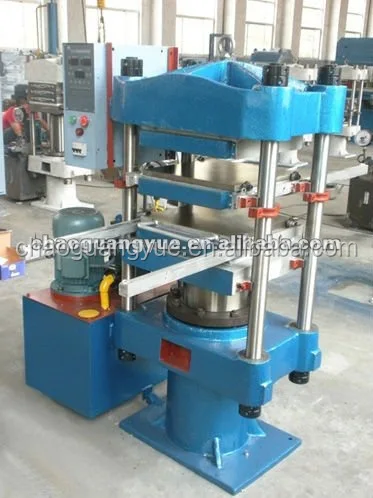

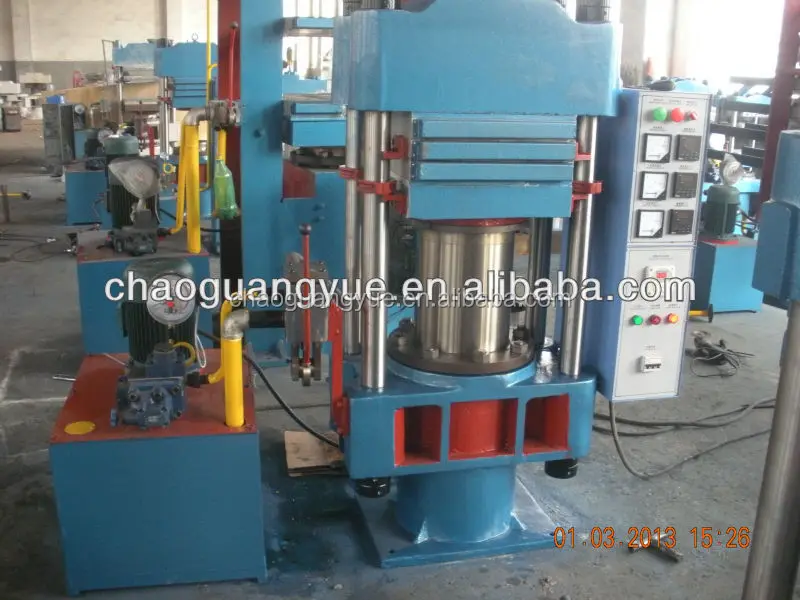

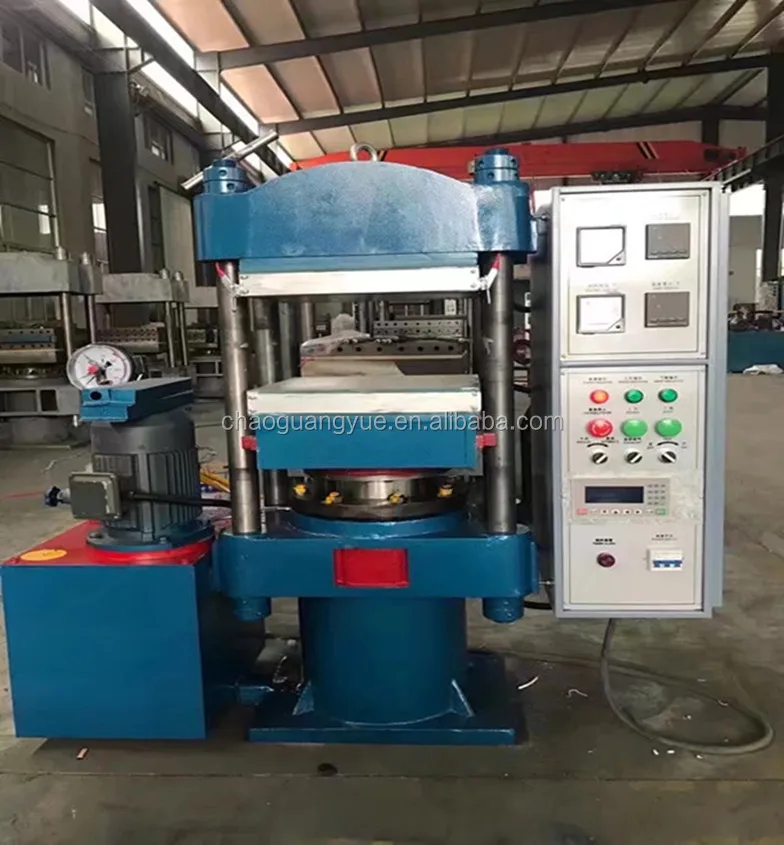

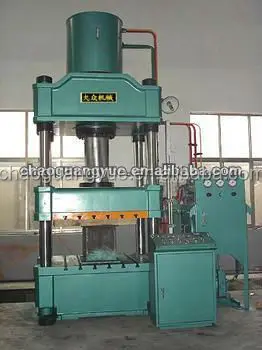

 5. Machine pictures:
