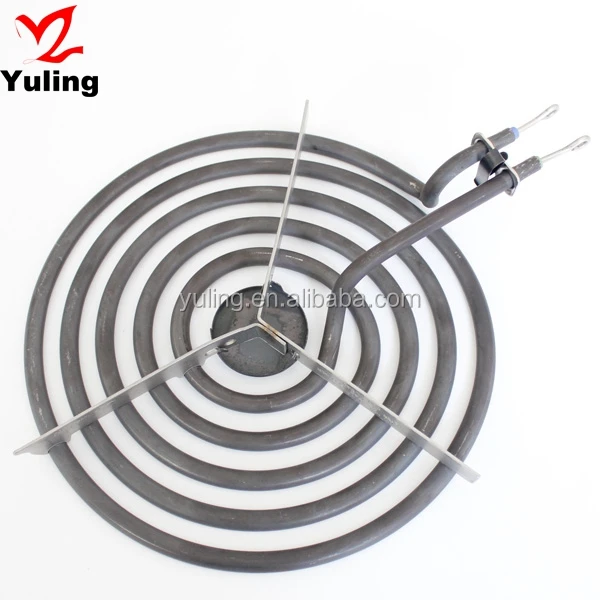

High corrosion resistance sus 304 electric stove coil heating element

Product Overview

Description

High corrosion resistance Incoloy electric stove coil heating element







Specification parameter	Detail	Remark
Name	Electric heating element
Insulation resistance	≥1000MΩ(cold condition)
Leak current	≤0.5mA
Material	sus304	Materials can be changed to be copper,sus321,sus316L,incoloy804,incoloy800 as requested
Voltage/wattage	220/2150W	Voltage/Wattage can be customized as required,and Wattage tolerance(cold condition):+5%-10%
Diameter	6.5mm	Tube diameter can be changed to 6.6mm,8.0mm,10.0mm or others as requested
Resistance powder	Magnesium oxide	We can use other powder if requested
Faston terminal	Nickel plated iron	Materials of terminal housing could be stainless iron,stainless steel if required
Leads	Stainless steel	Materials of terminal piece could be stainless iron,stainless steel if required
Thermal fuse	Iron chromium	Material of thermal fuse can be nickel chromium wire if requested
Application	heater

1 We offer different sheath materials.it can be availed in different  material like incoly800 ,ss304 ,ss321 ,ss316,    copper

2 We offer different tube like 6mm,7mm,8mm,8.5mm,10mm,10.6mm,12mm,16mm,18mm,20mm.

3 We offer various shapes as customer demend:immersion,heater with flange or screw,explosion proof heater

4 Various terminal options,shapes and size available
5 Durable and longer life

When inquire  High corrosion resistance Incoloy electric stove coil heating element  ,please kindly specify:

We custom design various heating elements as your demands. Please kindly advise your specifications.

1, Material, diameter, length

2, Wattage and voltage

3, Working environment and temperature

4, Type of terminal

5, Drawing of special type configuration

6, Special testing requirements before shipment

7, We like to got any questions of heating elements from your side. We will try our best to do for you.



Why choose us?

1 Our factory has more than 40 years' experiences of produce many kinds of heating elements;

2 We are a factory of Alibaba Assessed 3 years' Gold Supplier;

3 ISO listed, 100% QC inspection Before Shippment;

4 CE, CQC, RoHS listed!

5 Our products active in the market of Germany, Australia, Switzerland, England, Cyprus, Canada, Brazil, Russia, France, Nigeria...   Our products always got the praise from customers, whether price or quality.





FAQ

 1.Q:Are you a factory or trading company?
   A:We are a factory.

2.Q:where is your factory location?
   A:Qintong industrial area jiangyan District,Taizhou City,Jiangsu Province,three hours drive from shanghai.

 3.Q:How can I get some samples?
   A: We are honored to offer you samples.

 4.Q:Are your products customized?

   A:Yes,the products in the website are only the common type or the previous types from other customers, we can supply the new products according to your requirements or drawings.



...
