wear resistance tungsten carbide insert mayo hegar needle holder, Medical Surgical Instruments
- Category: Abdominal Surgery Equipments >>>
- Supplier: Hangzhou Haizhu MIM Products Co. Ltd.
Share on (60190809569):
Product Overview
Description

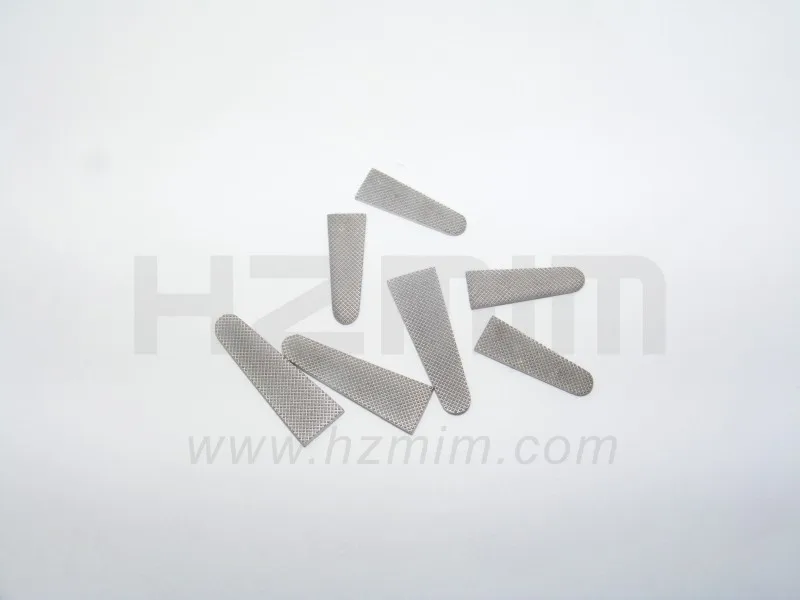

Needle holding forcepsTungsten carbide insert
We have exported medical products to many countries, please click here to view our transaction history.
Product Description
Features
The needle holder is a common device used for the operations of the surgical department,
but the needle slides and twists quite often due to the different hardness between needle holder and needle
which will have an impact on the operation effectiveness and shorten the service life.
Specifications

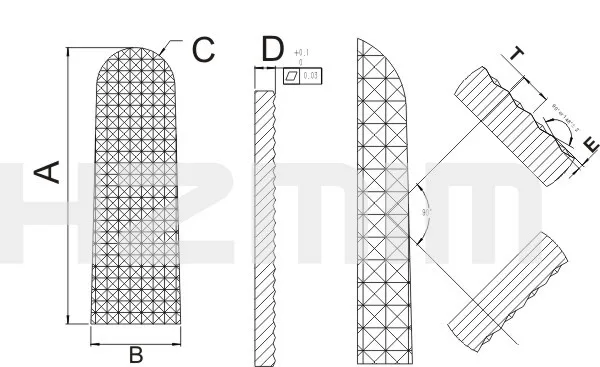

Size: mm
| No. | A | B | C | T | E | D |
| 1 | 7.5 | 2.9 | 1.3 | 0.3-0.5 | 0.15 | 0.75 |
| 2 | 9 | 5.3 | 1.3 | 0.3-0.5 | 0.15 | 0.75 |
| 3 | 13 | 3.6 | 0.75 | 0.3-0.5 | 0.2 | 0.75 |
| 4 | 15 | 5.1 | 1.75 | 0.3-0.5 | 0.15 | 0.75 |
| 5 | 15 | 4.8 | 1.2 | 0.3-0.5 | 0.15 | 0.75 |
| 6 | 15 | 5.1 | 1.75 | 0.3-0.5 | 0.1 | 0.75 |
| 7 | 16 | 5.2 | 1.4 | 0.3-0.5 | 0.2 | 0.75 |
| 8 | 16 | 5.2 | 1.4 | 0.3-0.5 | 0.15 | 0.75 |
| 9 | 17 | 6.5 | 1.75 | 0.3-0.5 | 0.2 | 0.75 |
| 10 | 17 | 5.6 | 1.75 | 0.3-0.5 | 0.15 | 0.75 |
| 11 | 17 | 4.5 | 1.2 | 0.3-0.5 | 0.2 | 0.75 |
| 12 | 17 | 6.5 | 1.75 | 0.3-0.5 | 0.1 | 0.75 |
| 13 | 20 | 6 | 1.75 | 0.3-0.5 | 0.2 | 0.75 |
| 14 | 20 | 6 | 1.75 | 0.3-0.5 | 0.15 | 0.75 |
| 15 | 21.5 | 7 | 2.4 | 0.3-0.5 | 0.2 | 0.75 |
| 16 | 26 | 7 | 2.4 | 0.3-0.5 | 0.2 | 0.75 |

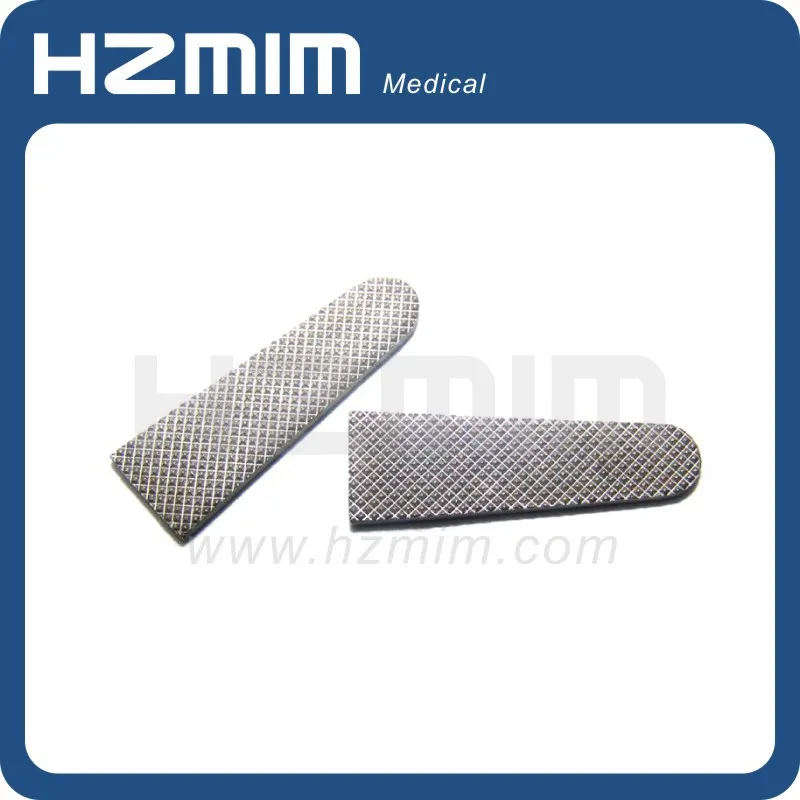

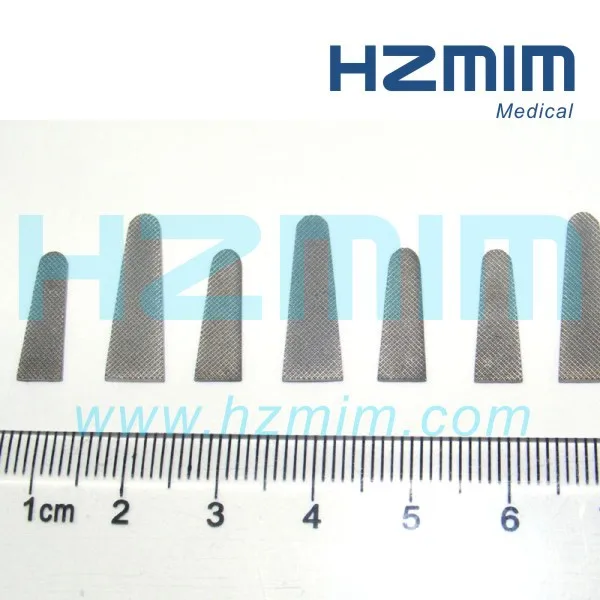

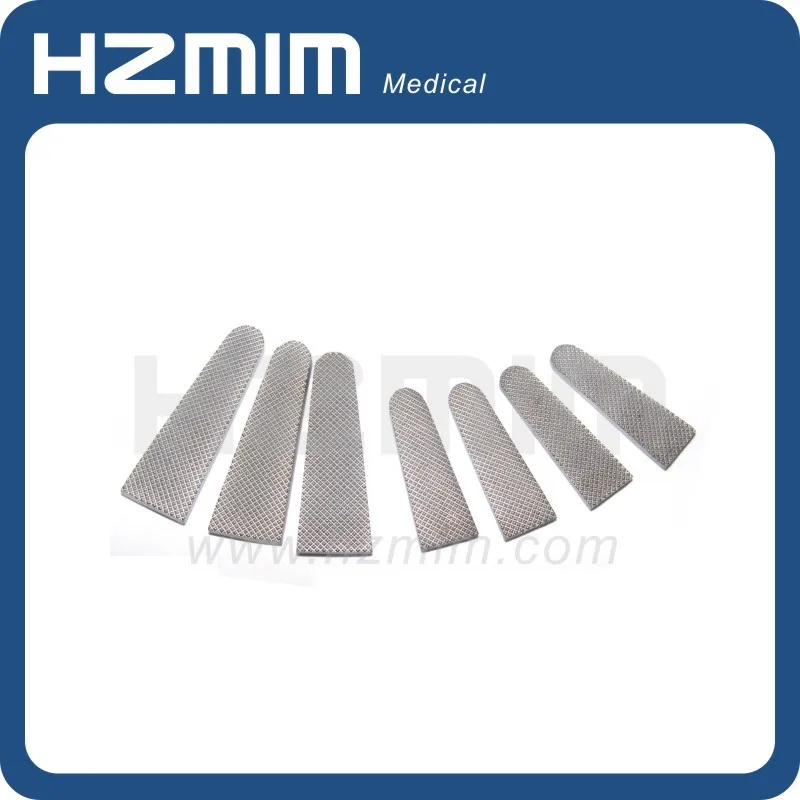

Detailed Images
Company Information
About HZMIM
HZMIM dedicate to apply MIM (Metal Injection Molding) process to medical instrument for several years.
We developed a series of mould to provide better and cheaper solution for laparoscopic instruments, and endoscopy instruments.
We not only provide components for those instruments, also offer you complete products with best price.
Of course we provide customized service and OEM as well as ODM, we believe we can give the best serve to you based on our strong R&D team.
Advantages
Key Attributes
| Parameter | MIM | COVENTIONAL PM | MACHINING | INVESTMENT CASTING |
| Density | 98% | 88% | 100% | 98% |
| Tensile Strength | High | Low | High | High |
| Elongation | High | Low | High | High |
| Hardness | High | Low | High | High |
| Complexity | High | Low | High | Medium |
| Surface Finish | High | Medium | High | Medium |
| Production Capacity | High | High | Low | Medium |
| Range of Materials | High | High | High | Medium-High |
| Cost | Medium | Low | High | Medium |

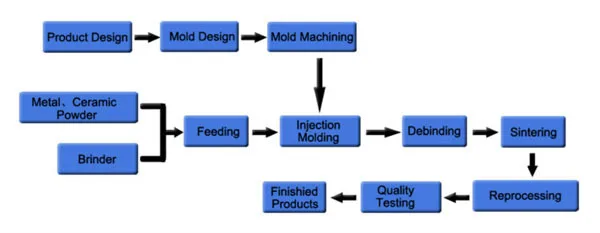

Our Services

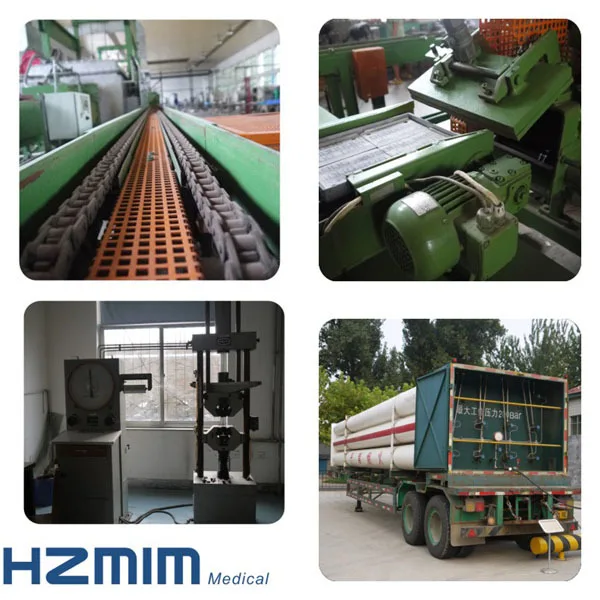

Workshop
