China Vegetable Processing Washing Line,Frozen Vegetable And Fruit Production Line,Vegetable IQF Freezing Line Machine

Product Overview

Description

                                             Frozen Vegetable And Fruit Production Line

                                            Vegetable IQF Frzzeing Line Machine



Summary

•

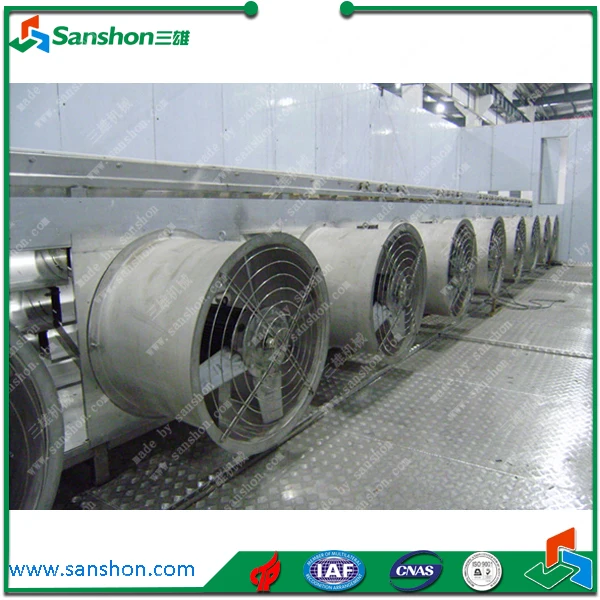

  The LSZ series fluidized quick freezing machine combines the latest technology of other same products from Sweden and Canada, realizing a real fluidized and perfect IQF effect





• It's made of 304 stainless steel except motor, blower impeller, evaporator pipe and fin, and electric elements.


• This machine is completed with base plate of quick freezing machine, the users do not need to make the heat preservation fundation.

Application

It has a wide application, is suitalbe for beans, cherries, strawberries, corns, cauliflowers and other dice , strip products.  It's the best equipment for quick freezing all kinds of fruit, vegetable and some of the seafood.



Working principle

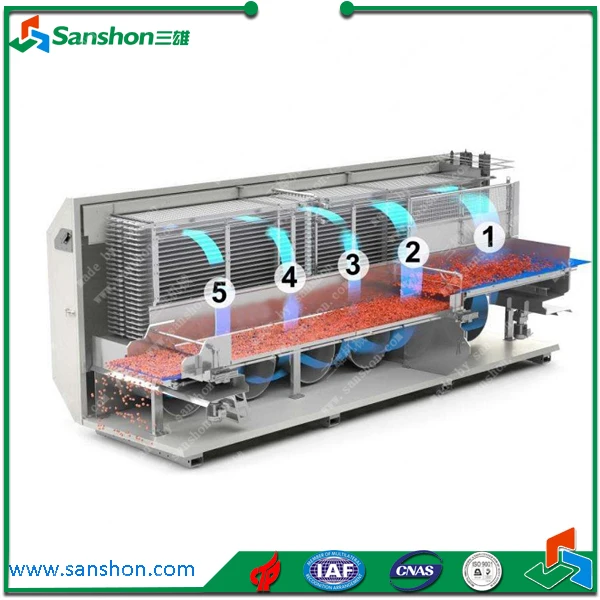

Adopts two stage belting structure---firstly, quick-cooling step. Secondly, deep-freezing step. Independently speed control system, and the speed of the two meshbelts can be changed infinitely.

1.Quick-cooling stage---the food particles are to be quick cooled after entering into the blast room. The surface of the particles would frozen and reach the temperature of 0 C. meanwhile, with the help of the striking chain, the particles would neither stick together nor stick on the stainless steel meshbelt.

2.Deep-freezing stage---the food is to be moved on a stainless steel meshbelt, the foodstuff layer loosens with the increasing of the airflow. Some of the foodstuff particles become floating(this is the reason why this equipment is not applicable to big bulk foodstuff) when the air pressure reaches a certain scale, which brings interspaces among the foodstuff particles, that is the way the fluidized bed come into being..



Main technical parameters

output(kg/h): 4000

overalldimension(m): 16.1*4.4*3.8

freezer length(m): 15

width of belt(m): 1.3

input material tmpt(oc): +15

output material tmpt(°c): -18

freezing tmpt(°c): -36+/-2

freezing time(min): 5-50(adjustable)

coolant: R717/R22

cold load(kw): 600

power required(kw):109



Models





Q1: Are you a factory or trading company?

A1: We are a manufacturer with self-support right of import and export. We have a professional team to

provide pre-sale and after-sale service.

Q2: Where is your factory? How can I visit your factory?

A2: Our factory is located in Shaoxing City, Zhejiang Province. It is near to Hangzhou Xiaoshan Airport

and Shanghai Hongqiao Airport. Warmly welcome you to our factory for a visit!

Q3: What’s the voltage of your machines?

A3: Normally 380V, 50HZ, 3Phases. Special demands can be customized.

Q4: What are the payment terms?

A4: We accept T/T and L/C.

Q5: What’s your advantage?

A5: (1) high quality and reasonable price;

(2) fast response and professional suggestion;

(3) integrated solution for food processing industry;

(4) we provide installation and training.

Q6: What is your Minimum quantity?

A6: MOQ is one set.

Q7: How long to deliver the products?

A7: It depends. Different machines take different manufacturing time. Normally 30-120 days. For urgent

order, it can be negotiable, please contact sales person.
