CRI>95 Ra 95 2400K 2700K 3000K 12V 24V UL Listed 2835 LED Strip
- Category: >>>
- Supplier: Shenzhen Anyhope Technology Limited
Share on (60191210262):
Product Overview
Description
Product Description
CRI>95 Ra 95 2400K 2700K 3000K 12V 24V UL Listed 2835 LED Strip
Model: AH-2835-24-120
- Widely used for home decoration use, hotels, clubs, shopping malls
- Architectural decorative lighting, boutique atmosphere lighting
- Decorative lights for holiday, event, show exhibition
- Applicable for automobile and bicycle decoration, border or contour lighting
Details
| Product Number | AH-2835-12/24-120 (@60mA) |
| AH-2835-12/24-120L (@20mA) | |
| LED Type | SMD2835 (20mA and 60mA) |
| LED Chip | Epistar |
| LED Quantity | 120LEDs/Meter (36LEDs/ft), 600LEDs per Reel |
| LED Strip Length | 5Meters (16.4ft) per reel |
| LED Pitch (Distance between LEDs) | 8.33mm (0.33in) |

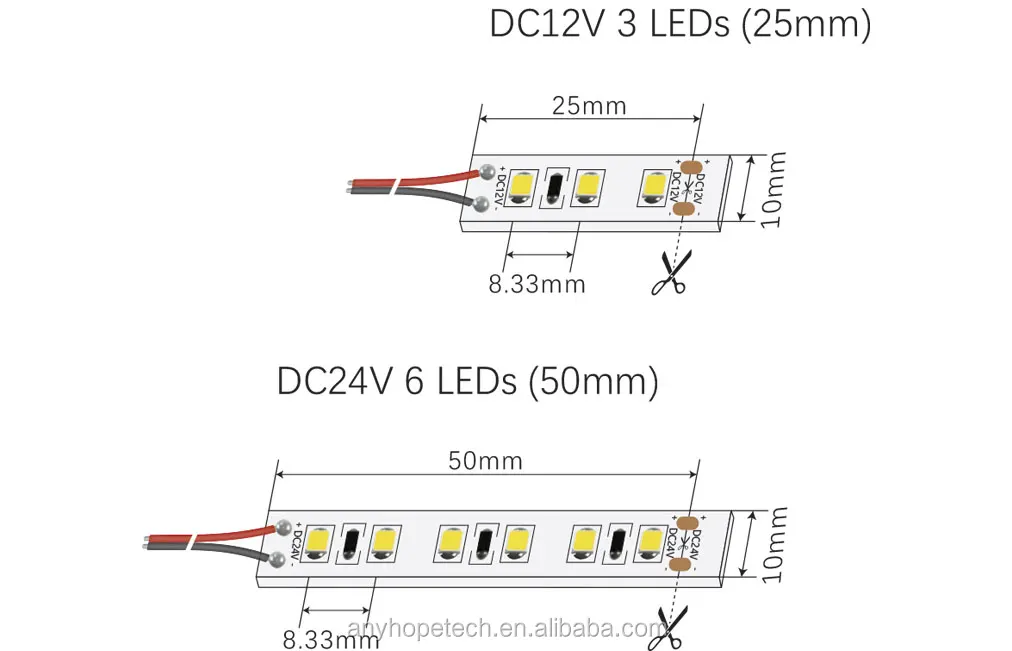

| Minimum Cutting Length | 25mm (0.98in) at DC12V |
| 50mm (1.97in) at DC24V | |
| LEDs Quantity per Cut | 3LEDs at DC12V, 6LEDs at DC24V |
| PCB Color | White, Brown, Black |
| Strip Width | 6mm (0.24in), 8mm (0.31in), 10mm (0.39in) |
| Wire Length | 350mm (13.78in) |
| Input Voltage | DC12V, DC24V |
| Working Current | @60mA |
| 2.4A/Meter (0.73A/ft) at DC12V | |
| 1.2A/Meter (0.37A/ft) at DC24V | |
| @20mA | |
| 0.8A/Meter (0.24A/ft) at DC12V | |
| 0.4A/Meter (0.12A/ft) at DC24V | |
| Wattage | @60mA |
| 28.8W/Meter (8.78W/ft), 144W per Reel | |
| @20mA | |
| 9.6W/Meter (2.93W/ft), 48W per Reel | |
| CRI (Color Rendering Index) | 80+, 90+, 95+ |
| R9, R12 ( All R values) | >80, >90 |
| MacAdam Ellipse | 3 step or 5 step (+/-100K) |
| To ensure color consistency, always use one BIN LED only | |
| Efficiency | 100 Lumens per watt (+/-10%) |
| Luminous Flux (White) | @60mA |
| 3312-3600Lumen/Meter (1010-1098lm/ft) | |
| @20mA | |
| 912-1056Lumen/Meter (278-322lm/ft) | |
| Color Temperature (White) | Warm White: 1800K, 2200K, 2400K, 2700K, 3000K |
| Natural White: 4000K, 5000K | |
| Cool White: 6000K 8000K 10000K | |
| Colors | Red(620-623nm), Green(520-523nm) |
| Blue(455-465nm), Yellow(587-591nm) | |
| Amber(600-605nm), Orange(620-623nm) | |
| Purple(397-402nm) | |
| UV(Blacklight) [365-370nm, 395-400nm] | |
| InfraRed (850nm) | |
| Dimmable | 0-100% Dimmable |
| Beam Angle | 120 degree |
| IP Rating Suitable locations | IP20 Indoor Use, Dry Location |
| IP62, Silicone coated on strip, Damp locations | |
| IP65 and IP67 Splash Resistant | |
| IP68 Submersible | |
| Product Number on different IP Rating | IP20: AH-2835-12/24-120 |
| IP62: AH-E2835-12/24-120 (Silicone glue coated) | |
| IP65: AH-F2835-12/24-120 (Silicone tube extrusion) | |
| IP67: AH-U2835-12/24-120 (U-shape Silicone Sleeve + Silicone) | |
| IP68: AH-S2835-12/24-120 (Silicone Sleeve + Silicone Encased) | |
| Operating Temperature | -20°C ~ +50 °C / (-4 °F ~ +122 °F) |
| Adhesive Backing | 3M™ adhesive tape on the strip’s backside (self adhesive) |
| Mounting method | Adhesive backing for IP20, IP62, Heat Shrink Tubing are optional |
| Mounting clips for IP65, IP67, IP68 | |
| End caps: 5pc per Reel (Optional) | |
| Mounting clips: 10pcs per Reel ( Optional) | |
| UV Emission | No |
| Certifications | UL Listed (cUL, ULus), use Class 2 power supply |
| CE (Issued by TUV Rheinland ) | |
| RoHS Compliant, Lead free | |
| LM-80 on SMD (9000hours test) | |
| Lifetime | 50,000 Hours. Low lumen depreciation |
| Warranty | 5 Years |
We strongly recommend mounting flexible led strip lights inside aluminium profile for good heatsink and prolong LED’s lifetime.
In order to keep even brightness on all reels, we strongly recommend feed power from both ends when connect chain of LED strips. Maximum length of connection led strips: 10Meters.
All specifications are subject to change without notice.
Operating driver: LED Transformer with DC12V/DC24V output
Compatible with DMX Decoder, Common Anode RGB Controller, Dimmer
Max Length Connection: 10 Meters, Feed power to both ends at every 5 meters to minimize the voltage drop
The flexible single color strip connect to power supply:
Company Information
Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.
Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.
Our Services
Step (1): Quotation We will send you the quotation within 1 day according to your detailed requirements.
Step (2): Sales Contract or Proforma Invoice.
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS, FedEx, bank information and terms & conditions for detailed check.
Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)
Step (4): Production Process
Step (5): Package and Shipping
Step (6): Air Way Bill Number
FAQ
Why you should use LED lighting?
Some basic advantages of LEDs:
1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.
You and our environment will be able to benefit in many ways with this type of lighting.
Packaging & Shipping
5Meters/Roll, 1 Roll into anti-static bag, 25Rolls/Carton
Accessories(Optional):
Note:
- Please notice that,the LED strips should not be used in sealed or hot place,to make sure the heat emitting is good for the LEDs.
- Each flexible strip with a total length of the series can not be more than 5 meters.
- Flexible strip with all of the total power can not exceed 90% of the power switching power
- supply.
