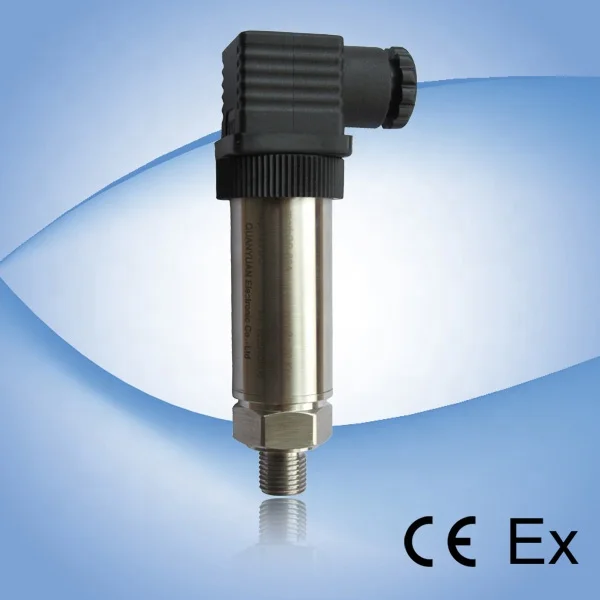

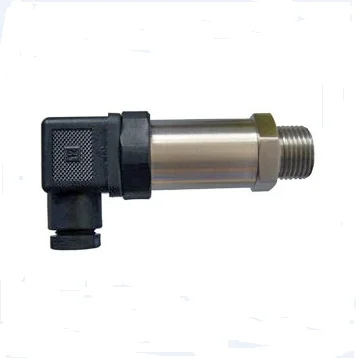

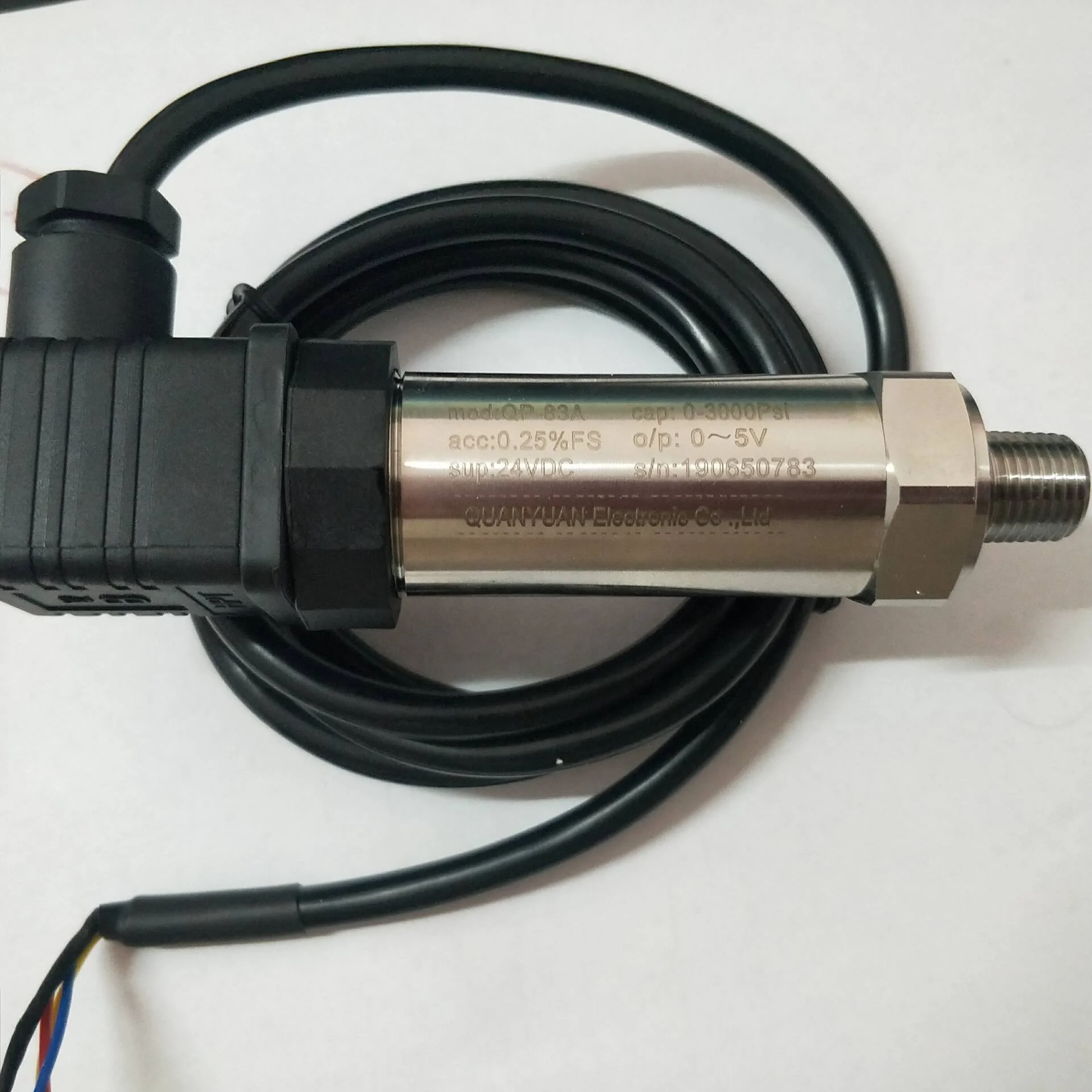

low cost Silicon Oil Field Pressure Sensor/ Pressure Transducer
- Category: >>>
- Supplier: Hanzhong Quan Yuan Electronic Co. Ltd.
Share on (60191239396):
Product Overview
Description

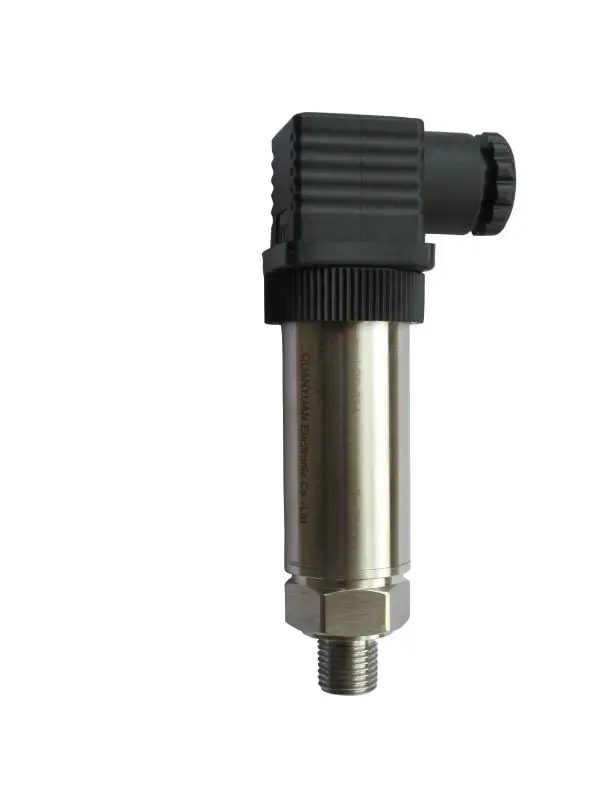

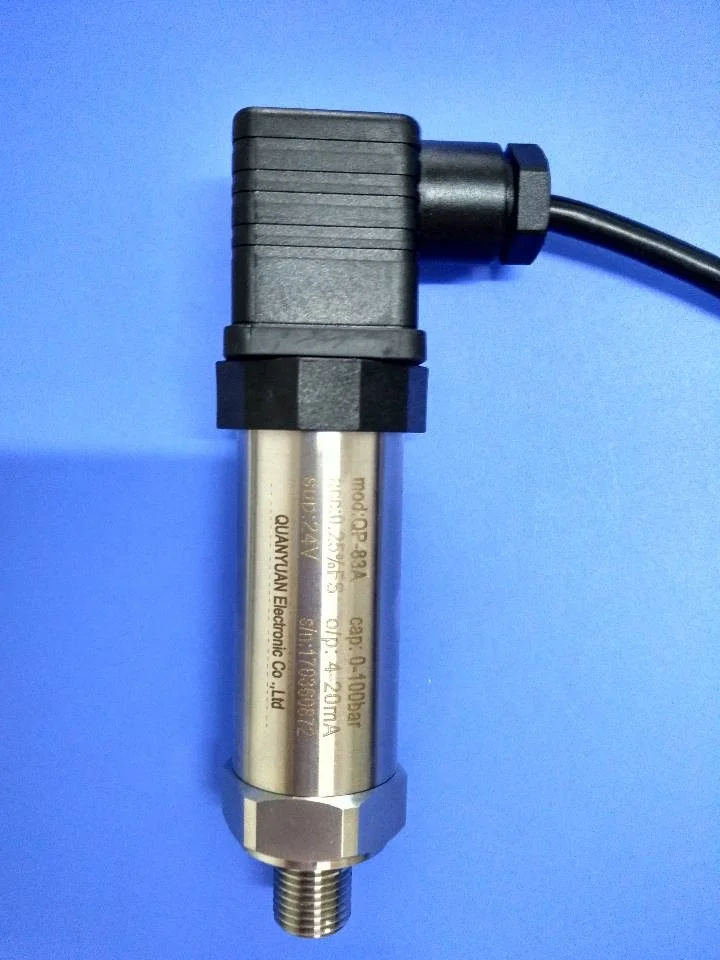

QP-83A Silicon Oil Field Pressure Sensors/ Disposable Pressure Transducer
Model: QP-83A
Range: -100~0KPa, 0~5KPa….0~500KPa….0~100 MPa
Feature:
Have the characteristics of high precision, good stability, long working life and high reliability.
Small in size, light in weight, easy to installation.
Pressure connection are able to chosen by customers.
Electrical connection adopts aviation connector, easy to demount.
Suitable for measuring the gases and liquids.
Dimensions: (unit: mm)
Technical Specifications
Measuring media | Gases or liquids which are compatible to 316L stainless steel | ||
Measuring range | -100~0KPa, 0~5KPa….0~500KPa….0~100MPa | ||
Pressure type | Gauge(G),Absolute(A),Sealed(S) | ||
Signal output | transmitter, mA (2 wires) | 4~20mA | |
| transmitter, Vdc (3 wires) | 0~10V, 1~5V,0~5V,0~20mA | |
Combined accuracy | %FS | ±0.25(Standard), ±0.5(Max) | |
Long stability | ±0.1%FS/year(Standard);±0.2%FS/year(Max) | ||
Power supply | Vdc | 12~36(Standard 24Vdc) | |
Compensated temp. | ºC | -10~+60 | |
Operating temp. | ºC | -20~+80 | |
Temperature coefficient of ZERO | %FS/10ºC | ±0.3%FS(≤100Kpa) , ±0.2%FS(>100Kpa) | |
Temperature coefficient of SPAN | %FS/10ºC | ±0.3%FS(≤100Kpa) , ±0.2%FS(>100Kpa) | |
Insulation resistance | MΩ | >500 @ 100Vdc | |
Electrical connection | DIN43650,Aviation connector,Directly lead(Selectable) | ||
Material | Housing Material | Stainless steel(1Cr18Ni9Ti) | |
| Material of diaphragm | 316L Stainless steel | |
Pressure connection | G1/4, M20x1.5,M14x1.5,M12x1, M10x1(Customized) | ||
Environment protection | IP | 65 | |
Safe overload | %FS | 150 | |
Ultimate overload | %FS | 200 | |

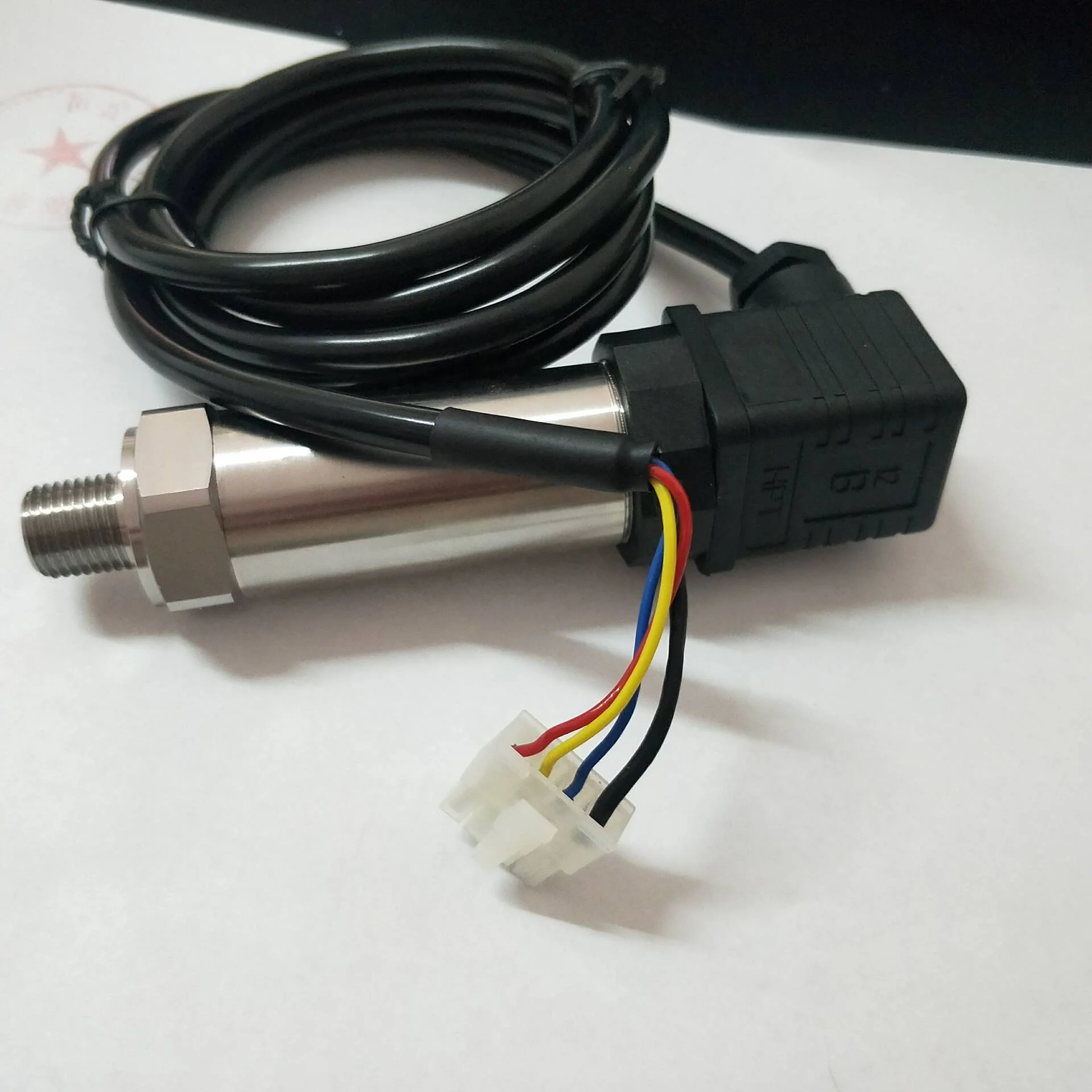

Connection:

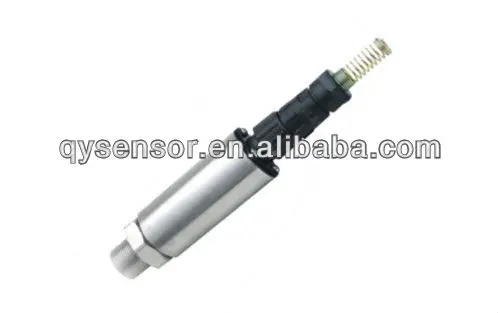

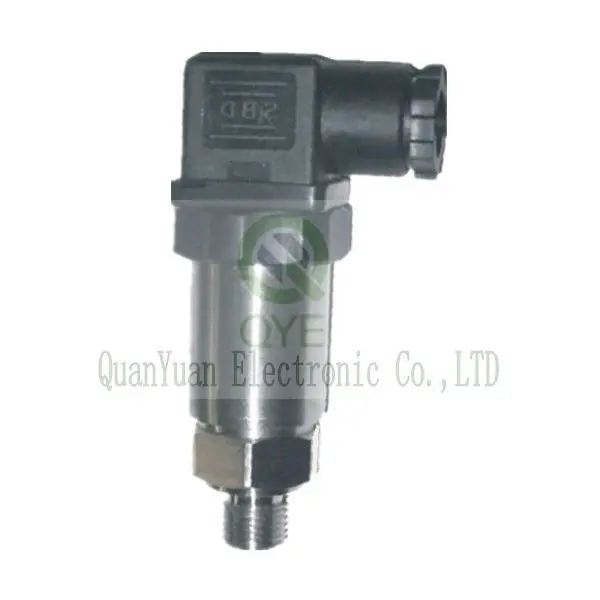

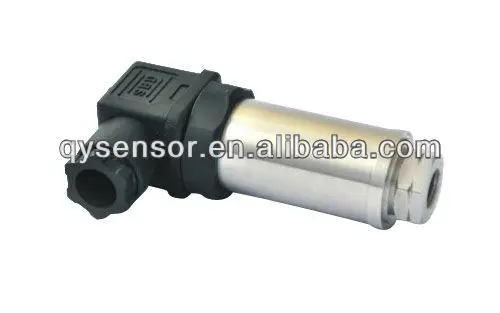

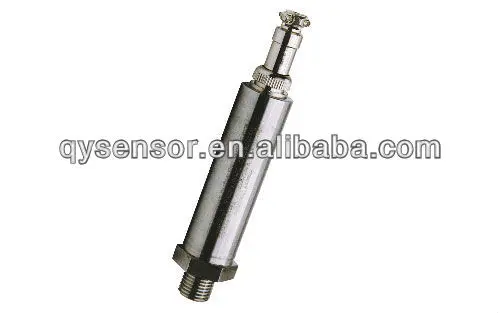

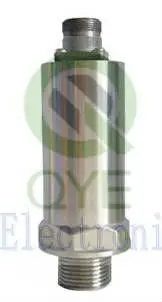

Similar Products:
Packaging & Shipping
Packaging: The standard package in carton box outside, plastic for each inner side.
Delivery: For sample, suggest By UPS/DHL/TNT/EMS or by Air/ Sea as per Qty or as your resquest.
For mass, our cheapest agent or depend on your request.
