Product Overview
Description
Product Description
Hydrocyclone Price---Product Description
【Introduction】:A hydrocyclone with involute feeding
【 Capacity 】:≤542m3/h
【Improvement】:Unique involute feeding eliminating the disturbance, reduces wear and improves the classification efficiency
【 Capacity 】:≤542m3/h
【Improvement】:Unique involute feeding eliminating the disturbance, reduces wear and improves the classification efficiency
Product Advantages
Hydrocyclone Price---Product Advantage
The way of involute feeding through the inlet branch reduces the turbulence of the burst emanative flow when materials entry,makes a smooth movement of liquid inside cyclone, therefore gives a sharp classification. The rational length proportion of column and cone and reasonable insert depth of vortex finder Wear – resistant rubber as liners prolongs the service life by 2-4 times

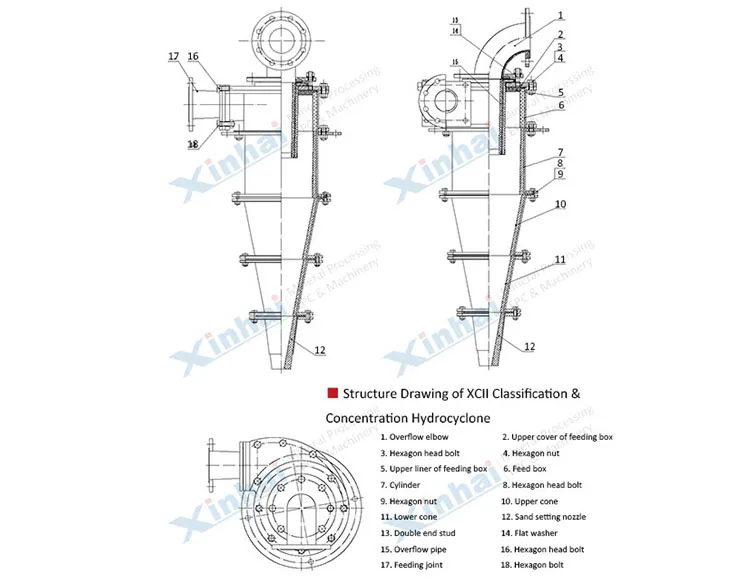

Product Structure
Hydrocyclone Price---Product Structure
The working principle of Xinhai hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different. So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.
Technical Parameters
Model | Spec. | Processing Capacity (m3/h) | Partition Size (μm) | Diameter of Overflow Port (mm) | Diameter of Dust- Setting Nozzle (mm) | Inlet Pressure (MPa) |
XC II F 150 | 150 | 10 ~23 | 25 ~74 | 30 ~50 | 8~22 | 0.06~0.15 |
XC II F 200 | 200 | 17 ~38 | 28 ~80 | 40 ~65 | 16 ~32 | |
XC II F 250 | 250 | 24 ~53 | 30 ~82 | 65~100 | 16 ~40 | |
XC II F 300 | 300 | 40~100 | 36 ~90 | 65~120 | 20 ~40 | |
XC II F 350 | 350 | 56~118 | 40~100 | 80~120 | 30 ~70 | |
XC II F 375 | 375 | 74~157 | 42~105 | 90~135 | 30 ~70 | |
XC II F 450 | 450 | 90~192 | 44~110 | 100~150 | 30 ~70 | |
XC II F 500 | 500 | 128~300 | 50~115 | 130~220 | 35~100 | |
XC II F 550 | 550 | 155~368 | 52~120 | 140~240 | 35~100 | |
XC II F 600 | 600 | 200~468 | 57~125 | 160~260 | 65~110 | |
XC II F 660 | 660 | 237~524 | 60~130 | 180~280 | 80~150 |
