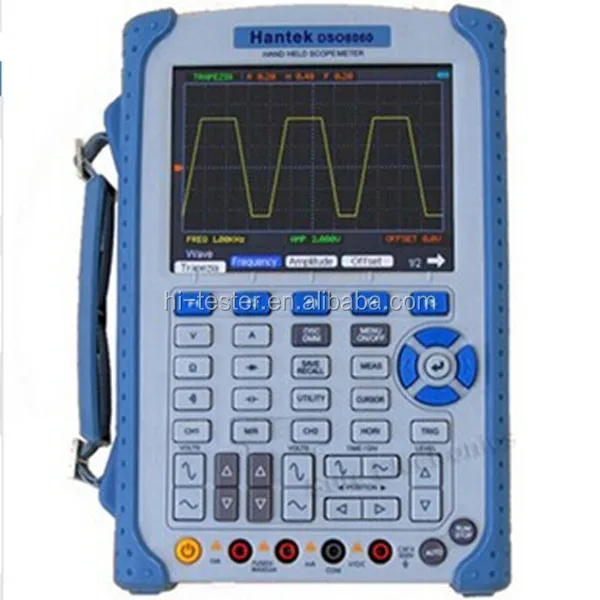

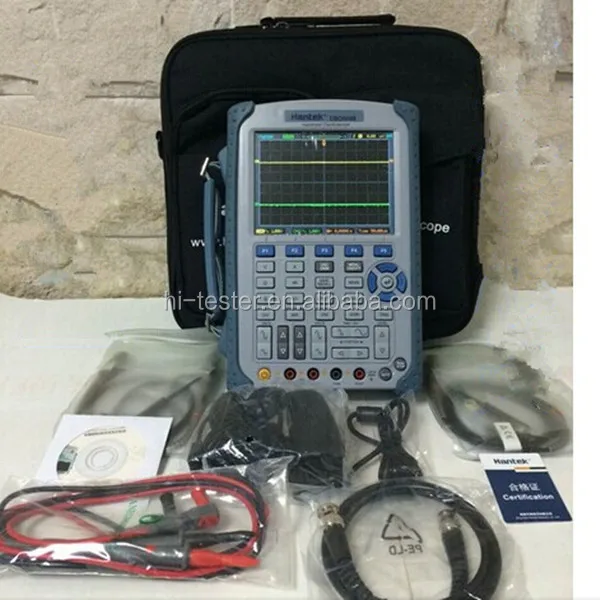

Hantek DSO8060 60MHz 5 in 1 Handheld Digital Oscilloscope

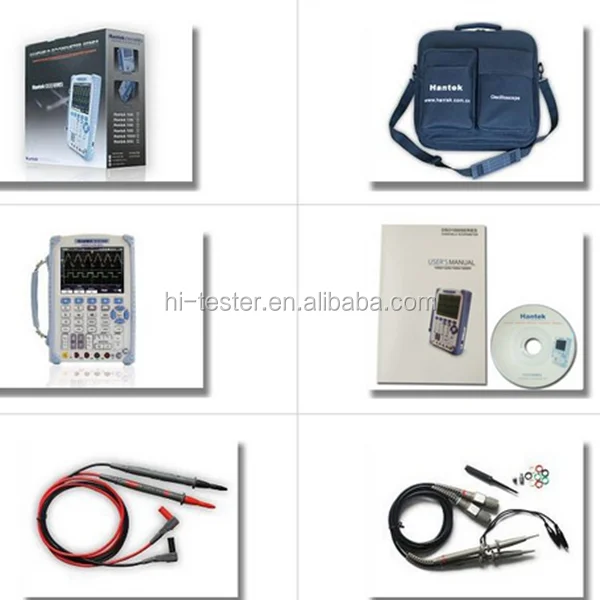

Product Overview

Description

Feature:

Excellent Industrial Design .Direct key for Each Channel ,Time base ,Trigger and DMM,easy to operate.
Large 5.7 inch TFT Color LCD Display ,Led backlight,Display clearly.
USB Host/Device 2.0 full-speed interface ,support removeable disk, RS-232/LAN Optional ,Easy to control by PC or long-distance.
Arbitrary Waveform Generator: 25Mz arbitrary waveform output, (sine wave can deliver up to 75 Mz) 200 MSa / s DDS, 12 bits of vertical resolution.High Bandwidth 60MHz-600MHz Oscilloscope ,

and 6000 COUNTS high precision DMM.
High refresh rate,High Real-time Sample Rate 150MS/s-2GS/s, 50GS/s Equivalent-time Sample Rate.
FFT , + , - , * , / ,X-Y, 22 kinds of auto measurements, PASS/FAIL Check ,easy to use on production line.
Multiform Trigger mode ,2 separate Time Base in ALT Trigger mode ,easy to see 2 signal with different frequency.
1000 waveforms save and record.
Battery Power Operation (Installed) Industrial Design.
Save waveform in the following: jpg/bmp graphic file, MS excel/word file.
Dimensions (mm):240(L)x165(W)x50(H), be carried easily.
Labview\\VB\\VC Second Design instance.



Hardware Specification

Specifications:

Vertical
Channels	2
Bandwidth, MHz	60
Rise Time, ns	5.8
Input Sensitivity	10mV/div to 5V/div
Input Impedance	Resistance 1M
	Capacitance 15 pF
Input Coupling	AC, DC and GND
Vertical Resolution	8 bits
Maximum Input	300V (DC+AC Peak)
Horizontal
Real-Time Sampling Rate	250MSa/s
Equivalent Sampling Rate	50GSa/S
Time Base Range	5ns/div~1000s/div
Memory Depth	32k at Single Channel, 16k at Dual Channel
Time Base Precision	±50ppm
Trigger
Source	CH1, CH2
Mode	Edge, Video, Pulse Width, Alternative
X-Y Mode
X-Axis Input	Channel 1
Y-Axis Input	Channel 2
Phase Shift	Max.3 degree
Cursors and Measurement
Voltage Measurement	Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot
Time Measurement	Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Delay Measurement	Delay time from ch1 rising edge to ch2 rising edge, Delay time from ch1 falling edge to ch2 falling edge
Cursors Measurement	Manual, Track, Auto Measure Modes
Multimeter Mode
Maximum Resolution	6,000 Counts
Testing Modes	Ac/DC voltage, AC/DC current, resistance, capacitance, diode test, continuity
Maximum Input Voltage	AC: 600V, DC: 800V
Maximum Input Current	AC: 10A, DC: 10A
Input Impedance	10 MΩ
Signal Source Mode
Waveform Frequency	DC~25MHz
DAC Clock	2K~200MHz adjustable
Frequency Resolution	0.1%
Channel count	1CH waveform output
Waveform Deepth	4KSa
Vertical Resolution	12
Frequency Stability	<30ppm
Waveform Range	±3.5V Max.
Output Impedance	50Ω
Output Current	50mA Ipeak=50mA
System BW	25M
Harmonic Distortion	-50dBc(1KHz), -40dBc(10KHz)
Measure Frequncy Channel
Frequency Range	DC~60MHz
Input Range	400mVpp~18Vpp
Coupling Mode	DC
Frequency Measurement Accuracy	±Time Base Error ±1 Count
Input Impedance	> 100KΩ
General information
Waveform Signal Process	CH1+/- CH2, CH1xCH2, CH1/CH2, FFT, Invert
Storage	15 Waveforms and Setups
Display	TFT LCD Type 5.7 Inch with LED Backlight Display
Display Resolution	240 (Vertical) x 320 (Horizontal) Dots
USB	USB Host / Device 2.0 Full Speed Supported
Optional	RS232, LAN
Power Source	AC 100V ~ 240V, 50Hz ~ 60Hz; DC Input: 8.5VDC, 1500mA, Battery Power (Installed) 6 Hours (Li-ion Battery)
Dimension	245 x 163 x 52 mm
Weight	1.2kg
