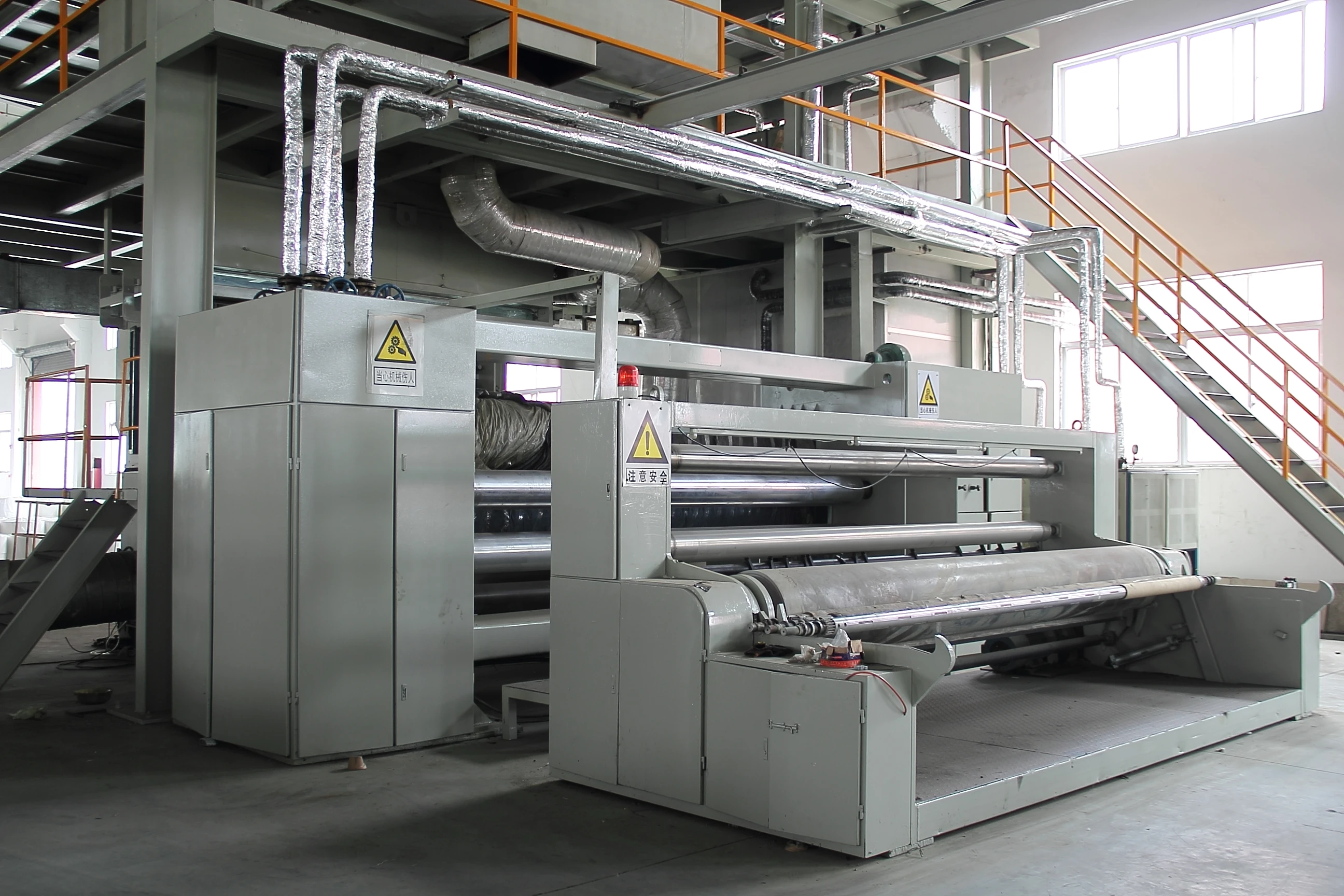

sms nonwoven fabric making machine

Product Overview

Description

sms nonwoven fabric making line





SINGLE BEAM PP NONWOVEN FABRIC MAKING MACHINE
TYPE	CY1600MM-S	CY2400MM-S	CY3200MM-S
WIDTH	1600mm	2400mm	3200mm
FIBER DENIER	<=2.3D	<=2.3D	<=2.3D
WEIGHT	9-200gsm	9-200gsm	9-200gsm
PATTERN	ACCORDING TO SAMPLE	ACCORDING TO SAMPLE	ACCORDING TO SAMPLE
SCREW DIA.	130, 30:1	150, 30:1	170, 30:1
MACHINE SPEED	0-150m/min	0-150m/min	0-150m/min
CAPACITY	4500kgs/24h	6500kgs/24h	9000kgs/24h
BEGINNING HEATING POWER	200KW	250KW	315KW
NORMAL RUNNING POWER	150KW	200KW	280KW
POWER CONSUMPTION	700KWH	700KWH	700KWH
TRANSFORMER REUIREMENT	200KW	250KW	315KW
MACHINE SIZE	10*18*10.5m	14*20*10.5m	17*20*10.5m
CONTAINER REQUIREMENT	4	5	6

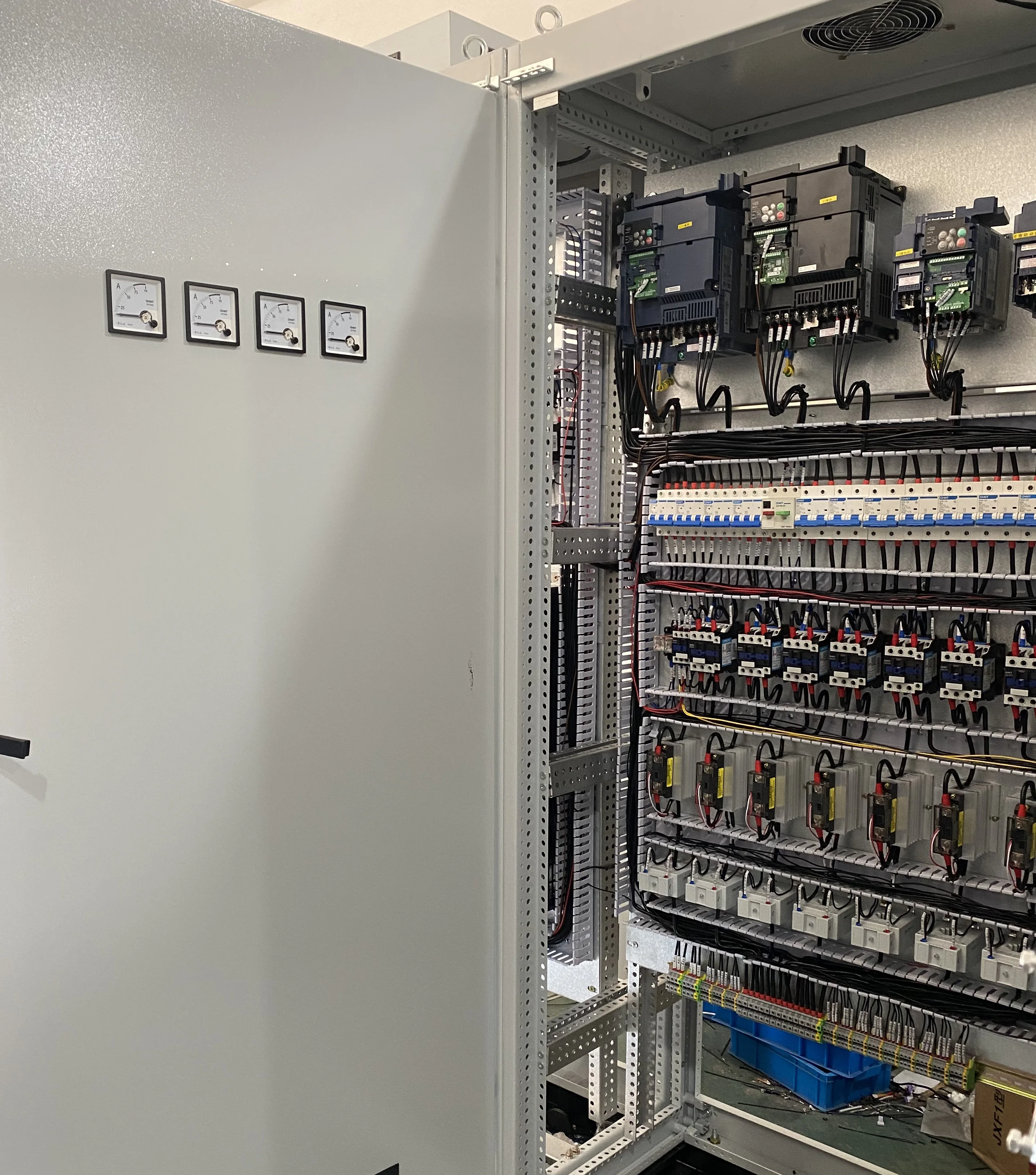

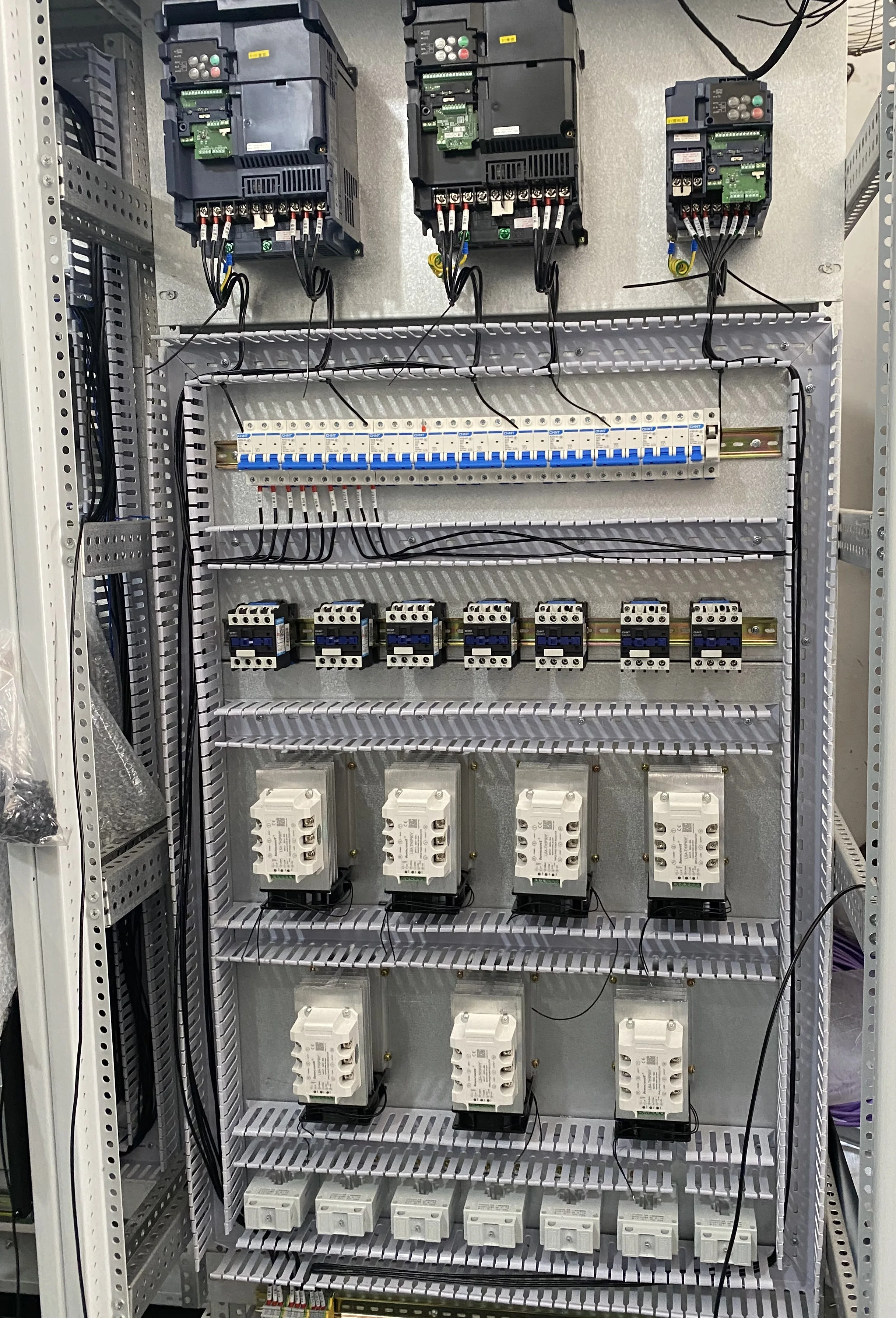

Advantage: 1) THE MACHINE HAVE NEW HEATING SYSTEM WHICH CAN SAVE AROUND 25% POWER. 2) THE FILTER CANDLE HAVE NEW TECHNOLOGY WHICH CAN SEPARATE THE CORE AND OUTSIDE FILTER. IT CAN SAVE YOUR COST. 3)  THE MACHINE HAVE SCR TECHNOLY THAT CAN PROTECT MACHINE WHEN THE ELECTRIC SUDDENLY OFF.









  Packing and Loading

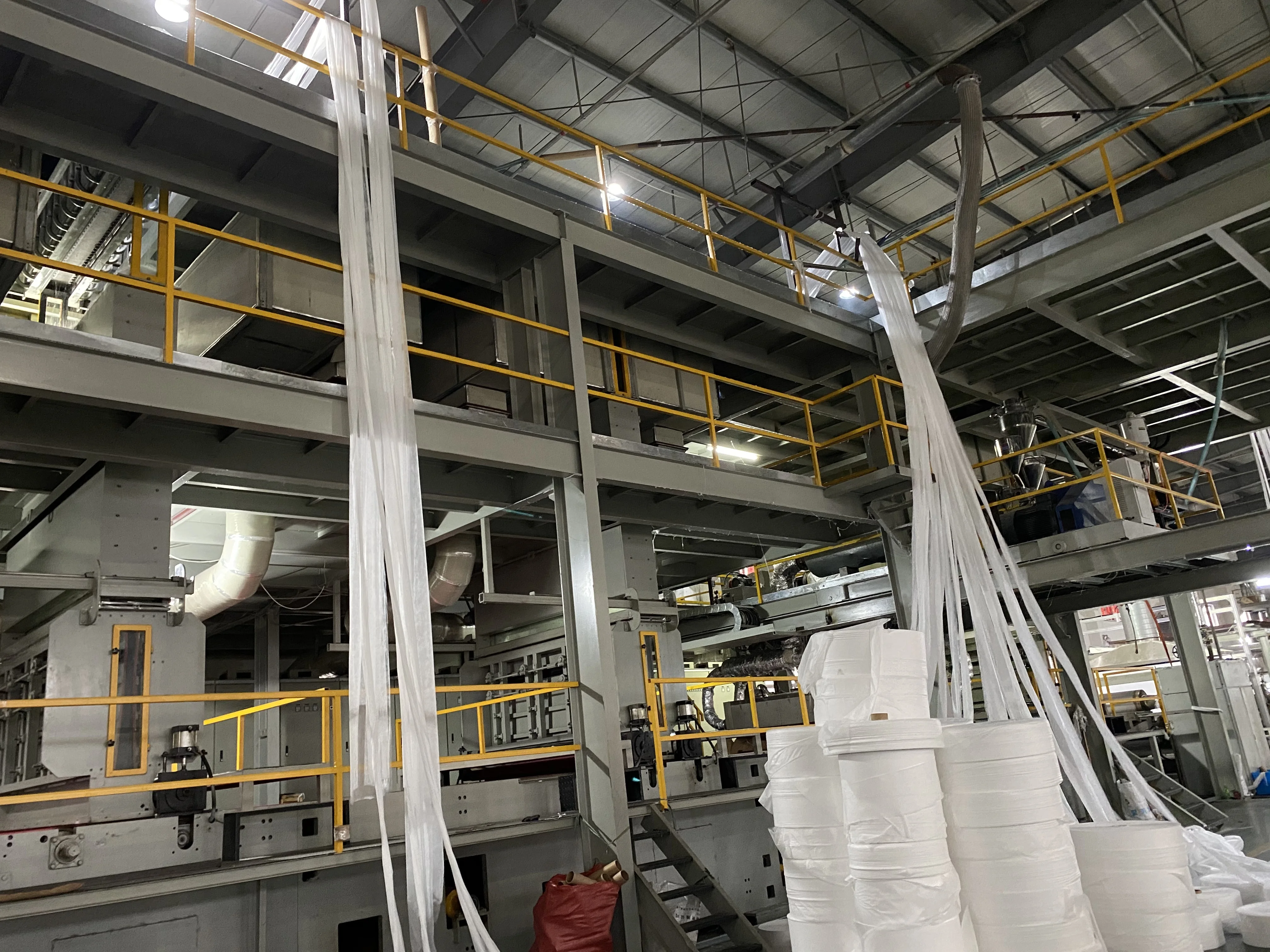

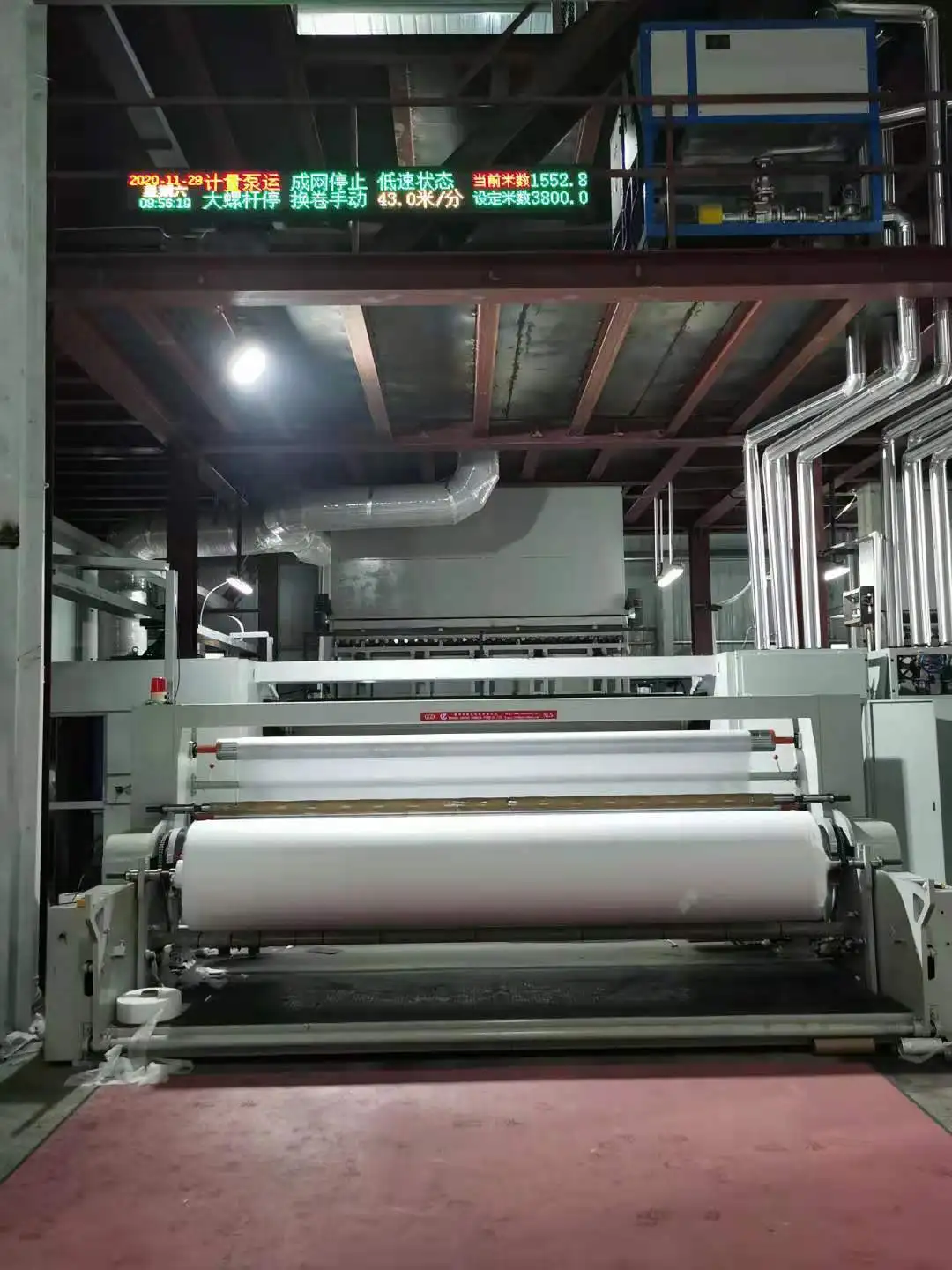

Mahcine running in India:







Mahcine running in Malaysia:









Mahcine running in Saudi Arabia :



we are professinal manufacturer focus on 1600mm sms non-woven fabric making line,If any question,pls feel free to send inquiries.
