pipe/copper tube/aluminum/metal/cnc full automatic straightening and no chip cutting machine

Product Overview

Description



                              why did you choose it and its advantages:

           1.KL numerical control coil pipe non-chip cutting machine with the series of KL-II, KL- IV, KL- 2+2,KL-2+2+2 and KL-2+4.



          2.this machine is used for uncoiling,straightening and non-chip fixed-length cutting copper, aluminium and steel coils automatically,which are applied in air conditioners,water heaters,airplanes and cars.



         3.This equipment adopts imported control system,and is automatically controlled by precision screw or pneumatic servo motor , PLC programmable manipulator and human-computer interface,which is accurate and reliable.



         4.To be different,it owns the auto alarm function of out of material,material blocking and the length changing of the material,which can warn correctly and run stably.







              (Note:if have any problem about machine or trading way ,please feel free to contact me.)

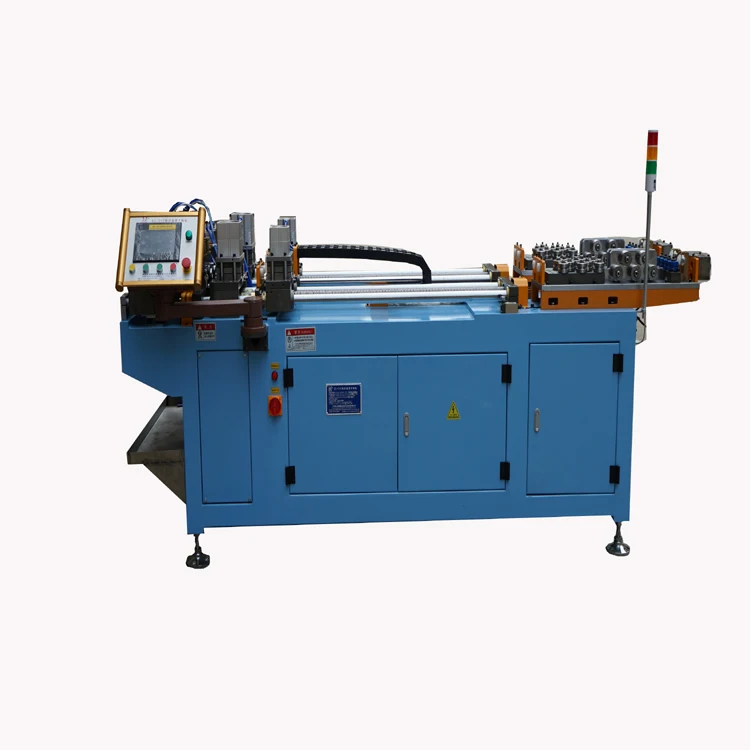

                       Outside Drawing of the machine:



                                        material rack:



                                      Molded products:



                                  The main parameter:

NO	Item	Contents
1	Standards of Cu(Al) cuttings	Φ4.76-Φ19(pipe coils)
	Max. diameter of the cuttings	Φ19
2	Max. feeding distance	1000mm
3.	Reduplicate error of fixed length	L≤1000mm≤0.3mm≥1000mm≤0.5mm
4	Min. length of the cuttings	20mm(disregarding the necking) The tension fracture function can be achieved when the length is more than 80mm.
3	Primary number of processed tubes	2+2.   2+2+2.    2+4
4	uncoiling speed	10 times/60S(1000MM)
5	Inner diameter of nozzle necking	f≤20%
6	Out of roundness	≤3%
7	Power	Three-phase and Four-wire 380V±10%/50Hz
8	Air source pressure	0.5—0.7MPa
9	Total power	4.5KW



                                                                my company patent for invention
