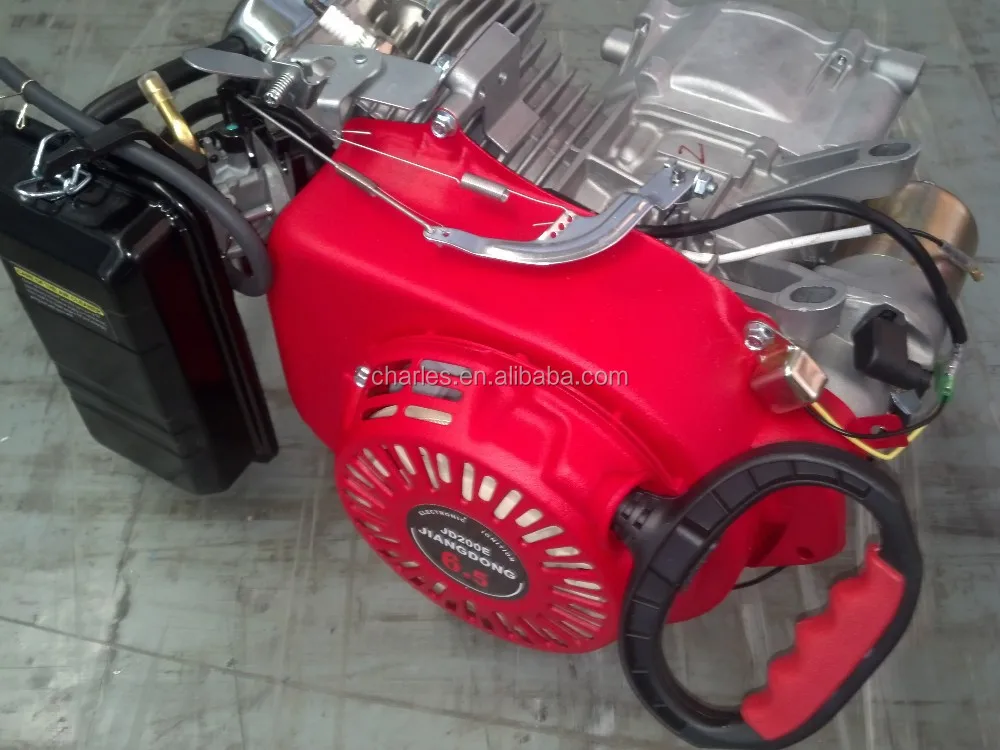

jiangdong replacement engine JF200CE
- Category: >>>
- Supplier: Yancheng Charles Electrical-Machinery Co. Ltd.
Share on (60192019769):
Product Overview
Description
| Model | GX120 | GX160 | GX200 | GX240 | GX270 | GX340 | GX390 |
| Type | OHV,Tilt,Single cylinder,4 stroke, forced air cooled gasoline engine | ||||||
| Max power(KW/HP) | 3.0/4.0 | 4/5.5 | 4.7/6.5 | 6/8 | 6.7/9 | 8.2/11 | 9.7/13 |
| Fuel consumption(g/kmxh) | <390 | <370 | |||||
| Oil consumption(g/kmxh) | <6.8 | ||||||
| Bore x stroke(mm) | 60*42 | 68*45 | 68*54 | 73*58 | 77*58 | 82*64 | 88*64 |
| Displacement(cc) | 118 | 163 | 196 | 242 | 270 | 337 | 389 |
| Compression Ration | 8.5:1 | 8.5:1 | 8.5:1 | 8.2:1 | 8.2:1 | 8:1 | 8:1 |
| Lubrication model | splashing | ||||||
| Starting system | Recoil(Electric)Start | ||||||
| Fuel/Lube oil | Unleaded gasoline/SAE 10W-30 | ||||||
| Rotation | Clockwise(from flywheel) | ||||||
| Valve clearance | 0.10mm | ||||||
| Spark plug clearance | 0.6-0.8mm | ||||||
| Ignition model | T.C.I | ||||||
| Air cleaner | Half dry,oil immersed,foam filter,element | ||||||
| Dimension(mm) | 355*315*355 | 362*312*335 | 430*380*410 | 450*405*443 | |||
| Net weight(KG) | 13 | 15 | 16 | 25 | 31 | ||
