Chair Embedded Discussion Digital Conference Microphone SS512 SINGDEN
- Category: Conference System >>>
- Supplier: Foshan,Singden,Technology,Co.,Ltd.
Share on:
Product Overview
Description

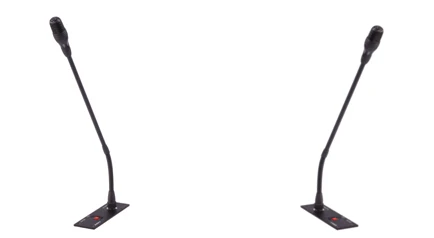

Chair Embedded Discussion Digital Conference Microphone SS512 SINGDEN
Product Description
SS512C/SS512D series are professional embedded conference microphones. Its unique digital processing and transmission technology, excellent sound performance, high reliability, advanced digital technology fully combining with audio technology, suitable for all kinds of conferences. Furthermore, SS512C/SS512D unique ability to process high sound pressure, full-balanced design and unique masking techniques can anti-cell phone and other RF interference.
Product Features
Embedded design
Fixed pluggable with locking Mi rod design
High sensitivity, effective pick-up range up to 50CM
Red mist indicator light design, indicate speaking state
Support multiple Chairman Microphones in the system
FIFO /AUTO mode
Good sound performance under long distance transmission
"hand-in-hand" connection, system should be more reliable
Highly resistant to mobile phone interference
Chairman Unit have priority function button, can override all speaking delegate units
Basic Function
Discussion: FIFO/ AUDO mode
System support at most 10 chairman units
Main unit support auto video tracking function
Chairman unit support: priority and freely talk; close other speaking delegate units
Technical Parameters
Pick up range: | 0-500mm |
Frequency response | 40Hz-19KHz |
Sensitivity | -38dB±3dB |
SNR | -80dB |
Non-linear distortion | <0.3%(1KHz) |
Power | DC24V |
Length | 380m |
Weight | 0.75Kg |
Temperature | -20℃ - 50℃ |
Dimension | 135×150×50(mm) |
Hole Size on Chair
System Connection
7.3 Usual Troubleshooting
Failure | Reason | Solution |
No response when turn on system controller( Power light is dark) | power supply trouble | clear |
plug is not stable | clear | |
AC fuse is damaged(F3A250V) | replacing | |
Host unit can’t setup address automatically | need edit units’ address | Press unit’s “MIC” key, editing ID No for every unit. |
Host unit can’t control camera | System controller and camera have different communication protocol,baud rate. | Please reset communication protocol & baud rate of system controller and camera. Suggest using PELCO-P 9600. |
Above information is only for reference. If have other problems, please contact distributor, and request technique support. | ||
Packaging & Shipping
Price term | EWX price or FOB price |
Certificate | CE ,ROHS , TUV , ISO4043 |
Shipping method | By DHL ,UPS,TNT ,Fedex ,Almost all express shipping methods service if small order, and we can book space and get you the earliest date of delivery by sea if bulk order If there is any unhappy occations with the shipping, we will try our best to solve it with the shipping agent and ask for compensation. |
Payment terms | By T/T, Western Union , Paypal , Escrow Payment. |
Sample time | 3-5 working days |
Production time | 5 working day depend on the quantity |
packing | 1. each microphone in bubble bag, then in export carton, to save freight cost; 2. each microphone in bubble bag, then in inner box, then in export carton. |
Warranty | 36 MONTHS |
After sells service | If there is the problem with the product, firstly you need send the picture or the video to us, then let us make sure what’s problem about the product, if the problem can use the part to solve ,we will offer you the replacement for free Within 1 year. |
FAQ
1. Q: Are you Manufacturer or Trading company?
A: We are the manufacturer have more than 12 years experience
2.Q: Do you have any qualification certificate?
Yes, we have theCCC.CE and RoHS certificates, and letters patent of SINGDEN own design products, you can contact with sales to check the certificates.
3.Q: Can we visit your factory
A: yes, warm welcome to visit our factory anytime,Our address as below for your reference
Address:Wufansha industrial park,Nanhai district,Foshan,China
4.Q : What's your main products?
Conference system and simultaneous interpretation system
5.Q: How many years of warranty of your products
A: three years on system component parts and unlimited free technical support.
6. Q: If there is any problem about your products, should we have a refund or replacement.
A: Don’t worry about the quality of equipment, because SINGDEN do the complete inspection and test before delivery.
If there is really some problem about the product, contact with the sales, SINGDEN engineer team will help you to resolve your problem immediately by instruction; if the problem can not be resolved at your side, SINGDEN will send a new parts for replacement during warranty period, and you can change the parts with only screw driver, parts free, freight collect.
7.Q: What is your delivery time?
3-7 work days
Company Information
Why Choose us
1.10 years experienced, service to international conferences in 40 countries,
2.11 Patents, CE & ROHS certificated,
3.one hour reach Guangzhou airport,
4.keep good quality and competitive for global valued customers.
5.main products cover conference system, simultaneous interpretation system and gooseneck microphones.
6.Small MOQ.
7.OEM/ODM Accepted.
