AOTAI ( ISC 53 ) C Narrow Design Pipe End Cold Bevel Groove Processing Machine
- Category: >>>
- Supplier: Aotai Machine Manufacturing Co. Ltd.
Share on (60192633384):
Product Overview
Description
PRODUCT SHOW
OVERVIEW

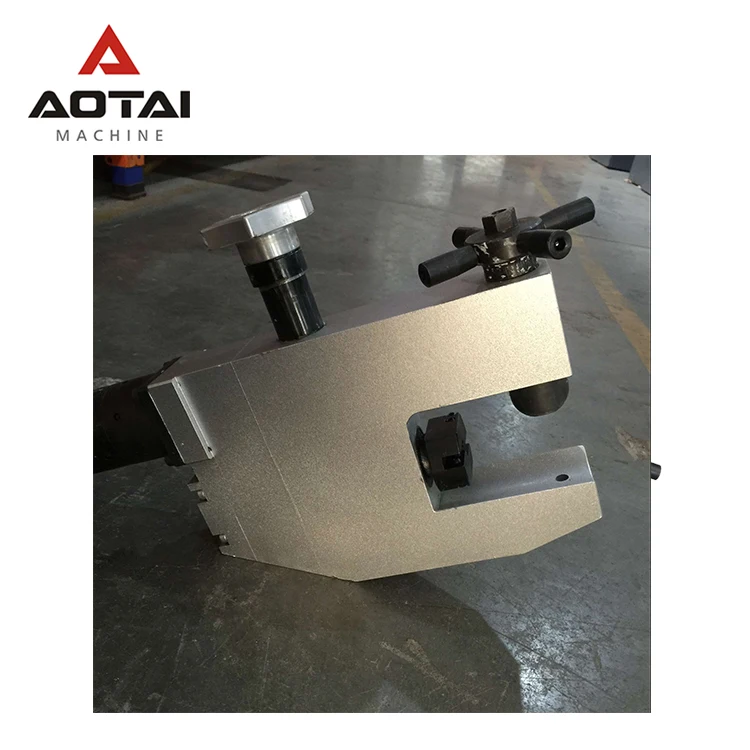

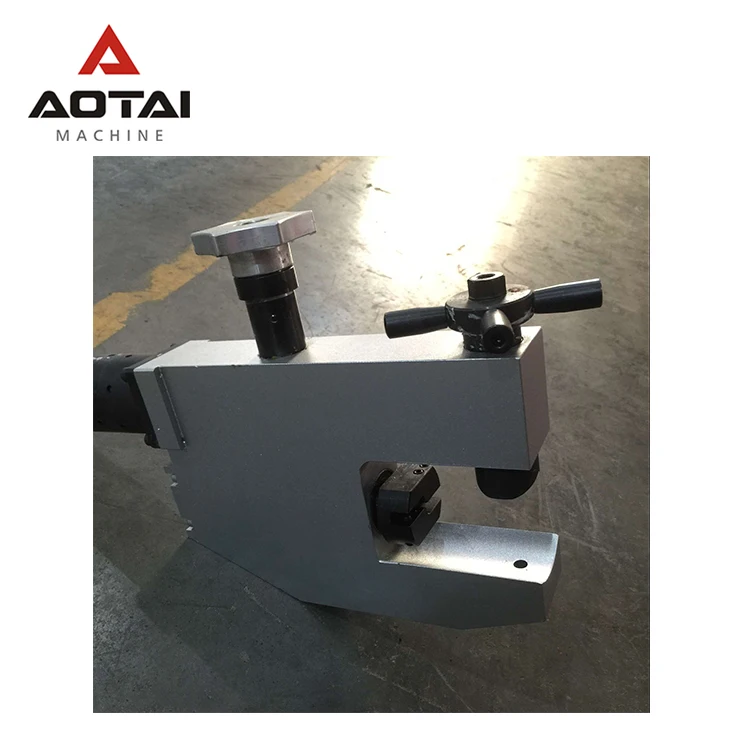

C-narrow design pipe beveing machine was designed for the end beveling of narrow working site and small diameter pipe. OD mounted on the pipe, one clamping block just fit one size pipe, secured clamping,easy to operate. It was widely used in water wall, fins, boiler economizer, superheater, reheater, power plants and other industries, the single pipe and exhaust pipe facing and beveling
FEATURES
1,Cold cutting, without influence the material of the pipe
2,OD mounted,self centering,secured clamping,easy to operate
3,Aluminum body is light,suitable for working aloft.
4,5 models,working range:8-108mm
5,Optional special tool bit use for pipe inner thread
6,Driven motor: Pneumatic and Electric
DETAILS

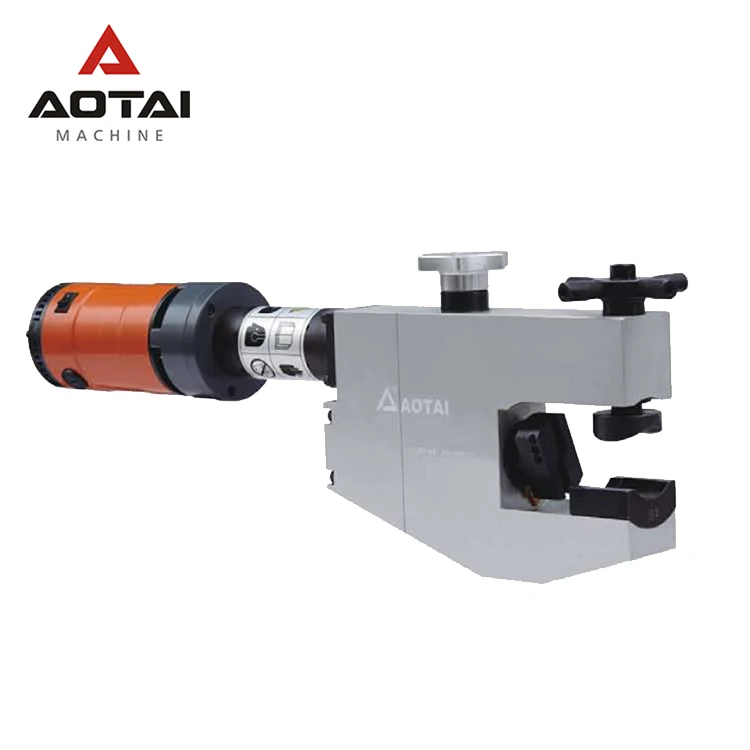

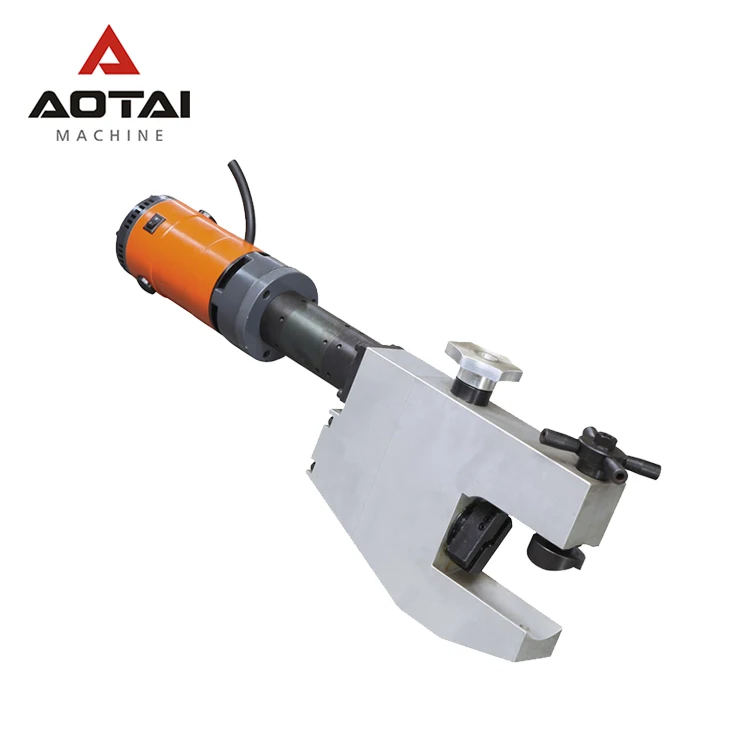

Electric:
Convenient power supply
Stable Performance
Popular choice
Electric requirement:220-230V 1PH 50/60HZ
Power:1.43KW

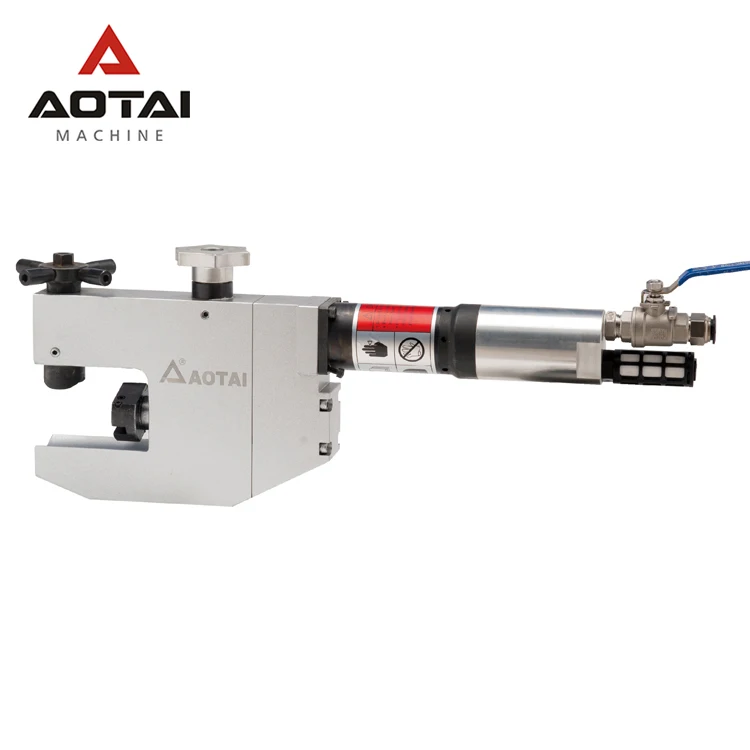

Pneumatic:
Explosion Proof
Stable Performance
Easy to maintenance
Air requirement:1500-2000L/min @0.63-0.8Mpa
Power:2HP
Stable Performance
Easy to maintenance
Air requirement:1500-2000L/min @0.63-0.8Mpa
Power:2HP
BEVELING SHAPE
*other beveling shape, angle and pipe material, please declare before order
MODEL & RELATED
| Electric | Pneumatic | Working range (I.D.mm) | Wall thickness (mm) | Rotating Speed | Size (CBM) | Gross Weight (KG) |
| ISC-53 | TSC-53 | Φ8-53 | ≤ 8 | 58 r/min | 0.04 | 25 |
| ISC-63 | TSC-63 | Φ20-63 | ≤ 12 | 55 r/min | 0.04 | 30 |
| ISC-73 | TSC-73 | Φ25-73 | ≤12 | 54 r/min | 0.05 | 35 |
| ISC-83 | TSC-83 | Φ30-83 | ≤12 | 43 r/min | | |
| ISC-108 | TSC-108 | Φ50-108 | ≤12 | 42 r/min | | |
| ISC-53-II | - | Φ14-30 | ≤ 12 | 58 r/min | 0.04 | 13 |
| ISC-76-II | - | Φ25-90 | ≤ 12 | 55r/min | 0.05 | 16 |
RELATED PRODUCTS
CERTIFICATIONS
FAQ & ORDER GUIDE
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or 30 days , it's depand to quantity.
Q: What is your terms of payment ?
A:
1) T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment;
2) If all the cost is less than USD $ 10000, T/T 100% required in advance.
Before you place order to us, please let us know the following information:
*Choose the right Model
*Confirm your electric power supply ( Voltage, frequency and phase)
*Confirm the beveling angel required
*Confirm the welding joint required (U, V, Double V or Compound preparation)
*Advise your pipe material ( Carbon steel, stainless steel or others)
*Other special demands about machine
*The spare parts needed
*If the pipe wall thickness more than 30mm, inform us in advance (Important)
