truck weighing scale WIM system

Product Overview

Description

truck weighing scale WIM system



Specifications

1.Separate vehicle in lane and judge vehicle type
2.Identify overload vehicle
3.Caculate gross weight

ZCU-30DZF SSWIM SYSTEM



Description:



Permanent Type Slow Speed Weigh In Motion System is mainly used to detect the overload vehicle driving in highway road by highway legal operation department. The system adopts computer management detection data to realize overload vehicle’s automatic detection. The system already is applied to Permanent Type Slow Speed Weigh In Motion Station at home and aboard



Components of SSWIM:

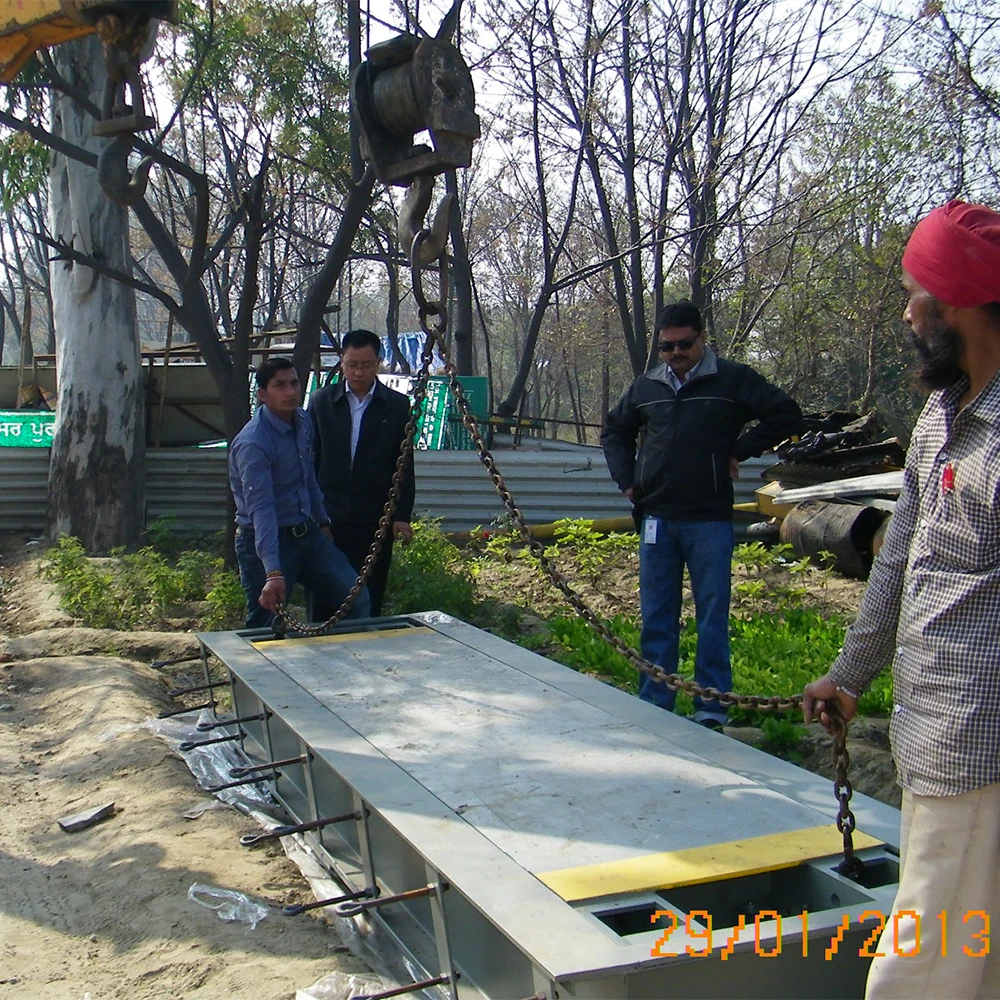

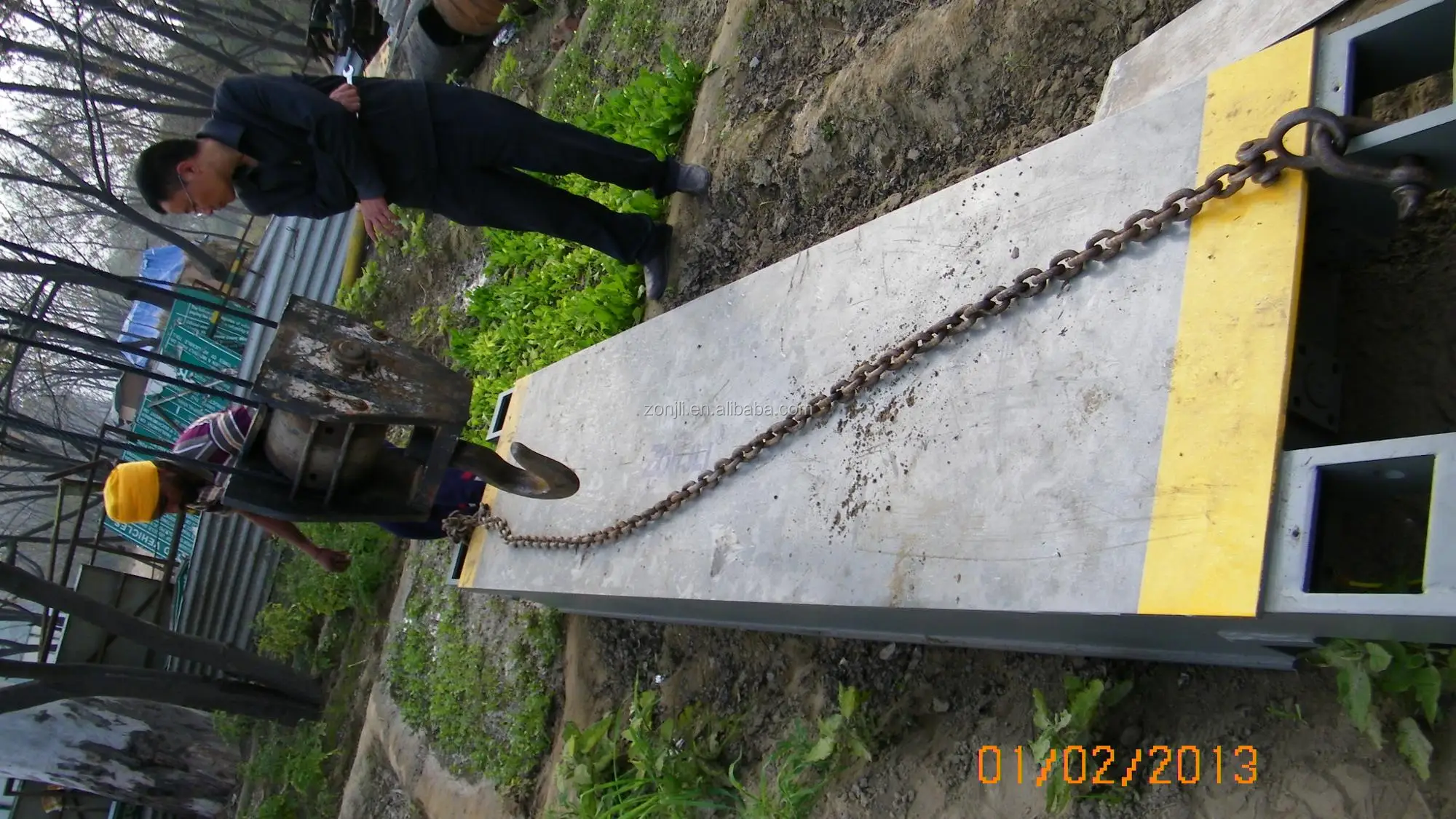

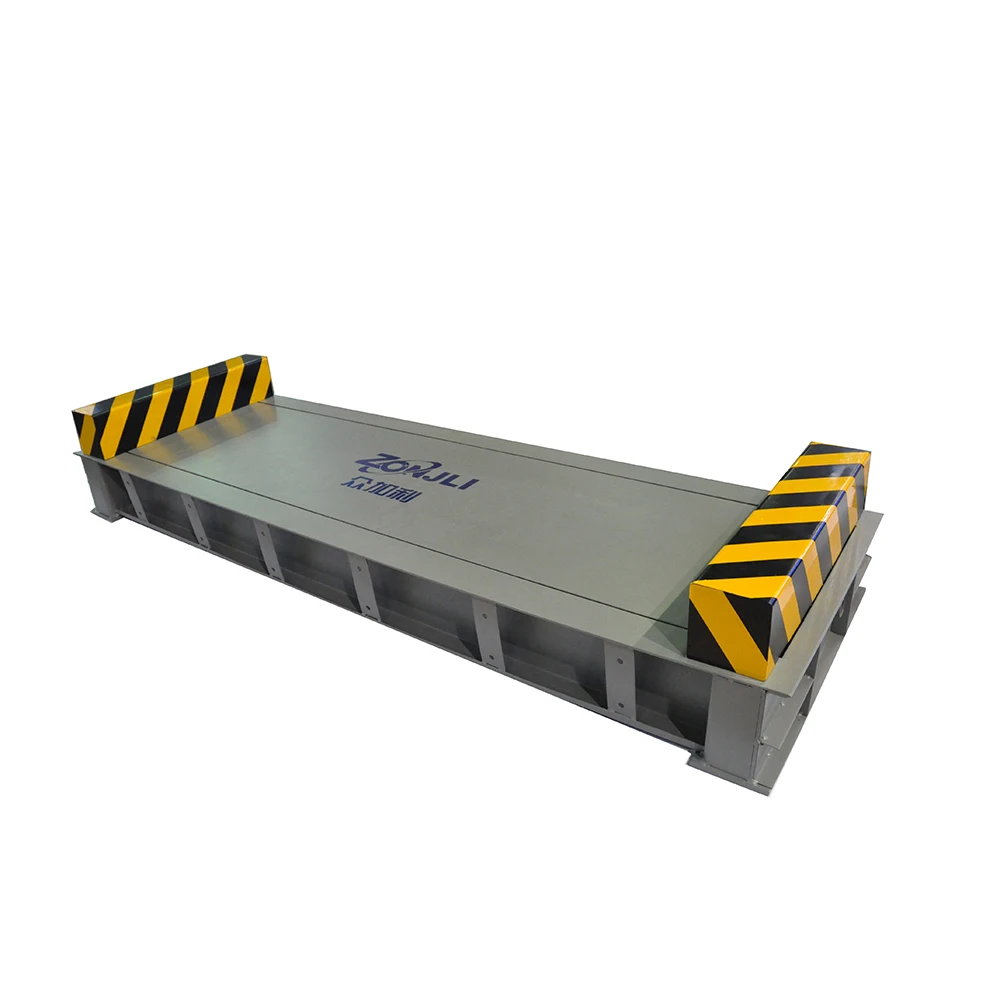

Weighing Platform

Control Cabinet

Fee display

Overload Detection Management Software

Infrared Vehicle Separator

Tire identifier

Computer

Printer



Equip with the monitoring according to customer’s requirement

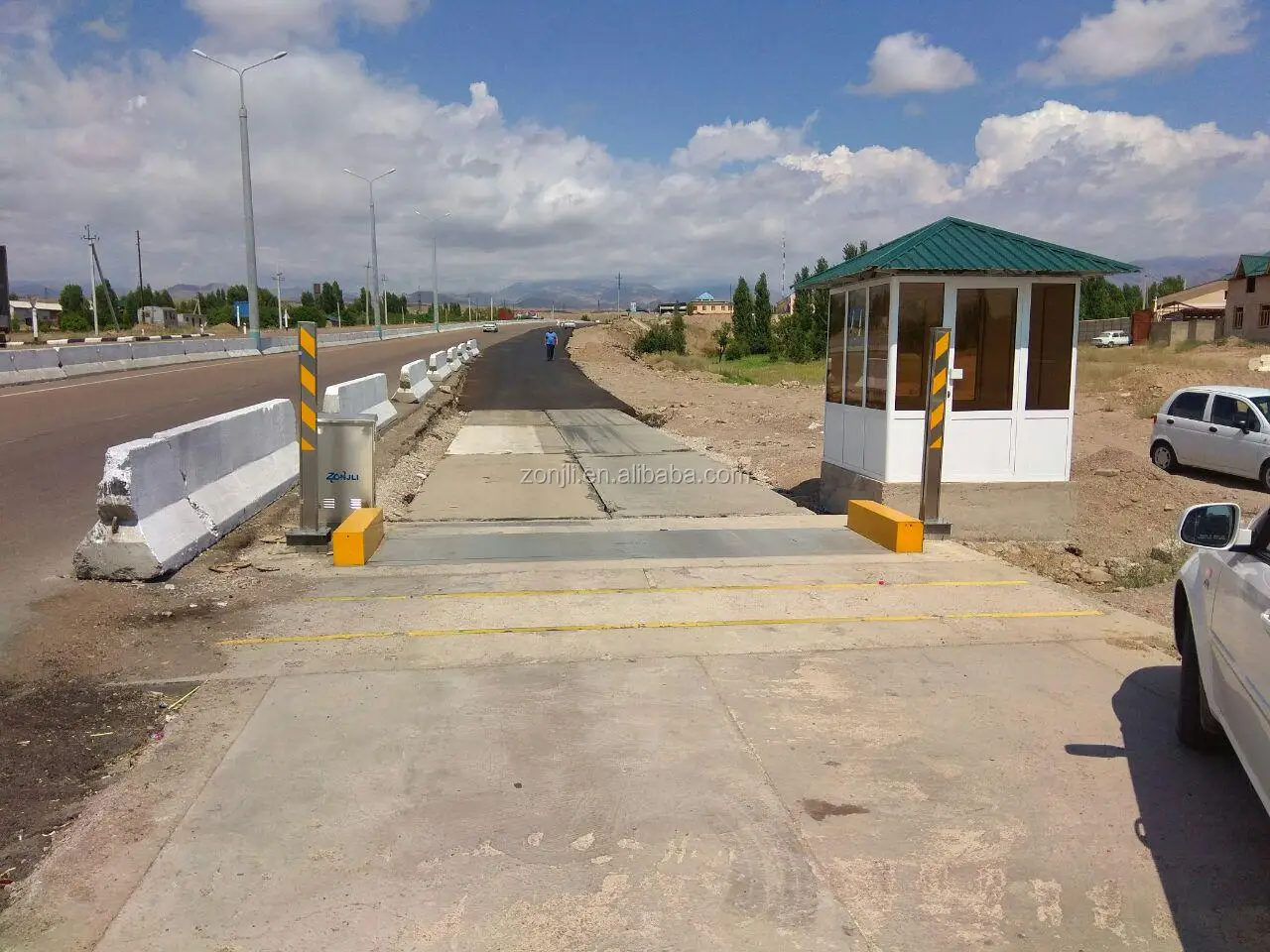

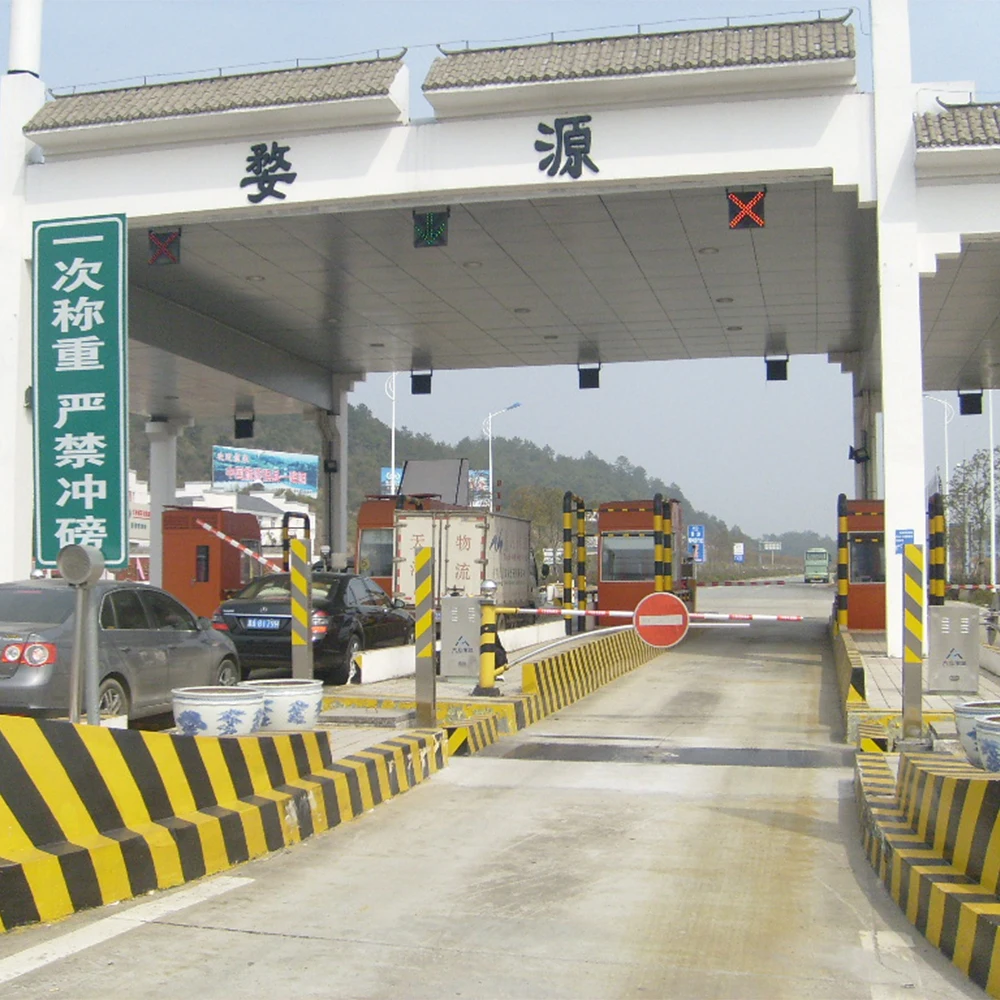

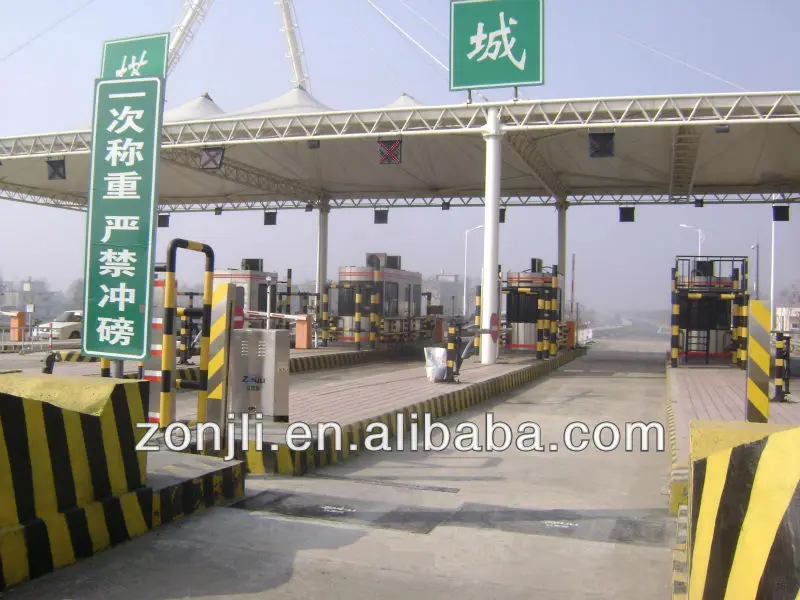

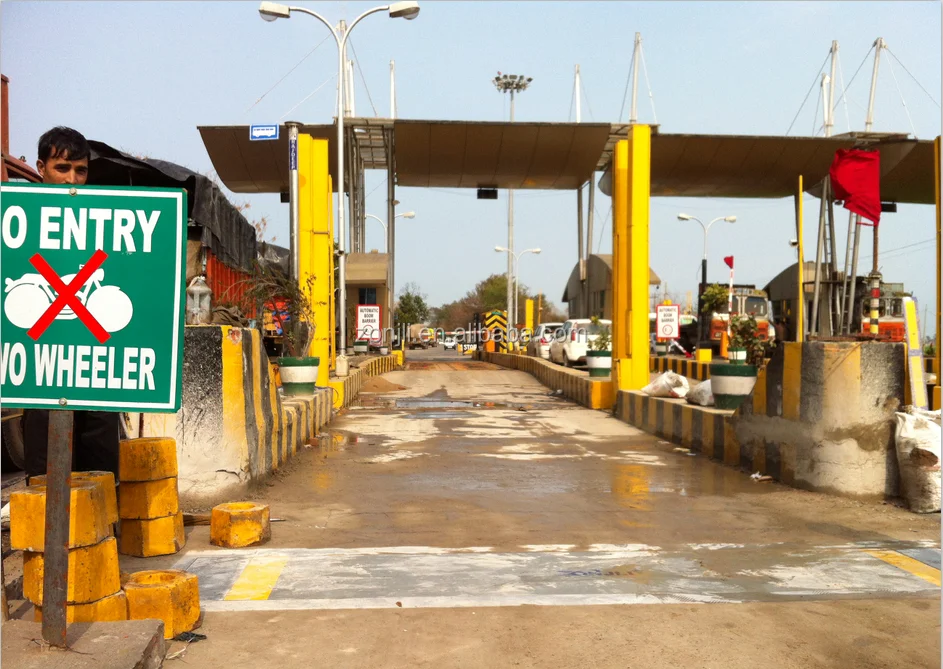

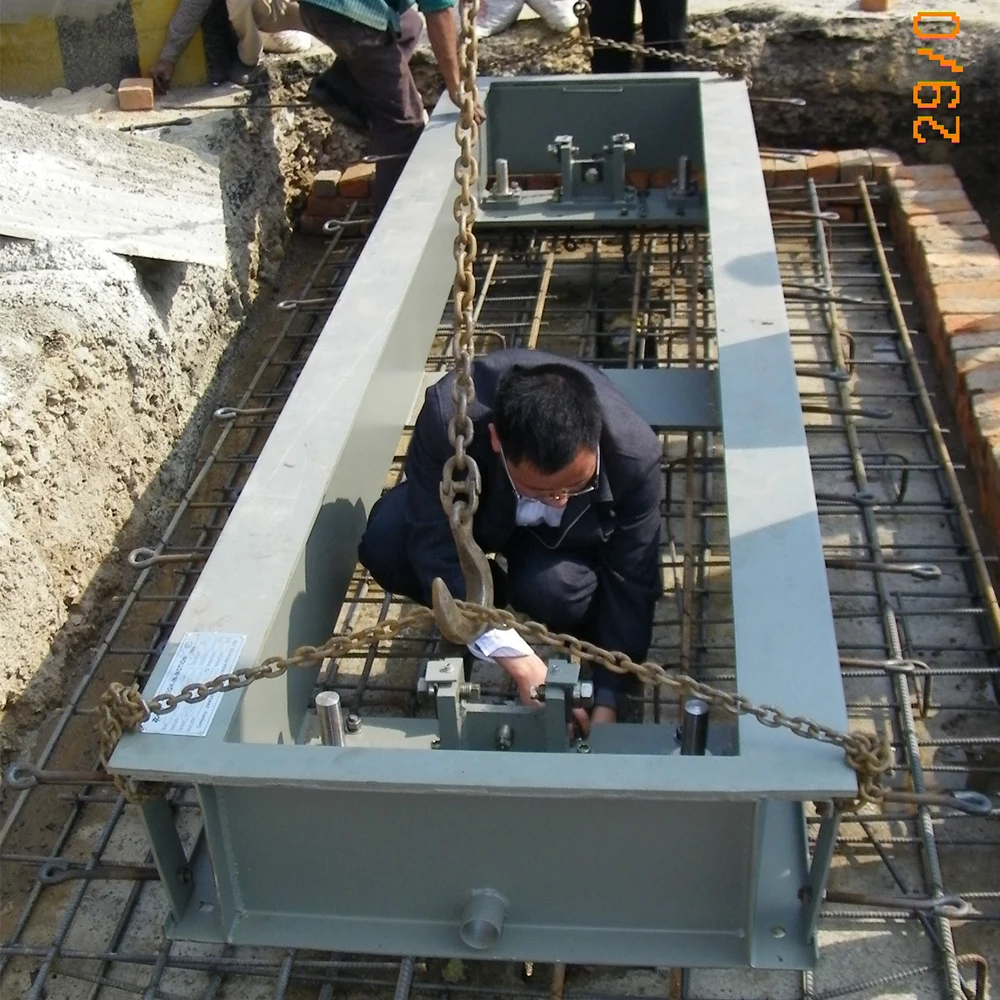

Permanent Type Slow Speed Weigh in Motion System
Technical Feature



Accuracy (Dynamic)		Gross weight conform to GB/T21296-2007*5 grade
Capacity of single axle		0.5-30t
Max. Safe Overload		150%F.S.
Speed		0~40km/h
Specification of weighing platform ( Length x Width)	Ordinary lane	3.5x0.9m
	Ultra wide lane	4.0x0.9m
Protection grade	Weighing indicator	IP65
	Weighing Load cell	IP68
Operation temperature	Temperature	-45-+80
	Humidity	<95%R.H.
Power supply		220VAC (-15%~+10%) 50Hz+_2%



Note: The weighing precision will be affected by road condition, vehicle structure and driving speed.

Main Function:

The system automatically separates the vehicle driving in lane and judge vehicle type accurately.

The system can detect the axle of vehicle automaticallyThe system detects axle load and calculates gross weight of vehicle

The system automatically identifies overload vehicle, overload vehicle achieves sound and light alarm.



The system automatically prints overload bill The system can make a statistic to tested data and print form
