Fan Motor Capacitor Refrigerator Capacitor Washing Machine Capacitor

Share on (60192925450):


Price:

Quantity:


Product Overview

Description

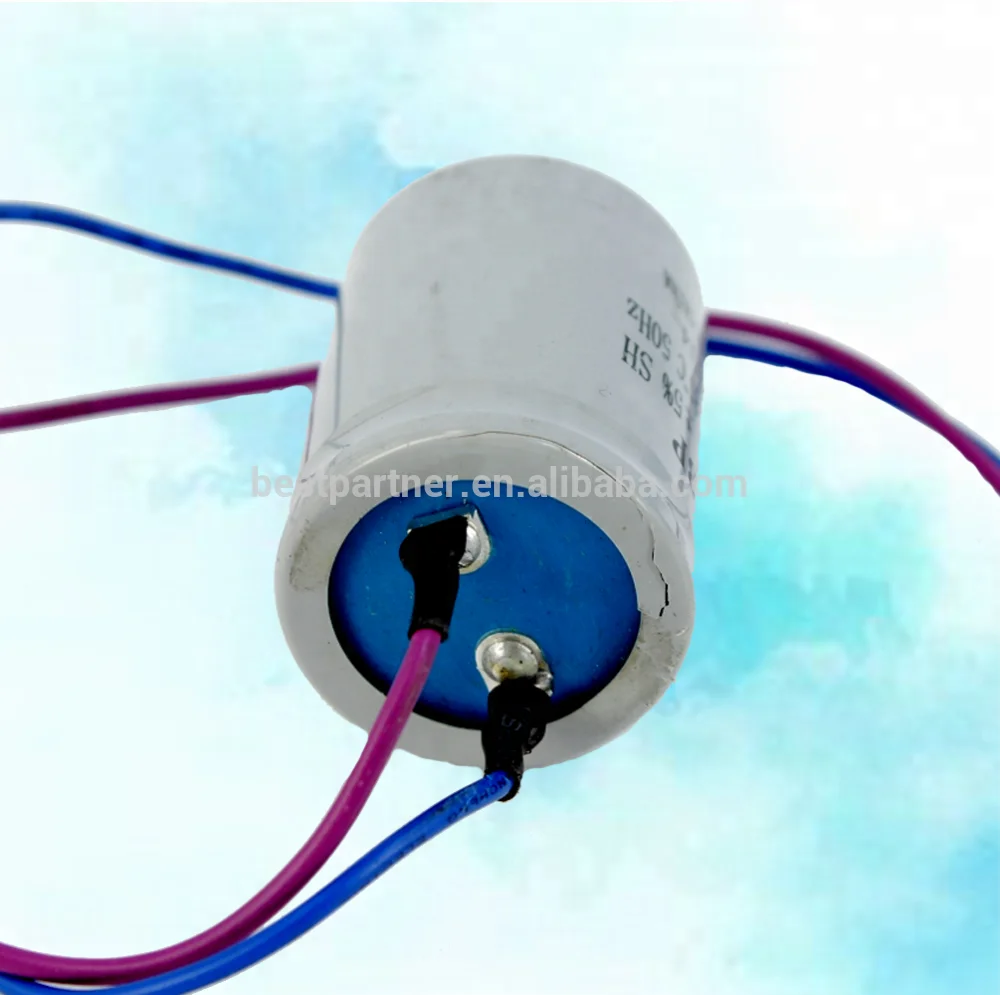

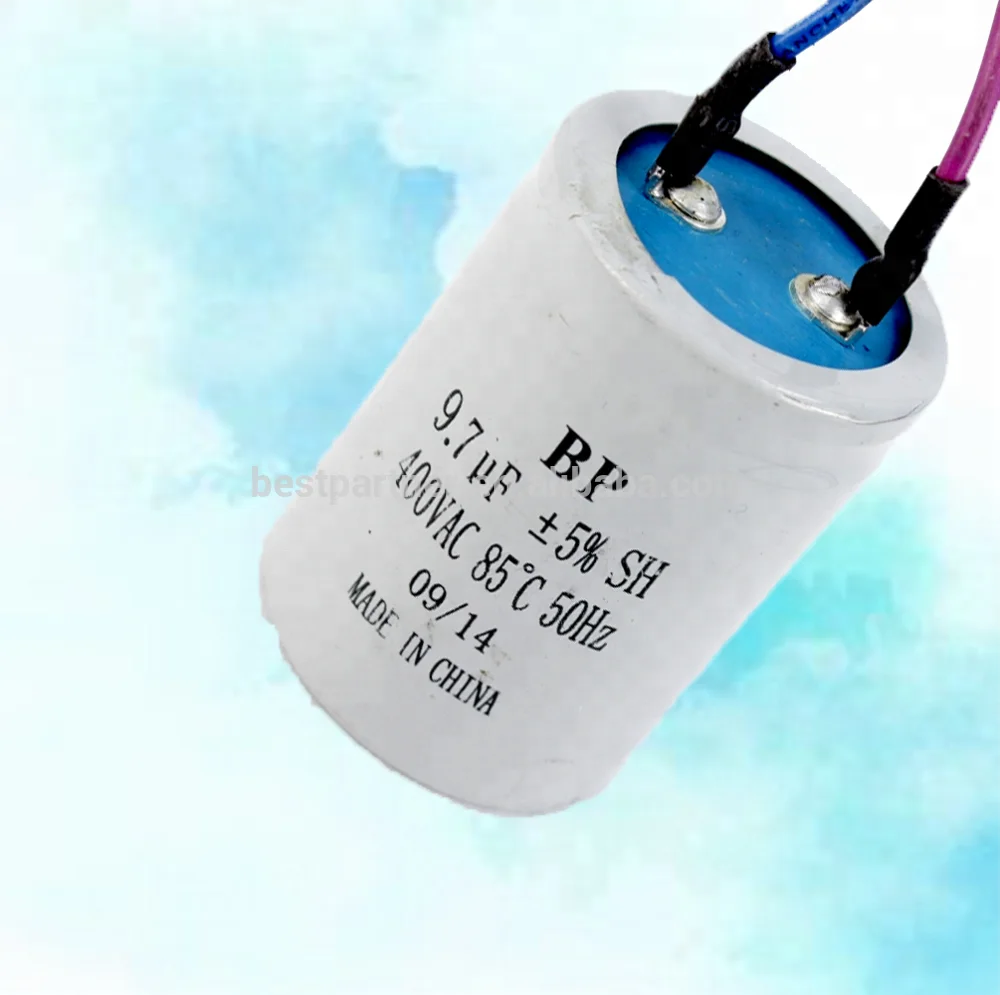

Fan Motor Capacitor Refrigerator Capacitor Washing Machine Capacitor



Applications :


Run starting in household electric appliances air conditioners, Refrigerator and washing Machine which demand 50/60Hz AC power supply and have safe protection construction.


1. Used widely in motors for air conditioner, water pump, Refrigerator and Washing Machine etc..
2. High performance & Long life Capacitor
3. Work well even in hot area











































Product code



Rate Capacitance



Winding Capacitance



Rated Voltage (AC)



Met Film (PHD)



Casing



Winding turns (±5%)



Element dia. (±5%)



Rated current (A)



Impregnant



D



D1



H



AC10CA15



50uF



50uF



370



4.8*150*5



45



45



110



1130



35.59



5.81



Oil






 1.   Leading : 4+4 fast-on terminal, Φ15mm black terminal insulator


 2.   Marking : Marking should be on top half of the capacitor


 3.   Label for4 the package cardboard box, please refer to the order


 4.   The wire soldered on the capacitor element must be 0.75mm2

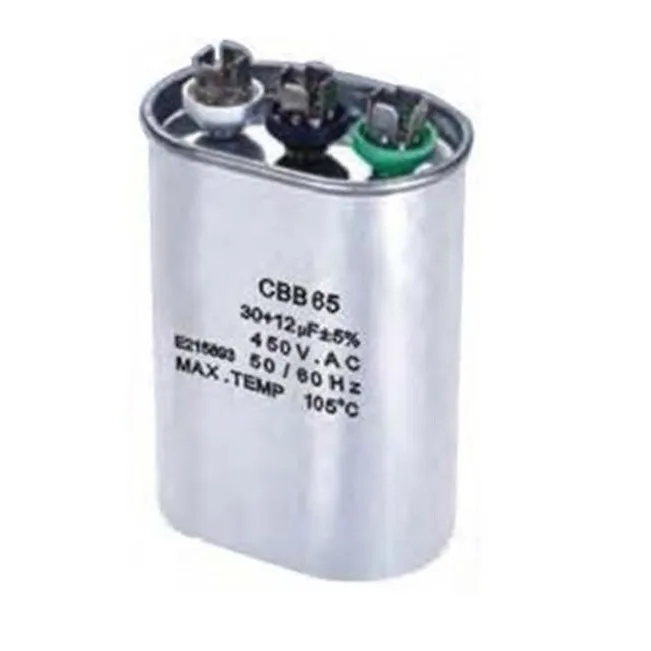

 5.   Others are implemented with respect to the company CBB65 work instruction.








      50-0000-015-561-3.jpg  50-0000-015-561-4.jpg


Capacitor Pic.jpg







Specification








































Climatic



Rate voltage



Testing voltage



Testing voltage



Capacitance



Dissipation



Category



T-T



T-C



tolerance



factor



-25/+70/21



370/440VAC



1.75uN/5s



2000V.AC/5s



±5%



less 0.02



-40/+85/21



(2uN/5s)



(±10%)



(100Hz)






• Capacitance range:2MFD-100MFD,15+5MFD-80+7.5MFD
• Dimension(mm):D: Φ40-Φ60,H:60-150
• Reference standard:UL810,IEC252,EN60252,GB3667
• Certification:UL Construction,UL 10,000AFC,TUV,VDE
• Safety grade:P1,P2.
• CD60-B MOTOR START CAPAClTORS





Main Feature:


1.Bakelite case
2.Voltages from 110V AC to 330V AC
3.UL Recognized Capacitors





Applicable Scope :
To start and run single phase m0tors in alternating current usage,
And it suit for single phase A.C. motors with frequency of 50/60Hz.





General Specifications:
• Operating Temperature:-25~+65°C
• Voltage Range:110~330V AC
• Capacitance Range:21~1280μf
• Capacitance Tolerance:+/-20%
• Operate Frequency:50/60Hz
• Case Size:8 Standard Size from
• 1 437”x2.750” ~2 562”x4.375”/36mm x 70mm~65mm x111mm
• Termination:1/4 ” Quick Disconnect Terminals(Std.)
• Performance Specification:Meets Requirements of ElA-463-A





Product Description:
CD60 start capacitor is developed and researched according to standard of American Electronics Association (ANSI/EIA-463).The external case of the capacitor is made of bakelite plasticized which Character is not only good insulating resistance. strong resistance damaged but also protecting electro liquid as good sealed feature. It is popular used for the super AC application as good life, higher degree of reliability and stability.





Case Size of Standard Products (mm)























































































Rated Voltage



110-125V



165V



220-250V



330V



Capacitance Range



D X H



21-25



36.5x69.85



36.5x69.85



36.5x69.85



36.5x69.85



25-30



36.5x69.85



36.5x69.85



36.5x69.85



36.5x69.85



30-36



36.5x69.85



36.5x69.85



36.5x69.85



36.5x69.85



43-53



36.5x69.85



36.5x69.85



36.5x69.85



46.02x85.72



53-64



36.5x69.85



36.5x69.85



36.5x69.85



46.02x85.72



67-77



36.5x69.85



36.5x69.85



36.5x69.85



46.02x85.72



88-108



36.5x69.85



36.5x69.85



46.02x85.72



46.02x85.72



124-149



36.5x69.85



36.5x69.85



46.02x85.72



52.37x85.72



161-193



36.5x69.85



36.5x85.72



52.37x85.72



52.37x85.72



200-240



36.5x69.85



36.5x85.72



52.37x85.72



52.37x85.72



 Note:All other types of products in form can be fulfilled at the request of customers.










































Case Size



1



2



3



4



5



6



7



8



Dimensin(DxH)(mm)



36.5x69.85



36.5x69.85



36.5x111.12



46.02x85.72



46.02x111.12



52.37x85.72



52.37x111.12



65.50x111.12



Dimensin(DxH)(mm)



1.437x2.750



1.437x3.365



1.437x4.365



1.812x3.365



1.812x4.365



2.062x3.365



2.062x4.365



2.562x4.365



 Note : All other types of products in form can be fulfilled at the request of customers.

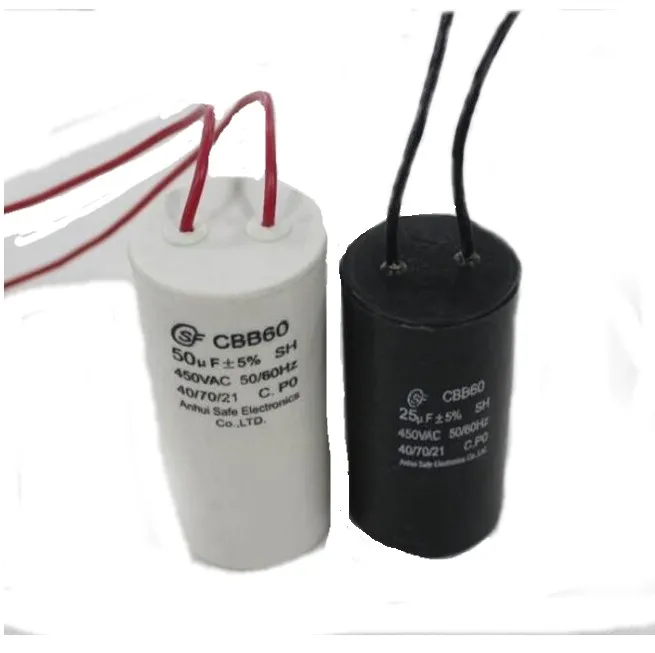

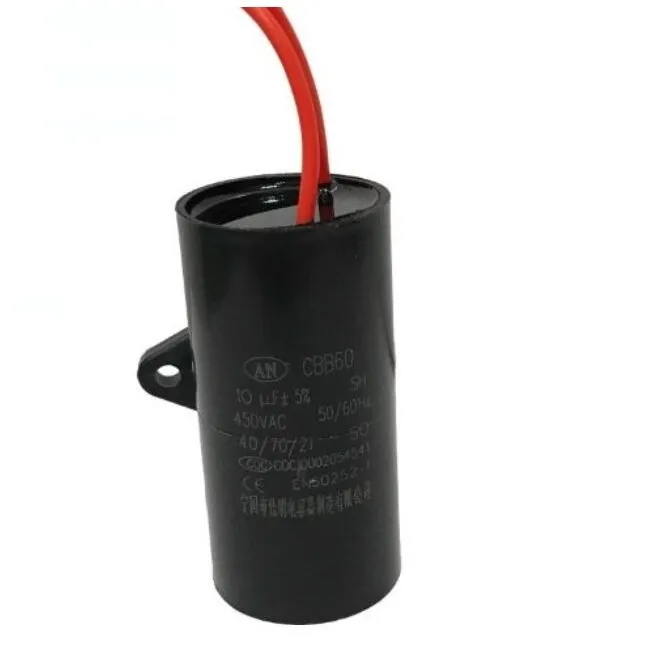

CBB60 COHERER POLYPROPYLENE CAPAClTORS SERlES





Main Feature:


Low dissipation factor,small inherent temperature rise.excellent self-healing stability,safety and high voltage withstand,etc.



Techinnical Paramete













































Capacitance range



1-150uF



Rated voltage Un



250v ac/400/450V. Ac



Rated frequency



50Hz ; 60Hz



Capacitance tolerance



±5%; ±10%



Climateic category



-25 +70℃



Dissipation factor(at 50Hz-Hz and 20℃)



less 0.002 (100Hz, 20℃)



Test voltage between terminals



2xUn for 3s



Test voltage between terminals and case



2xUn+1000VDC FOR 2s



Reference standard



EN60252-1 ; 2001 ; IEC252









Product Overviews

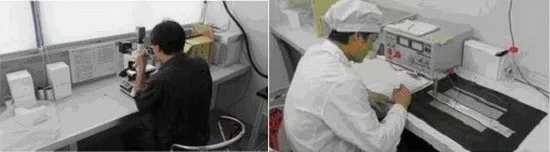

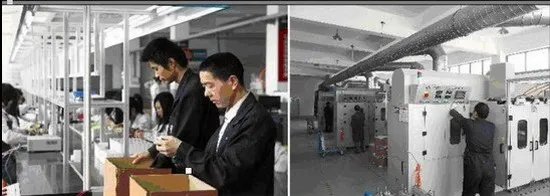

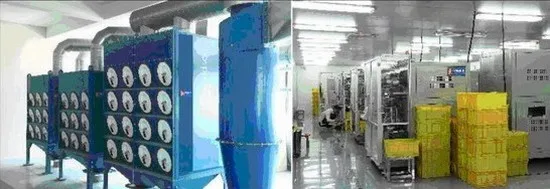

Production Flow










Certifications









Shipment















Shipping information



1.For small quantity, shipment is prefered to shipping with express by UPS, DHL, EMS, TNT or FedEx to meet your deadline on time worldwide basis.


2. For regular mass production, shipments can be arranged by air-shipping, sea-shipping or express. Let us know on your requirement we will try to save your budget and meet deadline.



  DHL PIC.jpgshipping1.jpg








Company Information


    Bestech Appliance Ind. Company is one sister company of Best Partner Group. Best Partner was established in 1981. We are one of leading


exporters of various components of home appliances like air conditioners,Refrigerators, Washing machines including the relevant molds & die and machinery. We are also one of Taiwan's reputable project supplier on Turn Key basis with vast experience in supplying forward technologies to our customers worldwide.

With over 20 years experience in this filed, our staff numbers 70 including 18 engineers. In order to expand our business and serve customer's requirement, We have installed our own factory and representative offices in China(Ningbo, Huzhou, Suede), Philippines, Thailand ... etc.

Best Partner Company has achieved ISO-9002 certification on July of 2000 and subsequently achieved in 2003 its ISO-9001 certification, the International Standard for World Class Quality Management Systems, based upon its business philosophy " Customer's Interest, Professionalism & Sincerity, Quality Importance, and Friendliness that's Conducive to Business Success" as business principles. Everyone at Best Partner Trading Co. will comply with and practice overall product quality development and environmental protection activity to promote the conservation of the environment to meet our customer satisfaction and expectations. Since our company put great importance on our environmental programs in preserving our Mother Earth and our responsibility to the community, we practice the environmental protection activity in cooperation with suppliers to promote as green supply chain and apply for ISO-14001 (Environmental Management Standard) and hopefully that this will integrate with ISO-9001 (Quality Management System) so as to implement both on our supply chain system from supplier parts and materials to finished goods to make sure that it is in compliance with ROHS directive and in accomplishment of our goal of constant improvement. Therefore we have the following commitments:

1. Devote for establishing a customer directive principle and continuing to understand customer various requirements.
2. All company members must participate in the continuous improvement of every department achievements.
3. Enhance every procedure of our systematic management.
4. Persist in improving products, management procedure, and product quality management to meet customer's requirements on product quality and service.
5. Striving for green supply chain management and green products effectively managing restricted substances.
6. Treasure our resources, reduce industrial waste and cherish our Mother Earth to promote environmental management achievements.
7. Continuous improvements and prevent pollution in order to reduce dissipation of our environment.
8. Compliance with law related to manufacturing procedure to meet regulations without exception.
9. Enhance precautionary and safety measures against emergency matters to prevent the occurrence of accidental disaster.

We expect to have chance to establish good communication with your end. If there is any new inquiry need our service, please feel free to contact with us. We will always do our best service for you.
