Baoma High Speed Cheap 3 axis cnc milling machine Bmdx120100
Product Description
cheap cnc milling machine
1.high speed spindle: 24000RPM
2.China CNC milling machine at lower price
3.CNC Engraving
CNC Engraving & Milling Machine BMDX120100 Parameters
| Travel/space | X/Y/Z axis travel | mm | 1000/1200/550 |
| Table upper surface to spindle nose end face | mm | 140-690 | |
| Accuracy | Positioning | mm | ±0.005/300 |
| Repeatability | mm | ±0.003/300 | |
| Table | Table dimension | mm | 1050x1300 |
| Max. load on table | Kg | 800 | |
| Power(X Y Z) | Kw | 1.8,1.8,1.8 | |
| T shape groove | mm | 18TxP150x7 | |
| Spindle | 18000rpm / 7.5kw / BT30 | ||
| Feeding speed | Rapid speed(X/Y/Z) | mm/min | 15000 |
| Cutting speed(X/Y/Z) | mm/min | 6000 | |
| Outer size and weight | Machine height | mm | 3050 |
| Floor space | mm | 2700x3045 | |
| Net weight | Kg | 7500 | |
| Total input power | Kw | 22 | |

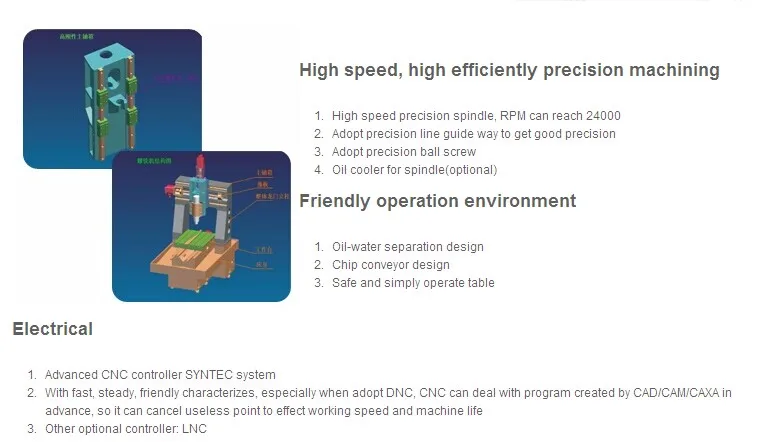

- The opening protector design makes big work piece loading easily.

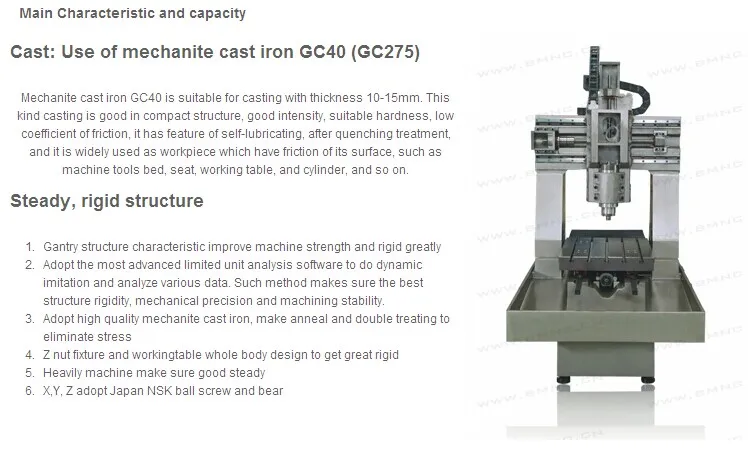

- In design we use the advanced finite element software to do dynamic simulation and construction analysis in order to ensure the machine possesses the best construction rigidity, machining precision and machining steady.
- X, Y, Z use precision ball bearing screw, all have be hauled advance, that will ensure machine to get the best precision and make the position error to the lowest.
- The slop bed and the big capacity water tank make scrap to be cleaned easily.
- The one key to make sure the machining result excellent is high speed and precision spindle. The power source for small tool engraving comes from the electric motor of high speed and precision spindle. If you want to make the small tool working in good condition, the spindle electric motor has the follow characteristics: high speed rolling, small rolling shake, and small rolling noise.
- Excellent design make the machine so good operation.
- Using the advanced cooling-water machine to cool down the spindle, make sure the spindle keeping long life and machining having high precision.
Our company offer Taiwan SYNTEC, LNC and Germany PA system for the customer’s request, and try our best to offer you the best products.
- Taiwan Syntec940i specialist control system
- Be able to connect the man-machine communicated interface of Easy view and Digital
- Wide range to connect with other equipment
- Convenient to communicate through the figural interface
- Convenient to renew the software through the mobile hard disk
- Control several axes in different synchronous way by PLC
- The function of video mending
- Nice panel design and steady controller design
Packaging & Shipping
Packaging Detail: cheap cnc milling machine Plywooden cases
Delivery Detail: 30 days upon receipt of the payment
Our Services
Overseas service availiable

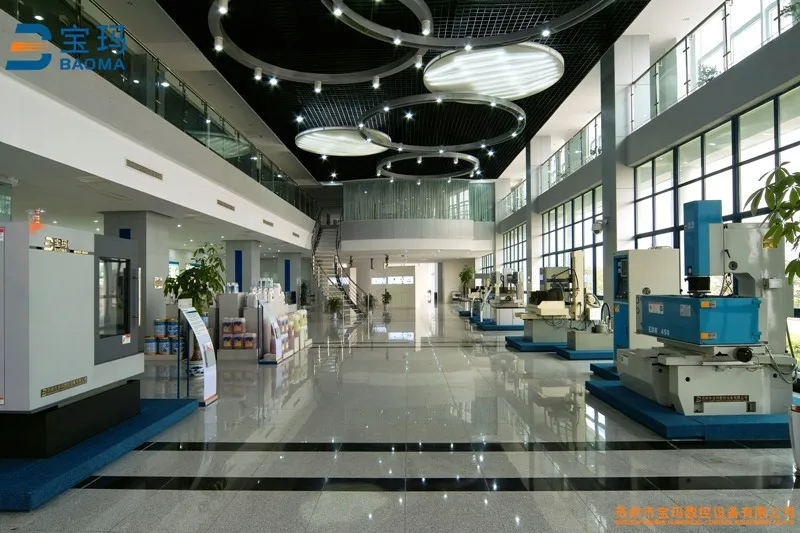

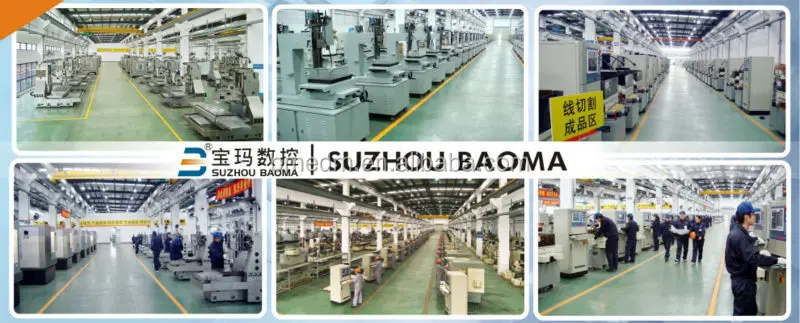

Company Information
Baoma group | |

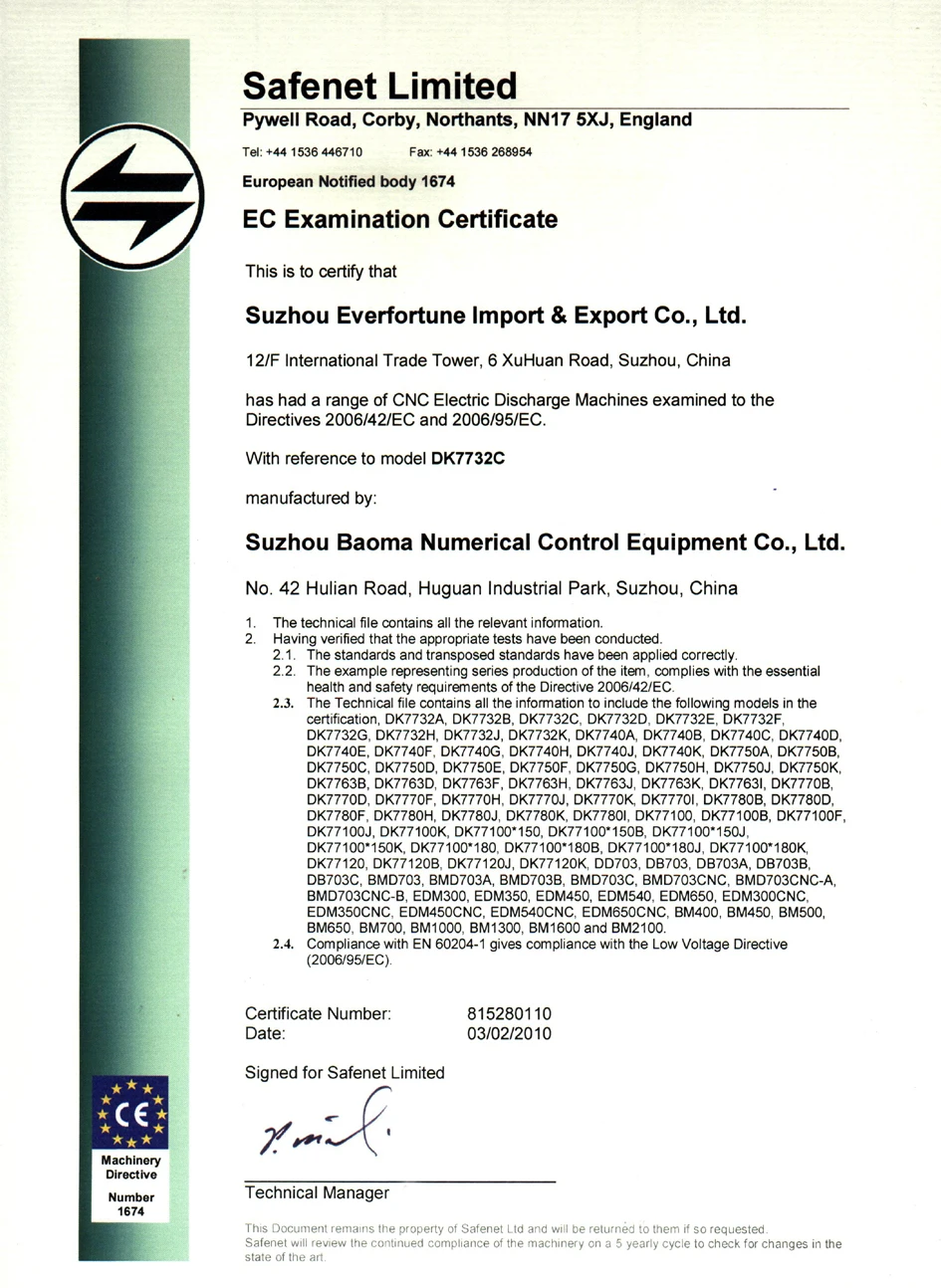

| Under the leadership of our general manager Mr. Shao Jianjun, the company has gained two systems ----ISO9001:2000 Quality System Certification and ISO14001:1996 Environmental System Certification, which is seldom acquired by other companies in the same field, and export quality authentication. Baoma is professionally engaged in developing, producing and selling CNC&EDM machines, under the slogan of "facing future, initiating creation", concentrated on organizing and fostering a high efficient team who holds independent developing capability, successively won five national patents and two golden prizes, and awarded "reliable products of national consumer" by central authority and "satisfied enterprise of products quality after-sale service" several years. | |
