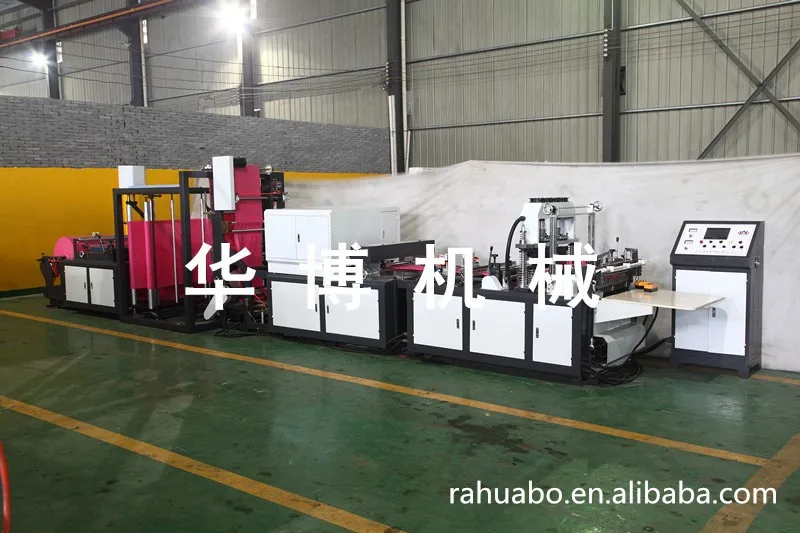

HBL C700 Full Automatic Non Woven BOX Bag Making Machine

Product Overview

Description





  Nonwoven Box Bag Making Machine





Introduce



This machine takes non-woven fabric as raw materials. It can produce non-woven bags of various sizes and shapes, such as :

non-woven D cutting bags(flat bag), soft loop bags, strip through bags, gift bags, and other products packaging bags.





Main Technical Parameter



Type	HBL-C600	HBL-C700	HBL-C800
Production Speed	20-120pcs/min	20-120pcs/min	20-120pcs/min
Bag Width	100-800mm	100-800mm	100-800mm
Bag Length	200-480mm	200-580mm	200-680mm
Bag-making Thickness	30-120g	30-120g	30-120g
Power Supply	380V/220V	380V/220V	380V/220V
Total Power	12-18Kw	12-18Kw	12-18Kw
Overall Dimension (L*W*H)	9600*2000*2100mm	9600*2000*2100mm	9600*2200*2300mm





Features:



1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.

6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.



Production Detail:





Multi-function non woven bag making machine

1. Flat bag (D-cut bag) (Online make)
2. Flat bag with bottom gusset (Online make)
3. T-shirt bag (vest bag,U-cut or W-cut) (Need punching machine)
4. Handle bag (Need handle sealing machine)
5. Box bag (Need handle sealing machine)
6. Shoes bag (Rope wearing bag)
7. Laminating bag



Buying Guides





Dear buyer,
In order to offer you the best suitable machine, better to offer the following specifications before you sending us the inquiry. All suppliers can send you the sample quotation, but we hope to send you the best offer after we getting your clear requirement.



1. Which kind of bags you want to produce? (pls. study your market well)
2. What is the max dimension of bag's width and length?
3. Will you need to print color on bags?

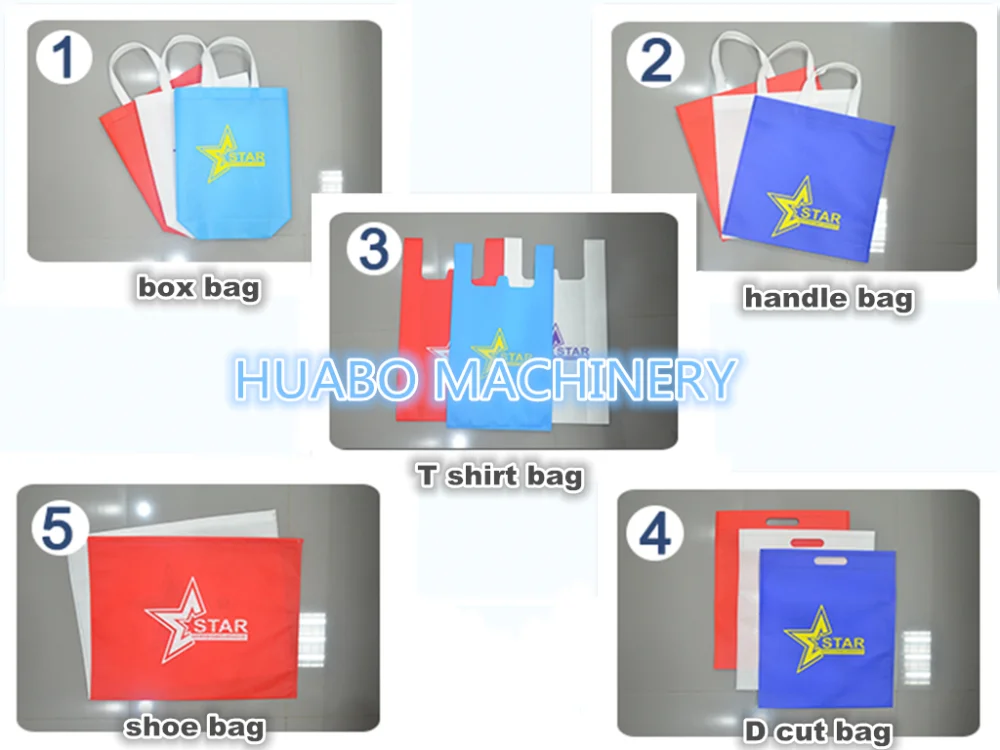

 We have three type of nonwoven bag making machine:



1: HBL-DC700 type:  it can make bags Box Bag ,Handle Bag ,Shoe Bag , D cut Bag directly   (1245)                                                                                 T shirt bag need to add punching(3)



2: HBL-C700 type:  it can make bags Box Bag ,Shoe Bag , D cut Bag directly   (145)                                                                                                      T shirt bag need to add punching (3)
                                                          Handle Bag need to add punching (2)

1: HBL-B700 type:  it can make bags Shoe bag , D cut bag directly  ( 4 5 )

                                                          Handle bag need to add handle sealing machine(1)

                                                          T shirt bag need to add punching (3)
