capsules and tablets deblistering machine

Product Overview

Description

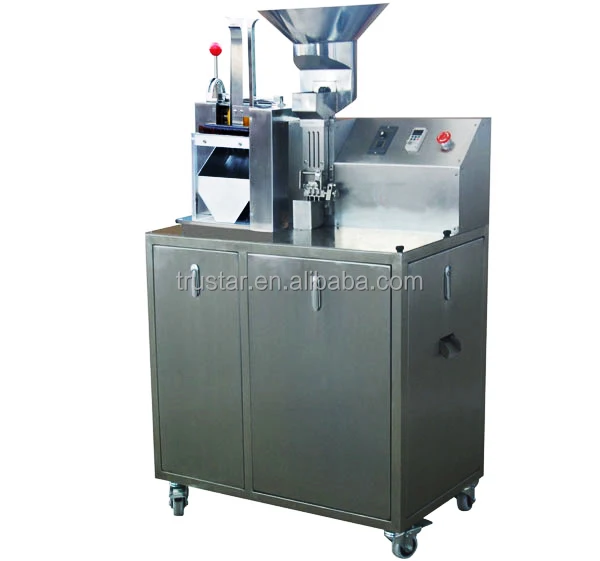

NQF-300 Automatic Deblister Machine

Capsule Opening Powder-taking Machine



1.  Machine Brief of  PVC/Alu Blister Deblistering Equipment

It is a multifunctional machine. It can first peel the plate and then open the capsules and screen

finally. It can also peel the plate and then open the capsules separately. It can be used as 3 machines.

In the world, up to now, this kind of machine can be completely compatible for the actual production

conditions of any pharmaceutical enterprise and the operation of any customers. It is so perfect,

convenient in operation, higher production capacity, versatile and movable .It is easy for the user

to operate and clean. Particularly it is applicable for producting capsules with lower strange capsules

and many specifications and the capsules which shall be treated in a timely manner, it is characterized

by higher scrapping rate, more than 99%. It can produce the capsules with perfect caps and capsules

without caps. It can assure that there are no strange substances in the powder after they have been

screened. It is applicable for producing the vb capsules No.00#, 0#, 1#, 2#, and 4#.

2. Machine development

At present the recycling of fine medicine is conducted manually at home. At first, the user needs to

purchase an al-plastic plate scrapper fo scrap the capsules from the al-plastic plate, and then open the

capsules with opener. After that the capsules are mixed with the powder. Then it needs to purchase a

screener to separate the powder from the capsules. It is so troublesome for the user in such production.

This often pollutes the production of medicines and environment, even waste much production time ,

reducing the rate of recycling of medicine.

The multi-purpose auto capsule opener & scrapper NQF800 was made by our company. It can open and

scrap the capsules and separate them simultaneously. It can be operated by an individual operator. This

has solved the problem that it often pollutes the production of medicines and environment, even waste

much production time, reducing the rate of recycling of medicine. It is compact design. It is made of

stainless steel. It is the unique multipurpose auto capsule opener & scrapper. It is met with the GMP

standards. It is the choice equipment for the capsule manufacturer.



3. Features of  PVC/Alu Blister Deblistering Equipment

1, Multifunctional type is made by stainless steel with full blocking out way.

2, Special design for sift out device of medicine powder and capsules , which can complete cleanout

within several minutes, according with requirement of GMP .

3, Be the same with recycling medicament for 00#-4#capsules.

4, Find and do with it at any moment ,avoid the medicine mixed that used to be collected deal with.

5, Increased work efficiency ,reduced labor cost , and increased produce benefit greatly , take the

whole processes more auto specification and more simplification.

6, Multifunctional type have two uses , the two functions of shelling board and opening capsules to

take medicine powder can be separate operated , take the extrude capsules open again , and carry

out the capsule shell and medicine powder separated and saved automatism.



4. Technical Parameters:



Machine Model	NQF-300
Production capacity	100-300 Caps/Min
Capsule Size	Suitable for capsule size 00#-4#
Power Supply	220V 50Hz 1A
Power output	0.38kw
Machine Size/N.W.	750mm×480mm×1500mm    Net Weight:130KG

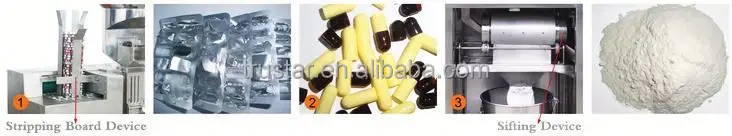

5. Process of  PVC/Alu Blister Deblistering Equipment
