fire resistant alu foil glassfibre fabric
- Category: Fireproofing Materials >>>
- Supplier: W.T Thermal Insulation Material Co. Ltd.
Share on (60193280459):
Product Overview
Description

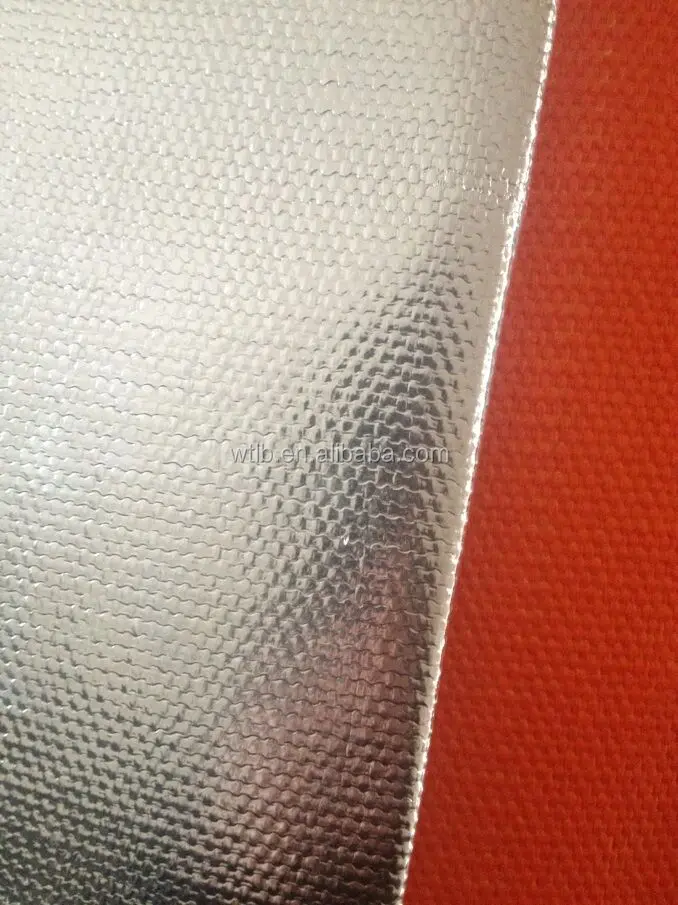

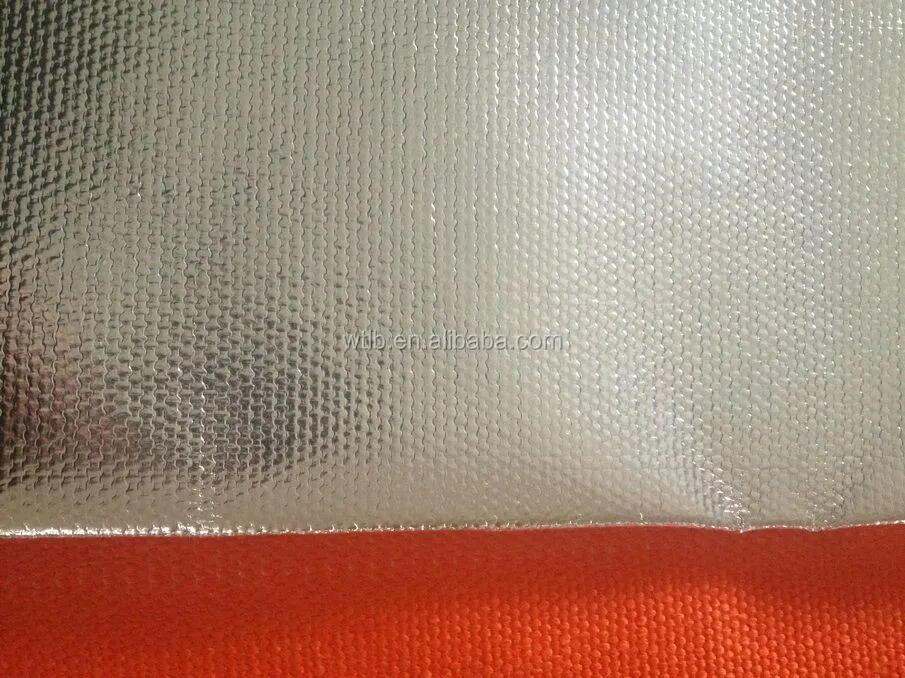

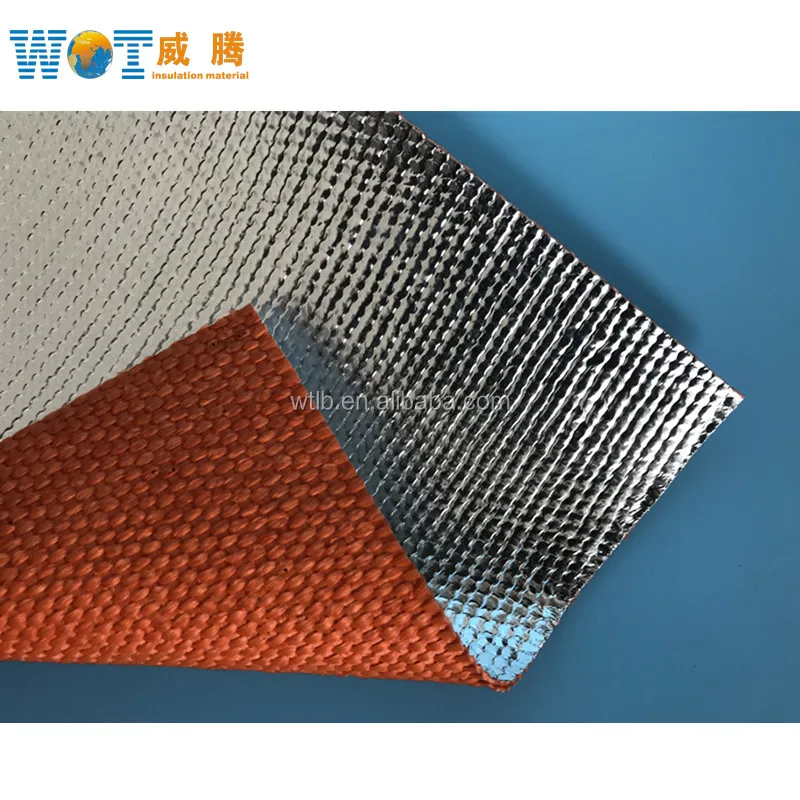

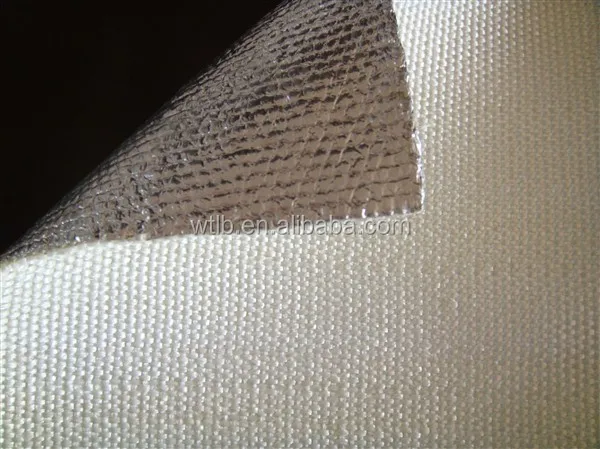

Aluminum foil coated fiberglass cloth
1.Structure:radiant barrier aluminum foil+adhesive+fiberglass cloth
2.thickness:0.1~3mm
3.width:1m,1.2m,1.5m
2.thickness:0.1~3mm
3.width:1m,1.2m,1.5m
Besides,we also have aluminm foil varicosities series fiberglass:
Fabric weight:800g,1000g,1300g,1800g
Thickness:1mm,1.5mm,2mm,3mm
Ref. No. | Basic cloth | Thickness of Alu. foil (micron) | Overall Thickness (mm) | Weight (g/m2) | Width (meter) |
AL7628 | 7628 | 7,14,18 | 0.2 | 200 | 1,1.2 |
AL3732 | 3732 | 7,14,18 | 0.45 | 430 | 1 |
AL666 | 666 | 7,14,18,25 | 0.7 | 700 | 1,1.5 |
ALFW600 | FW600 | 7,14,18,25 | 0.6 | 620 | 1,1.5 |
AL2025 | 2025 | 7,14,18,25 | 0.75 | 600 | 1,1.2,1.5 |
AL3784 | 3784 | 7,14,18,25 | 0.9 | 900 | 1, 1.5 |
ALM24 | M24 | 18,25 | 1 | 830 | 1,1.5 |
ALM30 | M30 | 18,25 | 1.5 | 1000 | 1,1.5 |
ALM33 | M33 | 18,25 | 2 | 1330 | 1,1.5 |
It is mainly used as the thermal insulating materials of steam heating pipelines, sound -proof materials in construction and protective layer of super glass wool with excellent functions of fire -resistant, anti-corrosion, heat isolation and sound absorbability. It can also be used as packing materials for the export equipment with the functions of damp proof, mildew proof, fire -existence and anticorrosion.
This cloth can be mainly used for wrapping materials of oil transportation pipelines and steam pipelines in petrochemical industry with the same effects as mentioned above.
Product:
aluminum foil fiberglass 110(110g/sqm,0.1mm):
aluminum foil fiberglass 7628(200g/sqm,0.2mm):
aluminum foil E-glass fiberglass 84215(300g/sqm,0.38mm):
aluminum foil fiberglass 3732(430g/sqm,0.4mm):
aluminum foil fiberglass FW600(600g/sqm,0.6mm):
aluminum foil E-glass fiberglass 2025(620g/sqm,0.7mm):
aluminum foil fiberglass 3784(880g/sqm,0.8mm):
aluminum foil fiberglass M30(1000g/sqm,1.5mm):
aluminum foil fiberglass M33(1330g/sqm,2mm):
Package:
