Z24 screw making machine cold heading machine

Product Overview

Description

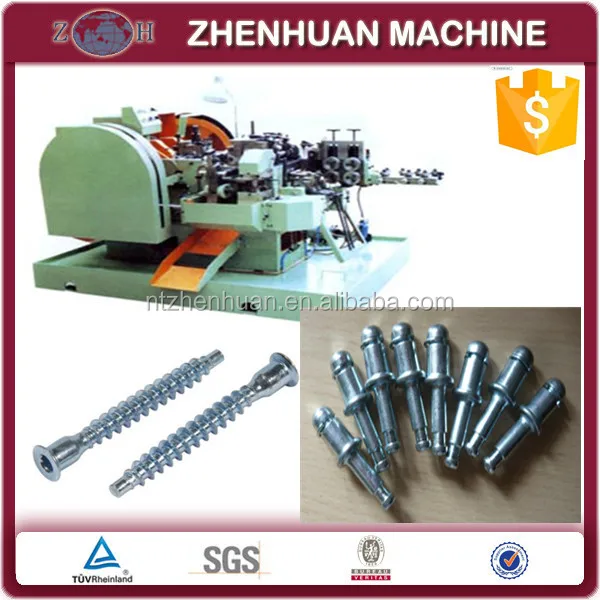

Screw Making machine



Double Molds Automatic Cold Heading Machine



I Description of screw making machine



This machine is making various screws and rivets, is suitable for batch production of screws and rivets.



II Main technical data of screw making machine

Item	Data
Machine code	Z24-8
Suitable screw diameter	6-9mm
Suitable screw length	8-100mm
Producing speed	About 48pcs/min
Diameter of main die	60mm
Diameter of stamping die	40mm
Machine dimension	3800mm x1670mm x 1900mm
Weight of machine	7500kg

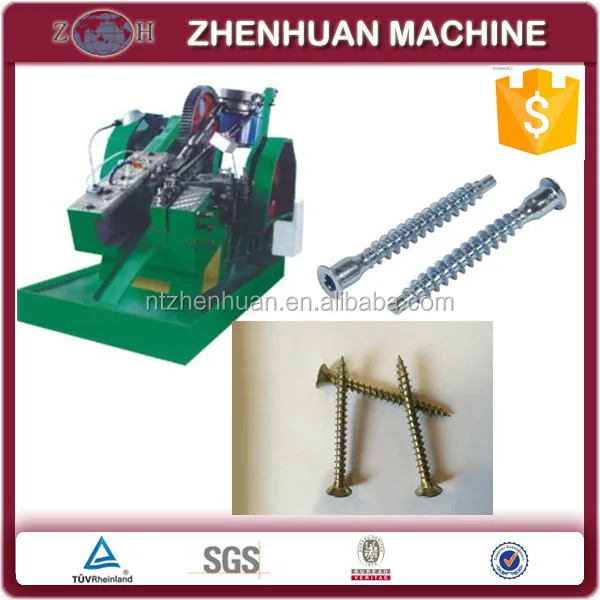

Thread Rolling Machine



I Description of the thread rolling machine

This machine is for rolling thread on screws.



II Main technical data of the thread rolling machine



Item	Data
Machine code	Z25-8
Max. screw diameter	8mm
Max. thread length	60mm
Producing speed	About 65 pcs/min
Main driving power	4kW
Weight of machine	1200kg







We are established on 2004, more than 10 years experiences on providing Screw Making Machine. We are certified by SGS, TUV and BV on our credit and profession.
