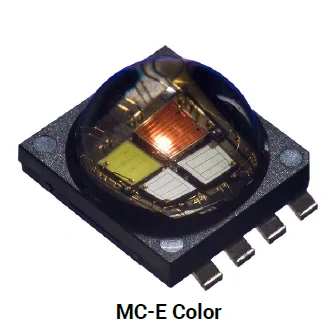

The XLamp^® MC-E LED is a lighting-class, multi-chip LED that provides high lumen output, color consistency and multi-color packaging flexibility in a small-footprint package. The XLamp^® MC-E LED is available with EasyWhite^® 2-step and 4-step bins, which improve LED-to-LED color consistency and reduce manufacturing complexity. Compared to discrete LEDs, XLamp^® MC-E LEDs reduce the distance between LED die, creating a small optical source for excellent optical control and efficient color mixing.

Specifications

Product Description

The XLamp® MC-E LED is a family of
lighting-class, multi-chip LEDs that
provides high lumen output in a small
package. Compared to discrete LEDs,
XLamp MC-E LEDs reduce the distance
between LED die, creating a small optical
source for excellent optical control and
efficient color mixing. XLamp MC-E LEDs
can reduce LED system complexity by
reducing the number of components
required.
Cree XLamp LEDs bring high
performance and quality of light to a wide
range of lighting applications, including
color-changing lighting, portable and
personal lighting, outdoor lighting, indoor
directional lighting, and entertainment
lighting.

FEATURES

• Available in white (2600 K –
10,000 K CCT), EasyWhite®,
Dynamic White, or color (RGBW)
• ANSI-compatible neutral & warm
white chromaticity bins
• Individually addressable LEDs
• MC-E Dynamic White LEDs have
two cool-white (6500 K) and two
warm-white (2700 K) LED die
• MC-E EasyWhite LEDs available in
2- and 4-step bins, up to 85 CRI
• Maximum drive current: 700 mA per
LED die
• Reflow solderable – JEDEC
J-STD-020
• Electrically neutral thermal path
• RoHS and REACh compliant
• UL® recognized component
(E349212)

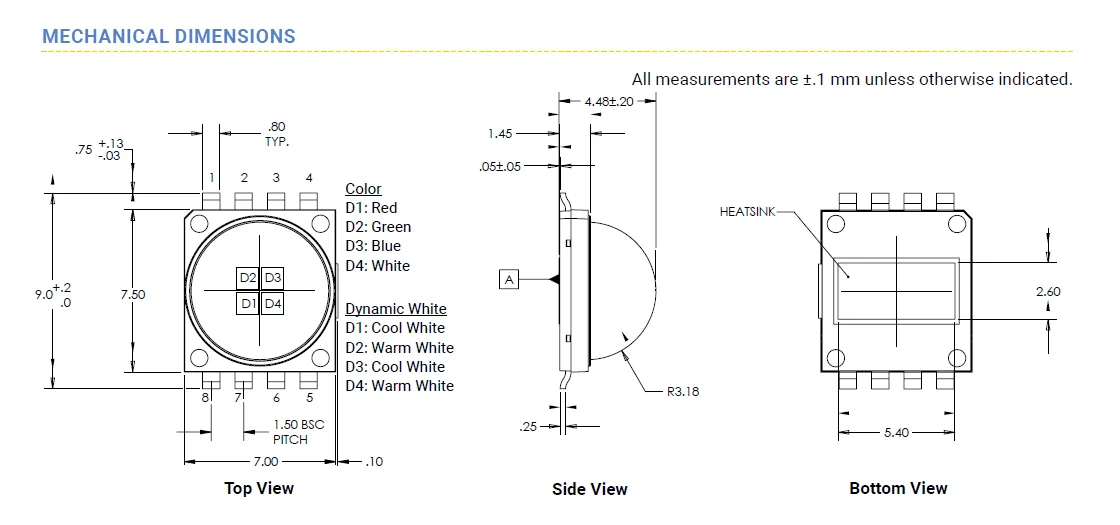

More Details

Charac teristics - Per LED Die (Color)

The following table lists the product characteristics for each LED die within the XLamp MC-E Color LED package.

Flux Characteristics - White, Dynamic White, Color (TJ = 25 °C)
The following table provides several base order codes for XLamp MC-E LEDs. It is important to note that the base order codes listed here
are a subset of the total available order codes for the product family. For more order codes, as well as a complete description of the ordercode
nomenclature, please consult the XLamp MC-E LED Binning and Labeling document.

Notes:
• Cree maintains a tolerance of ±7% on flux and power measurements, ±0.005 on chromaticity (CCx, CCy) measurements, ±2 on CRI
measurements and ± 1 nm on dominant wavelength measurements. See the Measurements section (page 10).
• Typical CRI for cool white and neutral white (3700 K - 10,000 K CCT) is 75.
• Typical CRI for warm white (2600 K - 3700 K CCT) is 80.
* Flux and chromaticity are measured with each LED die connected to independent drive circuits at 350 mA. The flux and chromaticity
of XLamp MC-E White LED are measured with all LEDs lit simultaneously. The flux and color of each LED in XLamp MC-E Dynamic
White and MC-E Color LEDs are measured individually.

Applications

Directional---Cree LED products are optimized for directional indoor-lighting applications, including MR & PAR LED replacement lamps, accent lighting, track lighting and spot lights.

Entertainment---Cree color LEDs are optimized for entertainment lighting, including studio and stage lighting.

Vehicle---Cree color LEDs are optimized for transportation lighting, including emergency-vehicle lighting.
