HDPE Pipe Extrusion Machine

Description:

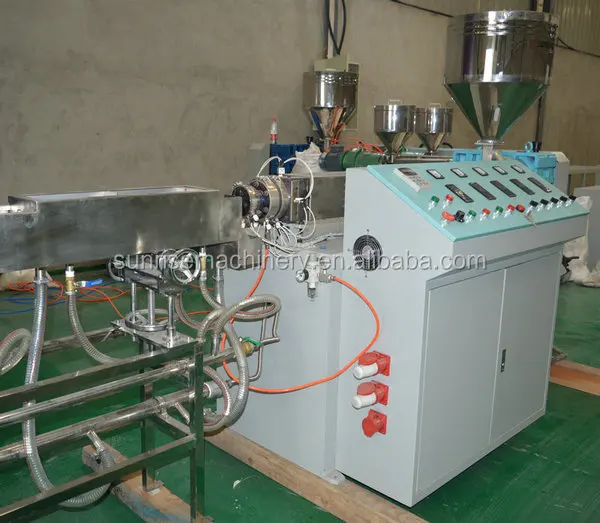

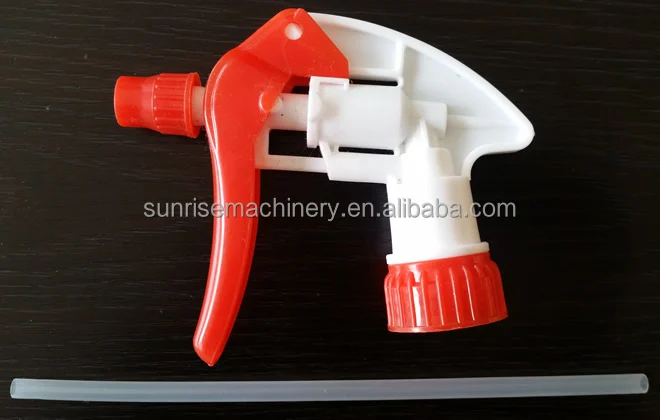

The plant are comprised by single colour extruder,air compressor , water cooling bath,hauling & cutting unit. Suitable to produce the sprayer pipe.



Characteristics:

1Colours: Single colour.

2Cut-end:90°/90°

3All the direct contact parts are made of stainless steel.

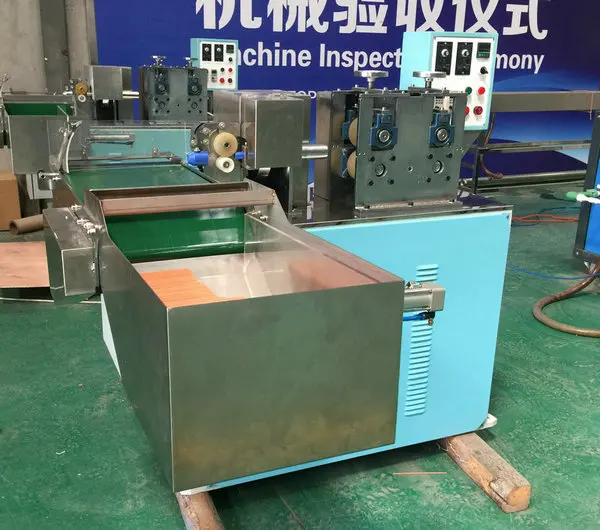

4The cutting unit adopted the big plate cutter and with automatic gathering system.

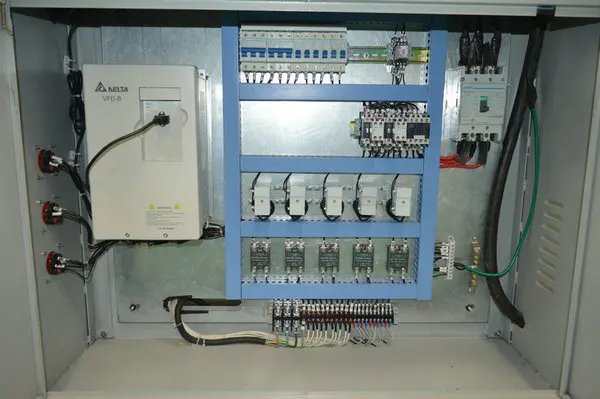

5The breaker ,AC contactor and knob switch brand is SCHNEIDER

6The inverter brand is DELTA



Colour	Single

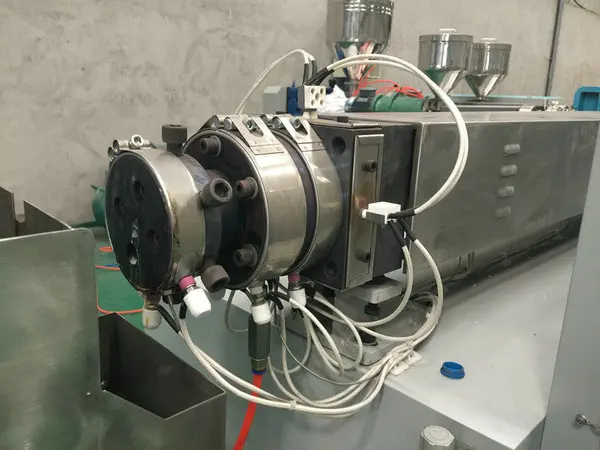

Diameter of screw:	55mm
L:D	28:1
Max. extrusion capacity	40kgs/h
Material	HDPE
Specification of straw	Diameter.:2-7mm
	Length tolerance:± 0.1 -1mm
	Thickness:0.05-1mm
Stick length	110-150mm
Power of extruder	15kw,380v,50hz,3phase(standard power)
Water cooling bath with forming parts(Option N)	Length of water cooling bath:9600mm
Hauling & cutting unit & stacker (Option B)	0.75kw,380v,50hz

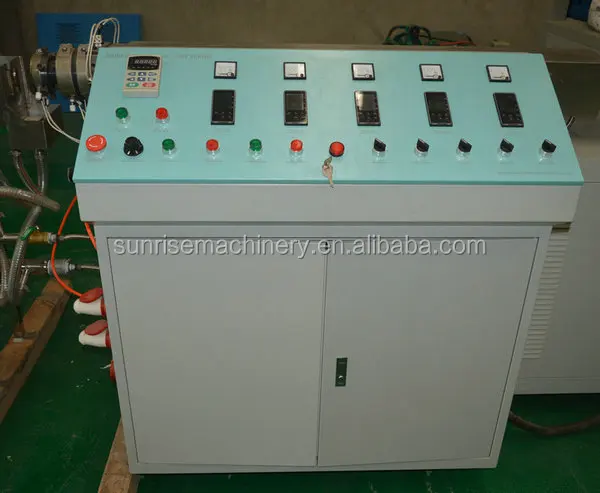

Temperature controlling	5 sections

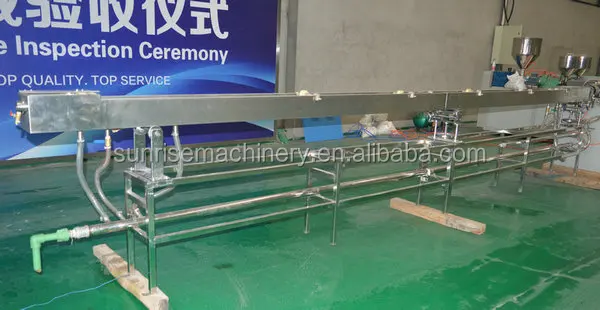

Water cooling bath 9000MM:





Air compressor
