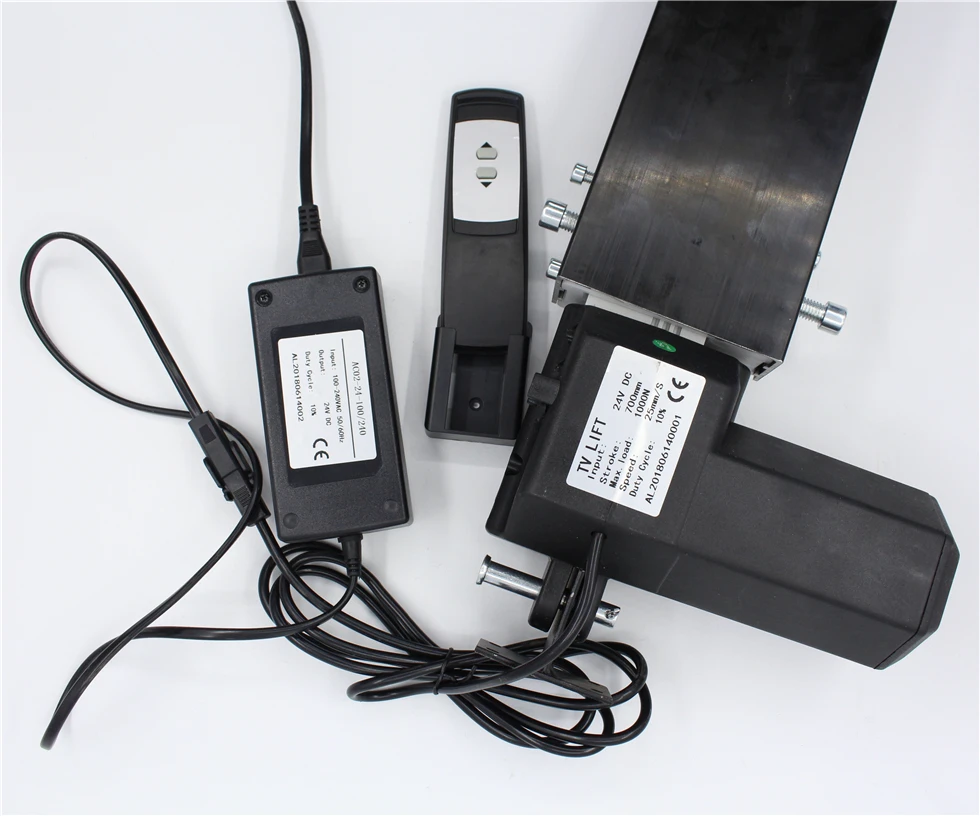

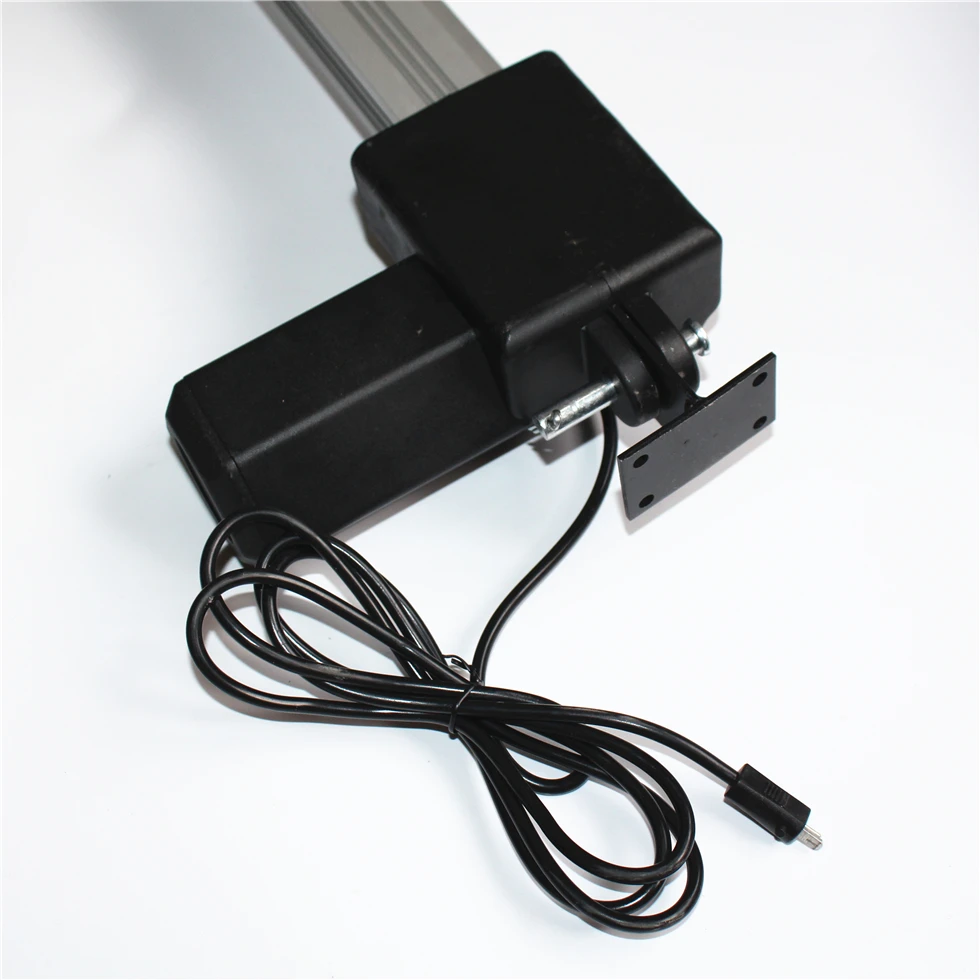

Micro Motor Type 200kg Max Weight lift 24vdc linear actuator motor

Product Overview

Description

Linear Actuator





1. Input Voltage:12VDC or 24VDC
2.Max,Load:6000N
3.Standard Stroke:100/150/200/250/300/350/400mm can produce as your request.
4.Speed:4-35mm/s.
5.Duty Cycle:10%,work 2 minutes need to rest 18 minutes

6.Ambient Temperature:-25°C to+65°C
7. IP Grade:IP44
8. Built-in integral limit switch, not adjustable after leaving factory
9. Low noise design,dB≤50
10. Min.install size: stroke+157mm
11. Certificates:CE&RoHS



  lineaaritoimilaitteella  linijine pavara    lineær aktuator  attuatore lineare  silownik  lineaire actuator  Linearantrieb  lineární pohon





 Model Introductions:

Drawing(mm):

Graph of Relation:

















Application Fields

• WINDOW OPENER


• ELECTRIC DENTAL CHAIR


• ELECTRIC TRACTION TABLE


• ELECTRIC SOFA


• ELECTRIC NURSING BED


• MASSAGE CHAIR


• ELECTRIC SANITATION VEHICLE


• SOLAR TRACKER MOUNTING


• LCD TV BRACKET


• ELECTRICALLY LEISURE SOFA


• ELECTRIC ELEVATING STAGE


• ELECTRIC OPERATING TABLE
